Pulse Electronics Corporation
- Pulse Electronics is the electronic components partner that helps customers build the next great product by providing the needed technical solutions. Pulse has a long operating history of innovation in magnetics, antennas and connectors, as well as the ability to ramp quickly into high-quality, high-volume production. The Company serves the wireless and wireline communications, power management, military/aerospace and automotive industries. Previously, the holding and operating companies were known as Technitrol, Inc. and Pulse Engineering, respectively. Pulse is a participating member of IEEE, ATIS, ETSI, HDMI, the DSL Forum, CommNexus, and MoCA.
Part Number
Manufacturer
Description
Unit Price
In Stock
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Series : International High Power
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 14V, Series 28V
Current - Output (Max) : Parallel 5.6A, Series 2.8A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 80 VA
Mounting Type : Chassis Mount
Termination Style : Solder, Quick Connect
Size / Dimension : 63.50mm L x 77.47mm W
Height - Seated (Max) : 60.32mm
Voltage - Isolation : -
Weight : 2.8 lbs (1.3kg)
0
100 in stock
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Series : International High Power
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 4.4A, Series 2.2A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 80 VA
Mounting Type : Chassis Mount
Termination Style : Solder, Quick Connect
Size / Dimension : 63.50mm L x 77.47mm W
Height - Seated (Max) : 60.32mm
Voltage - Isolation : -
Weight : 2.8 lbs (1.3kg)
0
100 in stock

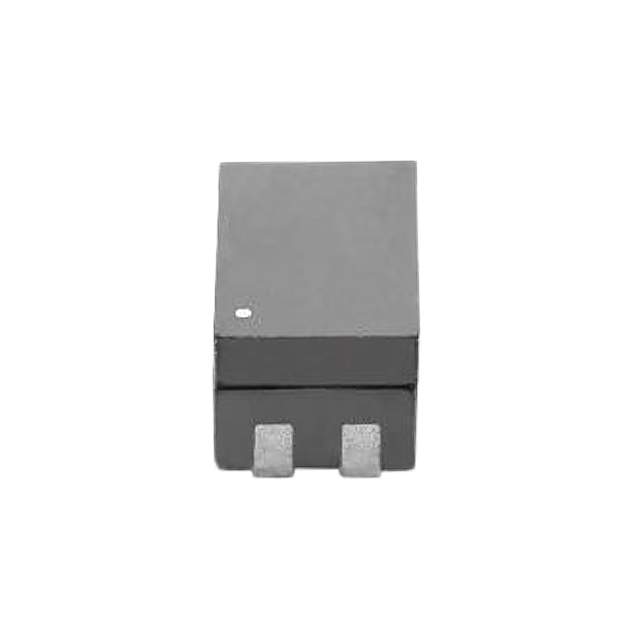

Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 160µH @ 100kHz
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 5 Ohm
Voltage Rating - DC : 60V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max) : 0.116" (2.95mm)
Package / Case : Horizontal, 4 PC Pad
0
6414 in stock
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 100µH @ 100kHz
Current Rating (Max) : 100mA
DC Resistance (DCR) (Max) : 4.2 Ohm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max) : 0.116" (2.95mm)
Package / Case : Horizontal, 4 PC Pad
0
4090 in stock

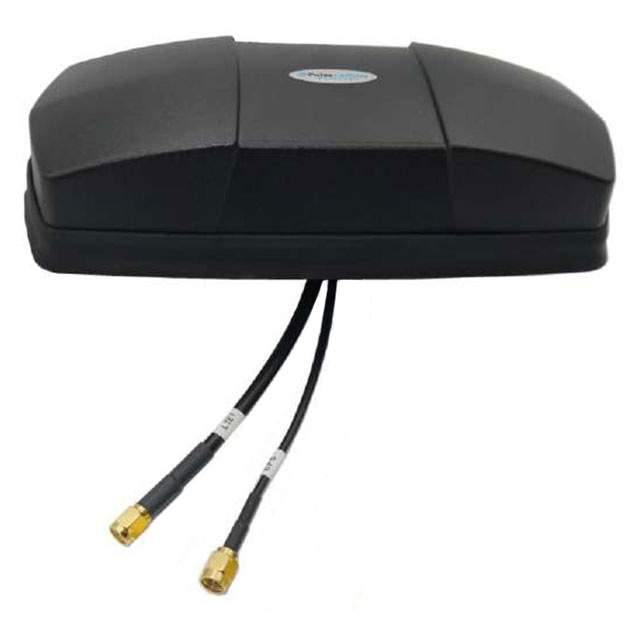

Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Bulk
Series : ARMADILLO
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 829MHz, 1.582GHz, 2.2GHz
Frequency Range : 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz
Antenna Type : Module
Number of Bands : 2
VSWR : 2, 2.5
Return Loss : -
Gain : 4.6dBi, 4.9dBi, 5.3dBi, 6.6dBi
Power - Max : -
Features : LNA
Termination : Cable (5.18M) - SMA Male (2)
Ingress Protection : IP67
Mounting Type : Adhesive, Magnetic
Height (Max) : 1.772" (45.00mm)
Applications : General Purpose
0
5 in stock

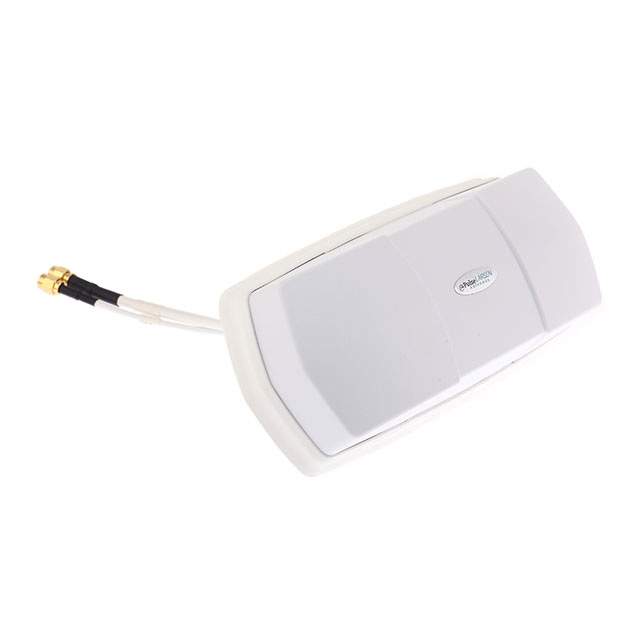

Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Bulk
Series : ARMADILLO
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 829MHz, 1.582GHz, 2.2GHz
Frequency Range : 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz
Antenna Type : Module
Number of Bands : 2
VSWR : 2, 2.5
Return Loss : -
Gain : 4.6dBi, 4.9dBi, 5.3dBi, 6.6dBi
Power - Max : -
Features : LNA
Termination : Cable (5.18M) - SMA Male (2)
Ingress Protection : IP67
Mounting Type : Adhesive, Magnetic
Height (Max) : 1.772" (45.00mm)
Applications : General Purpose
0
6 in stock

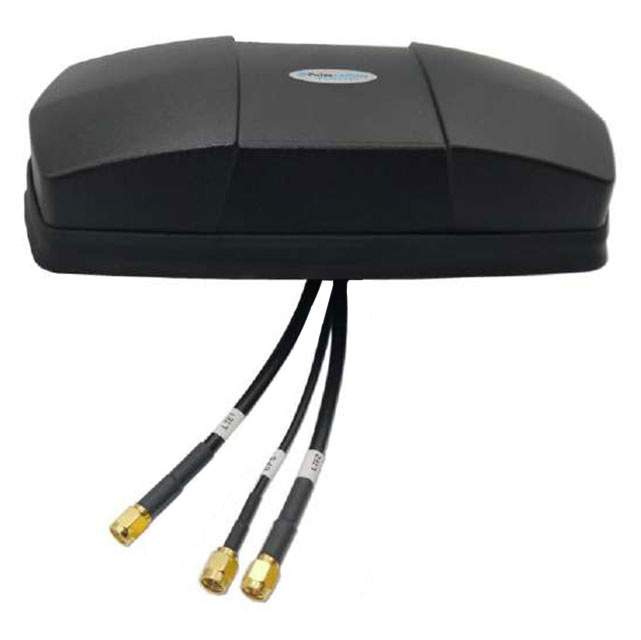

Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Bulk
Series : ARMADILLO
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 829MHz, 1.582GHz, 2.2GHz
Frequency Range : 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz
Antenna Type : Module
Number of Bands : 3
VSWR : 2, 2.5
Return Loss : -
Gain : 4.9dBi, 5.3dBi, 4.6dBi, 6.6dBi
Power - Max : -
Features : LNA
Termination : Cable (5.18M) - SMA Male (3)
Ingress Protection : IP67
Mounting Type : Panel Mount
Height (Max) : 1.772" (45.00mm)
Applications : GPS, LTE
0
6 in stock
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Bulk
Series : ARMADILLO
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 829MHz, 1.582GHz, 2.2GHz
Frequency Range : 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz
Antenna Type : Module
Number of Bands : 3
VSWR : 2, 2.5
Return Loss : -
Gain : 4.9dBi, 5.3dBi, 4.6dBi, 6.6dBi
Power - Max : -
Features : LNA
Termination : Cable (5.18M) - SMA Male (3)
Ingress Protection : IP67
Mounting Type : Panel Mount
Height (Max) : 1.772" (45.00mm)
Applications : GPS, LTE
0
6 in stock

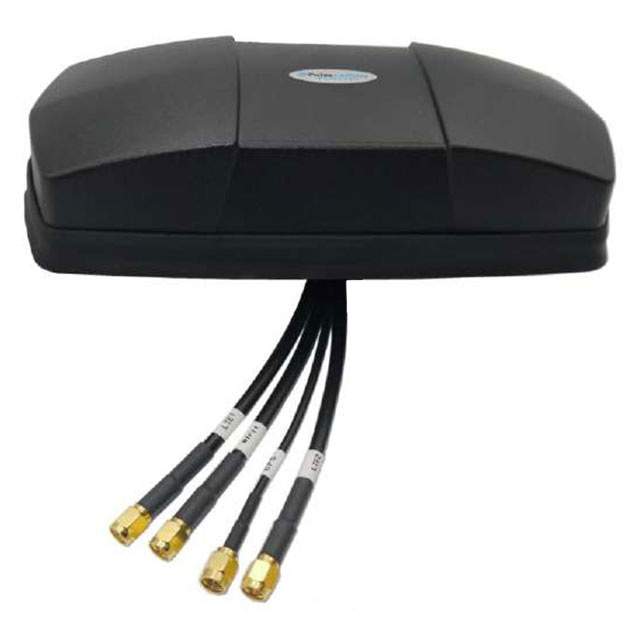

Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Bulk
Series : ARMADILLO
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 829MHz, 1.582GHz, 2.2GHz 2.45GHz, 5.537GHz
Frequency Range : 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz
Antenna Type : Module
Number of Bands : 4
VSWR : 2, 2.5
Return Loss : -
Gain : 4.6dBi, 5.1dBi, 4.9dBi, 7.9dBi
Power - Max : -
Features : LNA
Termination : Cable (5.18M) - SMA Male (3), RP-SMA Male (1)
Ingress Protection : IP67
Mounting Type : Adhesive
Height (Max) : 1.772" (45.00mm)
Applications : GPS, LTE, Wi-Fi
0
6 in stock

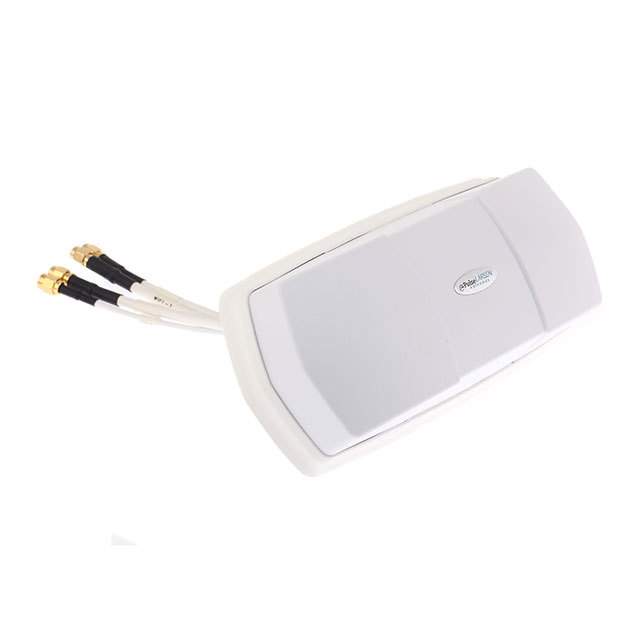

Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Bulk
Series : ARMADILLO
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 829MHz, 1.582GHz, 2.2GHz 2.45GHz, 5.537GHz
Frequency Range : 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz
Antenna Type : Module
Number of Bands : 4
VSWR : 2, 2.5
Return Loss : -
Gain : 4.9dBi, 5.3dBi, 4.6dBi, 6.6dBi
Power - Max : -
Features : LNA
Termination : Cable (5.18M) - SMA Male (3), RP-SMA Male (1)
Ingress Protection : IP67
Mounting Type : Panel Mount
Height (Max) : 1.772" (45.00mm)
Applications : GPS, LTE, Wi-Fi
0
6 in stock
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Bulk
Series : ARMADILLO
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 829MHz, 1.582GHz, 2.2GHz 2.45GHz, 5.537GHz
Frequency Range : 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz
Antenna Type : Module
Number of Bands : 4
VSWR : 2, 2.5
Return Loss : -
Gain : 4.6dBi, 5.1dBi, 4.9dBi, 7.9dBi
Power - Max : -
Features : LNA
Termination : Cable (5.18M) - SMA Male (3), RP-SMA Male (1)
Ingress Protection : IP67
Mounting Type : Adhesive
Height (Max) : 1.772" (45.00mm)
Applications : GPS, LTE, Wi-Fi
0
6 in stock
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Bulk
Series : ARMADILLO
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 829MHz, 1.582GHz, 2.2GHz 2.45GHz, 5.537GHz
Frequency Range : 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz
Antenna Type : Module
Number of Bands : 4
VSWR : 2, 2.5
Return Loss : -
Gain : 4.9dBi, 5.3dBi, 4.6dBi, 6.6dBi
Power - Max : -
Features : LNA
Termination : Cable (5.18M) - SMA Male (3), RP-SMA Male (1)
Ingress Protection : IP67
Mounting Type : Panel Mount
Height (Max) : 1.772" (45.00mm)
Applications : GPS, LTE, Wi-Fi
0
6 in stock
