PUI Audio, Inc.
- PUI Audio, Inc. is a leading developer, manufacturer and supplier of quality audio devices and components including buzzers, alerts and transducers. Corporate offices, product development, engineering, sales and customer service are located in Dayton, Ohio.
Our growth and product innovation are the results of listening to our customers. With an extensive network of sales representatives, agents and distributors, we provide products and services throughout the world.
Whether your needs are for an off-the-shelf product or a custom design, Projects Unlimited has your sound solution.
Part Number
Manufacturer
Description
Unit Price
In Stock
PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Series : -
Part Status : Active
Amplifier Type : Class D
Output Type : 1-Channel (Mono) or 2-Channel (Stereo)
Max Output Power x Channels @ Load : 15W x 2 @ 8 Ohm
Voltage - Supply : 9.5 V ~ 20 V
Board Type : Fully Populated
Utilized IC / Part : TPA3110D2
Supplied Contents : Board(s)
0
106 in stock
PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Bulk
Series : ANM
Part Status : Active
Type : Electret Condenser
Output Type : Analog
Direction : Noise Cancelling
Frequency Range : 50Hz ~ 16kHz
Sensitivity : -54dB ±4dB
S/N Ratio : 60dB
Impedance : 680 Ohms
Voltage - Rated : 1.5V
Voltage Range : 1.5V ~ 10V
Current - Supply : 500µA
Port Location : Top
Ratings : -
Termination : Solder Pads
Size / Dimension : 0.382" Dia (9.70mm)
Height (Max) : 0.213" (5.40mm)
Shape : Circular
0
12126 in stock
PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Bulk
Series : AOM
Part Status : Active
Type : Electret Condenser
Output Type : Analog
Direction : Omnidirectional
Frequency Range : 50Hz ~ 16kHz
Sensitivity : -44dB ±2dB
S/N Ratio : 60dB
Impedance : 2.2 kOhms
Voltage - Rated : 1.5V
Voltage Range : 1.5V ~ 10V
Current - Supply : 500µA
Port Location : Top
Ratings : -
Termination : PC Pins
Size / Dimension : 0.382" Dia (9.70mm)
Height (Max) : 0.185" (4.70mm)
Shape : Circular
0
29966 in stock
PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Bulk
Series : AOM
Part Status : Active
Type : Electret Condenser
Output Type : Analog
Direction : Omnidirectional
Frequency Range : -
Sensitivity : -44dB ±2dB
S/N Ratio : 60dB
Impedance : 2.2 kOhms
Voltage - Rated : 3V
Voltage Range : 3V ~ 10V
Current - Supply : 500µA
Port Location : Top
Ratings : -
Termination : PC Pins
Size / Dimension : 0.382" Dia (9.70mm)
Height (Max) : 0.185" (4.70mm)
Shape : Circular
0
1056 in stock
PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Bulk
Series : API
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : 7 ~ 24V
Frequency : 3.05kHz
Technology : Piezo
Operating Mode : Programmable, USB
Duration : Variable
Sound Pressure Level (SPL) : 100dB @ 12V, 10cm
Current - Supply : 350mA
Port Location : Top
Operating Temperature : -20°C ~ 60°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount, Flange
Termination : Wire Leads
Size / Dimension : 1.654" Dia (42.00mm)
Height - Seated (Max) : 1.004" (25.50mm)
0
251 in stock

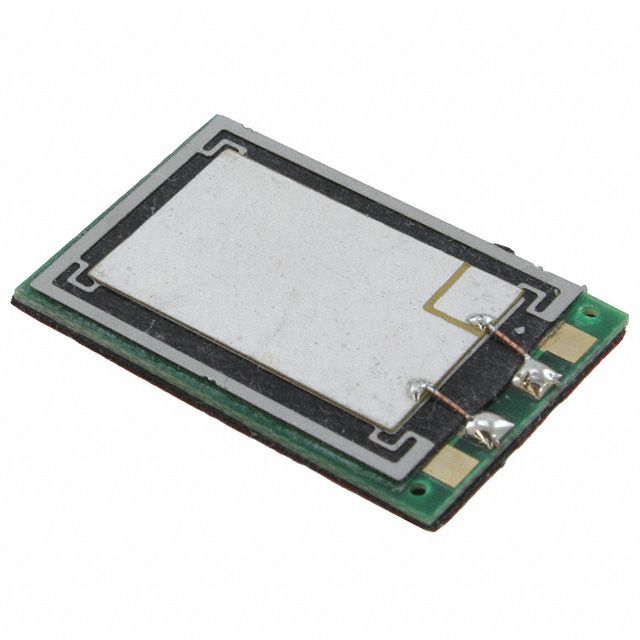

PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Tray
Series : APS
Part Status : Active
Technology : Piezo
Type : General Purpose
Frequency Range : 300Hz ~ 20kHz
Frequency Range : 300Hz ~ 20kHz
Frequency - Self Resonant : 1300Hz
Impedance : 3 Ohms
Efficiency - dBA : 83.00
Efficiency - Testing : 50mm
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : -
Power - Max : -
Port Location : Top
Shape : Rectangular
Material - Cone : -
Material - Magnet : -
Ingress Protection : -
Ratings : -
Termination : Solder Pads
Size / Dimension : 0.992" L x 0.654" W (25.20mm x 16.60mm)
Height - Seated (Max) : 0.059" (1.50mm)
0
4971 in stock
PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Tray
Series : APS
Part Status : Active
Technology : Piezo
Type : General Purpose
Frequency Range : 300Hz ~ 20kHz
Frequency Range : 300Hz ~ 20kHz
Frequency - Self Resonant : 800Hz
Impedance : -
Efficiency - dBA : 80.00
Efficiency - Testing : 100mm
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : -
Power - Max : -
Port Location : Top
Shape : Rectangular
Material - Cone : -
Material - Magnet : -
Ingress Protection : -
Ratings : -
Termination : Solder Pads
Size / Dimension : 1.181" L x 0.787" W (30.00mm x 20.00mm)
Height - Seated (Max) : 0.079" (2.00mm)
0
56012 in stock
PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Series : APS
Part Status : Active
Frequency : 1.2kHz
Voltage - Input (Max) : 30V p-p
Type : Standard
Impedance : 3.5 kOhms
Capacitance @ Frequency : 65000pF @ 1kHz
Operating Temperature : -20°C ~ 70°C
Size / Dimension : 1.969" Dia (50.00mm)
Termination : Wire Leads
0
1833 in stock
PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : -
Series : AR
Part Status : Active
Technology : Magnetic
Type : Receiver
Frequency Range : 300Hz ~ 7kHz
Frequency Range : 300Hz ~ 7kHz
Frequency - Self Resonant : 450Hz
Impedance : 32 Ohms
Efficiency - dBA : 116.00
Efficiency - Testing : -
Efficiency - Type : Sensitivity
Power - Rated : 20mW
Power - Max : 30mW
Port Location : Top
Shape : Rectangular
Material - Cone : Polyimide (PI)
Material - Magnet : Nd-Fe-B
Ingress Protection : IP67 - Dust Tight, Waterproof
Ratings : -
Termination : Spring Type
Size / Dimension : 0.472" L x 0.236" W (12.00mm x 6.00mm)
Height - Seated (Max) : 0.079" (2.00mm)
0
628 in stock

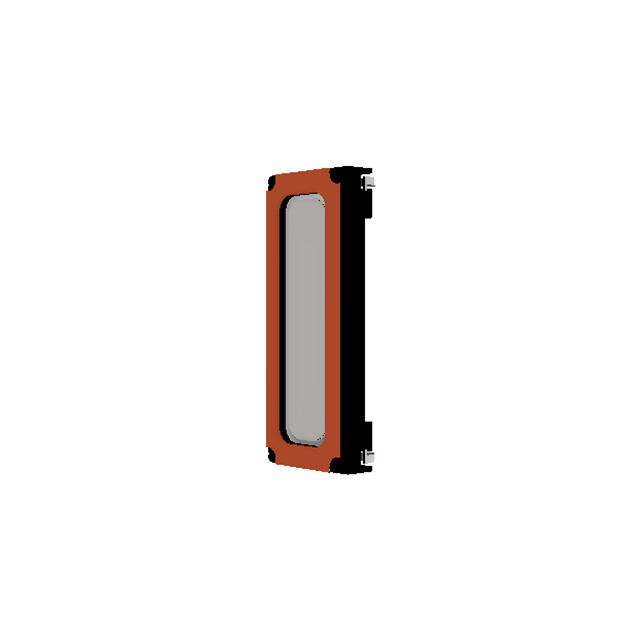

PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : -
Series : AR
Part Status : Active
Technology : Magnetic
Type : Receiver
Frequency Range : 300Hz ~ 7kHz
Frequency Range : 300Hz ~ 7kHz
Frequency - Self Resonant : 400Hz
Impedance : 32 Ohms
Efficiency - dBA : 108.00
Efficiency - Testing : -
Efficiency - Type : Sensitivity
Power - Rated : 20mW
Power - Max : 30mW
Port Location : Top
Shape : Rectangular
Material - Cone : Polyimide (PI)
Material - Magnet : Nd-Fe-B
Ingress Protection : IP67 - Dust Tight, Waterproof
Ratings : -
Termination : -
Size / Dimension : 0.591" L x 0.236" W (15.00mm x 6.00mm)
Height - Seated (Max) : 0.079" (2.00mm)
0
976 in stock

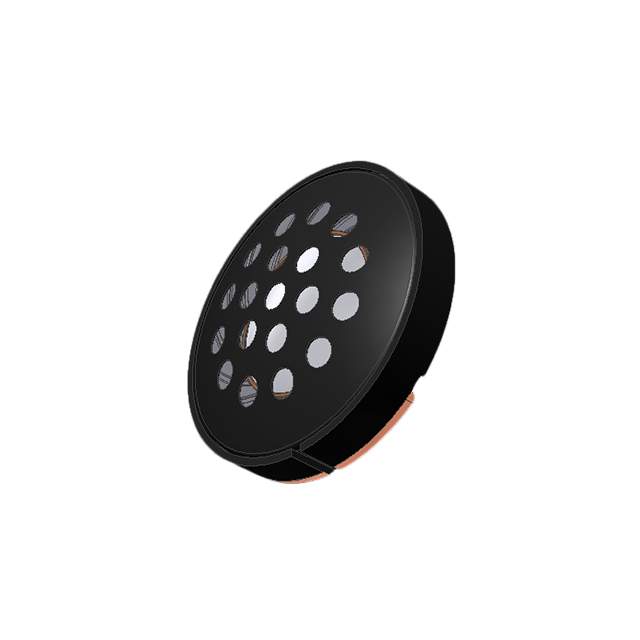

PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Tray
Series : -
Part Status : Active
Technology : Magnetic
Type : Receiver
Frequency Range : 20Hz ~ 10kHz
Frequency Range : 20Hz ~ 10kHz
Frequency - Self Resonant : 150Hz
Impedance : 150 Ohms
Efficiency - dBA : 118.00
Efficiency - Testing : 1mW
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 15mW
Power - Max : 30mW
Port Location : Top
Shape : Round
Material - Cone : Polyester, Polyethylene Terephthalate (PET)
Material - Magnet : Nd-Fe-B
Ingress Protection : -
Ratings : -
Termination : Solder Pads
Size / Dimension : 1.055" Dia (26.80mm)
Height - Seated (Max) : 0.315" (8.00mm)
0
1212 in stock
PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Tray
Series : AS
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 1.2kHz ~ 20kHz
Frequency Range : 1.2kHz ~ 20kHz
Frequency - Self Resonant : 1200Hz
Impedance : 8 Ohms
Efficiency - dBA : 86.00
Efficiency - Testing : 300mW/100mm
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 300mW
Power - Max : 500mW
Port Location : Top
Shape : Round
Material - Cone : Polyester, Polyethylene Terephthalate (PET)
Material - Magnet : Nd-Fe-B
Ingress Protection : -
Ratings : -
Termination : Solder Pads
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.114" (2.90mm)
0
154 in stock
