Preci-Dip

- Preci-Dip packs unequaled expertise into cutting-edge interconnect components. Leveraging advanced designs, and top materials, with incomparable Swiss precision,Preci-Dip’s precision tools and contact assembly machines are developed, designed, and produced with passion and expertise. These experts put the principle of vertical single-site command structure put into practice - monitoring each step from raw material to finished product.


Part Number

Manufacturer

Description

Unit Price

In Stock

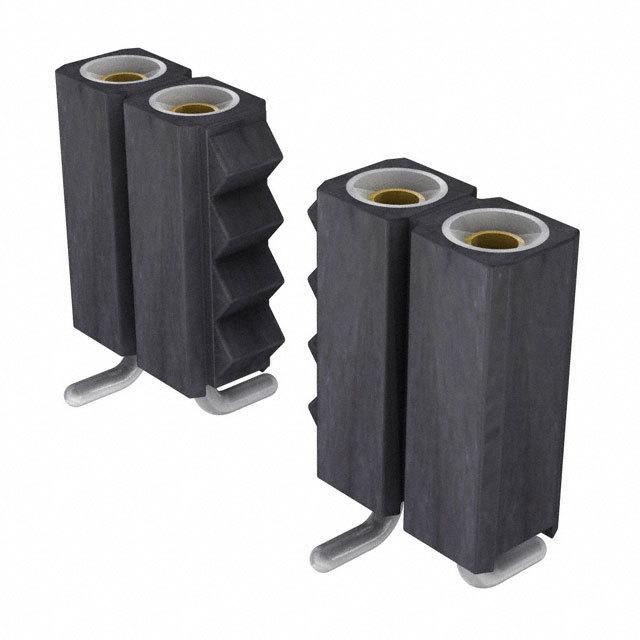

801-87-050-30-001101

Preci-Dip

Manufacturer : Preci-Dip
Packaging : Bulk
Series : 801
Part Status : Active
Connector Type : Socket
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 50
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Insulation Color : Black
Insulation Height : 0.339" (8.61mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -

69 in stock

801-87-050-40-001101

Preci-Dip

Manufacturer : Preci-Dip
Packaging : Bulk
Series : 801
Part Status : Active
Connector Type : Socket
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 50
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Insulation Color : Black
Insulation Height : 0.100" (2.54mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -

104 in stock

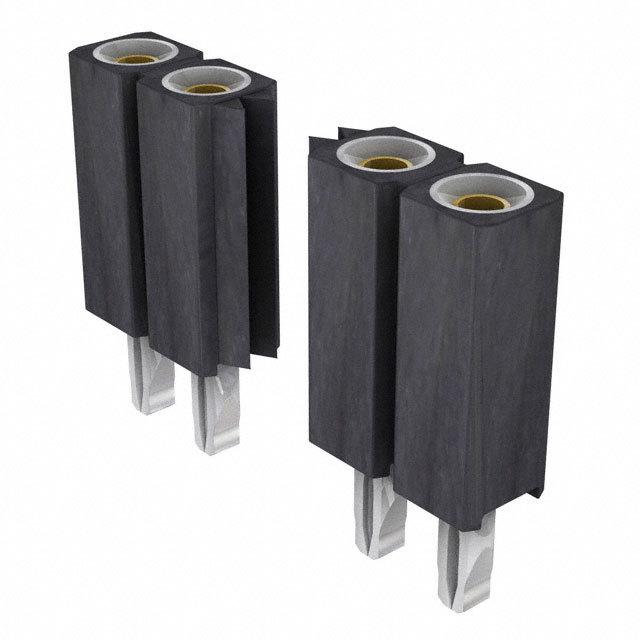

801-87-050-66-001101

Preci-Dip

Manufacturer : Preci-Dip
Packaging : Bulk
Series : 801
Part Status : Active
Connector Type : Socket
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 50
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Press-Fit, Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Insulation Color : Black
Insulation Height : 0.276" (7.00mm)
Contact Length - Post : 0.150" (3.81mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -

52 in stock

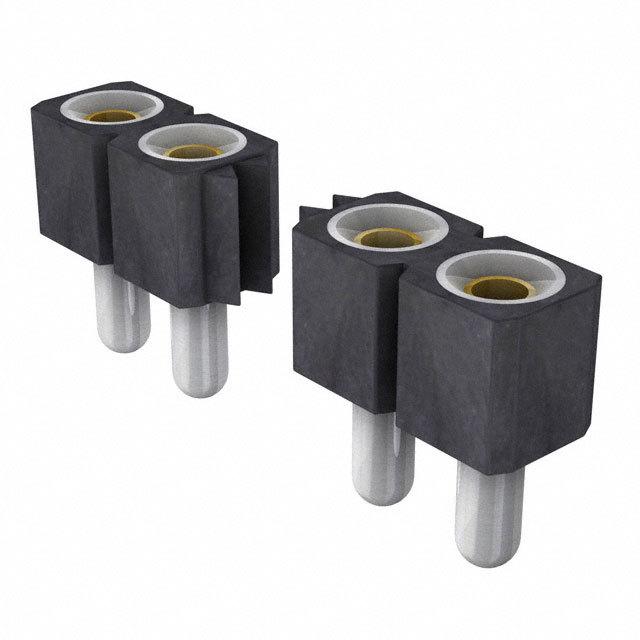

801-87-064-10-268101

Preci-Dip

Manufacturer : Preci-Dip
Packaging : Bulk
Series : 801
Part Status : Active
Connector Type : Socket
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 64
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Insulation Color : Black
Insulation Height : 0.116" (2.95mm)
Contact Length - Post : 0.108" (2.75mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -

41 in stock

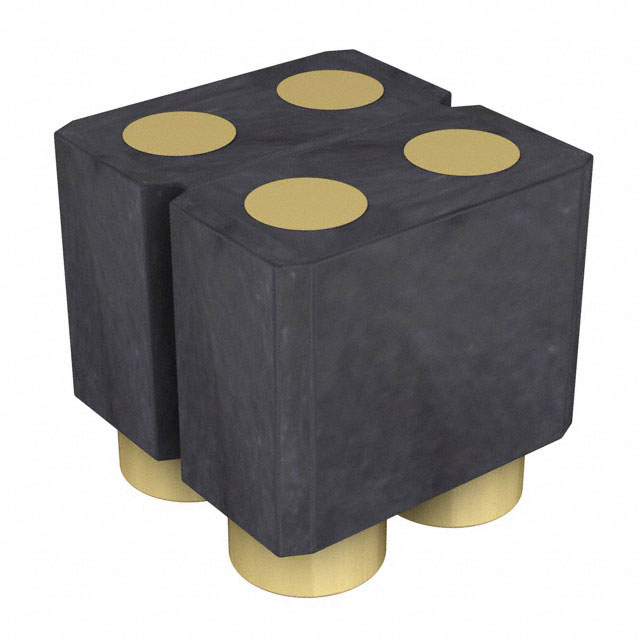

802-10-004-30-507101

Preci-Dip

Manufacturer : Preci-Dip
Packaging : Bulk
Series : 802
Part Status : Active
Connector Type : Mating Target
Number of Contacts : 4
Pitch : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing : 0.100" (2.54mm)
Mounting Type : Surface Mount
Material : Brass
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

234 in stock

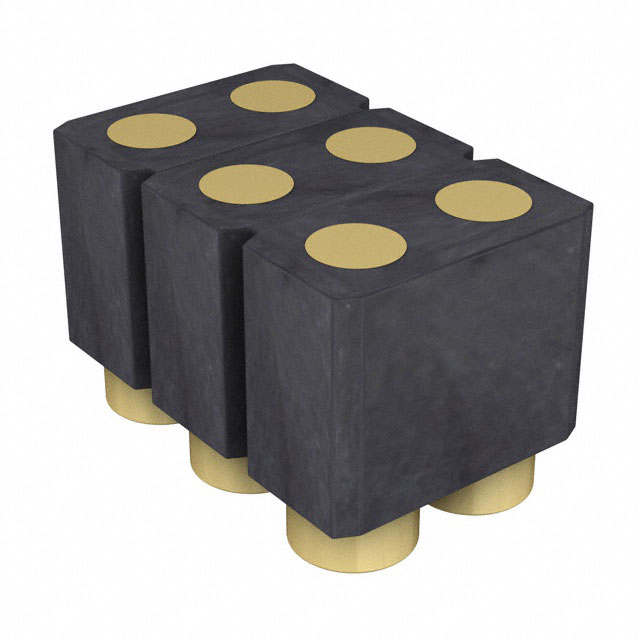

802-10-006-30-507101

Preci-Dip

Manufacturer : Preci-Dip
Packaging : Bulk
Series : 802
Part Status : Active
Connector Type : Mating Target
Number of Contacts : 6
Pitch : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing : 0.100" (2.54mm)
Mounting Type : Surface Mount
Material : Brass
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

833 in stock

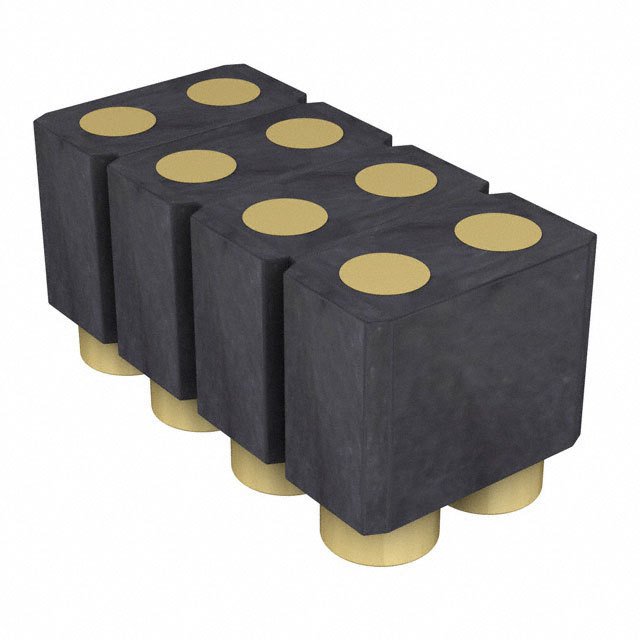

802-10-008-30-507101

Preci-Dip

Manufacturer : Preci-Dip
Packaging : Bulk
Series : 802
Part Status : Active
Connector Type : Mating Target
Number of Contacts : 8
Pitch : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing : 0.100" (2.54mm)
Mounting Type : Surface Mount
Material : Brass
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

366 in stock

802-10-010-10-002101

Preci-Dip

Manufacturer : Preci-Dip
Packaging : Bulk
Series : 802
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 10
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.141" (3.60mm)
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : 0.385" (9.77mm)
Insulation Height : 0.110" (2.79mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : 150VDC

97 in stock

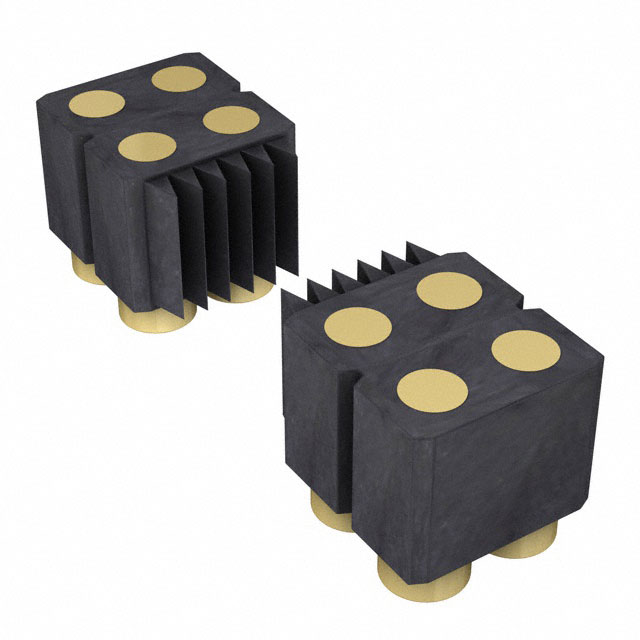

802-10-010-30-507101

Preci-Dip

Manufacturer : Preci-Dip
Packaging : Bulk
Series : 802
Part Status : Active
Connector Type : Mating Target
Number of Contacts : 10
Pitch : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing : 0.100" (2.54mm)
Mounting Type : Surface Mount
Material : Brass
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

1439 in stock

802-10-012-30-507101

Preci-Dip

Manufacturer : Preci-Dip
Packaging : Bulk
Series : 802
Part Status : Active
Connector Type : Mating Target
Number of Contacts : 12
Pitch : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing : 0.100" (2.54mm)
Mounting Type : Surface Mount
Material : Brass
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

573 in stock

802-10-014-30-507101

Preci-Dip

Manufacturer : Preci-Dip
Packaging : Bulk
Series : 802
Part Status : Active
Connector Type : Mating Target
Number of Contacts : 14
Pitch : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing : 0.100" (2.54mm)
Mounting Type : Surface Mount
Material : Brass
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

307 in stock

802-10-016-30-507101

Preci-Dip

Manufacturer : Preci-Dip
Packaging : Bulk
Series : 802
Part Status : Active
Connector Type : Mating Target
Number of Contacts : 16
Pitch : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing : 0.100" (2.54mm)
Mounting Type : Surface Mount
Material : Brass
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

250 in stock
