Part Number
Manufacturer
Description
Unit Price
In Stock
SID1132K
Power Integrations
Manufacturer : Power Integrations
Packaging : Tube
Alternate Packaging
Series : SCALE-iDriver™
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : -
Propagation Delay tpLH / tpHL (Max) : 340ns, 330ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 450ns, 450ns (Max)
Current - Output High, Low : 1.2A, 1.3A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 4.75 V ~ 5.25 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package : eSOP-R16B
Approvals : -
Packaging : Tube
Alternate Packaging
Series : SCALE-iDriver™
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : -
Propagation Delay tpLH / tpHL (Max) : 340ns, 330ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 450ns, 450ns (Max)
Current - Output High, Low : 1.2A, 1.3A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 4.75 V ~ 5.25 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package : eSOP-R16B
Approvals : -
0
1775 in stock
SID1132KQ
Power Integrations
Manufacturer : Power Integrations
Packaging : -
Series : Automotive, AEC-Q100, SCALE-iDriver™
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 50kV/µs (Typ)
Propagation Delay tpLH / tpHL (Max) : 340ns, 330ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 450ns, 450ns
Current - Output High, Low : 1.2A, 1.3A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 4.75 V ~ 5.25 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package : eSOP-R16B
Approvals : -
Packaging : -
Series : Automotive, AEC-Q100, SCALE-iDriver™
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 50kV/µs (Typ)
Propagation Delay tpLH / tpHL (Max) : 340ns, 330ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 450ns, 450ns
Current - Output High, Low : 1.2A, 1.3A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 4.75 V ~ 5.25 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package : eSOP-R16B
Approvals : -
0
240 in stock
SID1132KQ-TL
Power Integrations
Manufacturer : Power Integrations
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q100, SCALE-iDriver™
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 50kV/µs (Typ)
Propagation Delay tpLH / tpHL (Max) : 340ns, 330ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 450ns, 450ns
Current - Output High, Low : 1.2A, 1.3A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 4.75 V ~ 5.25 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package : eSOP-R16B
Approvals : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q100, SCALE-iDriver™
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 50kV/µs (Typ)
Propagation Delay tpLH / tpHL (Max) : 340ns, 330ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 450ns, 450ns
Current - Output High, Low : 1.2A, 1.3A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 4.75 V ~ 5.25 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package : eSOP-R16B
Approvals : -
0
1000 in stock
SID1132K-TL
Power Integrations
Manufacturer : Power Integrations
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SCALE-iDriver™
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : -
Propagation Delay tpLH / tpHL (Max) : 340ns, 330ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 450ns, 450ns (Max)
Current - Output High, Low : 1.2A, 1.3A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 4.75 V ~ 5.25 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package : eSOP-R16B
Approvals : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SCALE-iDriver™
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : -
Propagation Delay tpLH / tpHL (Max) : 340ns, 330ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 450ns, 450ns (Max)
Current - Output High, Low : 1.2A, 1.3A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 4.75 V ~ 5.25 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package : eSOP-R16B
Approvals : -
0
964 in stock
SID1152K
Power Integrations
Manufacturer : Power Integrations
Packaging : Tube
Alternate Packaging
Series : SCALE-iDriver™
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : -
Propagation Delay tpLH / tpHL (Max) : 340ns, 330ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 225ns, 225ns (Max)
Current - Output High, Low : 2.4A, 2.6A
Current - Peak Output : 5A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 4.75 V ~ 5.25 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package : eSOP-R16B
Approvals : -
Packaging : Tube
Alternate Packaging
Series : SCALE-iDriver™
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : -
Propagation Delay tpLH / tpHL (Max) : 340ns, 330ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 225ns, 225ns (Max)
Current - Output High, Low : 2.4A, 2.6A
Current - Peak Output : 5A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 4.75 V ~ 5.25 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package : eSOP-R16B
Approvals : -
0
1148 in stock
SID1152K-TL
Power Integrations
Manufacturer : Power Integrations
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SCALE-iDriver™
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : -
Propagation Delay tpLH / tpHL (Max) : 340ns, 330ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 225ns, 225ns (Max)
Current - Output High, Low : 2.4A, 2.6A
Current - Peak Output : 5A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 4.75 V ~ 5.25 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package : eSOP-R16B
Approvals : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SCALE-iDriver™
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : -
Propagation Delay tpLH / tpHL (Max) : 340ns, 330ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 225ns, 225ns (Max)
Current - Output High, Low : 2.4A, 2.6A
Current - Peak Output : 5A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 4.75 V ~ 5.25 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package : eSOP-R16B
Approvals : -
0
2994 in stock

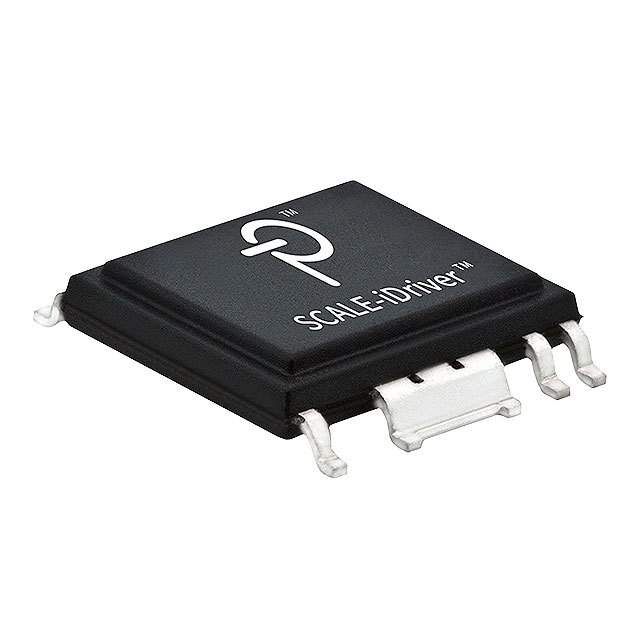

SID1182K
Power Integrations
Manufacturer : Power Integrations
Packaging : Tube
Alternate Packaging
Series : SCALE-iDriver™
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : -
Propagation Delay tpLH / tpHL (Max) : 340ns, 330ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 90ns, 81ns
Current - Output High, Low : 3.6A, 4A
Current - Peak Output : 8A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 4.75 V ~ 5.25 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package : eSOP-R16B
Approvals : -
Packaging : Tube
Alternate Packaging
Series : SCALE-iDriver™
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : -
Propagation Delay tpLH / tpHL (Max) : 340ns, 330ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 90ns, 81ns
Current - Output High, Low : 3.6A, 4A
Current - Peak Output : 8A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 4.75 V ~ 5.25 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package : eSOP-R16B
Approvals : -
0
563 in stock
SID1182KQ
Power Integrations
Manufacturer : Power Integrations
Packaging : -
Series : Automotive, AEC-Q100, SCALE-iDriver™
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 50kV/µs (Typ)
Propagation Delay tpLH / tpHL (Max) : 340ns, 330ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 150ns, 150ns
Current - Output High, Low : 3.6A, 4A
Current - Peak Output : 8A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 4.75 V ~ 5.25 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package : eSOP-R16B
Approvals : -
Packaging : -
Series : Automotive, AEC-Q100, SCALE-iDriver™
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 50kV/µs (Typ)
Propagation Delay tpLH / tpHL (Max) : 340ns, 330ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 150ns, 150ns
Current - Output High, Low : 3.6A, 4A
Current - Peak Output : 8A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 4.75 V ~ 5.25 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package : eSOP-R16B
Approvals : -
0
240 in stock
SID1182KQ-TL
Power Integrations
Manufacturer : Power Integrations
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q100, SCALE-iDriver™
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 50kV/µs (Typ)
Propagation Delay tpLH / tpHL (Max) : 340ns, 330ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 150ns, 150ns
Current - Output High, Low : 3.6A, 4A
Current - Peak Output : 8A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 4.75 V ~ 5.25 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package : eSOP-R16B
Approvals : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q100, SCALE-iDriver™
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 50kV/µs (Typ)
Propagation Delay tpLH / tpHL (Max) : 340ns, 330ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 150ns, 150ns
Current - Output High, Low : 3.6A, 4A
Current - Peak Output : 8A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 4.75 V ~ 5.25 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package : eSOP-R16B
Approvals : -
0
1000 in stock
SID1182K-TL
Power Integrations
Manufacturer : Power Integrations
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SCALE-iDriver™
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : -
Propagation Delay tpLH / tpHL (Max) : 340ns, 330ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 90ns, 81ns
Current - Output High, Low : 3.6A, 4A
Current - Peak Output : 8A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 4.75 V ~ 5.25 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package : eSOP-R16B
Approvals : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SCALE-iDriver™
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : -
Propagation Delay tpLH / tpHL (Max) : 340ns, 330ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 90ns, 81ns
Current - Output High, Low : 3.6A, 4A
Current - Peak Output : 8A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 4.75 V ~ 5.25 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package : eSOP-R16B
Approvals : -
0
907 in stock
SID1183K
Power Integrations
Manufacturer : Power Integrations
Packaging : Tube
Alternate Packaging
Series : *
Part Status : Active
Driven Configuration : -
Channel Type : -
Number of Drivers : -
Gate Type : -
Voltage - Supply : -
Logic Voltage - VIL, VIH : -
Current - Peak Output (Source, Sink) : -
Input Type : -
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package : eSOP-R16B
Packaging : Tube
Alternate Packaging
Series : *
Part Status : Active
Driven Configuration : -
Channel Type : -
Number of Drivers : -
Gate Type : -
Voltage - Supply : -
Logic Voltage - VIL, VIH : -
Current - Peak Output (Source, Sink) : -
Input Type : -
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package : eSOP-R16B
0
249 in stock
SID1183K-TL
Power Integrations
Manufacturer : Power Integrations
Packaging : Cut Tape (CT)
Alternate Packaging
Series : *
Part Status : Active
Driven Configuration : -
Channel Type : -
Number of Drivers : -
Gate Type : -
Voltage - Supply : -
Logic Voltage - VIL, VIH : -
Current - Peak Output (Source, Sink) : -
Input Type : -
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package : eSOP-R16B
Packaging : Cut Tape (CT)
Alternate Packaging
Series : *
Part Status : Active
Driven Configuration : -
Channel Type : -
Number of Drivers : -
Gate Type : -
Voltage - Supply : -
Logic Voltage - VIL, VIH : -
Current - Peak Output (Source, Sink) : -
Input Type : -
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package : eSOP-R16B
0
601 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
