Power Integrations
- Power Integrations is a leading supplier of high-performance electronic components used in high-voltage power-conversion systems. Our integrated circuits and diodes enable compact, energy-efficient AC-DC power supplies for a vast range of electronic products including mobile devices, TVs, PCs, power tools, smart appliances (IoT), smart utility meters and LED lights.
Part Number
Manufacturer
Description
Unit Price
In Stock

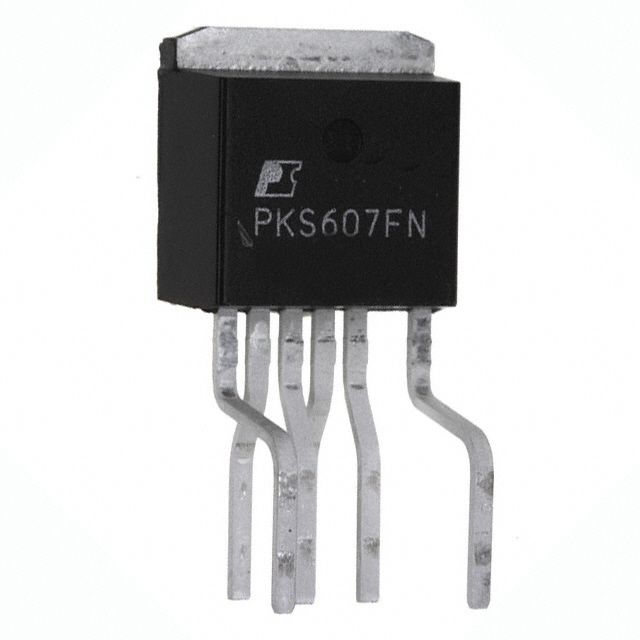

Power Integrations
Manufacturer : Power Integrations
Packaging : Tube
Series : PeakSwitch®
Part Status : Obsolete
Output Isolation : Isolated
Internal Switch(s) : Yes
Voltage - Breakdown : 700V
Topology : Flyback
Voltage - Start Up : -
Voltage - Supply (Vcc/Vdd) : -
Duty Cycle : 65%
Frequency - Switching : 277kHz
Power (Watts) : 126W
Fault Protection : Current Limiting, Over Load, Over Temperature
Control Features : EN
Operating Temperature : -40°C ~ 150°C (TJ)
Package / Case : TO-262-7 (Formed Leads), 6 Leads
Supplier Device Package : TO-262-7C
Mounting Type : Through Hole
0
100 in stock

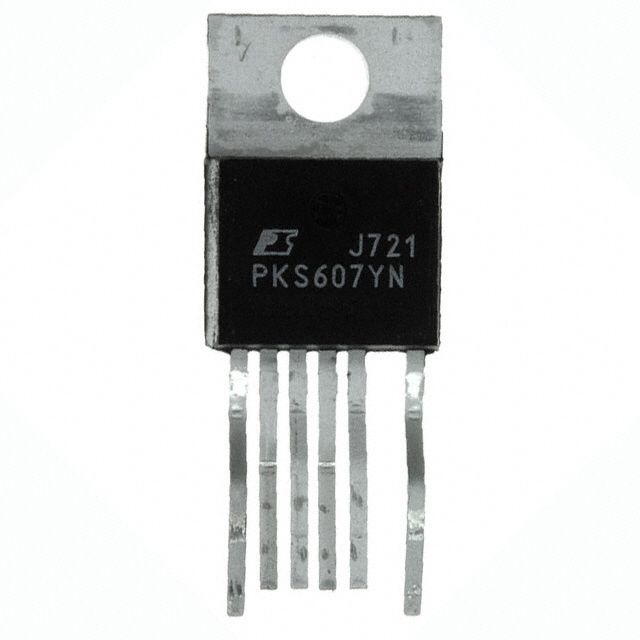

Power Integrations
Manufacturer : Power Integrations
Packaging : Tube
Series : PeakSwitch®
Part Status : Obsolete
Output Isolation : Isolated
Internal Switch(s) : Yes
Voltage - Breakdown : 700V
Topology : Flyback
Voltage - Start Up : -
Voltage - Supply (Vcc/Vdd) : -
Duty Cycle : 65%
Frequency - Switching : 277kHz
Power (Watts) : 126W
Fault Protection : Current Limiting, Over Load, Over Temperature
Control Features : EN
Operating Temperature : -40°C ~ 150°C (TJ)
Package / Case : TO-220-7 (Formed Leads), 6 Leads
Supplier Device Package : TO-220-7C
Mounting Type : Through Hole
0
100 in stock

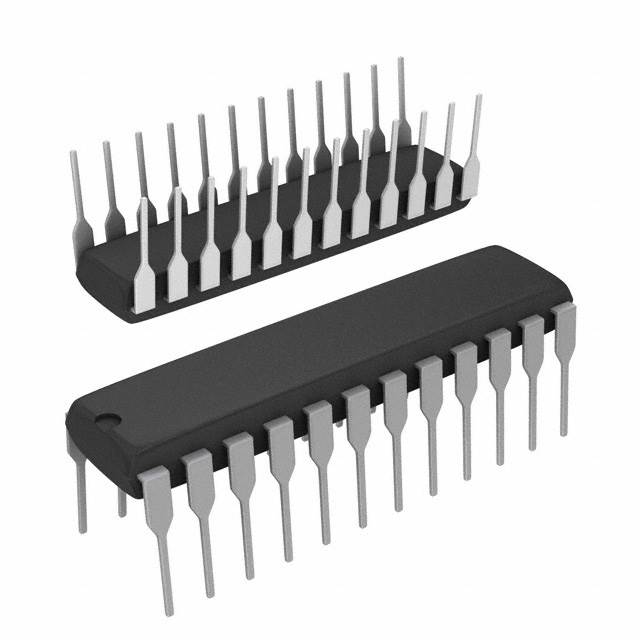

Power Integrations
Manufacturer : Power Integrations
Packaging : Tube
Series : HiperPLC™
Part Status : Obsolete
Output Isolation : Isolated
Internal Switch(s) : No
Voltage - Breakdown : -
Topology : Half-Bridge
Voltage - Start Up : 9.1V
Voltage - Supply (Vcc/Vdd) : 8.1 V ~ 15 V
Duty Cycle : 50%
Frequency - Switching : 50kHz ~ 300kHz
Power (Watts) : 600W
Fault Protection : Current Limiting, Over Load, Over Voltage
Control Features : EN
Operating Temperature : -40°C ~ 125°C (TJ)
Package / Case : 24-DIP (0.300", 7.62mm)
Supplier Device Package : 24-PDIP
Mounting Type : Through Hole
0
100 in stock

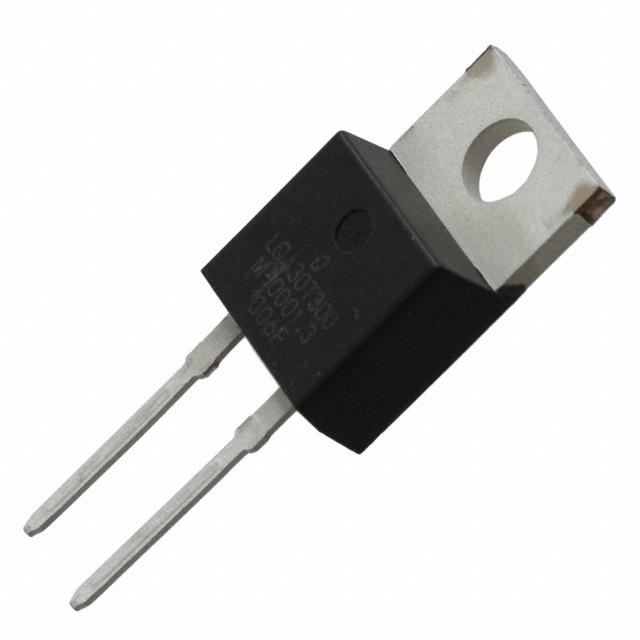

Power Integrations
Manufacturer : Power Integrations
Packaging : Tube
Series : Qspeed™
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 3A
Voltage - Forward (Vf) (Max) @ If : 3V @ 3A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 9.8ns
Current - Reverse Leakage @ Vr : 250µA @ 600V
Capacitance @ Vr, F : 11pF @ 10V, 1MHz
Mounting Type : Through Hole
Package / Case : TO-220-2
Supplier Device Package : TO-220AC
Operating Temperature - Junction : 150°C (Max)
0
2084 in stock

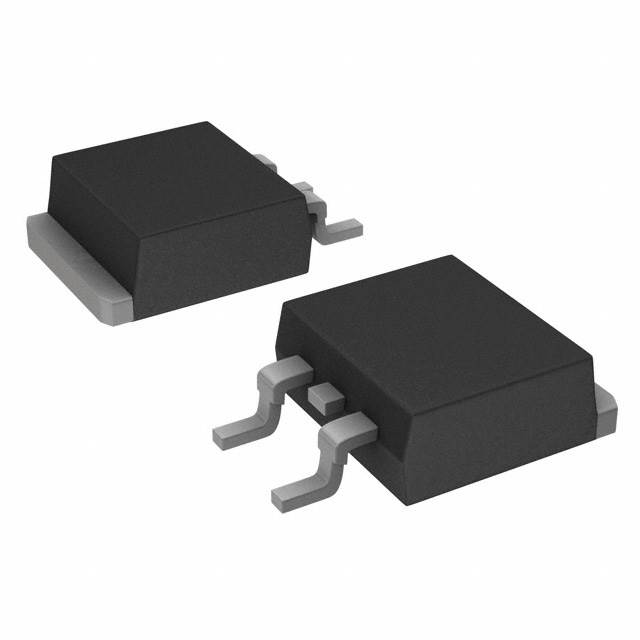

Power Integrations
Manufacturer : Power Integrations
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Qspeed™
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 5A
Voltage - Forward (Vf) (Max) @ If : 3.1V @ 5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 10ns
Current - Reverse Leakage @ Vr : 250µA @ 600V
Capacitance @ Vr, F : 17pF @ 10V, 1MHz
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263AB
Operating Temperature - Junction : 150°C (Max)
0
1746 in stock
Power Integrations
Manufacturer : Power Integrations
Packaging : Tube
Series : Qspeed™
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 5A
Voltage - Forward (Vf) (Max) @ If : 3.1V @ 5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 10ns
Current - Reverse Leakage @ Vr : 250µA @ 600V
Capacitance @ Vr, F : 17pF @ 10V, 1MHz
Mounting Type : Through Hole
Package / Case : TO-220-2
Supplier Device Package : TO-220AC
Operating Temperature - Junction : 150°C (Max)
0
430 in stock
Power Integrations
Manufacturer : Power Integrations
Packaging : Tube
Series : Qspeed™
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 8A
Voltage - Forward (Vf) (Max) @ If : 3.15V @ 8A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 11.1ns
Current - Reverse Leakage @ Vr : 250µA @ 600V
Capacitance @ Vr, F : 25pF @ 10V, 1MHz
Mounting Type : Through Hole
Package / Case : TO-220-2
Supplier Device Package : TO-220AC
Operating Temperature - Junction : 150°C (Max)
0
7477 in stock
Power Integrations
Manufacturer : Power Integrations
Packaging : Tube
Series : Qspeed™
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 12A
Voltage - Forward (Vf) (Max) @ If : 3.1V @ 12A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 11.6ns
Current - Reverse Leakage @ Vr : 250µA @ 600V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : TO-220-2
Supplier Device Package : TO-220AC
Operating Temperature - Junction : 150°C (Max)
0
7131 in stock

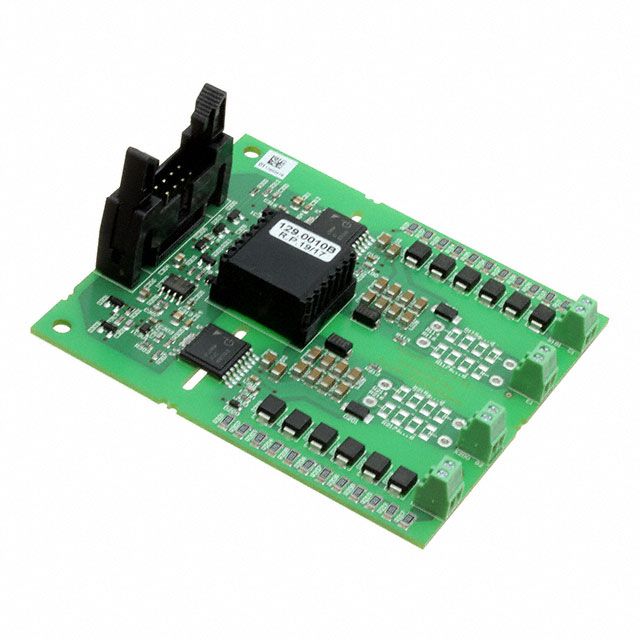

Power Integrations
Manufacturer : Power Integrations
Series : SCALE-iDriver™
Part Status : Active
Type : Power Management
Function : IGBT Power Module Driver
Embedded : -
Utilized IC / Part : SID1182K
Primary Attributes : -
Supplied Contents : Board(s)
0
26 in stock

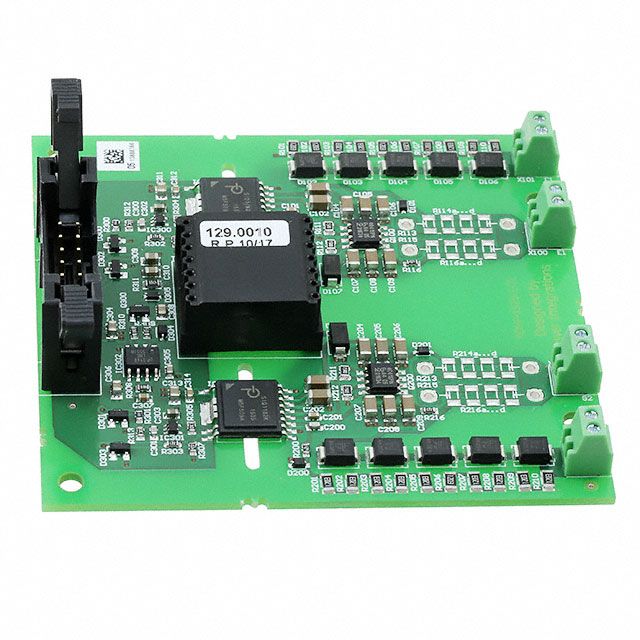

Power Integrations
Manufacturer : Power Integrations
Series : SCALE-iDriver™
Part Status : Active
Type : Power Management
Function : IGBT Power Module Driver
Embedded : -
Utilized IC / Part : SID1182K
Primary Attributes : -
Supplied Contents : Board(s)
0
12 in stock

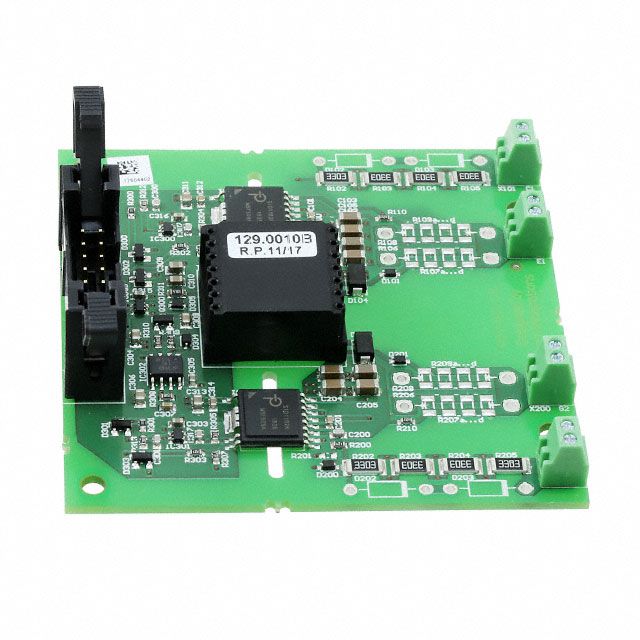

Power Integrations
Manufacturer : Power Integrations
Series : SCALE-iDriver™
Part Status : Active
Type : Power Management
Function : IGBT Power Module Driver
Embedded : -
Utilized IC / Part : SID1183K
Primary Attributes : -
Supplied Contents : Board(s)
0
6 in stock

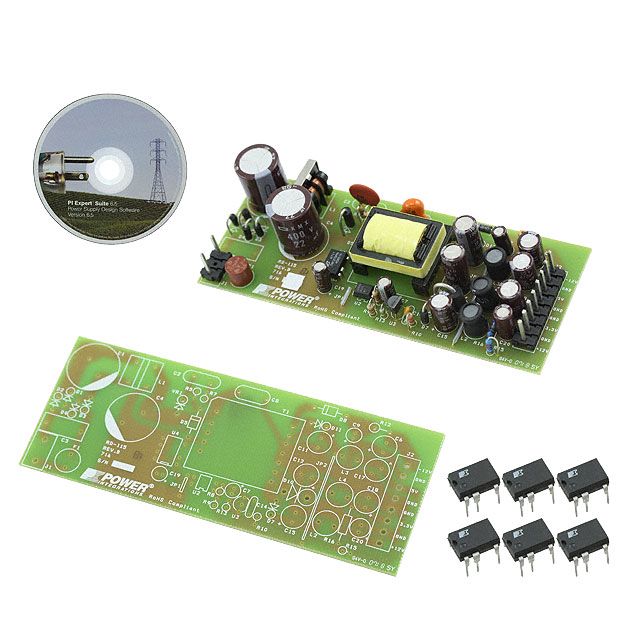

Power Integrations
Manufacturer : Power Integrations
Series : TinySwitch®-PK
Part Status : Obsolete
Main Purpose : AC/DC, Primary Side
Outputs and Type : 4, Isolated
Power - Output : 7.5W
Voltage - Output : 3.3V, 5V, 12V, -12V
Current - Output : 500mA, 500mA, 250mA, 30mA
Voltage - Input : 85 ~ 265 VAC
Regulator Topology : Flyback
Frequency - Switching : 132kHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : TNY376
0
100 in stock
