PHIHONG USA
- Phihong is one of the leading power adapter companies in the world. Together with our distribution partners, we serve telecom, datacom, personal electronics, power tools, LED lighting, security, medical and industrial markets and top global electronics OEMs such as Motorola, Cisco, Panasonic, Sony, Acer, Hewlett Packard, Sanyo, Toshiba and many others.
Part Number
Manufacturer
Description
Unit Price
In Stock
PSAA20R-120-R-CNR5
PHIHONG USA
Manufacturer : Phihong USA
Series : PSAA20R (20W)
Part Status : Obsolete
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 1.67A
Power (Watts) : 20W
No Load Power Consumption : 300mW (Max)
Polarization : Negative Center
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug R/A, 0.7mm I.D. x 2.5mm O.D. x 10.0mm
Size / Dimension : 2.82" L x 1.97" W x 1.22" H (71.7mm x 50.0mm x 31.0mm)
Approvals : CE, cULus
Series : PSAA20R (20W)
Part Status : Obsolete
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 1.67A
Power (Watts) : 20W
No Load Power Consumption : 300mW (Max)
Polarization : Negative Center
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug R/A, 0.7mm I.D. x 2.5mm O.D. x 10.0mm
Size / Dimension : 2.82" L x 1.97" W x 1.22" H (71.7mm x 50.0mm x 31.0mm)
Approvals : CE, cULus
0
100 in stock

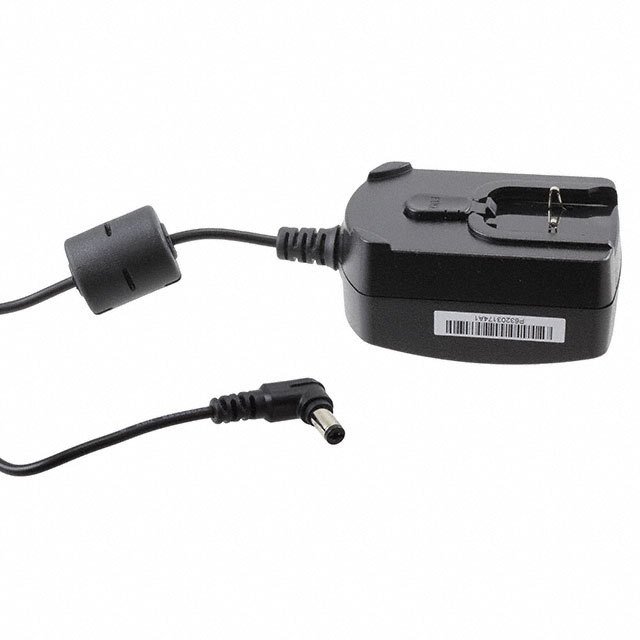

PSAA20R-120-R-CR1
PHIHONG USA
Manufacturer : Phihong USA
Series : PSAA20R (20W)
Part Status : Obsolete
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 1.67A
Power (Watts) : 20W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 10.0mm
Size / Dimension : 2.82" L x 1.97" W x 1.22" H (71.7mm x 50.0mm x 31.0mm)
Approvals : CE, cULus
Series : PSAA20R (20W)
Part Status : Obsolete
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 1.67A
Power (Watts) : 20W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 10.0mm
Size / Dimension : 2.82" L x 1.97" W x 1.22" H (71.7mm x 50.0mm x 31.0mm)
Approvals : CE, cULus
0
100 in stock
PSAA20R-120-R-CR2
PHIHONG USA
Manufacturer : Phihong USA
Series : PSAA20R (20W)
Part Status : Obsolete
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 1.67A
Power (Watts) : 20W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 10.0mm
Size / Dimension : 2.82" L x 1.97" W x 1.22" H (71.7mm x 50.0mm x 31.0mm)
Approvals : CE, cULus
Series : PSAA20R (20W)
Part Status : Obsolete
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 1.67A
Power (Watts) : 20W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 10.0mm
Size / Dimension : 2.82" L x 1.97" W x 1.22" H (71.7mm x 50.0mm x 31.0mm)
Approvals : CE, cULus
0
100 in stock
PSAA20R-120-R-CR3
PHIHONG USA
Manufacturer : Phihong USA
Series : PSAA20R (20W)
Part Status : Obsolete
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 1.67A
Power (Watts) : 20W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug R/A, 1.7mm I.D. x 4.0mm O.D. x 10.0mm
Size / Dimension : 2.82" L x 1.97" W x 1.22" H (71.7mm x 50.0mm x 31.0mm)
Approvals : CE, cULus
Series : PSAA20R (20W)
Part Status : Obsolete
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 1.67A
Power (Watts) : 20W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug R/A, 1.7mm I.D. x 4.0mm O.D. x 10.0mm
Size / Dimension : 2.82" L x 1.97" W x 1.22" H (71.7mm x 50.0mm x 31.0mm)
Approvals : CE, cULus
0
100 in stock
PSAA20R-120-R-CR4
PHIHONG USA
Manufacturer : Phihong USA
Series : PSAA20R (20W)
Part Status : Obsolete
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 1.67A
Power (Watts) : 20W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug R/A, 1.35mm I.D. x 3.5mm O.D. x 10.0mm
Size / Dimension : 2.82" L x 1.97" W x 1.22" H (71.7mm x 50.0mm x 31.0mm)
Approvals : CE, cULus
Series : PSAA20R (20W)
Part Status : Obsolete
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 1.67A
Power (Watts) : 20W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug R/A, 1.35mm I.D. x 3.5mm O.D. x 10.0mm
Size / Dimension : 2.82" L x 1.97" W x 1.22" H (71.7mm x 50.0mm x 31.0mm)
Approvals : CE, cULus
0
100 in stock
PSAA20R-120-R-CR5
PHIHONG USA
Manufacturer : Phihong USA
Series : PSAA20R (20W)
Part Status : Obsolete
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 1.67A
Power (Watts) : 20W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug R/A, 0.7mm I.D. x 2.5mm O.D. x 10.0mm
Size / Dimension : 2.82" L x 1.97" W x 1.22" H (71.7mm x 50.0mm x 31.0mm)
Approvals : CE, cULus
Series : PSAA20R (20W)
Part Status : Obsolete
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 1.67A
Power (Watts) : 20W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug R/A, 0.7mm I.D. x 2.5mm O.D. x 10.0mm
Size / Dimension : 2.82" L x 1.97" W x 1.22" H (71.7mm x 50.0mm x 31.0mm)
Approvals : CE, cULus
0
100 in stock

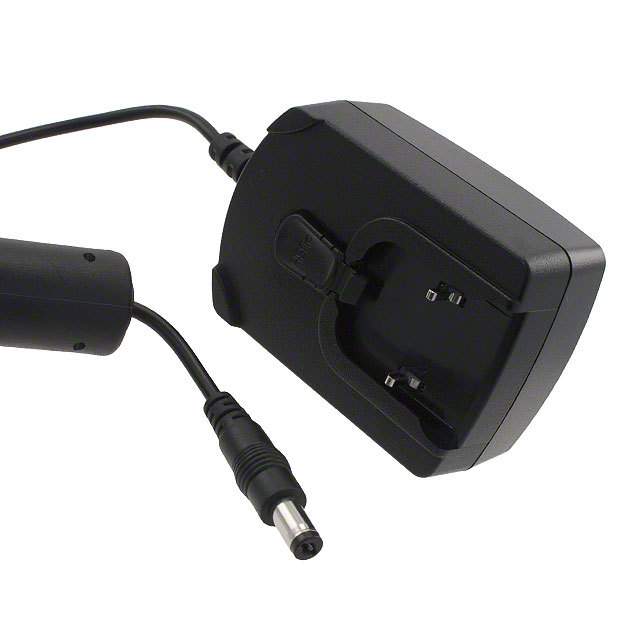

PSAA20R-120-RPA
PHIHONG USA
Manufacturer : Phihong USA
Series : PSAA20R (20W)
Part Status : Obsolete
Region Utilized : North America
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 1.67A
Power (Watts) : 20W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm
Size / Dimension : 2.82" L x 1.97" W x 1.22" H (71.7mm x 50.0mm x 31.0mm)
Approvals : CE, cULus
Series : PSAA20R (20W)
Part Status : Obsolete
Region Utilized : North America
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 1.67A
Power (Watts) : 20W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm
Size / Dimension : 2.82" L x 1.97" W x 1.22" H (71.7mm x 50.0mm x 31.0mm)
Approvals : CE, cULus
0
100 in stock
PSAA20R-240
PHIHONG USA
Manufacturer : Phihong USA
Series : PSAA20R (20W)
Part Status : Obsolete
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 830mA
Power (Watts) : 20W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 2.82" L x 1.97" W x 1.22" H (71.7mm x 50.0mm x 31.0mm)
Approvals : CE, cULus
Series : PSAA20R (20W)
Part Status : Obsolete
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 830mA
Power (Watts) : 20W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 2.82" L x 1.97" W x 1.22" H (71.7mm x 50.0mm x 31.0mm)
Approvals : CE, cULus
0
100 in stock
PSAA20R-240L6
PHIHONG USA
Manufacturer : Phihong USA
Series : PSAA20R-L6 (20W)
Part Status : Active
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 830mA
Power (Watts) : 20W
No Load Power Consumption : 10mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 2.82" L x 1.97" W x 1.54" H (71.7mm x 50.0mm x 39.1mm)
Approvals : CB, CE, cULus
Series : PSAA20R-L6 (20W)
Part Status : Active
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 830mA
Power (Watts) : 20W
No Load Power Consumption : 10mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 2.82" L x 1.97" W x 1.54" H (71.7mm x 50.0mm x 39.1mm)
Approvals : CB, CE, cULus
0
1075 in stock
PSAA20R-240L6-R-CR1
PHIHONG USA
Manufacturer : Phihong USA
Series : PSAA20R-L6 (20W)
Part Status : Active
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 830mA
Power (Watts) : 20W
No Load Power Consumption : 10mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 10.0mm
Size / Dimension : 2.82" L x 1.97" W x 1.54" H (71.7mm x 50.0mm x 39.1mm)
Approvals : CB, CE, cULus
Series : PSAA20R-L6 (20W)
Part Status : Active
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 830mA
Power (Watts) : 20W
No Load Power Consumption : 10mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 10.0mm
Size / Dimension : 2.82" L x 1.97" W x 1.54" H (71.7mm x 50.0mm x 39.1mm)
Approvals : CB, CE, cULus
0
482 in stock
PSAA20R-240-R-C2
PHIHONG USA
Manufacturer : Phihong USA
Series : PSAA20R (20W)
Part Status : Obsolete
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 830mA
Power (Watts) : 20W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 10.0mm
Size / Dimension : 2.82" L x 1.97" W x 1.22" H (71.7mm x 50.0mm x 31.0mm)
Approvals : CE, cULus
Series : PSAA20R (20W)
Part Status : Obsolete
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 830mA
Power (Watts) : 20W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 10.0mm
Size / Dimension : 2.82" L x 1.97" W x 1.22" H (71.7mm x 50.0mm x 31.0mm)
Approvals : CE, cULus
0
100 in stock
PSAA20R-240-R-C3
PHIHONG USA
Manufacturer : Phihong USA
Series : PSAA20R (20W)
Part Status : Obsolete
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 830mA
Power (Watts) : 20W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 1.7mm I.D. x 4.0mm O.D. x 10.0mm
Size / Dimension : 2.82" L x 1.97" W x 1.22" H (71.7mm x 50.0mm x 31.0mm)
Approvals : CE, cULus
Series : PSAA20R (20W)
Part Status : Obsolete
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 830mA
Power (Watts) : 20W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 1.7mm I.D. x 4.0mm O.D. x 10.0mm
Size / Dimension : 2.82" L x 1.97" W x 1.22" H (71.7mm x 50.0mm x 31.0mm)
Approvals : CE, cULus
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
