NMB Technologies Corp.
- NMB Technologies Corp. headquartered in Novi, Michigan, NMB Technologies Corporation was founded in September 1968 as the sales and marketing arm for its parent company, Minebea Co., Ltd.
From the beginning, NMB has believed in creating strong partnerships with our customers. This commitment to our customers is demonstrated by making available local application engineers, knowledgeable direct sales, and partnering with world class distributors and local representatives who know our products and its quality inside out.
As part of the Minebea Group of Companies, NMB Technologies Corporation places a global manufacturing powerhouse in the hands of our customers. With R & D and manufacturing facilities located in Thailand, Cambodia, China, Singapore, Japan, Europe and North America, and over 60,000 people employed world wide, the NMB/Minebea Group of Companies remains a world leader in the design and manufacturing of electro-mechanical components.
At NMB, our commitment to our customers compels us to protect the supply chain, drive cost efficiency, and hold quality to the highest standard. Quality in our people, quality in our services, and quality in our products continues to be our primary component.
Part Number
Manufacturer
Description
Unit Price
In Stock
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : -
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushless DC (BLDC)
Voltage - Rated : 24VDC
RPM : -
Torque - Rated (oz-in / mNm) : -
Power - Rated : 12W
Encoder Type : -
Size / Dimension : Round - 1.653" Dia (42.00mm)
Diameter - Shaft : 0.236" (6.00mm)
Length - Shaft and Bearing : 0.630" (16.00mm)
Mounting Hole Spacing : 2.063" (52.40mm)
Termination Style : Connector
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : 0°C ~ 50°C
0
207 in stock

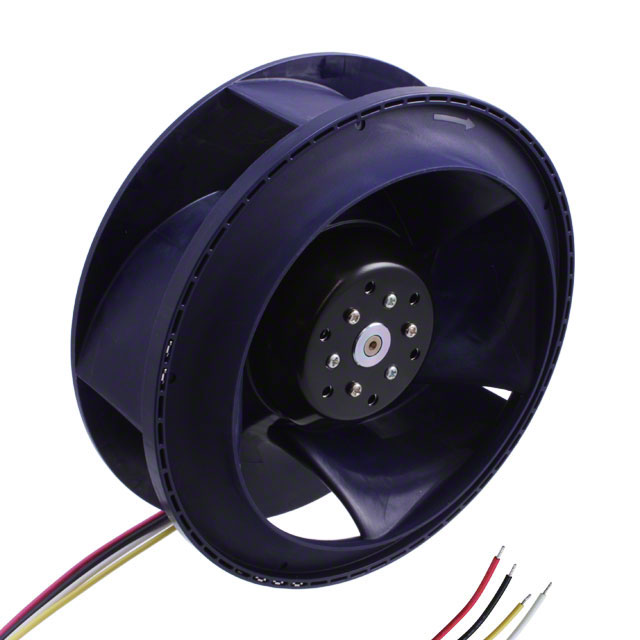

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : F175
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Round - 175mm Dia
Width : 69.30mm
Air Flow : 551.0 CFM (15.43m鲁/min)
Static Pressure : 5.110 in H2O (1272.9 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : PWM Control, Speed Sensor (Tach)
Noise : 78.0 dB(A)
Power (Watts) : 117.6W
RPM : 5600 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -22 ~ 158°F (-30 ~ 70°C)
Approvals : -
Weight : 2.3 lbs (1kg)
0
12 in stock
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : F175
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Round - 175mm Dia
Width : 69.30mm
Air Flow : 505.0 CFM (14.14m鲁/min)
Static Pressure : 4.260 in H2O (1061.2 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : PWM Control, Speed Sensor (Tach)
Noise : 77.0 dB(A)
Power (Watts) : 92.4W
RPM : 5300 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -22 ~ 158°F (-30 ~ 70°C)
Approvals : -
Weight : 2.3 lbs (1kg)
0
22 in stock

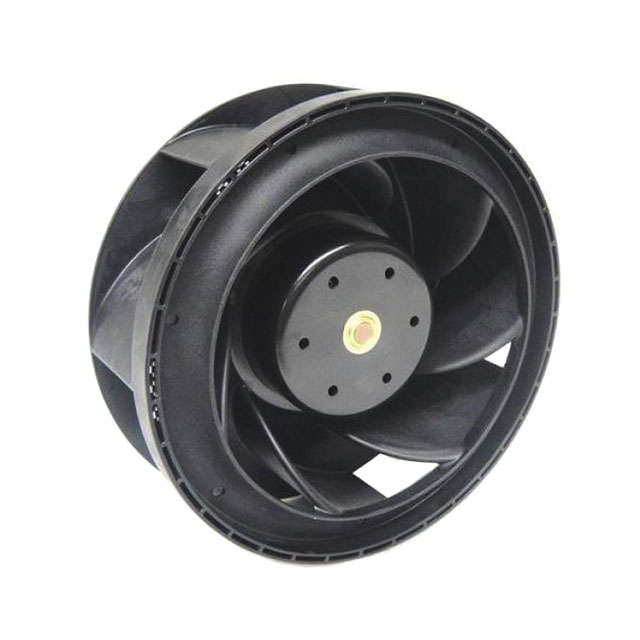

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : F175H
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Round - 175mm Dia
Width : 69.00mm
Air Flow : 610.0 CFM (17.08m鲁/min)
Static Pressure : 4.190 in H2O (1046.0 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : PWM Control, Speed Sensor (Tach)
Noise : 78.0 dB(A)
Power (Watts) : 182.0W
RPM : 5400 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -22 ~ 158°F (-30 ~ 70°C)
Approvals : -
Weight : 2 lbs (907.2g)
0
11 in stock
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : F175H
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Round - 175mm Dia
Width : 69.00mm
Air Flow : 541.0 CFM (15.15m鲁/min)
Static Pressure : 3.490 in H2O (870.0 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : PWM Control, Speed Sensor (Tach)
Noise : 74.0 dB(A)
Power (Watts) : 113.0W
RPM : 4700 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -22 ~ 158°F (-30 ~ 70°C)
Approvals : -
Weight : 2 lbs (907.2g)
0
9 in stock
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : F250
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Round - 250mm Dia
Width : 99.80mm
Air Flow : 806.0 CFM (22.57m鲁/min)
Static Pressure : 2.593 in H2O (646.2 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : PWM Control, Speed Sensor (Tach)
Noise : 78.0 dB(A)
Power (Watts) : 145.2W
RPM : 2900 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -22 ~ 158°F (-30 ~ 70°C)
Approvals : -
Weight : 5.3 lbs (2.4kg)
0
11 in stock

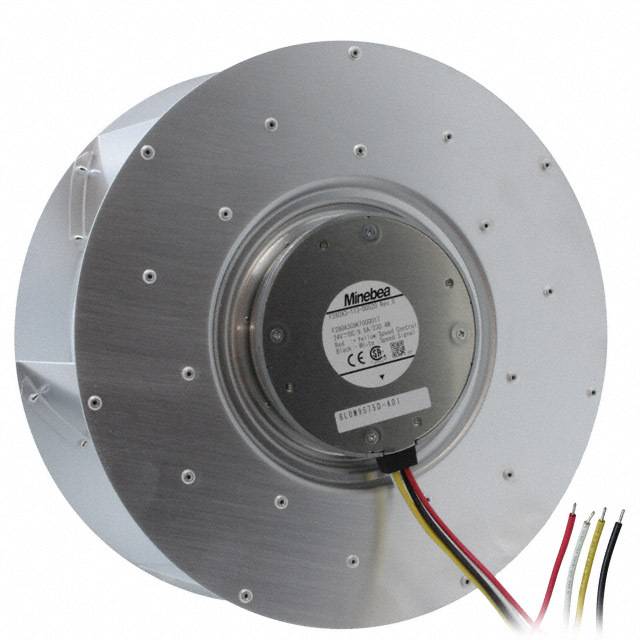

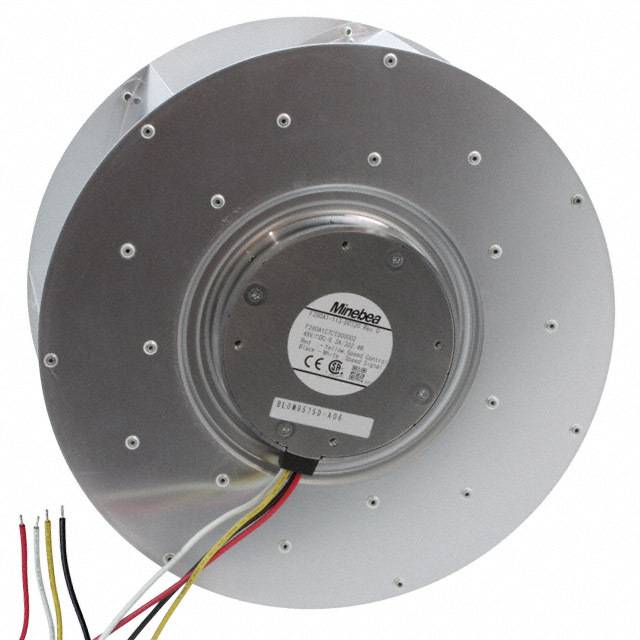

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : F280
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Round - 280mm Dia
Width : 128.7mm
Air Flow : 1304.0 CFM (36.51m鲁/min)
Static Pressure : 2.346 in H2O (584.4 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : PWM Control, Speed Sensor (Tach)
Noise : 81.0 dB
Power (Watts) : 225.6W
RPM : 2400 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -22 ~ 158°F (-30 ~ 70°C)
Approvals : -
Weight : 4.6 lbs (2.1kg)
0
8 in stock
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : F280
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Round - 280mm Dia
Width : 128.7mm
Air Flow : 1166.0 CFM (32.65m鲁/min)
Static Pressure : 1.913 in H2O (476.5 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : PWM Control, Speed Sensor (Tach)
Noise : 77.0 dB(A)
Power (Watts) : 175.2W
RPM : 2150 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -22 ~ 158°F (-30 ~ 70°C)
Approvals : -
Weight : 4.6 lbs (2.1kg)
0
33 in stock
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : FBL
Part Status : Obsolete
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.50mm
Air Flow : 15.9 CFM (0.445m鲁/min)
Static Pressure : 0.185 in H2O (46.1 Pa)
Bearing Type : Hydro-wave (HWB)
Fan Type : Tubeaxial
Features : -
Noise : 42.0 dB
Power (Watts) : 3.84W
RPM : -
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.198 lb (89.81g)
0
6637 in stock

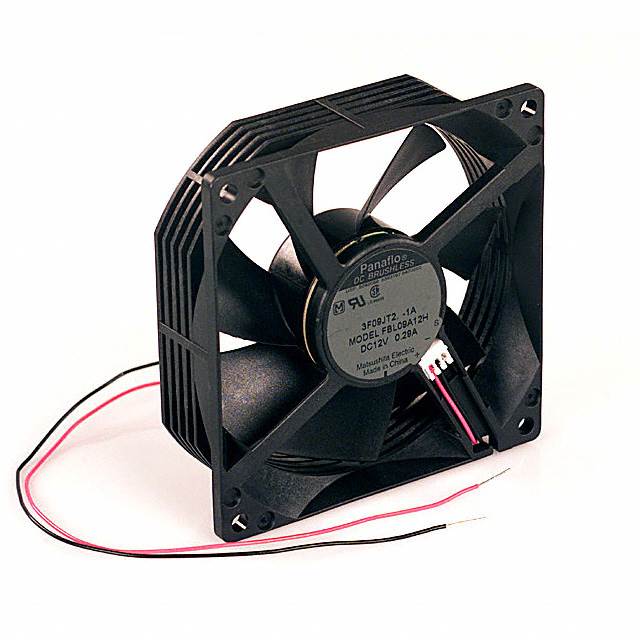

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : FBL
Part Status : Obsolete
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.50mm
Air Flow : 56.8 CFM (1.59m鲁/min)
Static Pressure : 0.169 in H2O (42.1 Pa)
Bearing Type : Hydro-wave (HWB)
Fan Type : Tubeaxial
Features : -
Noise : 35.0 dB
Power (Watts) : 2.70W
RPM : 2950 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.243 lb (110.22g)
0
5058 in stock

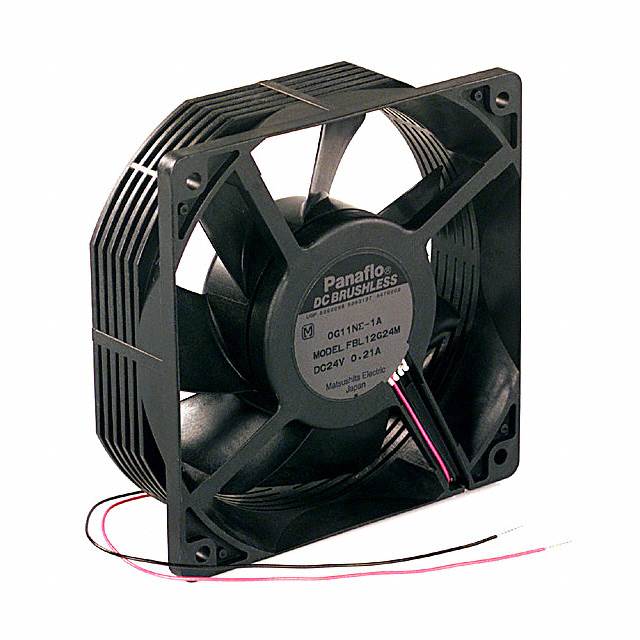

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : FBL
Part Status : Obsolete
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 86.5 CFM (2.42m鲁/min)
Static Pressure : 0.189 in H2O (47.1 Pa)
Bearing Type : Hydro-wave (HWB)
Fan Type : Tubeaxial
Features : -
Noise : 35.5 dB
Power (Watts) : 2.98W
RPM : 2100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.595 lb (269.89g)
0
51 in stock

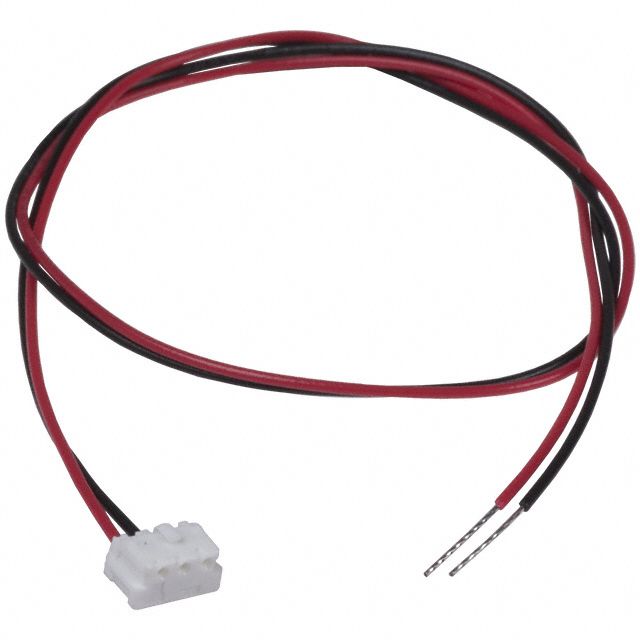

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : -
Part Status : Obsolete
Style : Female Receptacle to Cable
1st Connector : Fan Terminal Receptacle 180°, Straight
2nd Connector : Open Wires
Length : 12.8" (325.0mm)
Fits Terminal Size : -
Number of Conductors : 2
Cord Type : UL Style 1061
Wire Gauge : 26 AWG
Approval Marks : -
Voltage Rating : -
Current Rating : -
Operating Temperature : -
Features : -
0
1476 in stock
