NMB Technologies Corp.

- NMB Technologies Corp. headquartered in Novi, Michigan, NMB Technologies Corporation was founded in September 1968 as the sales and marketing arm for its parent company, Minebea Co., Ltd.

From the beginning, NMB has believed in creating strong partnerships with our customers. This commitment to our customers is demonstrated by making available local application engineers, knowledgeable direct sales, and partnering with world class distributors and local representatives who know our products and its quality inside out.

As part of the Minebea Group of Companies, NMB Technologies Corporation places a global manufacturing powerhouse in the hands of our customers. With R & D and manufacturing facilities located in Thailand, Cambodia, China, Singapore, Japan, Europe and North America, and over 60,000 people employed world wide, the NMB/Minebea Group of Companies remains a world leader in the design and manufacturing of electro-mechanical components.

At NMB, our commitment to our customers compels us to protect the supply chain, drive cost efficiency, and hold quality to the highest standard. Quality in our people, quality in our services, and quality in our products continues to be our primary component.

Part Number
Manufacturer
Description
Unit Price
In Stock

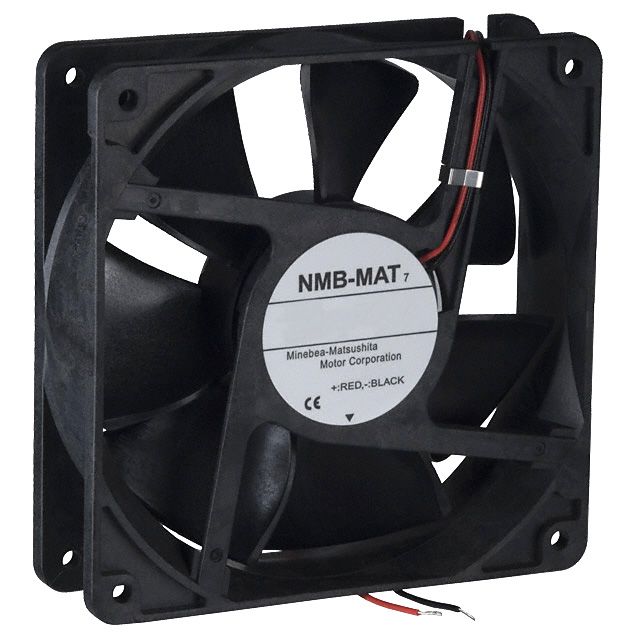

4712KL-07W-B30-P00 4712KL-07W-B30-P00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 4712KL
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 119mm L x 119mm H
Width : 32.00mm
Air Flow : 99.9 CFM (2.80m鲁/min)
Static Pressure : 0.241 in H2O (60.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 44.0 dB
Power (Watts) : 7.68W
RPM : 2800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.529 lb (239.95g)
0
209 in stock

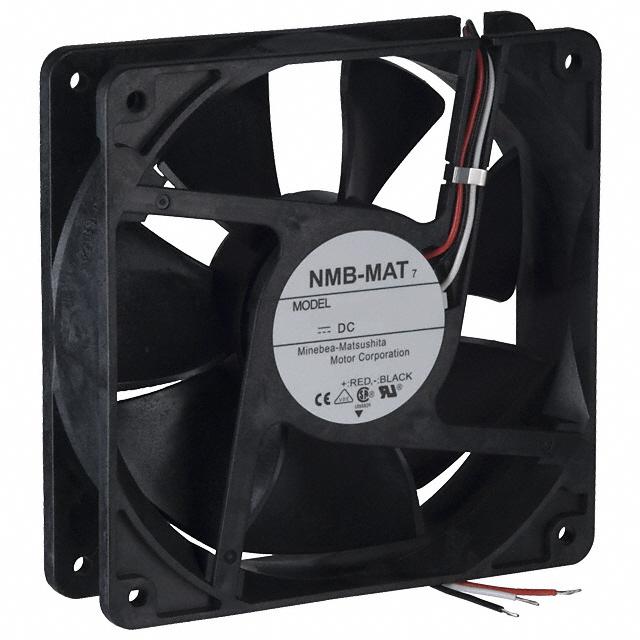

4712KL-07W-B49-P00 4712KL-07W-B49-P00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 4712KL
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 119mm L x 119mm H
Width : 32.00mm
Air Flow : 112.0 CFM (3.14m鲁/min)
Static Pressure : 0.329 in H2O (82.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 47.0 dB
Power (Watts) : 10.10W
RPM : 3100 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.529 lb (239.95g)
0
206 in stock

4715FS-12T-B00-D00 4715FS-12T-B00-D00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 11938FB
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 60.0 CFM (1.68m鲁/min)
Static Pressure : 0.080 in H2O (20.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 31.0 dB
Power (Watts) : 7.50W
RPM : 1700 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, TUV, UL
Weight : 1.2 lbs (544.3g)
0
49 in stock

4715FS-12T-B10-D00 4715FS-12T-B10-D00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 11938FB
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 70.0 CFM (1.96m鲁/min)
Static Pressure : 0.120 in H2O (30.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 33.0 dB
Power (Watts) : 10.00W
RPM : 1900 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, TUV, UL
Weight : 1.2 lbs (544.3g)
0
195 in stock

4715FS-12T-B20-D00 4715FS-12T-B20-D00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 11938FB
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 80.0 CFM (2.24m鲁/min)
Static Pressure : 0.130 in H2O (32.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 36.0 dB
Power (Watts) : 9.80W
RPM : 2300 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, TUV, UL
Weight : 1.2 lbs (544.3g)
0
128 in stock

4715FS-12T-B30-D00 4715FS-12T-B30-D00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 11938FB
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 90.0 CFM (2.52m鲁/min)
Static Pressure : 0.220 in H2O (54.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 39.0 dB
Power (Watts) : 14.50W
RPM : 2650 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, TUV, UL
Weight : 1.2 lbs (544.3g)
0
60 in stock

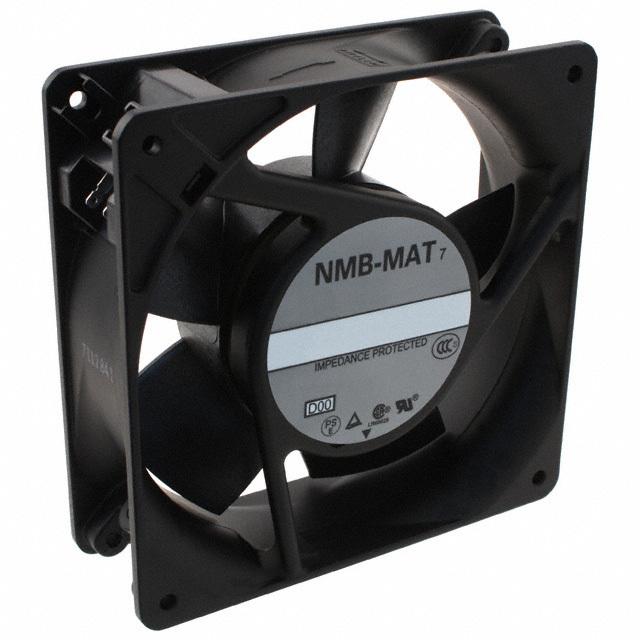

4715FS-12T-B40-D00 4715FS-12T-B40-D00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 11938FB
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 100.0 CFM (2.80m鲁/min)
Static Pressure : 0.291 in H2O (72.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 42.0 dB
Power (Watts) : 14.00W
RPM : 2800 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, TUV, UL
Weight : 1.2 lbs (544.3g)
0
254 in stock

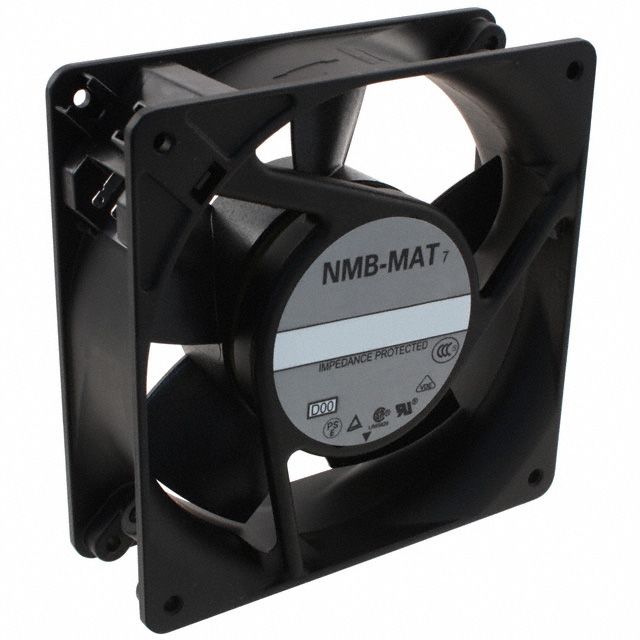

4715FS-12T-B50-D00 4715FS-12T-B50-D00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 11938FB
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 110.0 CFM (3.08m鲁/min)
Static Pressure : 0.370 in H2O (92.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 45.0 dB
Power (Watts) : 14.40W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, TUV, UL
Weight : 1.2 lbs (544.3g)
0
6950 in stock

4715FS-23T-B00-D00 4715FS-23T-B00-D00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 11938FB
Part Status : Obsolete
Voltage - Rated : 230VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 55.0 CFM (1.54m鲁/min)
Static Pressure : 0.070 in H2O (17.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 31.0 dB
Power (Watts) : 5.50W
RPM : 1600 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, TUV, UL
Weight : 1.2 lbs (544.3g)
0
100 in stock

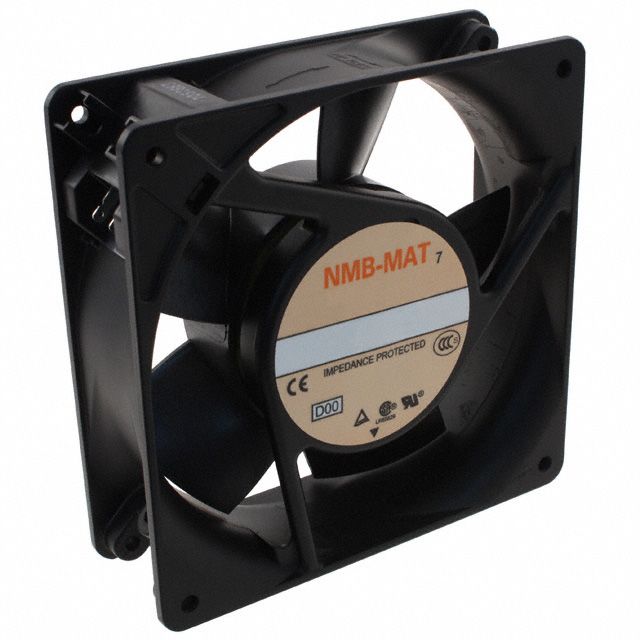

4715FS-23T-B10-D00 4715FS-23T-B10-D00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 11938FB
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 70.0 CFM (1.96m鲁/min)
Static Pressure : 0.120 in H2O (30.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 33.0 dB
Power (Watts) : 9.00W
RPM : 1900 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, TUV, UL
Weight : 1.2 lbs (544.3g)
0
7 in stock

4715FS-23T-B30-D00 4715FS-23T-B30-D00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 11938FB
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 90.0 CFM (2.52m鲁/min)
Static Pressure : 0.220 in H2O (54.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 39.0 dB
Power (Watts) : 12.00W
RPM : 2650 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, TUV, UL
Weight : 1.2 lbs (544.3g)
0
11 in stock

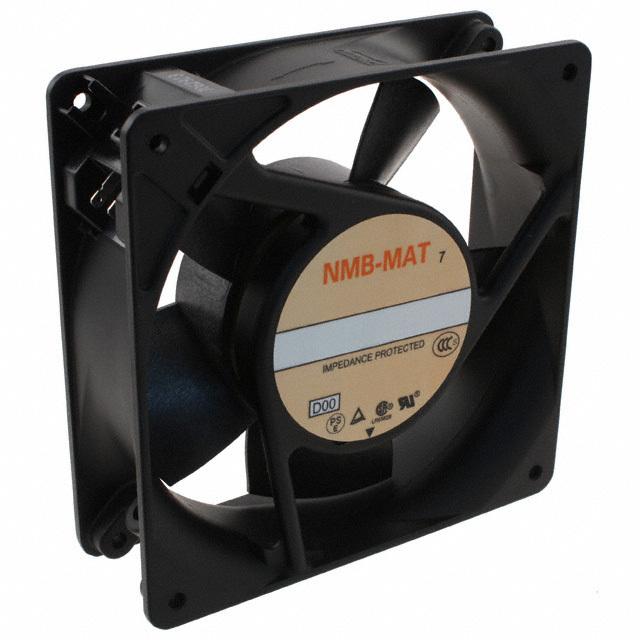

4715FS-23T-B40-D00 4715FS-23T-B40-D00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 11938FB
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 100.0 CFM (2.80m鲁/min)
Static Pressure : 0.280 in H2O (69.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 42.0 dB
Power (Watts) : 14.00W
RPM : 3300 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, TUV, UL
Weight : 1.2 lbs (544.3g)
0
18 in stock
