NMB Technologies Corp.

- NMB Technologies Corp. headquartered in Novi, Michigan, NMB Technologies Corporation was founded in September 1968 as the sales and marketing arm for its parent company, Minebea Co., Ltd.

From the beginning, NMB has believed in creating strong partnerships with our customers. This commitment to our customers is demonstrated by making available local application engineers, knowledgeable direct sales, and partnering with world class distributors and local representatives who know our products and its quality inside out.

As part of the Minebea Group of Companies, NMB Technologies Corporation places a global manufacturing powerhouse in the hands of our customers. With R & D and manufacturing facilities located in Thailand, Cambodia, China, Singapore, Japan, Europe and North America, and over 60,000 people employed world wide, the NMB/Minebea Group of Companies remains a world leader in the design and manufacturing of electro-mechanical components.

At NMB, our commitment to our customers compels us to protect the supply chain, drive cost efficiency, and hold quality to the highest standard. Quality in our people, quality in our services, and quality in our products continues to be our primary component.


Part Number

Manufacturer

Description

Unit Price

In Stock

34KM-K206-00W

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 34KM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 4.7A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 948.92 / 6700
Size / Dimension : Square - 3.347" x 3.347" (85.00mm x 85.00mm)
NEMA Frame Size : 34
Diameter - Shaft : 0.551" (14.00mm)
Length - Shaft and Bearing : 1.457" (37.00mm)
Mounting Hole Spacing : 2.740" (69.60mm)
Termination Style : Wire Leads
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 850 mOhms
Features : Double Flatted Shaft

2 in stock

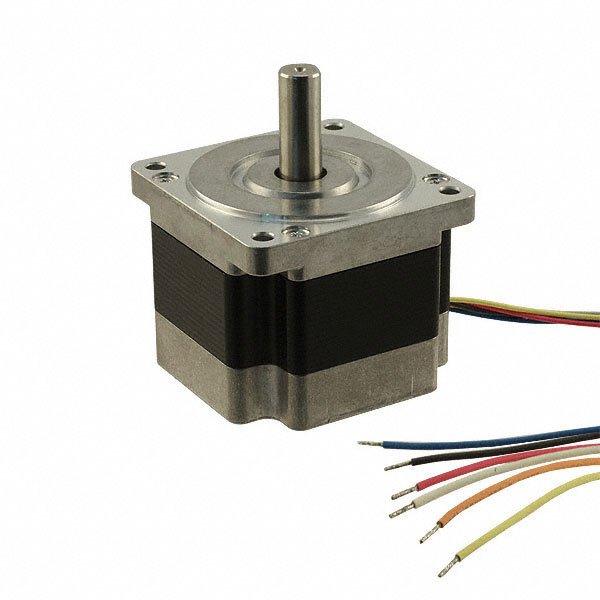

34KM-K206-99W

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 34KM
Part Status : Active
Type : Hybrid, Dual Shaft
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 4.7A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 948.92 / 6700
Size / Dimension : Square - 3.347" x 3.347" (85.00mm x 85.00mm)
NEMA Frame Size : 34
Diameter - Shaft : 0.551" (14.00mm)
Length - Shaft and Bearing : 1.457" (37.00mm)
Mounting Hole Spacing : 2.740" (69.60mm)
Termination Style : Wire Leads
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 850 mOhms
Features : Double Flatted Shaft

4 in stock

34KM-K221-00W

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 34KM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 948.92 / 6700
Size / Dimension : Square - 3.347" x 3.347" (85.00mm x 85.00mm)
NEMA Frame Size : 34
Diameter - Shaft : 0.551" (14.00mm)
Length - Shaft and Bearing : 1.457" (37.00mm)
Mounting Hole Spacing : 2.740" (69.60mm)
Termination Style : Wire Leads
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 4.9 Ohms
Features : Double Flatted Shaft

1 in stock

34KM-K221-99W

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 34KM
Part Status : Active
Type : Hybrid, Dual Shaft
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 948.92 / 6700
Size / Dimension : Square - 3.347" x 3.347" (85.00mm x 85.00mm)
NEMA Frame Size : 34
Diameter - Shaft : 0.551" (14.00mm)
Length - Shaft and Bearing : 1.457" (37.00mm)
Mounting Hole Spacing : 2.740" (69.60mm)
Termination Style : Wire Leads
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 4.9 Ohms
Features : Double Flatted Shaft

100 in stock

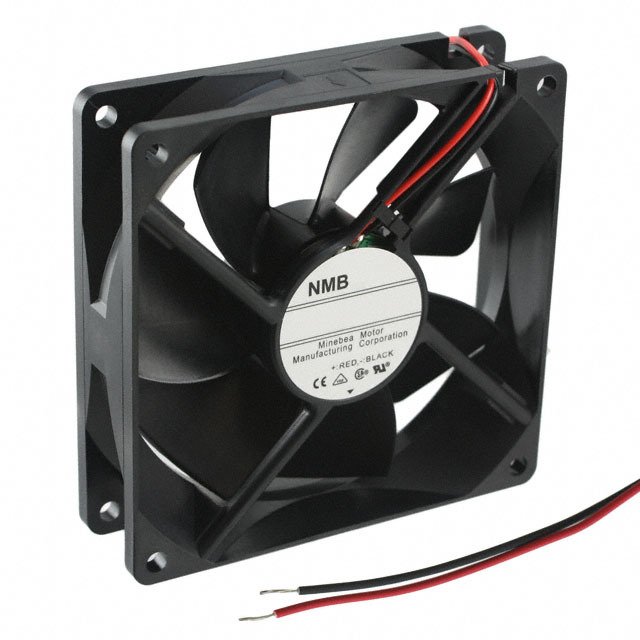

3610KL-04W-B10-D00

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 3610KL
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 26.5 CFM (0.742m鲁/min)
Static Pressure : 0.057 in H2O (14.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 25.0 dB
Power (Watts) : 880mW
RPM : 1750 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.209 lb (94.8g)

21 in stock

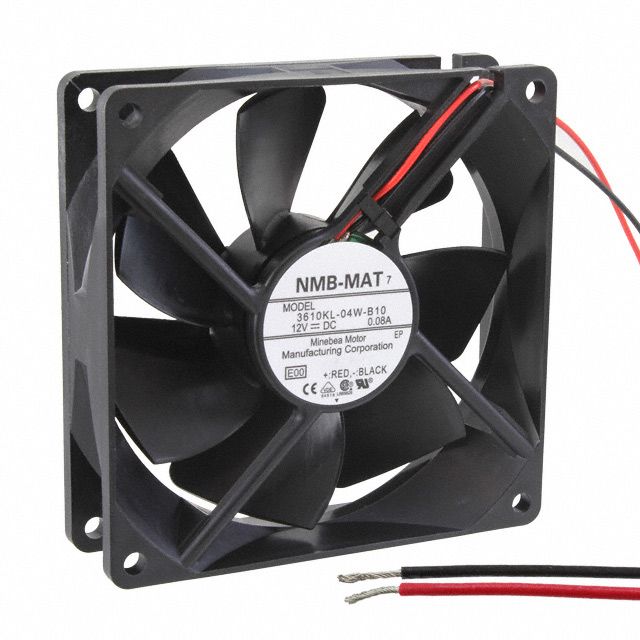

3610KL-04W-B10-E00

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 3610KL
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 26.5 CFM (0.742m鲁/min)
Static Pressure : 0.057 in H2O (14.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 25.0 dB(A)
Power (Watts) : 880mW
RPM : 1750 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.209 lb (94.8g)

31 in stock

3610KL-04W-B20-D00

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 3610KL
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 33.5 CFM (0.938m鲁/min)
Static Pressure : 0.081 in H2O (20.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 29.5 dB
Power (Watts) : 1.32W
RPM : 2100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.209 lb (94.8g)

627 in stock

3610KL-04W-B30-D00

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 3610KL
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 40.6 CFM (1.14m鲁/min)
Static Pressure : 0.108 in H2O (27.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 34.0 dB
Power (Watts) : 1.92W
RPM : 2450 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.209 lb (94.8g)

180 in stock

3610KL-04W-B30-E00

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 3610KL
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 40.6 CFM (1.14m鲁/min)
Static Pressure : 0.108 in H2O (27.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 34.0 dB(A)
Power (Watts) : 1.92W
RPM : 2450 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.209 lb (94.8g)

245 in stock

3610KL-04W-B39-E50

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 3610KL
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 40.6 CFM (1.14m鲁/min)
Static Pressure : 0.108 in H2O (27.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 34.0 dB(A)
Power (Watts) : 1.92W
RPM : 2450 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.209 lb (94.8g)

435 in stock

3610KL-04W-B40-D00

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 3610KL
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 47.6 CFM (1.33m鲁/min)
Static Pressure : 0.149 in H2O (37.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 37.5 dB
Power (Watts) : 2.64W
RPM : 2850 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.209 lb (94.8g)

360 in stock

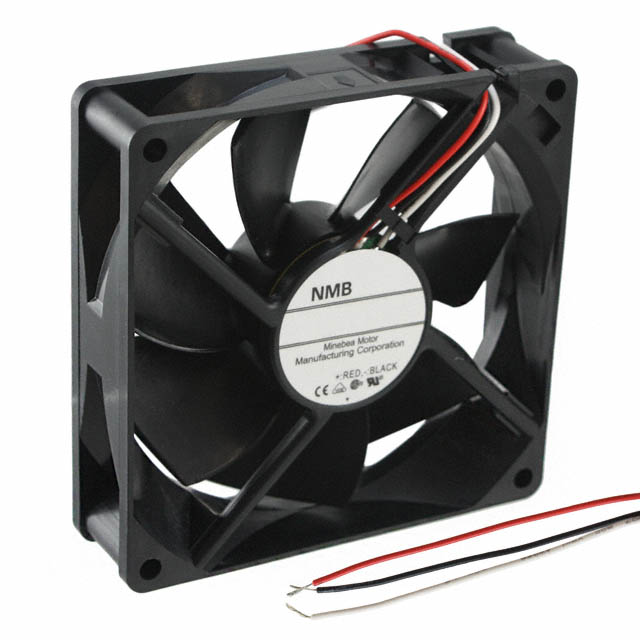

3610KL-04W-B49-G00

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 3610KL
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 47.6 CFM (1.33m鲁/min)
Static Pressure : 0.149 in H2O (37.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 37.5 dB
Power (Watts) : 2.64W
RPM : 2850 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.209 lb (94.8g)

254 in stock
