Murata Power Solutions

- Murata Power Solutions designs and manufactures DC/DC Converters, AC/DC Power Supplies, Magnetics, Data Acquisition devices and Digital Panel Meters, and offers these products in custom, standard and modified-standard variations. Currently the world's number 1 supplier of DC/DC converters and one of the top 5 largest suppliers of power electronics overall, our products are used within numerous applications including telecommunications, computing, industrial, medical, office-equipment and more.

Murata Power Solutions was formed in 2007 when Murata Manufacturing Corporation acquired the power electronics division of C&D Technologies. We are headquartered in Mansfield, Massachusetts (USA) with over 1,300 employees in locations in the USA, Canada, Mexico, England, France, Germany, Japan, China and Singapore.


Part Number

Manufacturer

Description

Unit Price

In Stock

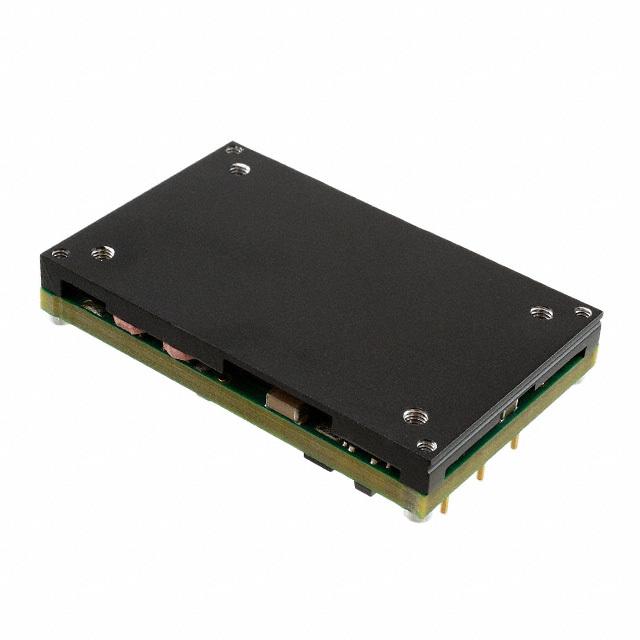

UWQ-12/20-T48PB-C

Murata Power Solutions

Manufacturer : Murata Power Solutions Inc.
Packaging : Tray
Series : UWQ
Part Status : Active
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 18V
Voltage - Input (Max) : 60V
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 20A
Power (Watts) : 240W
Voltage - Isolation : 2.25kV
Applications : ITE (Commercial)
Features : Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 92%
Mounting Type : Through Hole
Package / Case : 8-DIP Module, 5 Leads, 1/4 Brick
Size / Dimension : 2.30" L x 1.45" W x 0.50" H (58.4mm x 36.8mm x 12.7mm)
Supplier Device Package : -
Control Features : Enable, Active High

29 in stock

UWQ-3.3/25-Q48NB-C

Murata Power Solutions

Manufacturer : Murata Power Solutions Inc.
Packaging : -
Series : UWQ
Part Status : Obsolete
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : -
Voltage - Input (Max) : -
Voltage - Output 1 : 3.3V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 25A
Power (Watts) : 83W
Voltage - Isolation : -
Applications : -
Features : -
Operating Temperature : -
Efficiency : -
Mounting Type : -
Package / Case : -
Size / Dimension : -
Supplier Device Package : Quarter Brick
Control Features : -

100 in stock

UWR-12/1250-D24A-C

Murata Power Solutions

Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : UWR
Part Status : Active
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 18V
Voltage - Input (Max) : 36V
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 1.25A
Power (Watts) : 15W
Voltage - Isolation : 1.5kV
Applications : ITE (Commercial)
Features : -
Operating Temperature : -40°C ~ 85°C
Efficiency : 87%
Mounting Type : Through Hole
Package / Case : 6-DIP Module
Size / Dimension : 2.00" L x 1.00" W x 0.48" H (50.8mm x 25.4mm x 12.2mm)
Supplier Device Package : -
Control Features : -

88 in stock

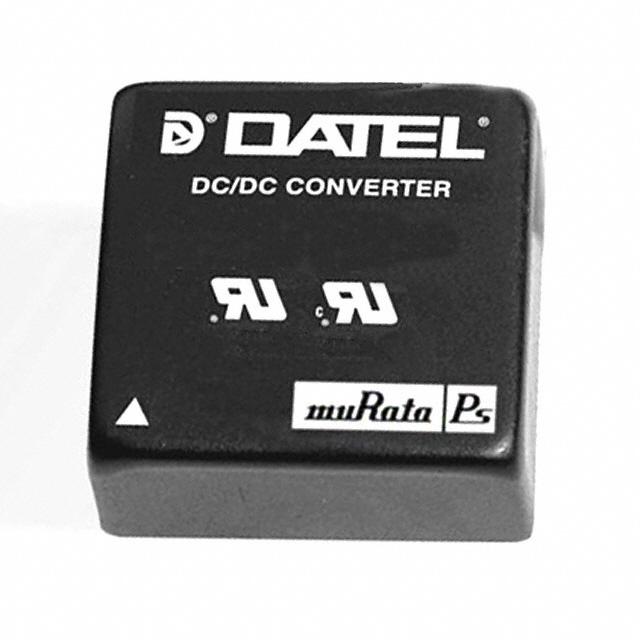

UWR-12/1650-D48A-C

Murata Power Solutions

Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : UWR
Part Status : Obsolete
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 18V
Voltage - Input (Max) : 75V
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 1.65A
Power (Watts) : 19W
Voltage - Isolation : 1.5kV
Applications : ITE (Commercial)
Features : -
Operating Temperature : -40°C ~ 65°C
Efficiency : 85%
Mounting Type : Through Hole
Package / Case : 8-DIP Module, 6 Leads
Size / Dimension : 2.00" L x 2.00" W x 0.45" H (50.8mm x 50.8mm x 11.4mm)
Supplier Device Package : -
Control Features : -

100 in stock

UWR-12/250-D5-C

Murata Power Solutions

Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : UWR
Part Status : Obsolete
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 4.5V
Voltage - Input (Max) : 9V
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 250mA
Power (Watts) : 3W
Voltage - Isolation : 1.5kV
Applications : ITE (Commercial)
Features : -
Operating Temperature : -25°C ~ 75°C
Efficiency : 75%
Mounting Type : Through Hole
Package / Case : 8-DIP Module
Size / Dimension : 1.25" L x 0.80" W x 0.45" H (31.8mm x 20.3mm x 11.4mm)
Supplier Device Package : -
Control Features : -

100 in stock

UWR-12/420-D24-C

Murata Power Solutions

Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : UWR
Part Status : Obsolete
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 18V
Voltage - Input (Max) : 36V
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 420mA
Power (Watts) : 5W
Voltage - Isolation : 1.5kV
Applications : ITE (Commercial)
Features : -
Operating Temperature : -25°C ~ 60°C
Efficiency : 80%
Mounting Type : Through Hole
Package / Case : 6-DIP Module
Size / Dimension : 1.00" L x 1.00" W x 0.45" H (25.4mm x 25.4mm x 11.4mm)
Supplier Device Package : -
Control Features : -

100 in stock

UWR-12/665-D5A-C

Murata Power Solutions

Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : UWR
Part Status : Active
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 4.7V
Voltage - Input (Max) : 7.25V
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 665mA
Power (Watts) : 8W
Voltage - Isolation : 1.5kV
Applications : ITE (Commercial)
Features : -
Operating Temperature : -40°C ~ 70°C
Efficiency : 78%
Mounting Type : Through Hole
Package / Case : 5-DIP Module
Size / Dimension : 2.00" L x 1.00" W x 0.38" H (50.8mm x 25.4mm x 9.7mm)
Supplier Device Package : -
Control Features : -

368 in stock

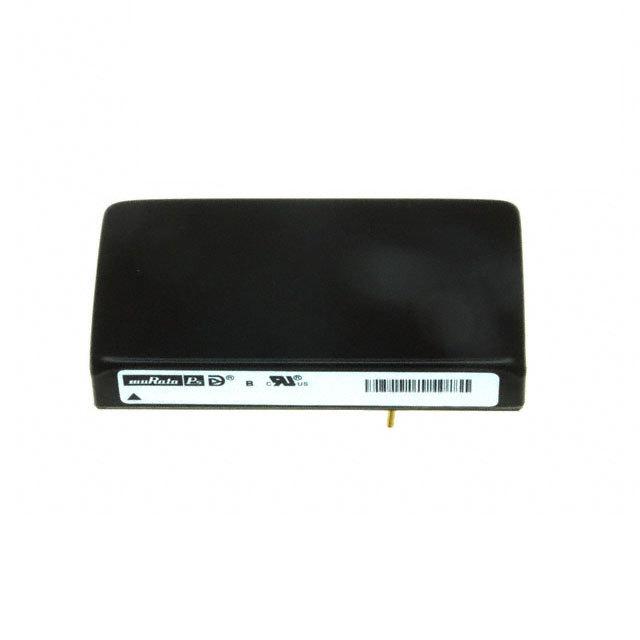

UWR-12/750-D48A-C

Murata Power Solutions

Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : UWR
Part Status : Obsolete
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 18V
Voltage - Input (Max) : 75V
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 750mA
Power (Watts) : 9W
Voltage - Isolation : 1.5kV
Applications : ITE (Commercial)
Features : -
Operating Temperature : -40°C ~ 70°C
Efficiency : 82.5%
Mounting Type : Through Hole
Package / Case : 5-DIP Module
Size / Dimension : 2.00" L x 1.00" W x 0.38" H (50.8mm x 25.4mm x 9.7mm)
Supplier Device Package : -
Control Features : -

100 in stock

UWR-12/830-D12A-C

Murata Power Solutions

Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : UWR
Part Status : Obsolete
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 18V
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 830mA
Power (Watts) : 10W
Voltage - Isolation : 1.5kV
Applications : ITE (Commercial)
Features : -
Operating Temperature : -40°C ~ 70°C
Efficiency : 84%
Mounting Type : Through Hole
Package / Case : 5-DIP Module
Size / Dimension : 2.00" L x 1.00" W x 0.38" H (50.8mm x 25.4mm x 9.7mm)
Supplier Device Package : -
Control Features : -

100 in stock

UWR-15/1000-D24AT-C

Murata Power Solutions

Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : UWR
Part Status : Active
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 18V
Voltage - Input (Max) : 36V
Voltage - Output 1 : 15V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 1A
Power (Watts) : 15W
Voltage - Isolation : 1.5kV
Applications : ITE (Commercial)
Features : -
Operating Temperature : -40°C ~ 85°C
Efficiency : 87%
Mounting Type : Through Hole
Package / Case : 5-DIP Module
Size / Dimension : 2.00" L x 1.00" W x 0.48" H (50.8mm x 25.4mm x 12.1mm)
Supplier Device Package : -
Control Features : -

278 in stock

UWR-15/1300-D12A-C

Murata Power Solutions

Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : UWR
Part Status : Obsolete
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 36V
Voltage - Output 1 : 15V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 1.3A
Power (Watts) : 19W
Voltage - Isolation : 1.5kV
Applications : ITE (Commercial)
Features : -
Operating Temperature : -40°C ~ 65°C
Efficiency : 85%
Mounting Type : Through Hole
Package / Case : 8-DIP Module, 6 Leads
Size / Dimension : 2.00" L x 2.00" W x 0.45" H (50.8mm x 50.8mm x 11.4mm)
Supplier Device Package : -
Control Features : -

100 in stock

UWR-15/335-D24-C

Murata Power Solutions

Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : UWR
Part Status : Obsolete
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 18V
Voltage - Input (Max) : 36V
Voltage - Output 1 : 15V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 335mA
Power (Watts) : 5W
Voltage - Isolation : 1.5kV
Applications : ITE (Commercial)
Features : -
Operating Temperature : -25°C ~ 60°C
Efficiency : 80%
Mounting Type : Through Hole
Package / Case : 6-DIP Module
Size / Dimension : 1.00" L x 1.00" W x 0.45" H (25.4mm x 25.4mm x 11.4mm)
Supplier Device Package : -
Control Features : -

100 in stock
