Mechatronics
- Mechatronics is a manufacturer of brushless cooling fans and thermal solutions headquartered near Seattle, WA. Mechatronics product offering includes AC axial fans, DC axial fans, AC blowers, DC blowers, AC motorized impellers and value-added assemblies. In addition to our standard products, we offer tailored solutions to fit customer specific requirements from minor modifications to fully custom products.
With factories located in Indonesia, Taiwan and China, Mechatronics offers technologically advanced products, superior quality, competitive pricing and exceptional service.
Part Number
Manufacturer
Description
Unit Price
In Stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF225
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 225mm Dia
Width : 85.00mm
Air Flow : 680.0 CFM (19.04m鲁/min)
Static Pressure : 2.500 in H2O (622.7 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Permanent Split Capacitor Motor
Noise : 75.0 dB(A)
Power (Watts) : 135W
RPM : 3000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 122°F (-40 ~ 50°C)
Approvals : CE, cUL, TUV, UL
Weight : 5 lbs (2.3kg)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF225
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 225mm Dia
Width : 85.00mm
Air Flow : 680.0 CFM (19.04m鲁/min)
Static Pressure : 2.500 in H2O (622.7 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Permanent Split Capacitor Motor
Noise : 75.0 dB(A)
Power (Watts) : 135W
RPM : 3000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 122°F (-40 ~ 50°C)
Approvals : CE, cUL, TUV, UL
Weight : 5 lbs (2.3kg)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF225
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 225mm Dia
Width : 99.00mm
Air Flow : 770.0 CFM (21.56m鲁/min)
Static Pressure : 2.600 in H2O (647.7 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Permanent Split Capacitor Motor
Noise : 71.0 dB(A)
Power (Watts) : 160W
RPM : 2950 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 122°F (-40 ~ 50°C)
Approvals : CE, cUL, TUV, UL
Weight : 5 lbs (2.3kg)
0
1 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF225
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 259mm Dia
Width : 117.0mm
Air Flow : 547.0 CFM (15.32m鲁/min)
Static Pressure : 2.600 in H2O (647.7 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Permanent Split Capacitor Motor
Noise : 71.0 dB(A)
Power (Watts) : 160W
RPM : 2950 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 122°F (-40 ~ 50°C)
Approvals : CE, cUL, TUV, UL
Weight : 5.7 lbs (2.6kg)
0
5 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF225
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 225mm Dia
Width : 99.00mm
Air Flow : 770.0 CFM (21.56m鲁/min)
Static Pressure : 2.600 in H2O (647.7 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Permanent Split Capacitor Motor
Noise : 71.0 dB(A)
Power (Watts) : 157W
RPM : 2950 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 122°F (-40 ~ 50°C)
Approvals : CE, cUL, TUV, UL
Weight : 5 lbs (2.3kg)
0
10 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF225
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 259mm Dia
Width : 117.0mm
Air Flow : 547.0 CFM (15.32m鲁/min)
Static Pressure : 2.600 in H2O (647.7 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Permanent Split Capacitor Motor
Noise : 71.0 dB(A)
Power (Watts) : 157W
RPM : 2950 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 122°F (-40 ~ 50°C)
Approvals : CE, cUL, TUV, UL
Weight : 5.7 lbs (2.6kg)
0
8 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF22F
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : -
Width : -
Air Flow : -
Static Pressure : -
Bearing Type : Ball
Fan Type : -
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE
Weight : -
0
16 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF250A
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 251mm Dia
Width : 98.00mm
Air Flow : 850.0 CFM (23.80m鲁/min)
Static Pressure : 2.900 in H2O (722.4 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Permanent Split Capacitor Motor
Noise : 76.0 dB(A)
Power (Watts) : 240W
RPM : 2700 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 122°F (-40 ~ 50°C)
Approvals : CE, cUL, TUV, UL
Weight : 6.8 lbs (3.1kg)
0
38 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF250A
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 259mm Dia
Width : 131.0mm
Air Flow : 681.0 CFM (19.07m鲁/min)
Static Pressure : 3.100 in H2O (772.2 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Permanent Split Capacitor Motor
Noise : 72.0 dB(A)
Power (Watts) : 240W
RPM : 2700 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 122°F (-40 ~ 50°C)
Approvals : CE, cUL, TUV, UL
Weight : 7.2 lbs (3.3kg)
0
1 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF250A
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 250mm Dia
Width : 98.10mm
Air Flow : 770.0 CFM (21.56m鲁/min)
Static Pressure : 2.200 in H2O (548.0 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : -
Noise : 76.0 dB(A)
Power (Watts) : -
RPM : -
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 122°F (-40 ~ 50°C)
Approvals : CE, cUL, TUV, UL
Weight : 6.8 lbs (3.1kg)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF250A
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 251mm Dia
Width : 98.00mm
Air Flow : 850.0 CFM (23.80m鲁/min)
Static Pressure : 2.900 in H2O (722.4 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Permanent Split Capacitor Motor
Noise : 76.0 dB(A)
Power (Watts) : 240W
RPM : 2700 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 122°F (-40 ~ 50°C)
Approvals : CE, cUL, TUV, UL
Weight : 6.8 lbs (3.1kg)
0
7 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF250A
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 259mm Dia
Width : 131.0mm
Air Flow : 681.0 CFM (19.07m鲁/min)
Static Pressure : 3.100 in H2O (772.2 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Permanent Split Capacitor Motor
Noise : 72.0 dB(A)
Power (Watts) : 240W
RPM : 2700 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 122°F (-40 ~ 50°C)
Approvals : CE, cUL, TUV, UL
Weight : 7.2 lbs (3.3kg)
0
4 in stock

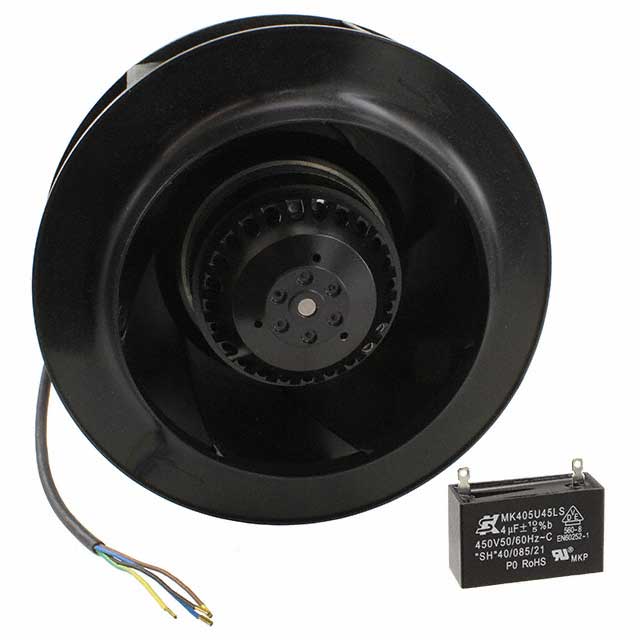

APA12H1C2A.jpg "Show details for UF225(85)APA12-H1C2A")
APA23H1C2A.jpg "Show details for UF225(85)APA23-H1C2A")

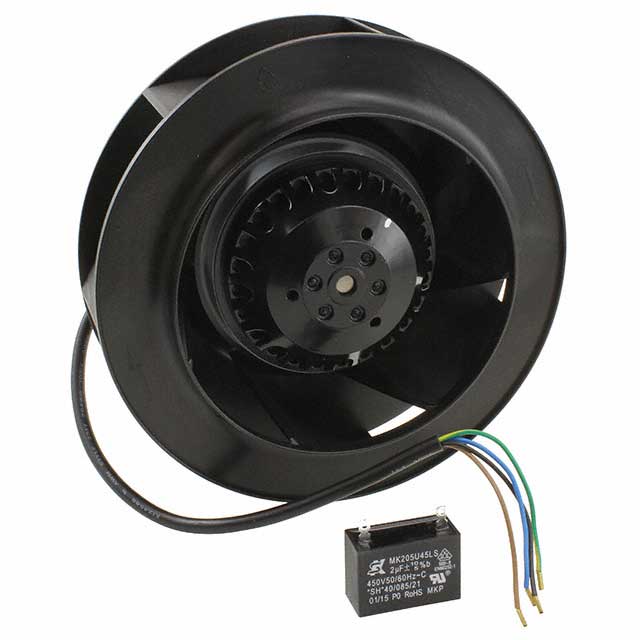

APA12H1C2A.jpg "Show details for UF225(99)APA12-H1C2A")

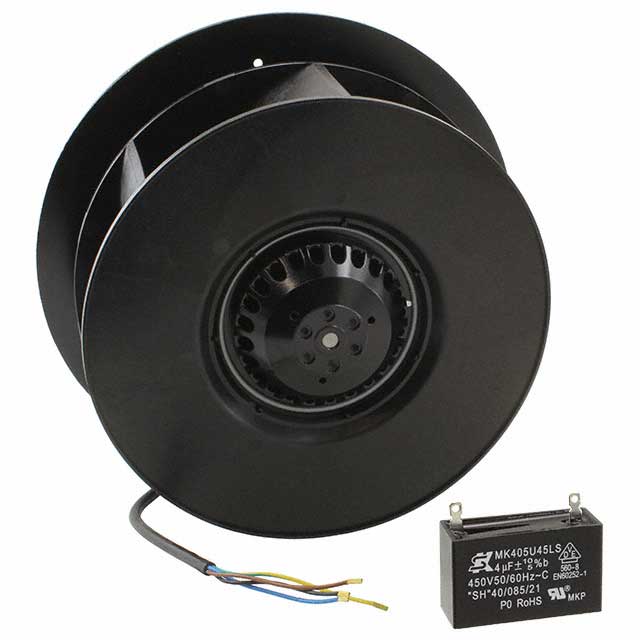

APA12H1C2F.jpg "Show details for UF225(99)APA12-H1C2F")

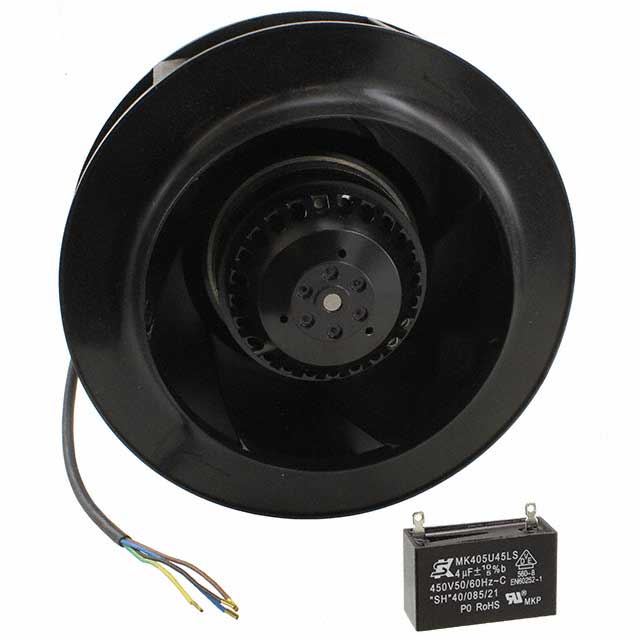

APA23H1C2A.jpg "Show details for UF225(99)APA23-H1C2A")

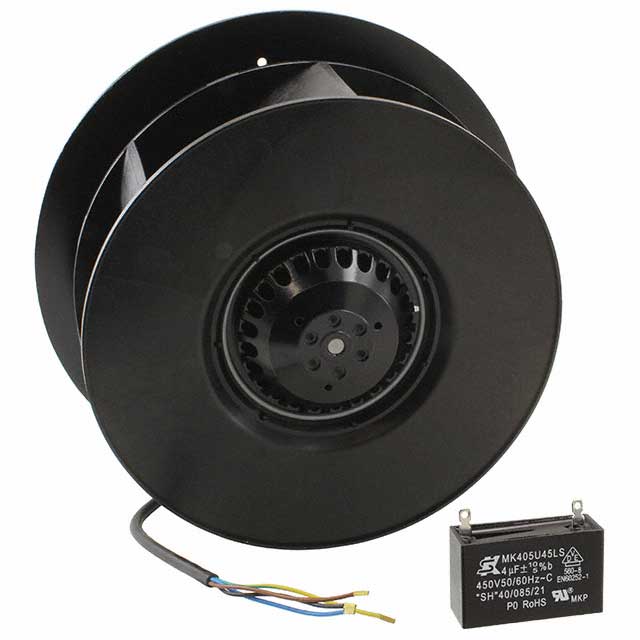

APA23H1C2F.jpg "Show details for UF225(99)APA23-H1C2F")
