Mechatronics
- Mechatronics is a manufacturer of brushless cooling fans and thermal solutions headquartered near Seattle, WA. Mechatronics product offering includes AC axial fans, DC axial fans, AC blowers, DC blowers, AC motorized impellers and value-added assemblies. In addition to our standard products, we offer tailored solutions to fit customer specific requirements from minor modifications to fully custom products.
With factories located in Indonesia, Taiwan and China, Mechatronics offers technologically advanced products, superior quality, competitive pricing and exceptional service.
Part Number
Manufacturer
Description
Unit Price
In Stock

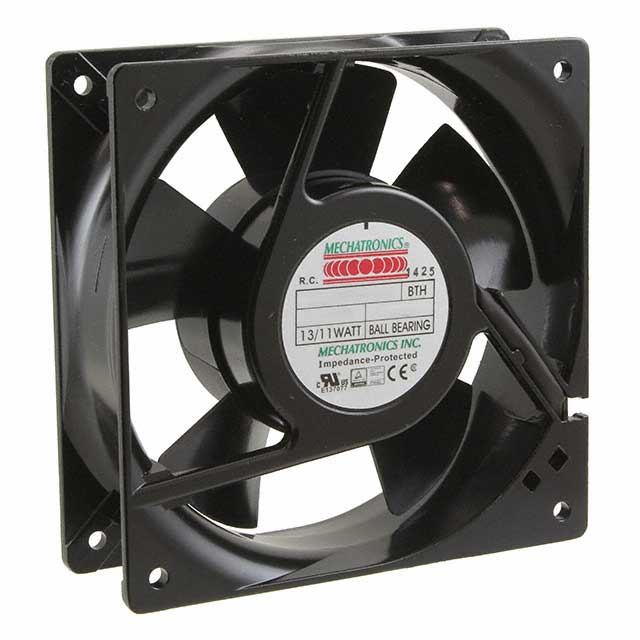

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF12AR
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 99.0 CFM (2.77m鲁/min)
Static Pressure : 0.330 in H2O (82.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Reverse Air Flow
Noise : 47.0 dB(A)
Power (Watts) : 15.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, UL
Weight : 1.2 lbs (544.3g)
0
100 in stock

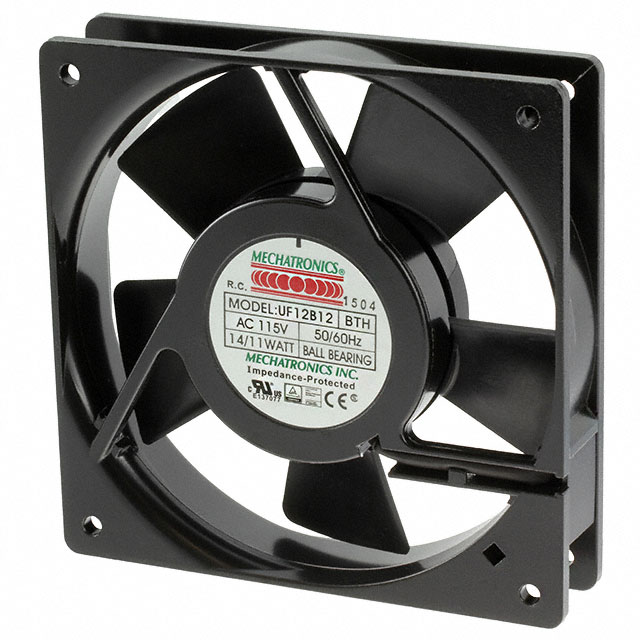

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF12B
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.00mm
Air Flow : 75.0 CFM (2.10m鲁/min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 42.0 dB(A)
Power (Watts) : 11.00W
RPM : 2900 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 0.725 lb (328.85g)
0
341 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF12B
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.00mm
Air Flow : 53.0 CFM (1.48m鲁/min)
Static Pressure : 0.110 in H2O (27.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 33.0 dB(A)
Power (Watts) : 11.00W
RPM : 2000 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 0.725 lb (328.85g)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF12B
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.00mm
Air Flow : 75.0 CFM (2.10m鲁/min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 42.0 dB(A)
Power (Watts) : 11.00W
RPM : 2900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 0.725 lb (328.85g)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF12B
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.00mm
Air Flow : 75.0 CFM (2.10m鲁/min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Conformal Coating
Noise : 42.0 dB(A)
Power (Watts) : 11.00W
RPM : 2900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 0.725 lb (328.85g)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF12B
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.00mm
Air Flow : 53.0 CFM (1.48m鲁/min)
Static Pressure : 0.110 in H2O (27.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 33.0 dB(A)
Power (Watts) : 11.00W
RPM : 2000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 0.725 lb (328.85g)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF12B
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.00mm
Air Flow : 75.0 CFM (2.10m鲁/min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 42.0 dB(A)
Power (Watts) : 14.00W
RPM : 2900 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 0.725 lb (328.85g)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF12B
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.00mm
Air Flow : 53.0 CFM (1.48m鲁/min)
Static Pressure : 0.110 in H2O (27.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 33.0 dB(A)
Power (Watts) : 14.00W
RPM : 2000 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 0.725 lb (328.85g)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF12B
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.00mm
Air Flow : 75.0 CFM (2.10m鲁/min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 42.0 dB(A)
Power (Watts) : 14.00W
RPM : 2900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 0.725 lb (328.85g)
0
100 in stock

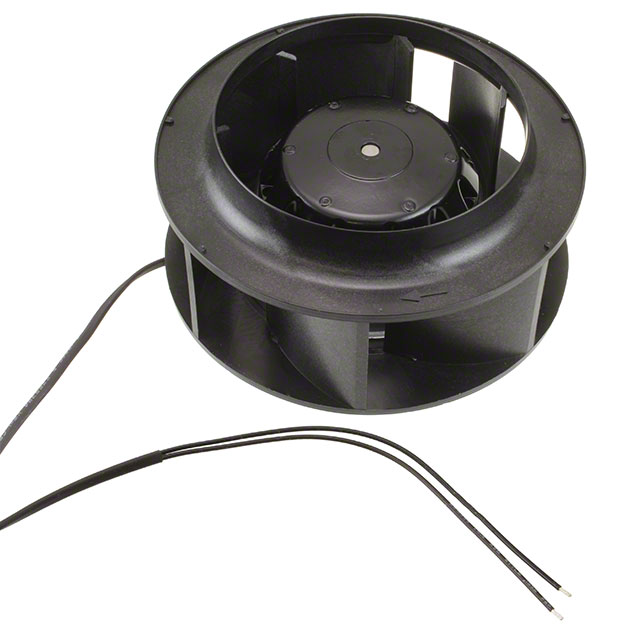

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF133(72)
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 133mm Dia
Width : 72.50mm
Air Flow : 188.0 CFM (5.26m鲁/min)
Static Pressure : 0.880 in H2O (219.2 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : -
Noise : 60.0 dB(A)
Power (Watts) : 41.00W
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 2 lbs (907.2g)
0
20 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF133(72)
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 133mm Dia
Width : 72.50mm
Air Flow : 188.0 CFM (5.26m鲁/min)
Static Pressure : 0.880 in H2O (219.2 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : -
Noise : 50.0 dB(A)
Power (Watts) : 40.00W
RPM : 2780 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 1.3 lbs (589.7g)
0
2 in stock

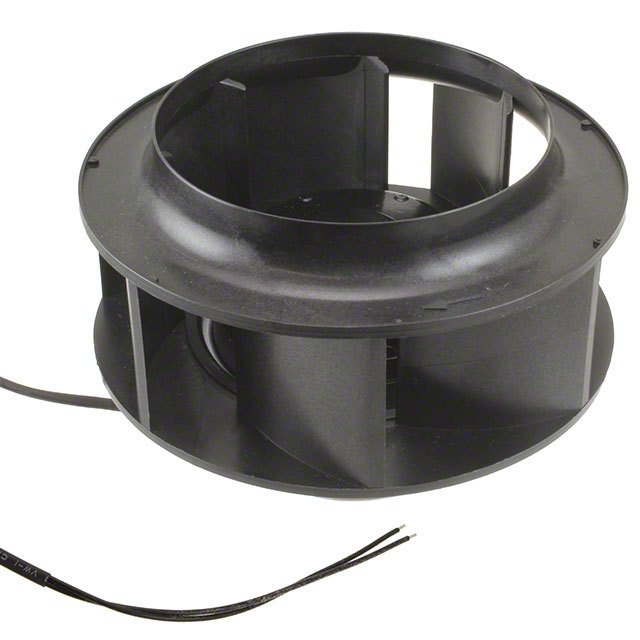

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF133(91)
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 133mm Dia
Width : 91.50mm
Air Flow : 188.0 CFM (5.26m鲁/min)
Static Pressure : 0.880 in H2O (219.2 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : -
Noise : 60.0 dB(A)
Power (Watts) : 41.00W
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 2 lbs (907.2g)
0
38 in stock
