Mechatronics
- Mechatronics is a manufacturer of brushless cooling fans and thermal solutions headquartered near Seattle, WA. Mechatronics product offering includes AC axial fans, DC axial fans, AC blowers, DC blowers, AC motorized impellers and value-added assemblies. In addition to our standard products, we offer tailored solutions to fit customer specific requirements from minor modifications to fully custom products.
With factories located in Indonesia, Taiwan and China, Mechatronics offers technologically advanced products, superior quality, competitive pricing and exceptional service.
Part Number
Manufacturer
Description
Unit Price
In Stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF12A
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 106.0 CFM (2.97m鲁/min)
Static Pressure : 0.350 in H2O (87.2 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 46.0 dB(A)
Power (Watts) : 12.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 1.168 lbs (530g)
0
23 in stock

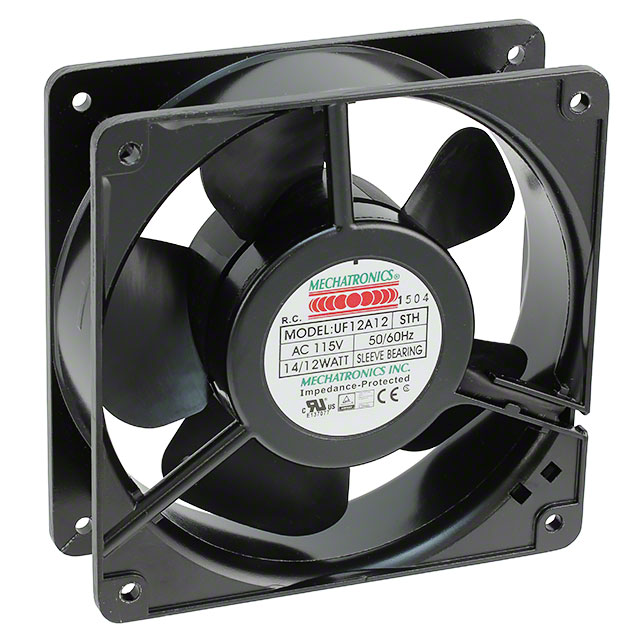

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF12A
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 57.0 CFM (1.60m鲁/min)
Static Pressure : 0.090 in H2O (22.4 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 36.0 dB(A)
Power (Watts) : 6.00W
RPM : 1800 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 1.2 lbs (544.3g)
0
100 in stock

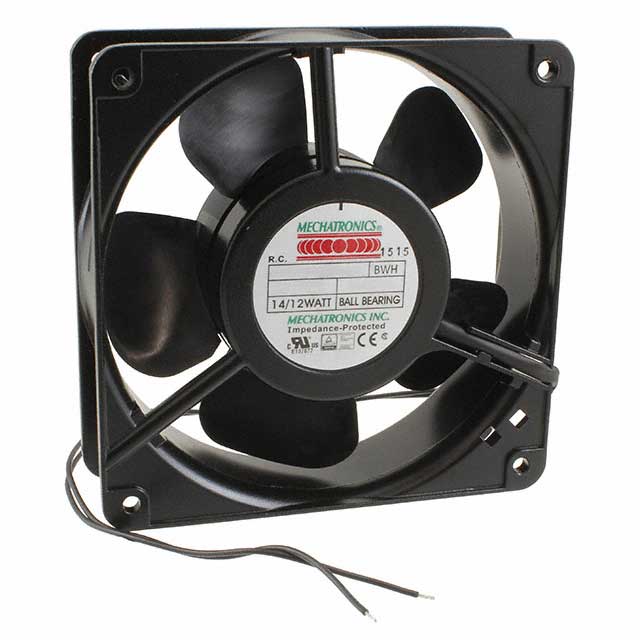

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF12A
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 106.0 CFM (2.97m鲁/min)
Static Pressure : 0.350 in H2O (87.2 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 46.0 dB(A)
Power (Watts) : 12.00W
RPM : 3100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 1.2 lbs (544.3g)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF12A
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 81.0 CFM (2.27m鲁/min)
Static Pressure : 0.160 in H2O (39.8 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 38.0 dB(A)
Power (Watts) : 12.00W
RPM : 2300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 1.2 lbs (544.3g)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF12A
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 106.0 CFM (2.97m鲁/min)
Static Pressure : 0.350 in H2O (87.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 46.0 dB(A)
Power (Watts) : 15.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 1.2 lbs (544.3g)
0
22 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF12A
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 106.0 CFM (2.97m鲁/min)
Static Pressure : 0.350 in H2O (87.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Salt Fog Rated
Noise : 46.0 dB(A)
Power (Watts) : 15.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 1.2 lbs (544.3g)
0
53 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF12A
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 106.0 CFM (2.97m鲁/min)
Static Pressure : 0.350 in H2O (87.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 46.0 dB(A)
Power (Watts) : 15.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 1.2 lbs (544.3g)
0
685 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF12A
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 106.0 CFM (2.97m鲁/min)
Static Pressure : 0.350 in H2O (87.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Conformal Coating
Noise : 46.0 dB(A)
Power (Watts) : 15.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 1.168 lbs (530g)
0
5 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF12A
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 81.0 CFM (2.27m鲁/min)
Static Pressure : 0.160 in H2O (39.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 38.0 dB(A)
Power (Watts) : 15.00W
RPM : 2300 RPM
Termination : 2 Terminals
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 1.2 lbs (544.3g)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF12A
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 81.0 CFM (2.27m鲁/min)
Static Pressure : 0.160 in H2O (39.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 38.0 dB(A)
Power (Watts) : 15.00W
RPM : 2300 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 1.2 lbs (544.3g)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF12A
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 92.0 CFM (2.58m鲁/min)
Static Pressure : 0.280 in H2O (69.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 42.0 dB(A)
Power (Watts) : 15.00W
RPM : 2750 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 1.2 lbs (544.3g)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF12A
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 64.0 CFM (1.79m鲁/min)
Static Pressure : 0.110 in H2O (27.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 37.0 dB(A)
Power (Watts) : 8.00W
RPM : 2100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 1.168 lbs (530g)
0
10 in stock
