Mechatronics
- Mechatronics is a manufacturer of brushless cooling fans and thermal solutions headquartered near Seattle, WA. Mechatronics product offering includes AC axial fans, DC axial fans, AC blowers, DC blowers, AC motorized impellers and value-added assemblies. In addition to our standard products, we offer tailored solutions to fit customer specific requirements from minor modifications to fully custom products.
With factories located in Indonesia, Taiwan and China, Mechatronics offers technologically advanced products, superior quality, competitive pricing and exceptional service.
Part Number
Manufacturer
Description
Unit Price
In Stock

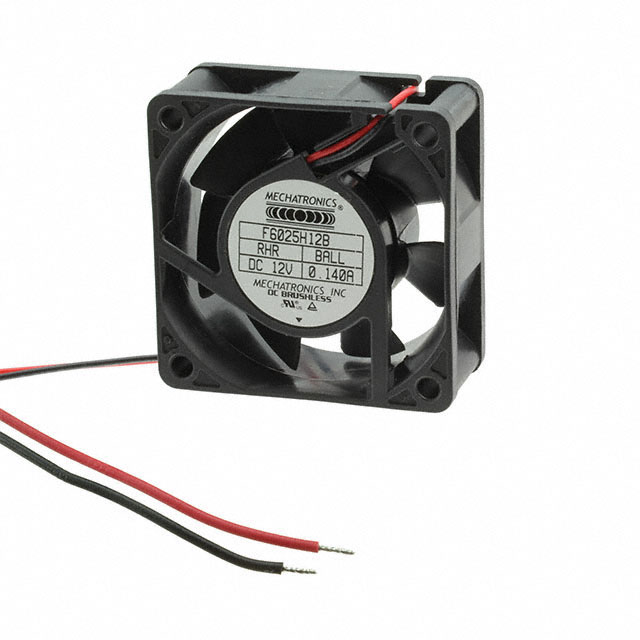

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : F6025-H
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 24.0 CFM (0.672m鲁/min)
Static Pressure : 0.320 in H2O (79.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 37.0 dB(A)
Power (Watts) : -
RPM : 5000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.139 lb (63.05g)
0
10 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : F6025-H
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 24.0 CFM (0.672m鲁/min)
Static Pressure : 0.320 in H2O (79.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 37.0 dB(A)
Power (Watts) : -
RPM : 5000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.139 lb (63.05g)
0
10 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : F6025-H
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 24.0 CFM (0.672m鲁/min)
Static Pressure : 0.320 in H2O (79.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 37.0 dB(A)
Power (Watts) : -
RPM : 5000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.139 lb (63.05g)
0
37 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : F6025-H
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 24.0 CFM (0.672m鲁/min)
Static Pressure : 0.320 in H2O (79.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 37.0 dB(A)
Power (Watts) : -
RPM : 5000 RPM
Termination : 2 Wire Leads
Ingress Protection : IP57 - Dust Protected, Waterproof
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.139 lb (63.05g)
0
76 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : F6025
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 24.0 CFM (0.672m鲁/min)
Static Pressure : 0.230 in H2O (57.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 36.0 dB(A)
Power (Watts) : -
RPM : 4600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.139 lb (63.05g)
0
568 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : F6025-H
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 20.0 CFM (0.560m鲁/min)
Static Pressure : 0.260 in H2O (64.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 32.0 dB(A)
Power (Watts) : -
RPM : 4200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.139 lb (63.05g)
0
133 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : F6025-H
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 20.0 CFM (0.560m鲁/min)
Static Pressure : 0.260 in H2O (64.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 32.0 dB(A)
Power (Watts) : -
RPM : 4200 RPM
Termination : 2 Wire Leads
Ingress Protection : IP57 - Dust Protected, Waterproof
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.139 lb (63.05g)
0
72 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : F6025-H
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 20.0 CFM (0.560m鲁/min)
Static Pressure : 0.260 in H2O (64.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 32.0 dB(A)
Power (Watts) : -
RPM : 4200 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.139 lb (63.05g)
0
10 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : F6025-H
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 20.0 CFM (0.560m鲁/min)
Static Pressure : 0.160 in H2O (39.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 31.0 dB(A)
Power (Watts) : -
RPM : 3800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.156 lb (70.76g)
0
26 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : F6025
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 14.0 CFM (0.392m鲁/min)
Static Pressure : 0.090 in H2O (22.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 24.0 dB(A)
Power (Watts) : -
RPM : 2800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.156 lb (70.76g)
0
3 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : F6025-H
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 14.0 CFM (0.392m鲁/min)
Static Pressure : 0.140 in H2O (34.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 25.0 dB(A)
Power (Watts) : -
RPM : 3000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.139 lb (63.05g)
0
69 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : F6025-H
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 14.0 CFM (0.392m鲁/min)
Static Pressure : 0.140 in H2O (34.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 25.0 dB(A)
Power (Watts) : -
RPM : 3000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.139 lb (63.05g)
0
10 in stock
