MEAN WELL
- MEAN WELL is one of the leading standard switching power supply manufacturers in the world having more than 8,000 standard off-the-shelf models for a complete range of power supply solutions. Specializing in design, manufacturing and marketing of AC-DC switching power supplies, DC-DC converters, DC-AC inverters, and adapters/battery chargers for global markets. MEAN WELL upholds the idea of “your reliable power partner” and is devoted to offering the best power supply product and service. MEAN WELL is now able to provide fast, localized services around the world with its global distribution network fostered by continuous effort and hard work.
Part Number
Manufacturer
Description
Unit Price
In Stock
MEAN WELL
Manufacturer : MEAN WELL USA Inc.
Series : WDR-240 (240W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 180 ~ 550 VAC, 254 ~ 780 VDC
Voltage - Output 1 : 48V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 5A
Power (Watts) : 240W
Applications : Industrial, ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 91%
Operating Temperature : -30°C ~ 70°C (With Derating)
Features : Adjustable Output, PFC
Mounting Type : DIN Rail
Size / Dimension : 4.47" L x 2.48" W x 4.93" H (113.5mm x 63.0mm x 125.2mm)
0
18 in stock
MEAN WELL
Manufacturer : MEAN WELL USA Inc.

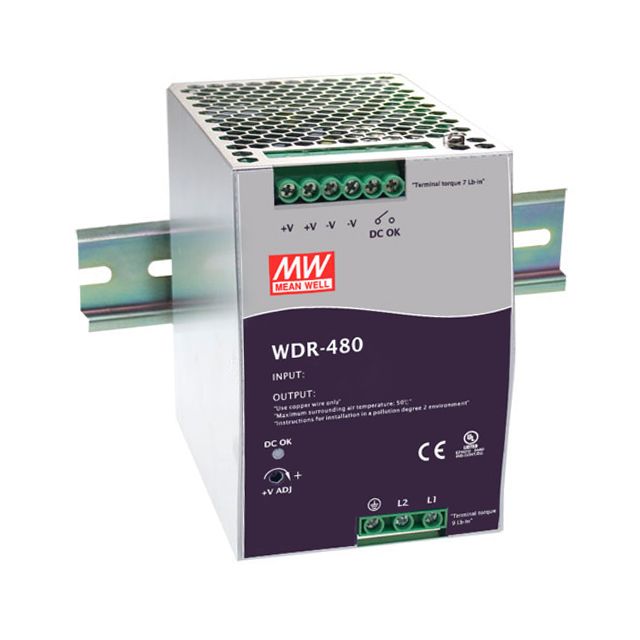

Series : WDR-480 (480W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 180 ~ 550 VAC (2PH), 254 ~ 780 VDC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 20A
Power (Watts) : 480W
Applications : Industrial, ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 92%
Operating Temperature : -30°C ~ 70°C (With Derating)
Features : Adjustable Output, PFC
Mounting Type : DIN Rail
Size / Dimension : 5.06" L x 3.37" W x 4.93" H (128.5mm x 85.5mm x 125.2mm)
0
32 in stock
MEAN WELL
Manufacturer : MEAN WELL USA Inc.
Series : WDR-480 (480W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 180 ~ 550 VAC (2PH), 254 ~ 780 VDC
Voltage - Output 1 : 48V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 10A
Power (Watts) : 480W
Applications : Industrial, ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 93%
Operating Temperature : -30°C ~ 70°C (With Derating)
Features : Adjustable Output, PFC
Mounting Type : DIN Rail
Size / Dimension : 5.06" L x 3.37" W x 4.93" H (128.5mm x 85.5mm x 125.2mm)
0
18 in stock
MEAN WELL
Manufacturer : MEAN WELL USA Inc.
Series : -
Part Status : Active

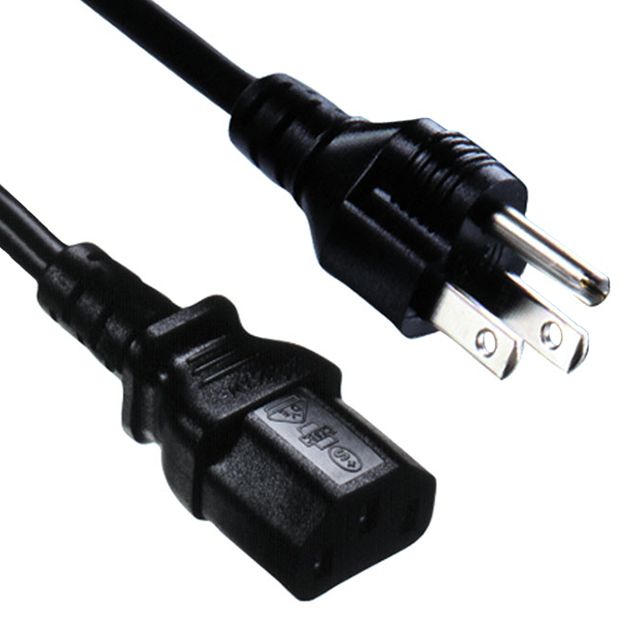

Style : Male Pins (Blades) to Female Sockets (Slots)
1st Connector : -
2nd Connector : IEC 320-C13
Number of Conductors : 3
Cord Type : -
Wire Gauge : -
Shielding : -
Length : 6.00' (1.83m)
Approval Marks : -
Approved Countries : -
Color : Black
Voltage Rating : -
Current Rating : -
Operating Temperature : -
Features : -
0
1805 in stock
