Luminus Devices, Inc.

- Luminus Devices, Inc. develops and markets solid-state lighting solutions (SSL) to help its customers migrate from conventional lamp technologies to long-life and energy-efficient LED illumination. Luminus offers a comprehensive range of LED solutions for indoor and outdoor illumination markets as well as high-output specialty lighting solutions for performance-driven markets including consumer displays, entertainment lighting, medical and industrial applications. Luminus is headquartered in Sunnyvale, CA, and has operations in Woburn, Massachusetts and Xiamen, China.


Part Number

Manufacturer

Description

Unit Price

In Stock

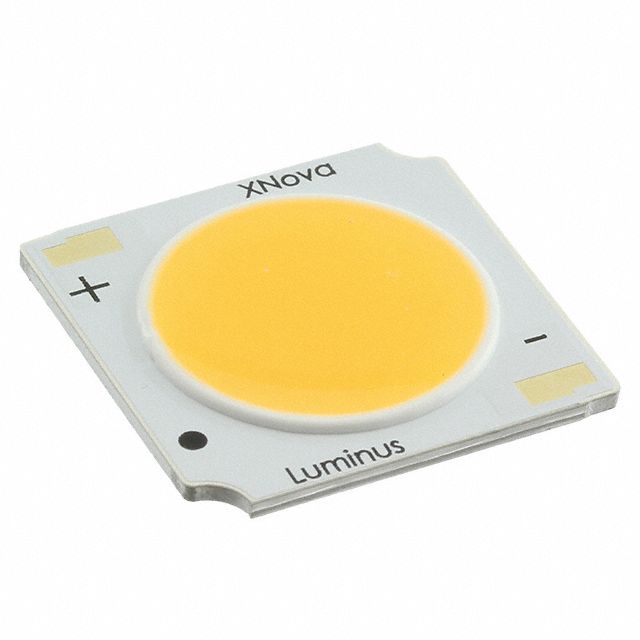

CXM-14-30-90-36-AC00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-14
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1720 lm (Typ)
Current - Test : 480mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36V
Lumens/Watt @ Current - Test : 100 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 15.00mm Diameter
Lens Type : Flat

100 in stock

CXM-14-30-90-36-AC02-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : Sensus™
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1635 lm (Typ)
Current - Test : 480mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 97 lm/W
Current - Max : 1.09A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 13.50mm Diameter
Lens Type : Flat

100 in stock

CXM-14-30-90-36-AC30-F4-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-14 Gen3
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3030 lm (Typ)
Current - Test : 720mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34V
Lumens/Watt @ Current - Test : 124 lm/W
Current - Max : 1.44A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 14.30mm Diameter
Lens Type : Flat

22 in stock

CXM-14-30-90-36-AC32-F4-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : Sensus™
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2880 lm (Typ)
Current - Test : 720mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34V
Lumens/Watt @ Current - Test : 118 lm/W
Current - Max : 1.44A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 14.30mm Diameter
Lens Type : Flat

45 in stock

CXM-14-30-95-36-AA00-F1-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-14
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1483 lm (1445 lm ~ 1520 lm)
Current - Test : 480mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 88 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 95
Viewing Angle : 120°
Features : -
Size / Dimension : 18.50mm L x 18.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 13.50mm Diameter
Lens Type : Flat

100 in stock

CXM-14-30-95-36-AC00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-14
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1600 lm (Typ)
Current - Test : 480mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36V
Lumens/Watt @ Current - Test : 93 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 95
Viewing Angle : 120°
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 15.00mm Diameter
Lens Type : Flat

100 in stock

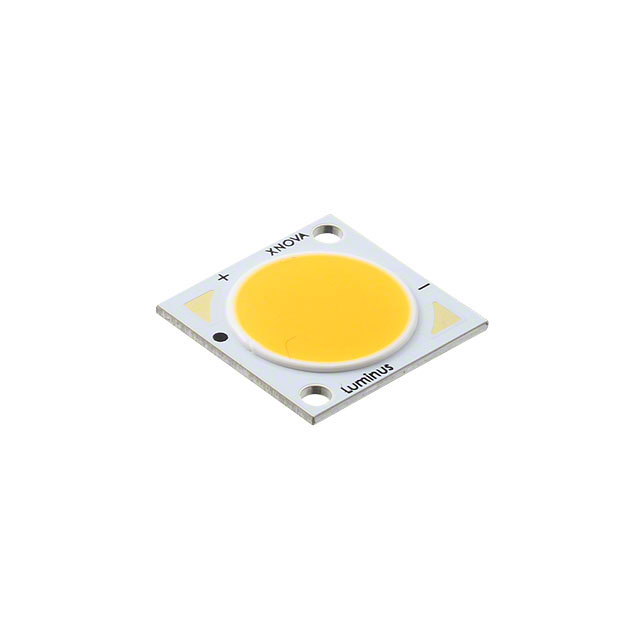

CXM-14-35-80-36-AA00-F1-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-14
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1938 lm (1890 lm ~ 1985 lm)
Current - Test : 480mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 115 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 18.50mm L x 18.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 13.50mm Diameter
Lens Type : Flat

100 in stock

CXM-14-35-80-36-AC00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-14
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2090 lm (Typ)
Current - Test : 480mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 124 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 13.50mm Diameter
Lens Type : Flat

100 in stock

CXM-14-35-80-36-AC02-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : Sensus™
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1985 lm (Typ)
Current - Test : 480mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 118 lm/W
Current - Max : 1.09A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 13.50mm Diameter
Lens Type : Flat

100 in stock

CXM-14-35-90-36-AC00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-14
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1800 lm (Typ)
Current - Test : 480mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 107 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 13.50mm Diameter
Lens Type : Flat

100 in stock

CXM-14-35-90-36-AC02-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : Sensus™
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1710 lm (Typ)
Current - Test : 480mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 102 lm/W
Current - Max : 1.09A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 13.50mm Diameter
Lens Type : Flat

100 in stock

CXM-14-40-70-36-AC00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-14
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2270 lm (Typ)
Current - Test : 480mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 135 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 18.50mm L x 18.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 13.50mm Diameter
Lens Type : Flat

100 in stock
