Luminus Devices, Inc.
- Luminus Devices, Inc. develops and markets solid-state lighting solutions (SSL) to help its customers migrate from conventional lamp technologies to long-life and energy-efficient LED illumination. Luminus offers a comprehensive range of LED solutions for indoor and outdoor illumination markets as well as high-output specialty lighting solutions for performance-driven markets including consumer displays, entertainment lighting, medical and industrial applications. Luminus is headquartered in Sunnyvale, CA, and has operations in Woburn, Massachusetts and Xiamen, China.
Part Number
Manufacturer
Description
Unit Price
In Stock

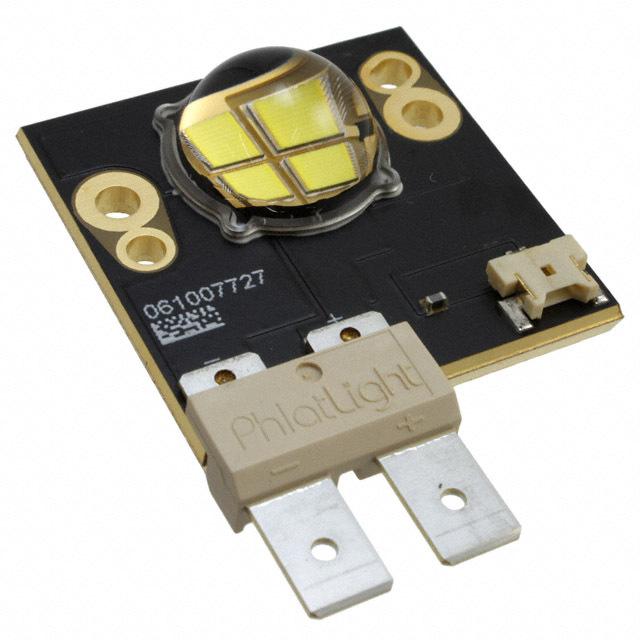

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CSM-360
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5700K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3300 lm (3000 lm ~ 3600 lm)
Current - Test : 3.15A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 14.15V
Lumens/Watt @ Current - Test : 74 lm/W
Current - Max : 6.3A
CRI (Color Rendering Index) : 70 (Typ)
Viewing Angle : -
Features : With Connector
Size / Dimension : 51.00mm L x 36.00mm W
Height : 12.20mm
Light Emitting Surface (LES) : 16.00mm Diameter
Lens Type : Domed
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CSM-360
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5700K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 3950 lm (3600 lm ~ 4300 lm)
Current - Test : 3.15A
Temperature - Test : 40°C
Voltage - Forward (Vf) (Typ) : 13.14V
Lumens/Watt @ Current - Test : 95 lm/W
Current - Max : 6.3A
CRI (Color Rendering Index) : 70 (Typ)
Viewing Angle : 115°
Features : With Connector
Size / Dimension : 36.00mm L x 51.00mm W
Height : 5.61mm
Light Emitting Surface (LES) : 16.00mm Diameter
Lens Type : Domed
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CSM-360
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5700K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3950 lm (3600 lm ~ 4300 lm)
Current - Test : 3.15A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 14.15V
Lumens/Watt @ Current - Test : 89 lm/W
Current - Max : 6.3A
CRI (Color Rendering Index) : 70 (Typ)
Viewing Angle : -
Features : With Connector
Size / Dimension : 51.00mm L x 36.00mm W
Height : 12.20mm
Light Emitting Surface (LES) : 16.00mm Diameter
Lens Type : Domed
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CSM-360
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 6500K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2300 lm (2100 lm ~ 2500 lm)
Current - Test : 3.15A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 14.15V
Lumens/Watt @ Current - Test : 52 lm/W
Current - Max : 6.3A
CRI (Color Rendering Index) : 70 (Typ)
Viewing Angle : -
Features : With Connector
Size / Dimension : 51.00mm L x 36.00mm W
Height : 12.20mm
Light Emitting Surface (LES) : 16.00mm Diameter
Lens Type : Domed
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CSM-360
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 6500K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2300 lm (2100 lm ~ 2500 lm)
Current - Test : 3.15A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 14.15V
Lumens/Watt @ Current - Test : 52 lm/W
Current - Max : 6.3A
CRI (Color Rendering Index) : 70 (Typ)
Viewing Angle : -
Features : With Connector
Size / Dimension : 51.00mm L x 36.00mm W
Height : 12.20mm
Light Emitting Surface (LES) : 16.00mm Diameter
Lens Type : Domed
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CSM-360
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 6500K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2300 lm (2100 lm ~ 2500 lm)
Current - Test : 3.15A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 14.15V
Lumens/Watt @ Current - Test : 52 lm/W
Current - Max : 6.3A
CRI (Color Rendering Index) : 70 (Typ)
Viewing Angle : -
Features : With Connector
Size / Dimension : 51.00mm L x 36.00mm W
Height : 12.20mm
Light Emitting Surface (LES) : 16.00mm Diameter
Lens Type : Domed
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CSM-360
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 6500K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 2750 lm (2500 lm ~ 3000 lm)
Current - Test : 3.15A
Temperature - Test : 40°C
Voltage - Forward (Vf) (Typ) : 13.14V
Lumens/Watt @ Current - Test : 66 lm/W
Current - Max : 6.3A
CRI (Color Rendering Index) : 70 (Typ)
Viewing Angle : 115°
Features : With Connector
Size / Dimension : 36.00mm L x 51.00mm W
Height : 5.61mm
Light Emitting Surface (LES) : 16.00mm Diameter
Lens Type : Domed
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CSM-360
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 6500K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 2750 lm (2500 lm ~ 3000 lm)
Current - Test : 3.15A
Temperature - Test : 40°C
Voltage - Forward (Vf) (Typ) : 13.14V
Lumens/Watt @ Current - Test : 66 lm/W
Current - Max : 6.3A
CRI (Color Rendering Index) : 70 (Typ)
Viewing Angle : 115°
Features : With Connector
Size / Dimension : 36.00mm L x 51.00mm W
Height : 5.61mm
Light Emitting Surface (LES) : 16.00mm Diameter
Lens Type : Domed
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CSM-360
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 6500K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 2750 lm (2500 lm ~ 3000 lm)
Current - Test : 3.15A
Temperature - Test : 40°C
Voltage - Forward (Vf) (Typ) : 13.14V
Lumens/Watt @ Current - Test : 66 lm/W
Current - Max : 6.3A
CRI (Color Rendering Index) : 70 (Typ)
Viewing Angle : 115°
Features : With Connector
Size / Dimension : 36.00mm L x 51.00mm W
Height : 5.61mm
Light Emitting Surface (LES) : 16.00mm Diameter
Lens Type : Domed
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CSM-360
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 6500K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 3300 lm (3000 lm ~ 3600 lm)
Current - Test : 3.15A
Temperature - Test : 40°C
Voltage - Forward (Vf) (Typ) : 13.14V
Lumens/Watt @ Current - Test : 80 lm/W
Current - Max : 6.3A
CRI (Color Rendering Index) : 70 (Typ)
Viewing Angle : 115°
Features : -
Size / Dimension : 36.00mm L x 51.00mm W
Height : 5.61mm
Light Emitting Surface (LES) : 16.00mm Diameter
Lens Type : Domed
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CSM-360
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 6500K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 3300 lm (3000 lm ~ 3600 lm)
Current - Test : 3.15A
Temperature - Test : 40°C
Voltage - Forward (Vf) (Typ) : 13.14V
Lumens/Watt @ Current - Test : 80 lm/W
Current - Max : 6.3A
CRI (Color Rendering Index) : 70 (Typ)
Viewing Angle : 115°
Features : With Connector
Size / Dimension : 36.00mm L x 51.00mm W
Height : 5.61mm
Light Emitting Surface (LES) : 16.00mm Diameter
Lens Type : Domed
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CSM-360
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 6500K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 3300 lm (3000 lm ~ 3600 lm)
Current - Test : 3.15A
Temperature - Test : 40°C
Voltage - Forward (Vf) (Typ) : 13.14V
Lumens/Watt @ Current - Test : 80 lm/W
Current - Max : 6.3A
CRI (Color Rendering Index) : 70 (Typ)
Viewing Angle : 115°
Features : With Connector
Size / Dimension : 36.00mm L x 51.00mm W
Height : 5.61mm
Light Emitting Surface (LES) : 16.00mm Diameter
Lens Type : Domed
0
100 in stock
