Luminus Devices, Inc.
- Luminus Devices, Inc. develops and markets solid-state lighting solutions (SSL) to help its customers migrate from conventional lamp technologies to long-life and energy-efficient LED illumination. Luminus offers a comprehensive range of LED solutions for indoor and outdoor illumination markets as well as high-output specialty lighting solutions for performance-driven markets including consumer displays, entertainment lighting, medical and industrial applications. Luminus is headquartered in Sunnyvale, CA, and has operations in Woburn, Massachusetts and Xiamen, China.
Part Number
Manufacturer
Description
Unit Price
In Stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : SSR-80
Part Status : Obsolete

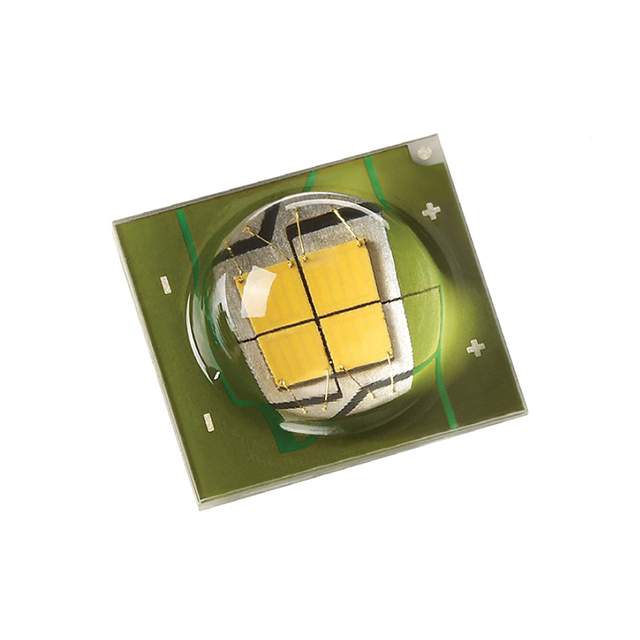

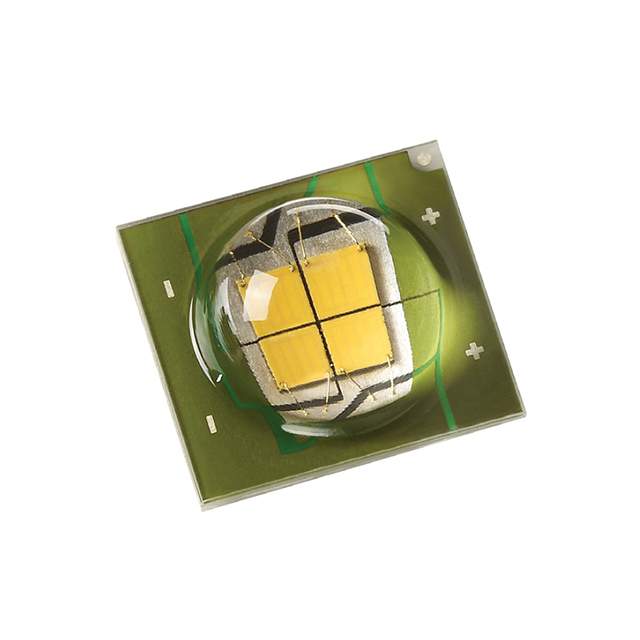

Type : LED Module
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 1160 lm (1120 lm ~ 1200 lm)
Current - Test : 1.4A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 13V
Lumens/Watt @ Current - Test : 64 lm/W
Current - Max : 2A
CRI (Color Rendering Index) : 83 (Typ)
Viewing Angle : 120°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 7.40mm
Light Emitting Surface (LES) : 8.00mm Diameter
Lens Type : Domed
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : SSR-80
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 1160 lm (1120 lm ~ 1200 lm)
Current - Test : 1.4A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 13V
Lumens/Watt @ Current - Test : 64 lm/W
Current - Max : 2A
CRI (Color Rendering Index) : 83 (Typ)
Viewing Angle : 120°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 7.40mm
Light Emitting Surface (LES) : 8.00mm Diameter
Lens Type : Domed
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : SSR-80
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3500K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 1160 lm (1120 lm ~ 1200 lm)
Current - Test : 1.4A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 13V
Lumens/Watt @ Current - Test : 64 lm/W
Current - Max : 2A
CRI (Color Rendering Index) : 83 (Typ)
Viewing Angle : 120°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 7.40mm
Light Emitting Surface (LES) : 8.00mm Diameter
Lens Type : Domed
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : SSR-80
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3500K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 1160 lm (1120 lm ~ 1200 lm)
Current - Test : 1.4A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 13V
Lumens/Watt @ Current - Test : 64 lm/W
Current - Max : 2A
CRI (Color Rendering Index) : 83 (Typ)
Viewing Angle : 120°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 7.40mm
Light Emitting Surface (LES) : 8.00mm Diameter
Lens Type : Domed
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : SSR-80
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3500K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 1160 lm (1120 lm ~ 1200 lm)
Current - Test : 1.4A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 13V
Lumens/Watt @ Current - Test : 64 lm/W
Current - Max : 2A
CRI (Color Rendering Index) : 83 (Typ)
Viewing Angle : 120°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 7.40mm
Light Emitting Surface (LES) : 8.00mm Diameter
Lens Type : Domed
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : SSR-80
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3500K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 1245 lm (1200 lm ~ 1290 lm)
Current - Test : 1.4A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 13V
Lumens/Watt @ Current - Test : 68 lm/W
Current - Max : 2A
CRI (Color Rendering Index) : 83 (Typ)
Viewing Angle : 120°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 7.40mm
Light Emitting Surface (LES) : 8.00mm Diameter
Lens Type : Domed
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : SSR-80
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3500K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 1245 lm (1200 lm ~ 1290 lm)
Current - Test : 1.4A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 13V
Lumens/Watt @ Current - Test : 68 lm/W
Current - Max : 2A
CRI (Color Rendering Index) : 83 (Typ)
Viewing Angle : 120°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 7.40mm
Light Emitting Surface (LES) : 8.00mm Diameter
Lens Type : Domed
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : SSR-80
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3500K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 1245 lm (1200 lm ~ 1290 lm)
Current - Test : 1.4A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 13V
Lumens/Watt @ Current - Test : 68 lm/W
Current - Max : 2A
CRI (Color Rendering Index) : 83 (Typ)
Viewing Angle : 120°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 7.40mm
Light Emitting Surface (LES) : 8.00mm Diameter
Lens Type : Domed
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : SSR-80
Part Status : Obsolete
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 1245 lm (1200 lm ~ 1290 lm)
Current - Test : 1.4A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 13V
Lumens/Watt @ Current - Test : 68 lm/W
Current - Max : 2A
CRI (Color Rendering Index) : 83 (Typ)
Viewing Angle : 120°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 7.40mm
Light Emitting Surface (LES) : 8.00mm Diameter
Lens Type : Domed
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : SSR-80
Part Status : Obsolete
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 1245 lm (1200 lm ~ 1290 lm)
Current - Test : 1.4A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 13V
Lumens/Watt @ Current - Test : 68 lm/W
Current - Max : 2A
CRI (Color Rendering Index) : 83 (Typ)
Viewing Angle : 120°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 7.40mm
Light Emitting Surface (LES) : 8.00mm Diameter
Lens Type : Domed
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : SSR-80
Part Status : Obsolete
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 1245 lm (1200 lm ~ 1290 lm)
Current - Test : 1.4A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 13V
Lumens/Watt @ Current - Test : 68 lm/W
Current - Max : 2A
CRI (Color Rendering Index) : 83 (Typ)
Viewing Angle : 120°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 7.40mm
Light Emitting Surface (LES) : 8.00mm Diameter
Lens Type : Domed
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : SSR-80
Part Status : Obsolete
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 1335 lm (1290 lm ~ 1380 lm)
Current - Test : 1.4A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 13V
Lumens/Watt @ Current - Test : 73 lm/W
Current - Max : 2A
CRI (Color Rendering Index) : 83 (Typ)
Viewing Angle : 120°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 7.40mm
Light Emitting Surface (LES) : 8.00mm Diameter
Lens Type : Domed
0
100 in stock
