Luminus Devices, Inc.
- Luminus Devices, Inc. develops and markets solid-state lighting solutions (SSL) to help its customers migrate from conventional lamp technologies to long-life and energy-efficient LED illumination. Luminus offers a comprehensive range of LED solutions for indoor and outdoor illumination markets as well as high-output specialty lighting solutions for performance-driven markets including consumer displays, entertainment lighting, medical and industrial applications. Luminus is headquartered in Sunnyvale, CA, and has operations in Woburn, Massachusetts and Xiamen, China.
Part Number
Manufacturer
Description
Unit Price
In Stock

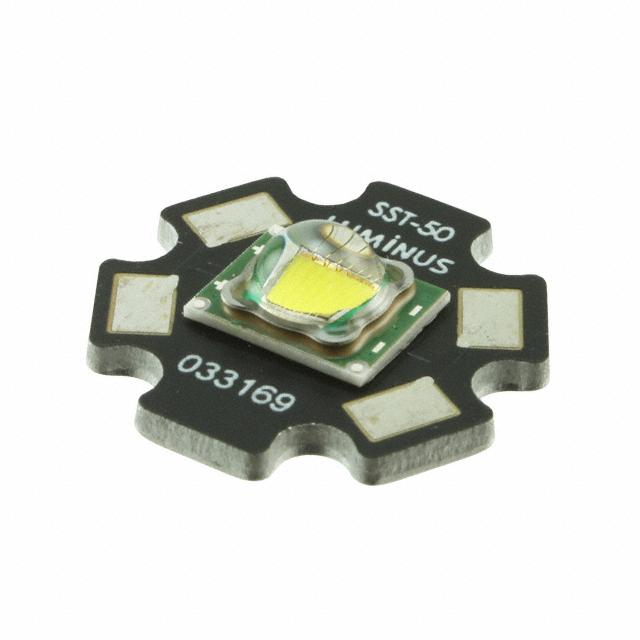

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : SSR-50
Part Status : Obsolete
Type : LED Module
Color : White, Neutral
CCT (K) : 4500K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : -
Current - Test : 1.75A
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : 3.2V
Lumens/Watt @ Current - Test : -
Current - Max : 5A
CRI (Color Rendering Index) : 70
Viewing Angle : 100°
Features : -
Size / Dimension : 19.90mm L x 19.90mm W
Height : 6.10mm
Light Emitting Surface (LES) : 5.60mm Diameter
Lens Type : Domed
0
100 in stock

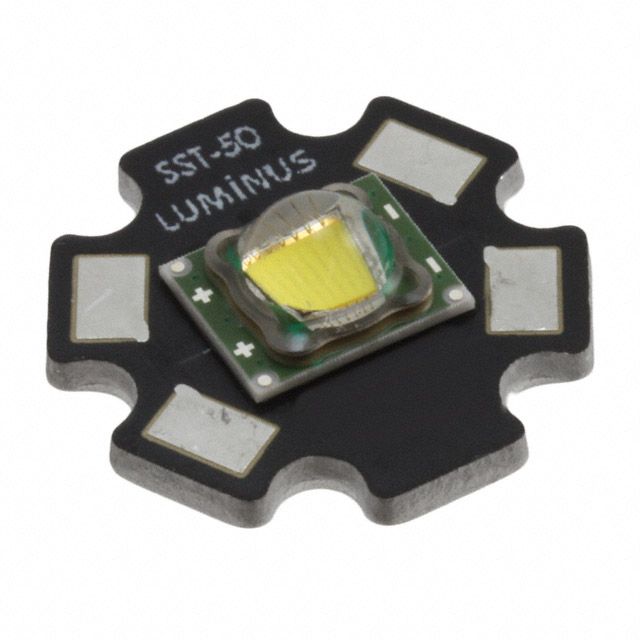

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : SSR-50
Part Status : Obsolete
Type : LED Module
Color : White, Neutral
CCT (K) : 4500K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 388 lm (375 lm ~ 400 lm)
Current - Test : 1.75A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 3.2V
Lumens/Watt @ Current - Test : 69 lm/W
Current - Max : 5A
CRI (Color Rendering Index) : 70
Viewing Angle : 100°
Features : -
Size / Dimension : 19.90mm L x 19.90mm W
Height : 6.10mm
Light Emitting Surface (LES) : 5.60mm Diameter
Lens Type : Domed
0
100 in stock

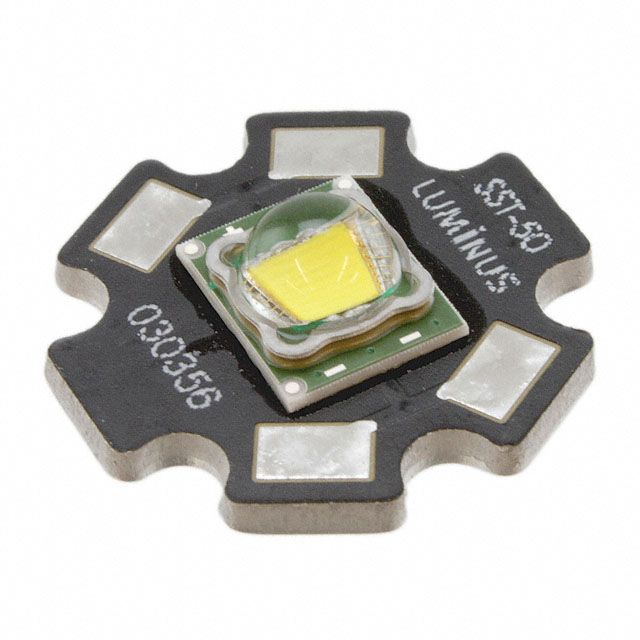

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : SSR-50
Part Status : Obsolete
Type : LED Module
Color : White, Neutral
CCT (K) : 4500K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 388 lm (375 lm ~ 400 lm)
Current - Test : 1.75A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 3.2V
Lumens/Watt @ Current - Test : 69 lm/W
Current - Max : 5A
CRI (Color Rendering Index) : 70
Viewing Angle : 100°
Features : -
Size / Dimension : 19.90mm L x 19.90mm W
Height : 6.10mm
Light Emitting Surface (LES) : 5.60mm Diameter
Lens Type : Domed
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : SSR-50
Part Status : Obsolete
Type : LED Module
Color : White, Neutral
CCT (K) : 4500K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 413 lm (400 lm ~ 425 lm)
Current - Test : 1.75A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 3.2V
Lumens/Watt @ Current - Test : 74 lm/W
Current - Max : 5A
CRI (Color Rendering Index) : 70
Viewing Angle : 100°
Features : -
Size / Dimension : 19.90mm L x 19.90mm W
Height : 6.10mm
Light Emitting Surface (LES) : 5.60mm Diameter
Lens Type : Domed
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : SSR-50
Part Status : Obsolete
Type : LED Module
Color : White, Neutral
CCT (K) : 4500K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 413 lm (400 lm ~ 425 lm)
Current - Test : 1.75A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 3.2V
Lumens/Watt @ Current - Test : 74 lm/W
Current - Max : 5A
CRI (Color Rendering Index) : 70
Viewing Angle : 100°
Features : -
Size / Dimension : 19.90mm L x 19.90mm W
Height : 6.10mm
Light Emitting Surface (LES) : 5.60mm Diameter
Lens Type : Domed
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : SSR-50
Part Status : Obsolete
Type : LED Module
Color : White, Neutral
CCT (K) : 4500K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 463 lm (450 lm ~ 475 lm)
Current - Test : 1.75A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 3.2V
Lumens/Watt @ Current - Test : 83 lm/W
Current - Max : 5A
CRI (Color Rendering Index) : 70
Viewing Angle : 100°
Features : -
Size / Dimension : 19.90mm L x 19.90mm W
Height : 6.10mm
Light Emitting Surface (LES) : 5.60mm Diameter
Lens Type : Domed
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : SSR-50
Part Status : Obsolete
Type : LED Module
Color : White, Neutral
CCT (K) : 4500K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 463 lm (450 lm ~ 475 lm)
Current - Test : 1.75A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 3.2V
Lumens/Watt @ Current - Test : 83 lm/W
Current - Max : 5A
CRI (Color Rendering Index) : 70
Viewing Angle : 100°
Features : -
Size / Dimension : 19.90mm L x 19.90mm W
Height : 6.10mm
Light Emitting Surface (LES) : 5.60mm Diameter
Lens Type : Domed
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : SSR-50
Part Status : Obsolete
Type : LED Module
Color : White, Neutral
CCT (K) : 4500K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 488 lm (475 lm ~ 500 lm)
Current - Test : 1.75A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 3.2V
Lumens/Watt @ Current - Test : 87 lm/W
Current - Max : 5A
CRI (Color Rendering Index) : 70
Viewing Angle : 100°
Features : -
Size / Dimension : 19.90mm L x 19.90mm W
Height : 6.10mm
Light Emitting Surface (LES) : 5.60mm Diameter
Lens Type : Domed
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : SSR-50
Part Status : Obsolete
Type : LED Module
Color : White, Neutral
CCT (K) : 4500K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 488 lm (475 lm ~ 500 lm)
Current - Test : 1.75A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 3.2V
Lumens/Watt @ Current - Test : 87 lm/W
Current - Max : 5A
CRI (Color Rendering Index) : 70
Viewing Angle : 100°
Features : -
Size / Dimension : 19.90mm L x 19.90mm W
Height : 6.10mm
Light Emitting Surface (LES) : 5.60mm Diameter
Lens Type : Domed
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : SSR-50
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5700K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 313 lm (300 lm ~ 325 lm)
Current - Test : 1.75A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 3.2V
Lumens/Watt @ Current - Test : 56 lm/W
Current - Max : 5A
CRI (Color Rendering Index) : 70
Viewing Angle : 100°
Features : -
Size / Dimension : 19.90mm L x 19.90mm W
Height : 6.10mm
Light Emitting Surface (LES) : 5.60mm Diameter
Lens Type : Domed
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : SSR-50
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5700K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 313 lm (300 lm ~ 325 lm)
Current - Test : 1.75A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 3.2V
Lumens/Watt @ Current - Test : 56 lm/W
Current - Max : 5A
CRI (Color Rendering Index) : 70
Viewing Angle : 100°
Features : -
Size / Dimension : 19.90mm L x 19.90mm W
Height : 6.10mm
Light Emitting Surface (LES) : 5.60mm Diameter
Lens Type : Domed
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : SSR-50
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5700K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 338 lm (325 lm ~ 350 lm)
Current - Test : 1.75A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 3.2V
Lumens/Watt @ Current - Test : 60 lm/W
Current - Max : 5A
CRI (Color Rendering Index) : 70
Viewing Angle : 100°
Features : -
Size / Dimension : 19.90mm L x 19.90mm W
Height : 6.10mm
Light Emitting Surface (LES) : 5.60mm Diameter
Lens Type : Domed
0
100 in stock
