Lumileds

- Companies developing automotive, mobile, IoT and illumination lighting applications need a partner who can collaborate with them to push the boundaries of light. With over 100 years of inventions and industry firsts, Lumileds is a global lighting solutions company that helps customers around the world deliver differentiated solutions to gain and maintain a competitive edge. As the inventor of Xenon technology, a pioneer in halogen lighting and the leader in high performance LEDs, Lumileds builds innovation, quality and reliability into its technology, products and every customer engagement. Together with its customers, Lumileds is making the world safer, better and more beautiful—with light.

Part Number
Manufacturer
Description
Unit Price
In Stock

L2C2-50701208E1500 L2C2-50701208E1500

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range
Part Status : Active
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 4779 lm (Typ)
Current - Test : 900mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 152 lm/W
Current - Max : 1.8A
CRI (Color Rendering Index) : 70
Viewing Angle : 115°
Features : -
Size / Dimension : 20.00mm L x 24.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 15.00mm Diameter
Lens Type : Flat
0
75 in stock

L2C2-50801203E0900 L2C2-50801203E0900

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range
Part Status : Active
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1458 lm (Typ)
Current - Test : 300mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.5V
Lumens/Watt @ Current - Test : 141 lm/W
Current - Max : 600mA
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 16.00mm L x 19.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
97 in stock

L2C2-50801205E1300 L2C2-50801205E1300

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range
Part Status : Active
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 2916 lm (Typ)
Current - Test : 600mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 139 lm/W
Current - Max : 1.2A
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 20.00mm L x 24.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 13.00mm Diameter
Lens Type : Flat
0
99 in stock

L2C2-50801208E1500 L2C2-50801208E1500

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range
Part Status : Active
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 4374 lm (Typ)
Current - Test : 900mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 139 lm/W
Current - Max : 1.8A
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 20.00mm L x 24.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 15.00mm Diameter
Lens Type : Flat
0
99 in stock

L2C2-50801211E1900 L2C2-50801211E1900

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range
Part Status : Active
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 5832 lm (Typ)
Current - Test : 1.2A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 139 lm/W
Current - Max : 2.4A
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 18.50mm Diameter
Lens Type : Flat
0
29 in stock

L2C2-57701202E0900 L2C2-57701202E0900

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range
Part Status : Active
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1045 lm (Typ)
Current - Test : 200mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.5V
Lumens/Watt @ Current - Test : 151 lm/W
Current - Max : 400mA
CRI (Color Rendering Index) : 70
Viewing Angle : 115°
Features : -
Size / Dimension : 16.00mm L x 19.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
94 in stock

L2C2-57701204E1300 L2C2-57701204E1300

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range
Part Status : Active
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 2288 lm (Typ)
Current - Test : 450mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 145 lm/W
Current - Max : 900mA
CRI (Color Rendering Index) : 70
Viewing Angle : 115°
Features : -
Size / Dimension : 20.00mm L x 24.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 13.00mm Diameter
Lens Type : Flat
0
99 in stock

L2C2-57701205E1300 L2C2-57701205E1300

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range
Part Status : Active
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 3051 lm (Typ)
Current - Test : 600mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 145 lm/W
Current - Max : 1.2A
CRI (Color Rendering Index) : 70
Viewing Angle : 115°
Features : -
Size / Dimension : 20.00mm L x 24.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 13.00mm Diameter
Lens Type : Flat
0
99 in stock

L2C2-57701208E1500 L2C2-57701208E1500

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range
Part Status : Active
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 4577 lm (Typ)
Current - Test : 900mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 145 lm/W
Current - Max : 1.8A
CRI (Color Rendering Index) : 70
Viewing Angle : 115°
Features : -
Size / Dimension : 20.00mm L x 24.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 15.00mm Diameter
Lens Type : Flat
0
94 in stock

L2C2-57701216E2300 L2C2-57701216E2300

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range
Part Status : Active
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 8177 lm (Typ)
Current - Test : 1.6A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 146 lm/W
Current - Max : 3.2A
CRI (Color Rendering Index) : 70
Viewing Angle : 115°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 23.00mm Diameter
Lens Type : Flat
0
24 in stock

L2C2-57801202E0600 L2C2-57801202E0600

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range
Part Status : Active
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 920 lm (Typ)
Current - Test : 200mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.5V
Lumens/Watt @ Current - Test : 133 lm/W
Current - Max : 400mA
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 12.00mm L x 15.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 6.50mm Diameter
Lens Type : Flat
0
548 in stock

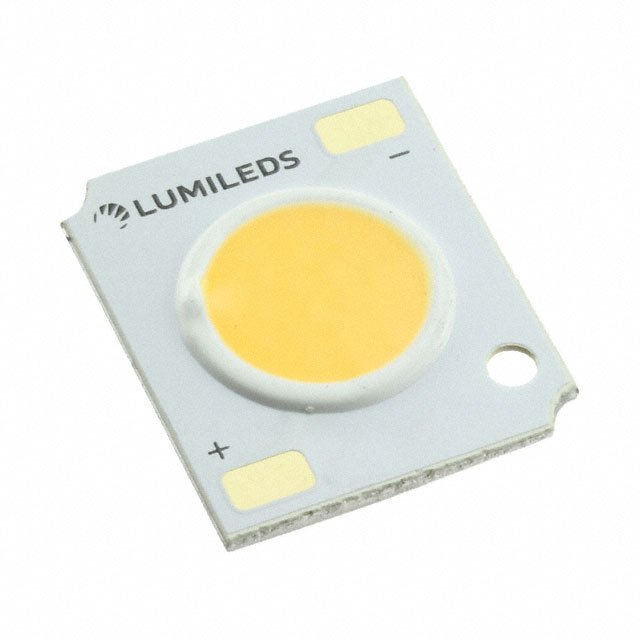

L2C2-57801205E1300 L2C2-57801205E1300

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range
Part Status : Active
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 2808 lm (Typ)
Current - Test : 600mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 134 lm/W
Current - Max : 1.2A
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 20.00mm L x 24.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 13.00mm Diameter
Lens Type : Flat
0
99 in stock
