- Companies developing automotive, mobile, IoT and illumination lighting applications need a partner who can collaborate with them to push the boundaries of light. With over 100 years of inventions and industry firsts, Lumileds is a global lighting solutions company that helps customers around the world deliver differentiated solutions to gain and maintain a competitive edge. As the inventor of Xenon technology, a pioneer in halogen lighting and the leader in high performance LEDs, Lumileds builds innovation, quality and reliability into its technology, products and every customer engagement. Together with its customers, Lumileds is making the world safer, better and more beautiful—with light.

Part Number
Manufacturer
Description
Unit Price
In Stock

L1I0-0850090000000 L1I0-0850090000000

Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON IR Domed
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 1A
Radiant Intensity (Ie) Min @ If : 750mW/sr @ 1A (Typ)
Wavelength : 850nm
Voltage - Forward (Vf) (Typ) : 3.2V
Viewing Angle : 90°
Orientation : Top View
Operating Temperature : -30°C ~ 85°C (TC)
Mounting Type : Surface Mount
Package / Case : 3-SMD, No Lead
0
1284 in stock

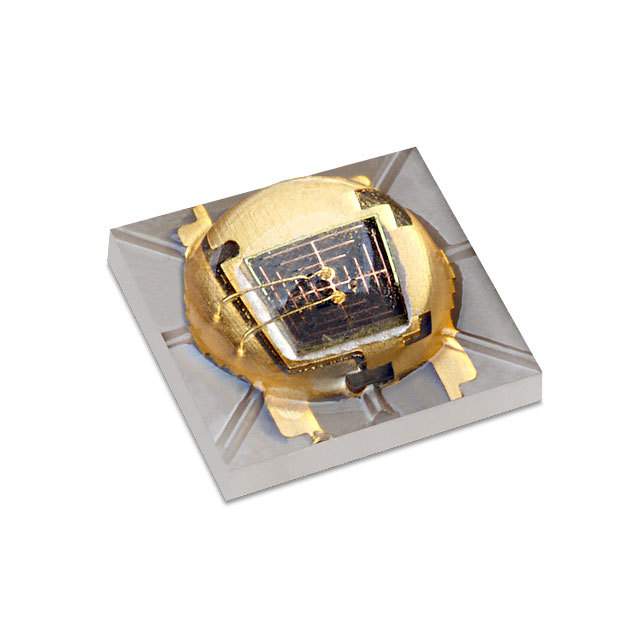

L1I0-0850150000000 L1I0-0850150000000

Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON IR Domed
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 1A
Radiant Intensity (Ie) Min @ If : 335mW/sr @ 1A (Typ)
Wavelength : 850nm
Voltage - Forward (Vf) (Typ) : 3.2V
Viewing Angle : 150°
Orientation : Top View
Operating Temperature : -30°C ~ 85°C (TC)
Mounting Type : Surface Mount
Package / Case : 3-SMD, No Lead
0
1567 in stock

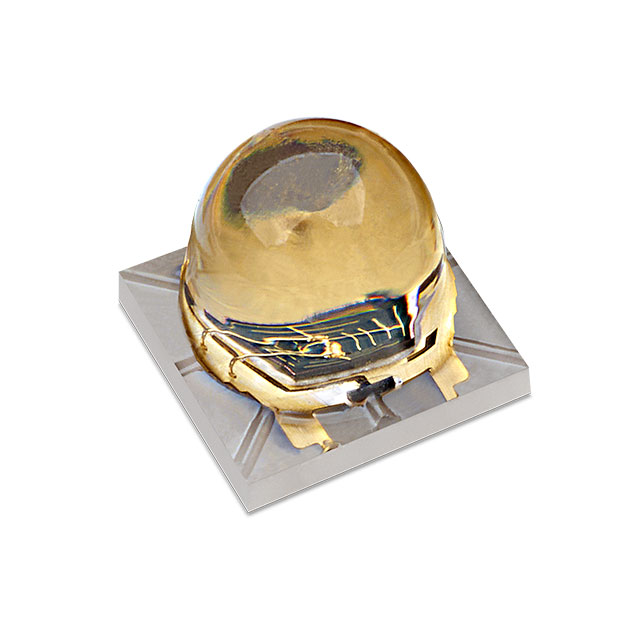

L1I0-0940060000000 L1I0-0940060000000

Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON IR Domed
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 1A
Radiant Intensity (Ie) Min @ If : 1190mW/sr @ 1A (Typ)
Wavelength : 940nm
Voltage - Forward (Vf) (Typ) : 2.9V
Viewing Angle : 60°
Orientation : Top View
Operating Temperature : -30°C ~ 85°C (TC)
Mounting Type : Surface Mount
Package / Case : 3-SMD, No Lead
0
2956 in stock

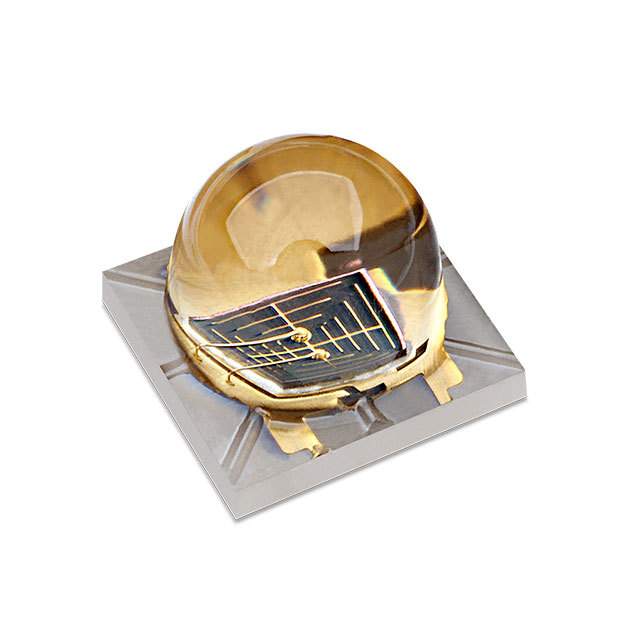

L1I0-0940090000000 L1I0-0940090000000

Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON IR Domed
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 1A
Radiant Intensity (Ie) Min @ If : 780mW/sr @ 1A (Typ)
Wavelength : 940nm
Voltage - Forward (Vf) (Typ) : 2.9V
Viewing Angle : 90°
Orientation : Top View
Operating Temperature : -30°C ~ 85°C (TC)
Mounting Type : Surface Mount
Package / Case : 3-SMD, No Lead
0
512 in stock

L1I0-0940150000000 L1I0-0940150000000

Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON IR Domed
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 1A
Radiant Intensity (Ie) Min @ If : 350mW/sr @ 1A (Typ)
Wavelength : 940nm
Voltage - Forward (Vf) (Typ) : 2.9V
Viewing Angle : 150°
Orientation : Top View
Operating Temperature : -30°C ~ 85°C (TC)
Mounting Type : Surface Mount
Package / Case : 3-SMD, No Lead
0
1977 in stock

L1IZ-0850000000000 L1IZ-0850000000000

Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON IR Compact
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 1A
Radiant Intensity (Ie) Min @ If : 250mW/sr @ 1A (Typ)
Wavelength : 850nm
Voltage - Forward (Vf) (Typ) : 3.2V
Viewing Angle : 150°
Orientation : Top View
Operating Temperature : -30°C ~ 125°C (TC)
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
0
1895 in stock

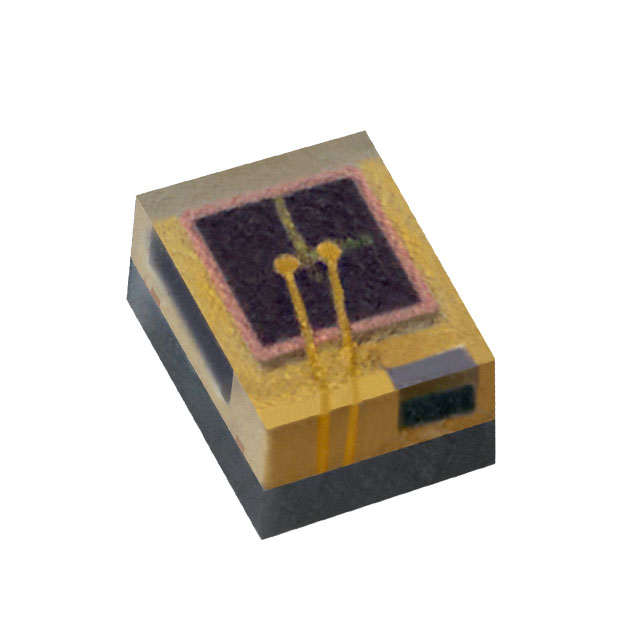

L1IZ-0940000000000 L1IZ-0940000000000

Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON IR Compact
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 1A
Radiant Intensity (Ie) Min @ If : 300mW/sr @ 1A (Typ)
Wavelength : 940nm
Voltage - Forward (Vf) (Typ) : 2.9V
Viewing Angle : 150°
Orientation : Top View
Operating Temperature : -30°C ~ 125°C (TC)
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
0
1399 in stock

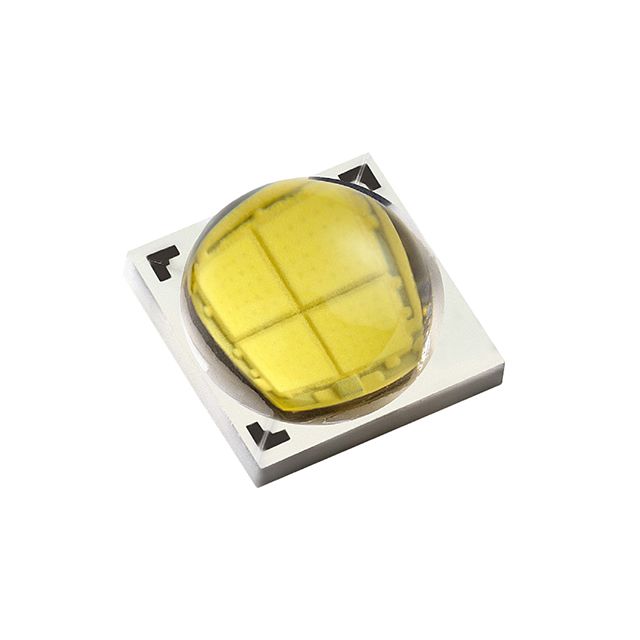

L1MX-407012V500000 L1MX-407012V500000

Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON MX
Part Status : Active
Color : White, Neutral
CCT (K) : 4000K 5-Step MacAdam Ellipse
Flux @ 85°C, Current - Test : 1195 lm (Typ)
Flux @ 25°C, Current - Test : -
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 11.3V
Lumens/Watt @ Current - Test : 151 lm/W
CRI (Color Rendering Index) : 70
Current - Max : 1.5A
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : -
Size / Dimension : 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) : 0.152" (3.87mm)
0
265 in stock

L1N0-2780000000000 L1N0-2780000000000

Lumileds
Manufacturer : Lumileds
Packaging : -
Series : -
Part Status : Obsolete
Color : -
CCT (K) : -
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : -
Current - Test : -
Voltage - Forward (Vf) (Typ) : -
Lumens/Watt @ Current - Test : -
CRI (Color Rendering Index) : -
Current - Max : -
Viewing Angle : -
Mounting Type : -
Package / Case : -
Supplier Device Package : -
Size / Dimension : -
Height - Seated (Max) : -
0
100 in stock

L1N0-2780012000000 L1N0-2780012000000

Lumileds
Manufacturer : Lumileds
Packaging : -
Series : -
Part Status : Obsolete
Color : -
CCT (K) : -
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : -
Current - Test : -
Voltage - Forward (Vf) (Typ) : -
Lumens/Watt @ Current - Test : -
CRI (Color Rendering Index) : -
Current - Max : -
Viewing Angle : -
Mounting Type : -
Package / Case : -
Supplier Device Package : -
Size / Dimension : -
Height - Seated (Max) : -
0
100 in stock

L1N0-2780300000000 L1N0-2780300000000

Lumileds
Manufacturer : Lumileds
Packaging : -
Series : -
Part Status : Obsolete
Color : -
CCT (K) : -
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : -
Current - Test : -
Voltage - Forward (Vf) (Typ) : -
Lumens/Watt @ Current - Test : -
CRI (Color Rendering Index) : -
Current - Max : -
Viewing Angle : -
Mounting Type : -
Package / Case : -
Supplier Device Package : -
Size / Dimension : -
Height - Seated (Max) : -
0
100 in stock

L1N0-3070000000000 L1N0-3070000000000

Lumileds
Manufacturer : Lumileds
Packaging : -
Series : LUXEON N
Part Status : Obsolete
Color : White, Warm
CCT (K) : 3000K
Flux @ 85°C, Current - Test : 265 lm
Flux @ 25°C, Current - Test : -
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 2.8V
Lumens/Watt @ Current - Test : 135 lm/W
CRI (Color Rendering Index) : 70
Current - Max : 2A
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1010 (2525 Metric)
Supplier Device Package : -
Size / Dimension : 0.098" L x 0.098" W (2.50mm x 2.50mm)
Height - Seated (Max) : 0.087" (2.21mm)
0
100 in stock
