Lumileds

- Companies developing automotive, mobile, IoT and illumination lighting applications need a partner who can collaborate with them to push the boundaries of light. With over 100 years of inventions and industry firsts, Lumileds is a global lighting solutions company that helps customers around the world deliver differentiated solutions to gain and maintain a competitive edge. As the inventor of Xenon technology, a pioneer in halogen lighting and the leader in high performance LEDs, Lumileds builds innovation, quality and reliability into its technology, products and every customer engagement. Together with its customers, Lumileds is making the world safer, better and more beautiful—with light.

Part Number
Manufacturer
Description
Unit Price
In Stock

LXS9-PW30-4 LXS9-PW30-4

Lumileds
Manufacturer : Lumileds
Packaging : Tray
Series : LUXEON S1000
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3000K 4-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1175 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 25.6V
Lumens/Watt @ Current - Test : 66 lm/W
Current - Max : 900mA
CRI (Color Rendering Index) : 90
Viewing Angle : 105°
Features : -
Size / Dimension : 12.73mm L x 11.73mm W
Height : 6.09mm
Light Emitting Surface (LES) : 8.06mm Diameter
Lens Type : Domed
0
100 in stock

LXV8-PW27-0014 LXV8-PW27-0014

Lumileds
Manufacturer : Lumileds
Packaging : Tray
Series : LUXEON H
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 2700K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 330 lm (Typ)
Current - Test : 40mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 96V
Lumens/Watt @ Current - Test : 86 lm/W
Current - Max : 100mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 14.50mm L x 14.50mm W
Height : 5.05mm
Light Emitting Surface (LES) : 8.06mm Diameter
Lens Type : Domed
0
100 in stock

LXV8-PW27-0024 LXV8-PW27-0024

Lumileds
Manufacturer : Lumileds
Packaging : Tray
Series : LUXEON H
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 2700K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 330 lm (Typ)
Current - Test : 20mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 192V
Lumens/Watt @ Current - Test : 86 lm/W
Current - Max : 50mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 14.50mm L x 14.50mm W
Height : 5.05mm
Light Emitting Surface (LES) : 8.06mm Diameter
Lens Type : Domed
0
100 in stock

LXV8-PW30-0014 LXV8-PW30-0014

Lumileds
Manufacturer : Lumileds
Packaging : Tray
Series : LUXEON H
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 350 lm (Typ)
Current - Test : 40mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 96V
Lumens/Watt @ Current - Test : 91 lm/W
Current - Max : 100mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 14.50mm L x 14.50mm W
Height : 5.05mm
Light Emitting Surface (LES) : 8.06mm Diameter
Lens Type : Domed
0
100 in stock

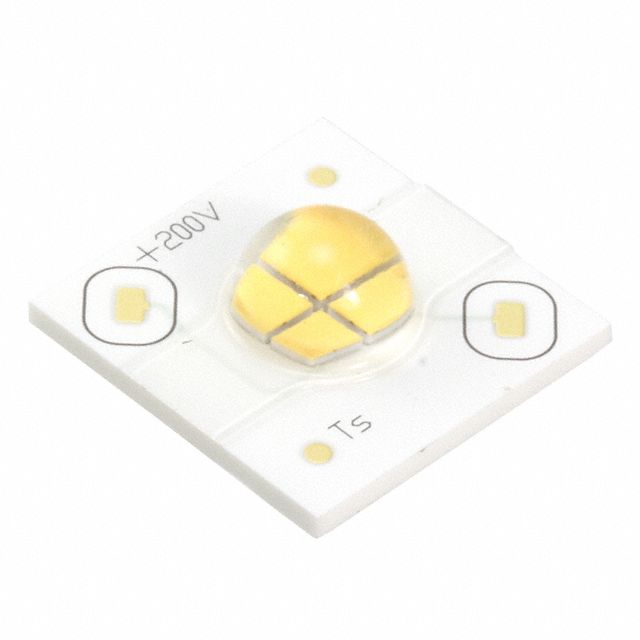

LXV8-PW30-0024 LXV8-PW30-0024

Lumileds
Manufacturer : Lumileds
Packaging : Tray
Series : LUXEON H
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 350 lm (Typ)
Current - Test : 20mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 192V
Lumens/Watt @ Current - Test : 91 lm/W
Current - Max : 50mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 14.50mm L x 14.50mm W
Height : 5.05mm
Light Emitting Surface (LES) : 8.06mm Diameter
Lens Type : Domed
0
100 in stock

LXV8-PW40-0014 LXV8-PW40-0014

Lumileds
Manufacturer : Lumileds
Packaging : Tray
Series : LUXEON H
Part Status : Obsolete
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 370 lm (Typ)
Current - Test : 40mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 96V
Lumens/Watt @ Current - Test : 96 lm/W
Current - Max : 100mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 14.50mm L x 14.50mm W
Height : 5.05mm
Light Emitting Surface (LES) : 8.06mm Diameter
Lens Type : Domed
0
100 in stock

LXV8-PW40-0024 LXV8-PW40-0024

Lumileds
Manufacturer : Lumileds
Packaging : Tray
Series : LUXEON H
Part Status : Obsolete
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 370 lm (Typ)
Current - Test : 20mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 192V
Lumens/Watt @ Current - Test : 96 lm/W
Current - Max : 50mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 14.50mm L x 14.50mm W
Height : 5.05mm
Light Emitting Surface (LES) : 8.06mm Diameter
Lens Type : Domed
0
100 in stock

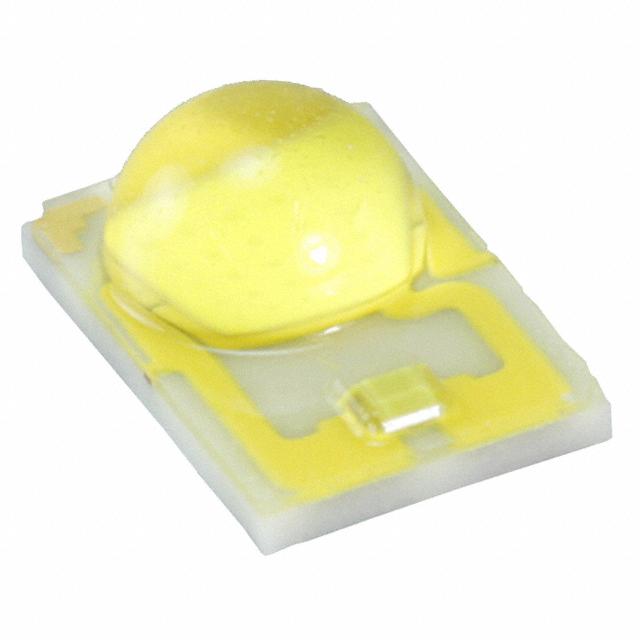

LXW8-PW35 LXW8-PW35

Lumileds
Manufacturer : Lumileds
Packaging : Tape & Reel (TR)
Series : LUXEON Rebel ES
Part Status : Obsolete
Color : White, Warm
CCT (K) : 3500K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 185 lm (Typ)
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 2.9V
Lumens/Watt @ Current - Test : 91 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 1A
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : -
Size / Dimension : 0.177" L x 0.120" W (4.49mm x 3.05mm)
Height - Seated (Max) : 0.083" (2.10mm)
0
100 in stock

LXW8-PW40 LXW8-PW40

Lumileds
Manufacturer : Lumileds
Packaging : Tape & Reel (TR)
Series : LUXEON Rebel ES
Part Status : Obsolete
Color : White, Neutral
CCT (K) : 4000K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 190 lm (Typ)
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 2.9V
Lumens/Watt @ Current - Test : 94 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 1A
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : -
Size / Dimension : 0.177" L x 0.120" W (4.49mm x 3.05mm)
Height - Seated (Max) : 0.083" (2.10mm)
0
100 in stock

LXW8-PW50 LXW8-PW50

Lumileds
Manufacturer : Lumileds
Packaging : Tape & Reel (TR)
Series : LUXEON Rebel ES
Part Status : Obsolete
Color : White, Cool
CCT (K) : 5000K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 200 lm (Typ)
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 2.9V
Lumens/Watt @ Current - Test : 99 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 1A
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : -
Size / Dimension : 0.177" L x 0.120" W (4.49mm x 3.05mm)
Height - Seated (Max) : 0.083" (2.10mm)
0
100 in stock

LXW9-PW27 LXW9-PW27

Lumileds
Manufacturer : Lumileds
Packaging : Tape & Reel (TR)
Series : LUXEON Rebel ES
Part Status : Obsolete
Color : White, Warm
CCT (K) : 2700K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 135 lm (Typ)
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 2.9V
Lumens/Watt @ Current - Test : 66 lm/W
CRI (Color Rendering Index) : 90
Current - Max : 1A
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : -
Size / Dimension : 0.177" L x 0.120" W (4.49mm x 3.05mm)
Height - Seated (Max) : 0.083" (2.10mm)
0
100 in stock

LXW9-PW30 LXW9-PW30

Lumileds
Manufacturer : Lumileds
Packaging : Tape & Reel (TR)
Series : LUXEON Rebel ES
Part Status : Obsolete
Color : White, Warm
CCT (K) : 3000K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 145 lm (Typ)
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 2.9V
Lumens/Watt @ Current - Test : 71 lm/W
CRI (Color Rendering Index) : 90
Current - Max : 1A
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : -
Size / Dimension : 0.177" L x 0.120" W (4.49mm x 3.05mm)
Height - Seated (Max) : 0.083" (2.10mm)
0
100 in stock
