- Companies developing automotive, mobile, IoT and illumination lighting applications need a partner who can collaborate with them to push the boundaries of light. With over 100 years of inventions and industry firsts, Lumileds is a global lighting solutions company that helps customers around the world deliver differentiated solutions to gain and maintain a competitive edge. As the inventor of Xenon technology, a pioneer in halogen lighting and the leader in high performance LEDs, Lumileds builds innovation, quality and reliability into its technology, products and every customer engagement. Together with its customers, Lumileds is making the world safer, better and more beautiful—with light.

Part Number
Manufacturer
Description
Unit Price
In Stock

LXS7-PW50-0024N LXS7-PW50-0024N

Lumileds
Manufacturer : Lumileds
Packaging : Tray
Series : LUXEON S3000
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 5400 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 67.5V
Lumens/Watt @ Current - Test : 114 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 70
Viewing Angle : 105°
Features : -
Size / Dimension : 17.60mm L x 32.60mm W
Height : 1.31mm
Light Emitting Surface (LES) : 13.50mm Diameter
Lens Type : Flat
0
100 in stock

LXS7-PW50-0041 LXS7-PW50-0041

Lumileds
Manufacturer : Lumileds
Packaging : Tray
Series : LUXEON S5000
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 9200 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 115V
Lumens/Watt @ Current - Test : 114 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 70
Viewing Angle : 105°
Features : With Connector
Size / Dimension : 20.90mm L x 34.15mm W
Height : 5.21mm
Light Emitting Surface (LES) : 17.00mm Diameter
Lens Type : Flat
0
100 in stock

LXS7-PW50-0041N LXS7-PW50-0041N

Lumileds
Manufacturer : Lumileds
Packaging : Tray
Series : LUXEON S5000
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 9200 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 115V
Lumens/Watt @ Current - Test : 114 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 70
Viewing Angle : 105°
Features : -
Size / Dimension : 20.90mm L x 34.15mm W
Height : 1.31mm
Light Emitting Surface (LES) : 17.00mm Diameter
Lens Type : Flat
0
100 in stock

LXS7-PW57-0017 LXS7-PW57-0017

Lumileds
Manufacturer : Lumileds
Packaging : Tray
Series : LUXEON S2000
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5700K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 3800 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 47V
Lumens/Watt @ Current - Test : 116 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 70
Viewing Angle : 105°
Features : With Connector
Size / Dimension : 14.40mm L x 30.90mm W
Height : 5.21mm
Light Emitting Surface (LES) : 10.50mm Diameter
Lens Type : Flat
0
100 in stock

LXS7-PW57-0017N LXS7-PW57-0017N

Lumileds
Manufacturer : Lumileds
Packaging : Tray
Series : LUXEON S2000
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5700K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 3800 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 47V
Lumens/Watt @ Current - Test : 116 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 70
Viewing Angle : 105°
Features : -
Size / Dimension : 14.40mm L x 30.90mm W
Height : 1.31mm
Light Emitting Surface (LES) : 10.50mm Diameter
Lens Type : Flat
0
100 in stock

LXS7-PW57-0024 LXS7-PW57-0024

Lumileds
Manufacturer : Lumileds
Packaging : Tray
Series : LUXEON S3000
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5700K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 5400 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 67.5V
Lumens/Watt @ Current - Test : 114 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 70
Viewing Angle : 105°
Features : With Connector
Size / Dimension : 17.60mm L x 32.60mm W
Height : 5.21mm
Light Emitting Surface (LES) : 13.50mm Diameter
Lens Type : Flat
0
100 in stock

LXS7-PW57-0024N LXS7-PW57-0024N

Lumileds
Manufacturer : Lumileds
Packaging : Tray
Series : LUXEON S3000
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5700K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 5400 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 67.5V
Lumens/Watt @ Current - Test : 114 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 70
Viewing Angle : 105°
Features : -
Size / Dimension : 17.60mm L x 32.60mm W
Height : 1.31mm
Light Emitting Surface (LES) : 13.50mm Diameter
Lens Type : Flat
0
100 in stock

LXS7-PW57-0041 LXS7-PW57-0041

Lumileds
Manufacturer : Lumileds
Packaging : Tray
Series : LUXEON S5000
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5700K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 9200 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 115V
Lumens/Watt @ Current - Test : 114 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 70
Viewing Angle : 105°
Features : With Connector
Size / Dimension : 20.90mm L x 34.15mm W
Height : 5.21mm
Light Emitting Surface (LES) : 17.00mm Diameter
Lens Type : Flat
0
100 in stock

LXS7-PW57-0041N LXS7-PW57-0041N

Lumileds
Manufacturer : Lumileds
Packaging : Tray
Series : LUXEON S5000
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5700K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 9200 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 115V
Lumens/Watt @ Current - Test : 114 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 70
Viewing Angle : 105°
Features : -
Size / Dimension : 20.90mm L x 34.15mm W
Height : 1.31mm
Light Emitting Surface (LES) : 17.00mm Diameter
Lens Type : Flat
0
100 in stock

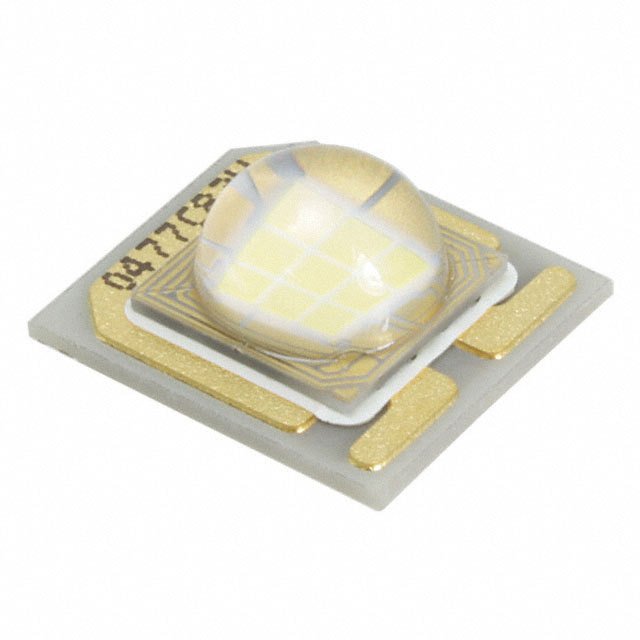

LXS8-PW27 LXS8-PW27

Lumileds
Manufacturer : Lumileds
Packaging : Tray
Series : LUXEON S1000
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 2700K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1250 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 25.6V
Lumens/Watt @ Current - Test : 70 lm/W
Current - Max : 900mA
CRI (Color Rendering Index) : 80
Viewing Angle : 105°
Features : -
Size / Dimension : 13.87mm L x 12.87mm W
Height : 6.09mm
Light Emitting Surface (LES) : 8.06mm Diameter
Lens Type : Domed
0
6 in stock

LXS8-PW27-0017 LXS8-PW27-0017

Lumileds
Manufacturer : Lumileds
Packaging : Tray
Series : LUXEON S2000
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 2850 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 47V
Lumens/Watt @ Current - Test : 87 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 80
Viewing Angle : 105°
Features : With Connector
Size / Dimension : 14.40mm L x 30.90mm W
Height : 5.21mm
Light Emitting Surface (LES) : 10.50mm Diameter
Lens Type : Flat
0
100 in stock

LXS8-PW27-0017N LXS8-PW27-0017N

Lumileds
Manufacturer : Lumileds
Packaging : Tray
Series : LUXEON S2000
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 2850 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 47V
Lumens/Watt @ Current - Test : 87 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 80
Viewing Angle : 105°
Features : -
Size / Dimension : 14.40mm L x 30.90mm W
Height : 1.31mm
Light Emitting Surface (LES) : 10.50mm Diameter
Lens Type : Flat
0
100 in stock
