Lumileds

- Companies developing automotive, mobile, IoT and illumination lighting applications need a partner who can collaborate with them to push the boundaries of light. With over 100 years of inventions and industry firsts, Lumileds is a global lighting solutions company that helps customers around the world deliver differentiated solutions to gain and maintain a competitive edge. As the inventor of Xenon technology, a pioneer in halogen lighting and the leader in high performance LEDs, Lumileds builds innovation, quality and reliability into its technology, products and every customer engagement. Together with its customers, Lumileds is making the world safer, better and more beautiful—with light.

Part Number
Manufacturer
Description
Unit Price
In Stock

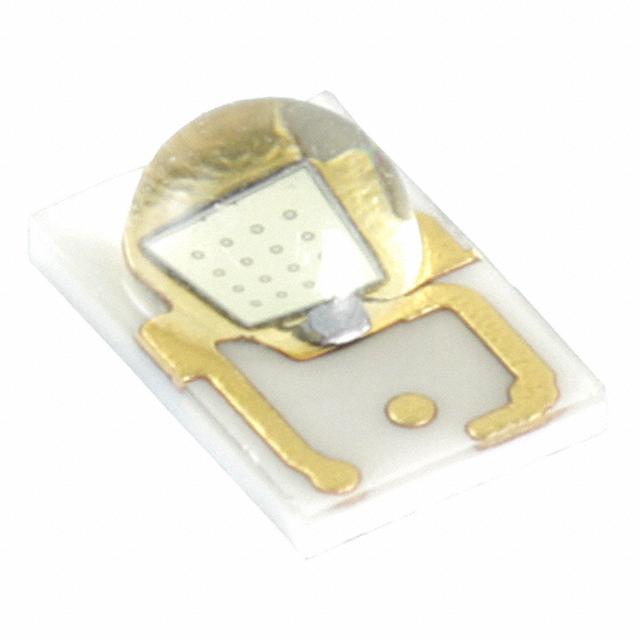

LXML-PM01-0090 LXML-PM01-0090

Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON Rebel Color
Part Status : Active
Color : Green
Wavelength : 530nm (Typ)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.9V
Lumens/Watt @ Current - Test : 94 lm/W
Current - Max : 1A
Flux @ Current/Temperature - Test : 95 lm (Typ)
Temperature - Test : 25°C
Viewing Angle : 125°
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.177" L x 0.120" W (4.49mm x 3.05mm)
Height - Seated (Max) : 0.083" (2.10mm)
0
10112 in stock

LXML-PM01-0100 LXML-PM01-0100

Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON Rebel Color
Part Status : Active
Color : Green
Wavelength : 530nm (Typ)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.9V
Lumens/Watt @ Current - Test : 100 lm/W
Current - Max : 1A
Flux @ Current/Temperature - Test : 95 lm (Typ)
Temperature - Test : 25°C
Viewing Angle : 125°
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.177" L x 0.120" W (4.49mm x 3.05mm)
Height - Seated (Max) : 0.083" (2.10mm)
0
14013 in stock

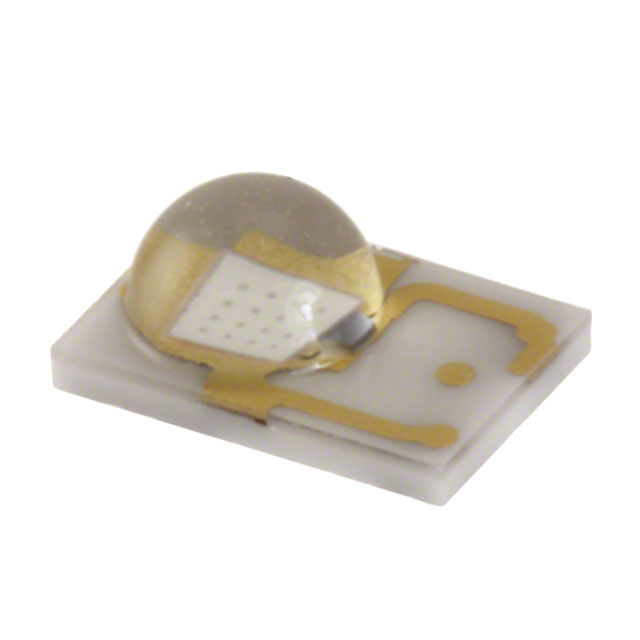

LXML-PR01-0425 LXML-PR01-0425

Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Series : LUXEON Rebel Color
Part Status : Obsolete
Color : Blue
Wavelength : 448nm (Typ)
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 2.95V
Lumens/Watt @ Current - Test : -
Current - Max : 1A
Flux @ Current/Temperature - Test : -
Temperature - Test : 25°C
Viewing Angle : 125°
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.177" L x 0.120" W (4.49mm x 3.05mm)
Height - Seated (Max) : 0.083" (2.10mm)
0
100 in stock

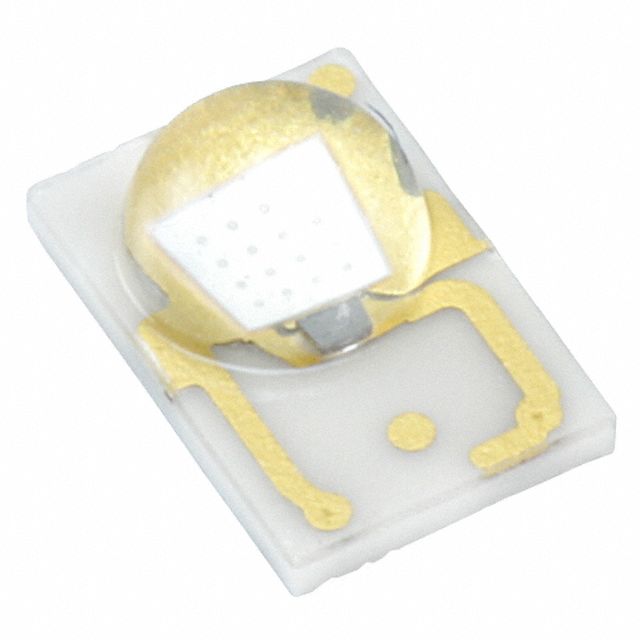

LXML-PR01-0500 LXML-PR01-0500

Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON Rebel Color
Part Status : Active
Color : Blue
Wavelength : 448nm (Typ)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.95V
Lumens/Watt @ Current - Test : -
Current - Max : 1A
Flux @ Current/Temperature - Test : 520mW (Typ)
Temperature - Test : 25°C
Viewing Angle : 125°
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.177" L x 0.120" W (4.49mm x 3.05mm)
Height - Seated (Max) : 0.083" (2.10mm)
0
2181 in stock

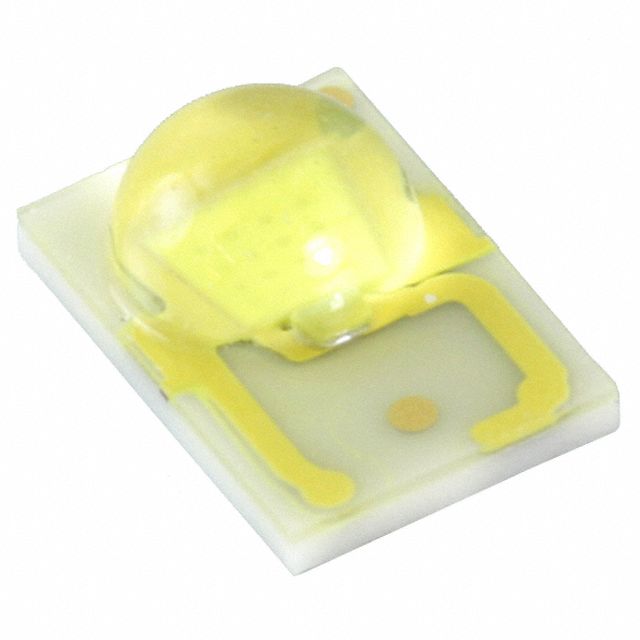

LXML-PWC1-0100 LXML-PWC1-0100

Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON Rebel General Purpose White
Part Status : Active
Color : White, Cool
CCT (K) : 4500K ~ 10000K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 105 lm (Typ)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 3V
Lumens/Watt @ Current - Test : 100 lm/W
CRI (Color Rendering Index) : 70 (Typ)
Current - Max : 1A
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : -
Size / Dimension : 0.177" L x 0.120" W (4.49mm x 3.05mm)
Height - Seated (Max) : 0.083" (2.10mm)
0
44145 in stock

LXML-PWC1-0120 LXML-PWC1-0120

Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON Rebel General Purpose White
Part Status : Active
Color : White, Cool
CCT (K) : 4500K ~ 10000K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 124 lm (Typ)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 3V
Lumens/Watt @ Current - Test : 118 lm/W
CRI (Color Rendering Index) : 70 (Typ)
Current - Max : 1A
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : -
Size / Dimension : 0.177" L x 0.120" W (4.49mm x 3.05mm)
Height - Seated (Max) : 0.083" (2.10mm)
0
8290 in stock

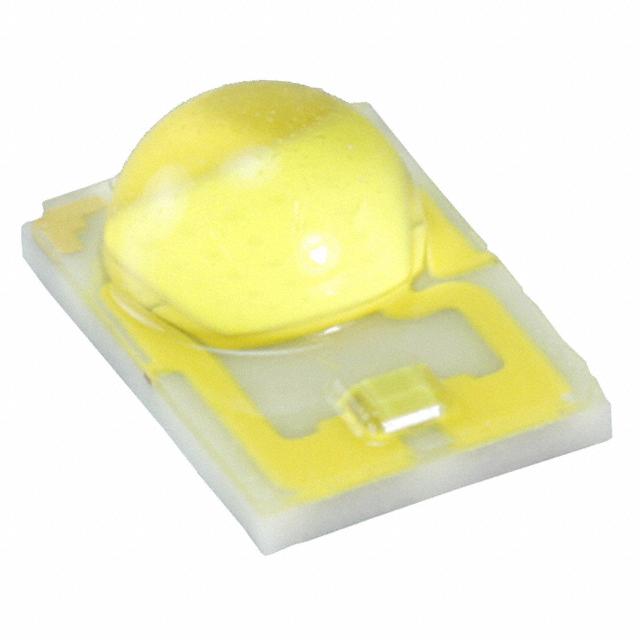

LXML-PWC2 LXML-PWC2

Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON Rebel ES
Part Status : Active
Color : White, Cool
CCT (K) : 5650K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 235 lm (Typ)
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 2.9V
Lumens/Watt @ Current - Test : 116 lm/W
CRI (Color Rendering Index) : 60
Current - Max : 1A
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : -
Size / Dimension : 0.177" L x 0.120" W (4.49mm x 3.05mm)
Height - Seated (Max) : 0.083" (2.10mm)
0
6075 in stock

LXML-PWN1-0100 LXML-PWN1-0100

Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON Rebel General Purpose White
Part Status : Active
Color : White, Neutral
CCT (K) : 3500K ~ 4500K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 105 lm (Typ)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 3V
Lumens/Watt @ Current - Test : 100 lm/W
CRI (Color Rendering Index) : 70 (Typ)
Current - Max : 1A
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : -
Size / Dimension : 0.177" L x 0.120" W (4.49mm x 3.05mm)
Height - Seated (Max) : 0.083" (2.10mm)
0
2751 in stock

LXML-PWN1-0120 LXML-PWN1-0120

Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON Rebel General Purpose White
Part Status : Active
Color : White, Neutral
CCT (K) : 3500K ~ 4500K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 124 lm (Typ)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 3V
Lumens/Watt @ Current - Test : 118 lm/W
CRI (Color Rendering Index) : 65 (Typ)
Current - Max : 1A
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : -
Size / Dimension : 0.177" L x 0.120" W (4.49mm x 3.05mm)
Height - Seated (Max) : 0.083" (2.10mm)
0
6616 in stock

LXML-PWN2 LXML-PWN2

Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON Rebel ES
Part Status : Active
Color : White, Neutral
CCT (K) : 4100K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 230 lm (Typ)
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 2.9V
Lumens/Watt @ Current - Test : 113 lm/W
CRI (Color Rendering Index) : 60
Current - Max : 1A
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : -
Size / Dimension : 0.177" L x 0.120" W (4.49mm x 3.05mm)
Height - Seated (Max) : 0.083" (2.10mm)
0
8508 in stock

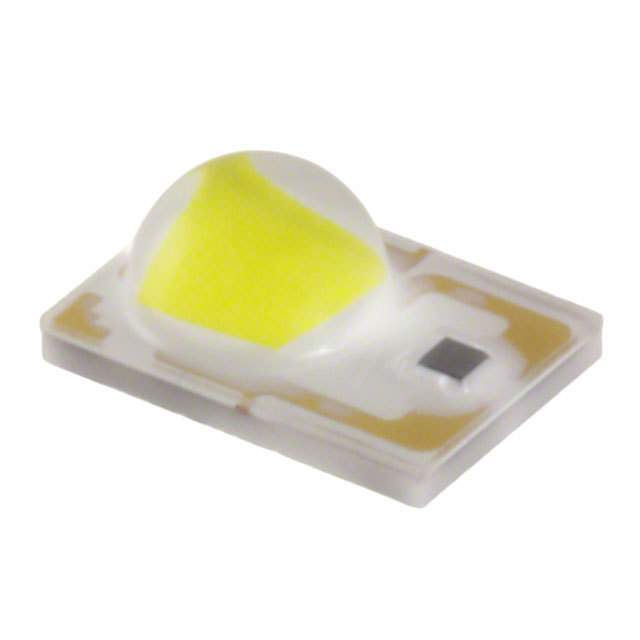

LXML-PX02-0000 LXML-PX02-0000

Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON Rebel Color ES
Part Status : Active
Color : Lime
Wavelength : 568nm (566nm ~ 569nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.75V
Lumens/Watt @ Current - Test : 191 lm/W
Current - Max : 1A
Flux @ Current/Temperature - Test : 184 lm (Typ)
Temperature - Test : 85°C
Viewing Angle : 125°
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.177" L x 0.120" W (4.49mm x 3.05mm)
Height - Seated (Max) : 0.083" (2.10mm)
0
4329 in stock

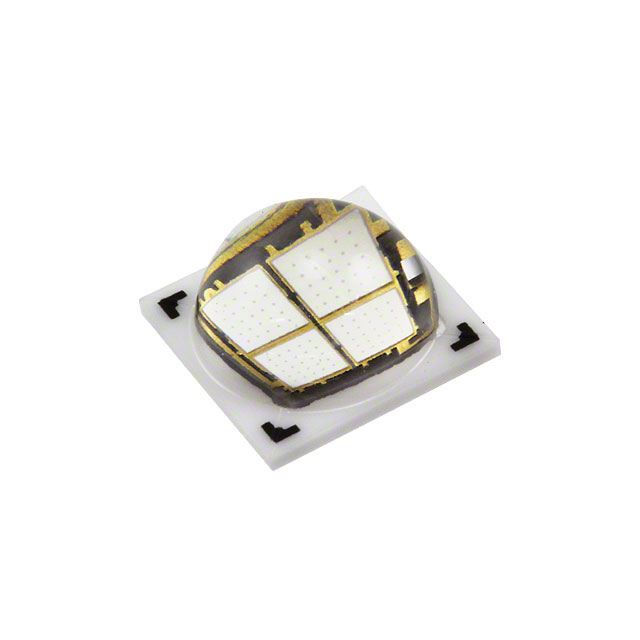

LXR0-QR00 LXR0-QR00

Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON M
Part Status : Discontinued at
Color : Blue
Wavelength : 453nm (445nm ~ 460nm)
Current - Test : 2.8A
Voltage - Forward (Vf) (Typ) : 2.8V
Lumens/Watt @ Current - Test : -
Current - Max : 4.2A
Flux @ Current/Temperature - Test : 4350mW (4200mW ~ 4500mW)
Temperature - Test : 85°C
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) : 0.152" (3.87mm)
0
100 in stock
