Lite-On, Inc.
- Lite-On started producing LED lamps in 1975 and has steadily grown into one of the world's largest optoelectronics manufacturers by providing customers with both visible and infrared product solutions. High volume capacities for commodity items and application specific products, combined with strong R&D and vertical integration, have proven to be key distinguishing factors in Lite-On's success.
Part Number
Manufacturer
Description
Unit Price
In Stock

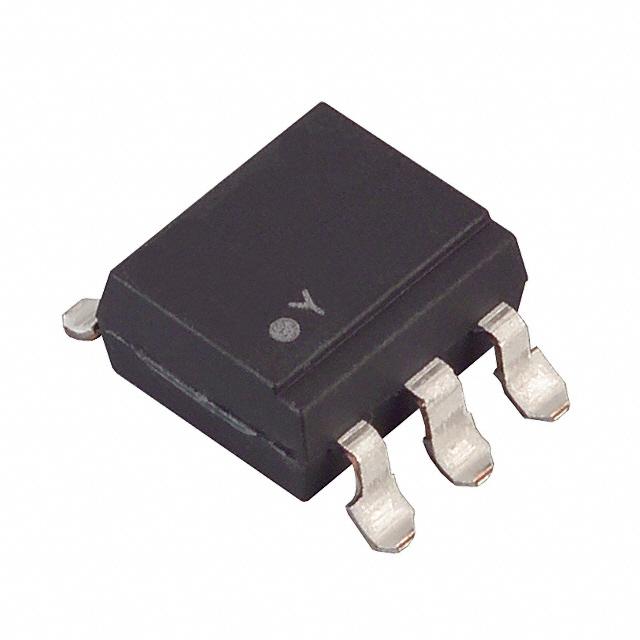

Lite-On, Inc.
Manufacturer : Lite-On Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Output Type : Triac
Zero Crossing Circuit : Yes
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Voltage - Off State : 800V
Static dV/dt (Min) : 800V/µs
Current - LED Trigger (Ift) (Max) : 5mA
Current - On State (It (RMS)) (Max) : -
Current - Hold (Ih) : 400µA (Typ)
Turn On Time : -
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SMD, Gull Wing
Supplier Device Package : 6-SMD
Approvals : CSA, FIMKO, UL
0
10970 in stock

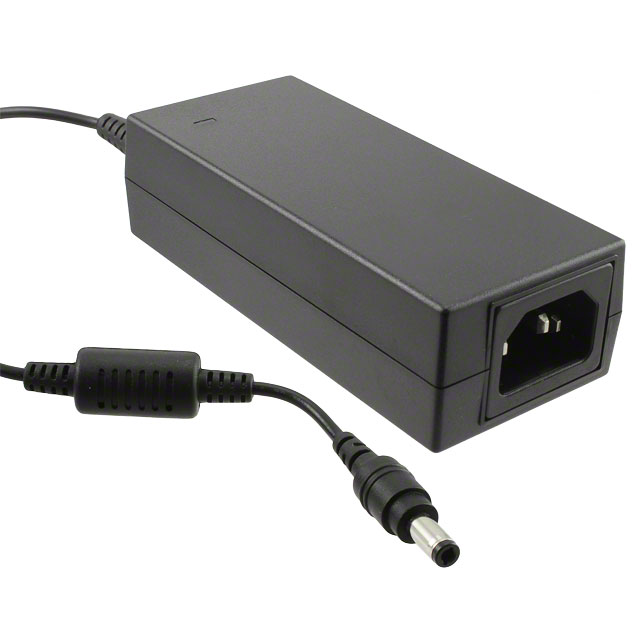

Lite-On, Inc.
Manufacturer : Lite-On Inc.
Series : -
Part Status : Discontinued at
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 3.33A
Power (Watts) : 40W
No Load Power Consumption : 100mW (Max)
Polarization : -
Applications : ITE (Commercial)
Efficiency : 85%
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 4.27" L x 1.89" W x 1.20" H (108.5mm x 48.0mm x 30.5mm)
Approvals : -
0
100 in stock

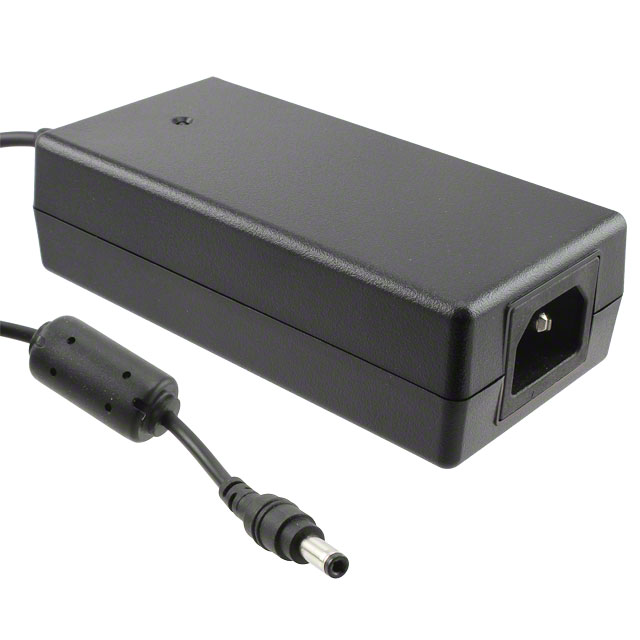

Lite-On, Inc.
Manufacturer : Lite-On Inc.
Series : -
Part Status : Discontinued at
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 5A
Power (Watts) : 60W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : 87%
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 4.72" L x 2.36" W x 1.38" H (120.0mm x 60.0mm x 35.0mm)
Approvals : -
0
100 in stock

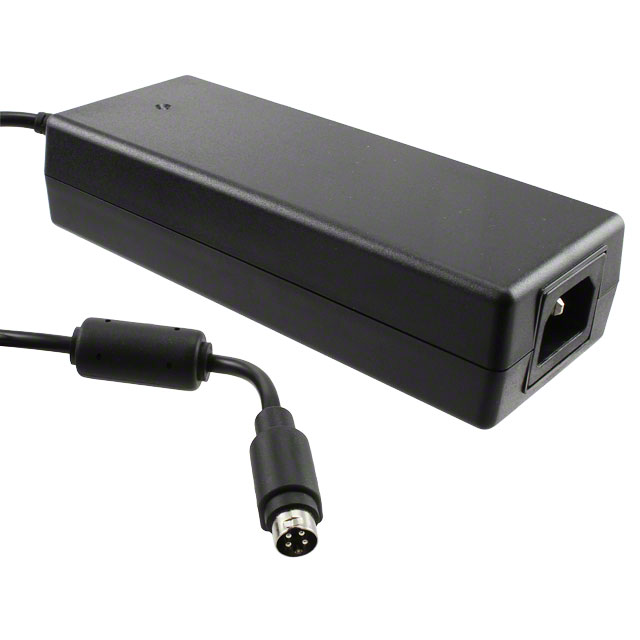

Lite-On, Inc.
Manufacturer : Lite-On Inc.
Series : -
Part Status : Discontinued at
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 6.67A
Power (Watts) : 80W
No Load Power Consumption : 300mW (Max)
Polarization : -
Applications : ITE (Commercial)
Efficiency : 87%
Operating Temperature : 0°C ~ 40°C
Output Connector : Power DIN, 4 Pin
Size / Dimension : 5.91" L x 2.36" W x 1.38" H (150.0mm x 60.0mm x 35.0mm)
Approvals : -
0
104 in stock

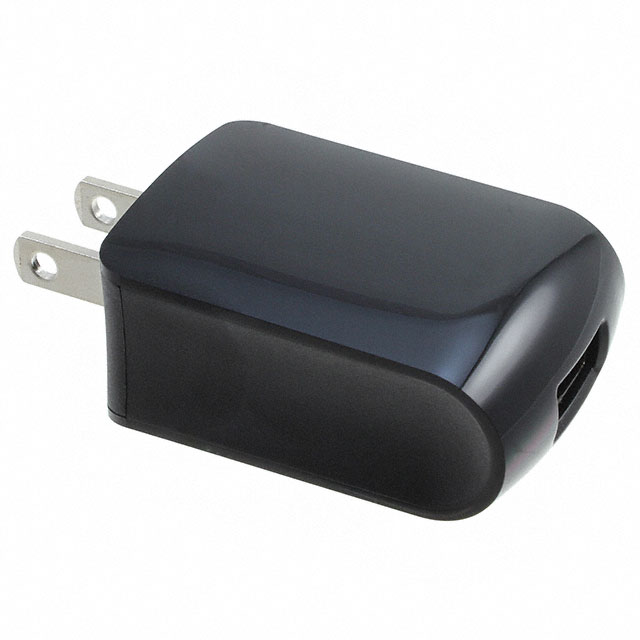

Lite-On, Inc.
Manufacturer : Lite-On Inc.
Series : -
Part Status : Discontinued at
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 5V
Current - Output (Max) : 2A
Power (Watts) : 10W
No Load Power Consumption : 100mW (Max)
Polarization : -
Applications : ITE (Commercial)
Efficiency : 76%
Operating Temperature : 0°C ~ 40°C
Output Connector : USB A Receptacle
Size / Dimension : 0.94" L x 1.34" W x 1.90" H (23.9mm x 34.0mm x 48.3mm)
Approvals : -
0
100 in stock

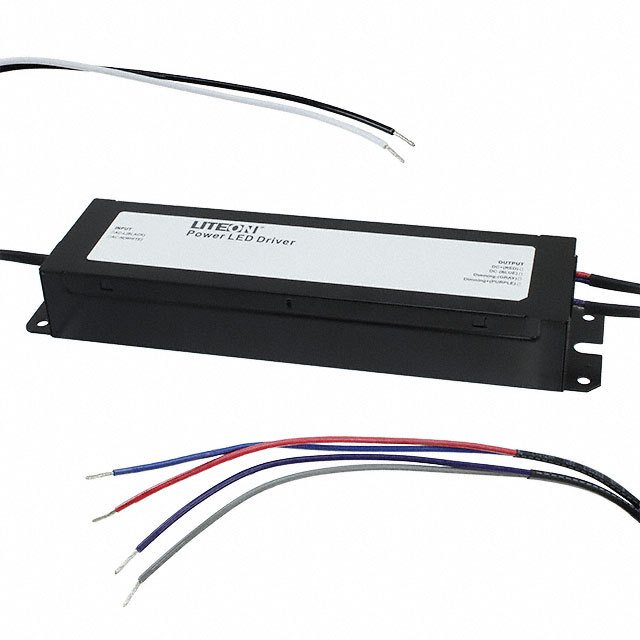

Lite-On, Inc.
Manufacturer : Lite-On Inc.
Series : -
Part Status : Active
Type : Constant Current
Topology : AC DC Converter
Number of Outputs : 1
Voltage - Input (Min) : 100VAC
Voltage - Input (Max) : 305VAC
Voltage - Output : 18 ~ 24 V
Current - Output (Max) : 4.2A
Power (Watts) : 100W
Voltage - Isolation : 3.75kV
Dimming : Analog
Features : OCP, OTP, OVP, SCP
Ratings : -
Operating Temperature : -40°C ~ 60°C
Efficiency : 87.5%
Termination Style : Wire Leads
Size / Dimension : 8.35" L x 2.36" W x 1.34" H (212.0mm x 60.0mm x 34.0mm)
0
108 in stock

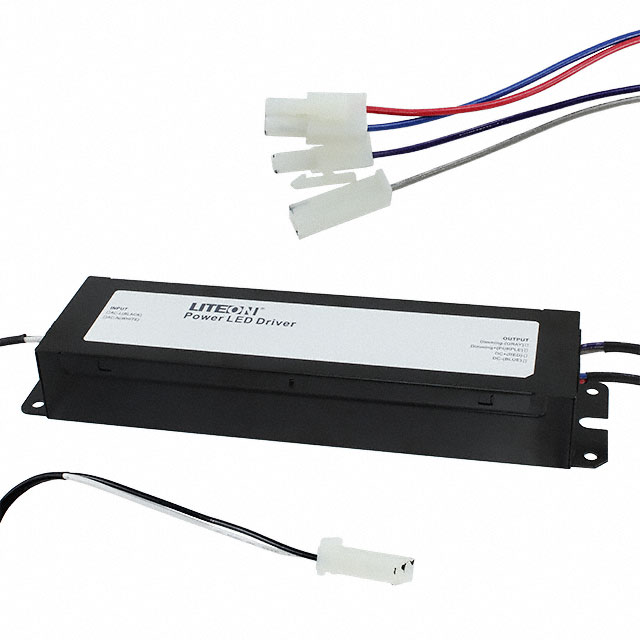

Lite-On, Inc.
Manufacturer : Lite-On Inc.
Series : -
Part Status : Active
Type : Constant Current
Topology : AC DC Converter
Number of Outputs : 1
Voltage - Input (Min) : 90VAC
Voltage - Input (Max) : 305VAC
Voltage - Output : 56 ~ 140 V
Current - Output (Max) : 700mA
Power (Watts) : 100W
Voltage - Isolation : 3.75kV
Dimming : Analog
Features : OCP, OTP, OVP, SCP
Ratings : -
Operating Temperature : -40°C ~ 60°C
Efficiency : 88%
Termination Style : Wire Leads
Size / Dimension : 8.35" L x 2.36" W x 1.34" H (212.0mm x 60.0mm x 34.0mm)
0
115 in stock

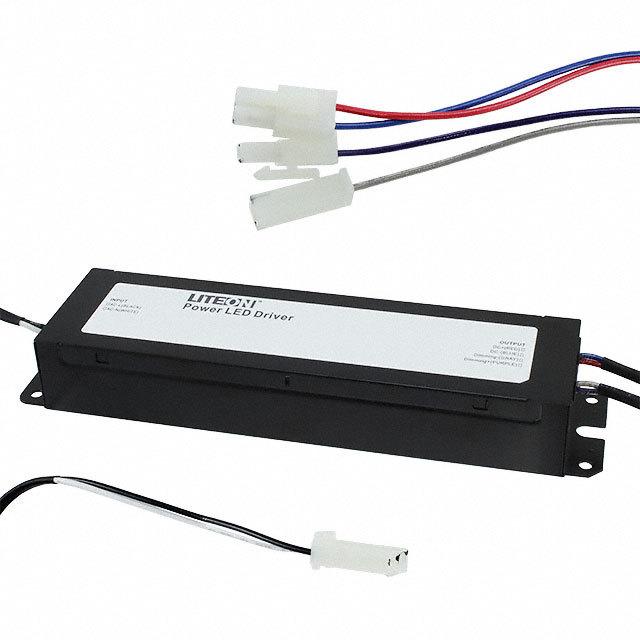

Lite-On, Inc.
Manufacturer : Lite-On Inc.
Series : -
Part Status : Active
Type : Constant Current
Topology : AC DC Converter
Number of Outputs : 1
Voltage - Input (Min) : 90VAC
Voltage - Input (Max) : 305VAC
Voltage - Output : 56 ~ 140 V
Current - Output (Max) : 700mA
Power (Watts) : 100W
Voltage - Isolation : 3.75kV
Dimming : Analog
Features : OCP, OTP, OVP, SCP
Ratings : IP66
Operating Temperature : -40°C ~ 60°C
Efficiency : 90%
Termination Style : Wire Leads
Size / Dimension : 8.35" L x 2.36" W x 1.34" H (212.0mm x 60.0mm x 34.0mm)
0
113 in stock
Lite-On, Inc.
Manufacturer : Lite-On Inc.
Series : -
Part Status : Active
Type : Constant Current
Topology : AC DC Converter
Number of Outputs : 1
Voltage - Input (Min) : 100VAC
Voltage - Input (Max) : 305VAC
Voltage - Output : 52 ~ 95 V
Current - Output (Max) : 1.05A
Power (Watts) : 100W
Voltage - Isolation : 3.75kV
Dimming : Analog
Features : OCP, OTP, OVP, SCP
Ratings : -
Operating Temperature : -40°C ~ 60°C
Efficiency : 88%
Termination Style : Wire Leads
Size / Dimension : 8.35" L x 2.36" W x 1.34" H (212.0mm x 60.0mm x 34.0mm)
0
118 in stock
Lite-On, Inc.
Manufacturer : Lite-On Inc.
Series : -
Part Status : Obsolete
Type : Constant Current
Topology : AC DC Converter
Number of Outputs : 1
Voltage - Input (Min) : 90VAC
Voltage - Input (Max) : 305VAC
Voltage - Output : 56 ~ 280 V
Current - Output (Max) : 530mA
Power (Watts) : 150W
Voltage - Isolation : 3.75kV
Dimming : Analog
Features : OCP, OTP, OVP, SCP
Ratings : -
Operating Temperature : -40°C ~ 55°C
Efficiency : 91%
Termination Style : Wire Leads
Size / Dimension : 8.35" L x 2.36" W x 1.34" H (212.0mm x 60.0mm x 34.0mm)
0
100 in stock
Lite-On, Inc.
Manufacturer : Lite-On Inc.
Series : -
Part Status : Active
Type : Constant Current
Topology : AC DC Converter
Number of Outputs : 1
Voltage - Input (Min) : 100VAC
Voltage - Input (Max) : 305VAC
Voltage - Output : 56 ~ 210 V
Current - Output (Max) : 700mA
Power (Watts) : 150W
Voltage - Isolation : 3.75kV
Dimming : Analog
Features : OCP, OTP, OVP, SCP
Ratings : -
Operating Temperature : -40°C ~ 55°C
Efficiency : 90%
Termination Style : Wire Leads
Size / Dimension : 8.35" L x 2.36" W x 1.34" H (212.0mm x 60.0mm x 34.0mm)
0
90 in stock
Lite-On, Inc.
Manufacturer : Lite-On Inc.
Series : -
Part Status : Active
Type : Constant Current
Topology : AC DC Converter
Number of Outputs : 1
Voltage - Input (Min) : 100VAC
Voltage - Input (Max) : 305VAC
Voltage - Output : 80 ~ 140 V
Current - Output (Max) : 1.05A
Power (Watts) : 150W
Voltage - Isolation : 3.75kV
Dimming : Analog
Features : OCP, OTP, OVP, SCP
Ratings : -
Operating Temperature : -40°C ~ 55°C
Efficiency : 90%
Termination Style : Wire Leads
Size / Dimension : 8.35" L x 2.36" W x 1.34" H (212.0mm x 60.0mm x 34.0mm)
0
100 in stock
