- WE MAKE TECHNOLOGY WORKLaird is a global leader in solving your electromagnetic interference challenges and providing state-of-the-art wireless communication and smart system solutions. Laird products are engineered with unparalleled innovation and precision and are supplied to major companies across the world, equipping them with the technology needed to improve their business and contribute to the progress of the modern world. They meet the needs of a variety of industries and applications, delivering transformational solutions for a constantly changing digital society.
PROTECT - Keep heat and electromagnetic interference at bay with high quality performance materials.
CONNECT - Stay wired at all times with Laird's highly reliable power products and industrial communications systems.
DESIGN - Design custom parts and solutions or build your entire concept from prototype to production.
Part Number
Manufacturer
Description
Unit Price
In Stock

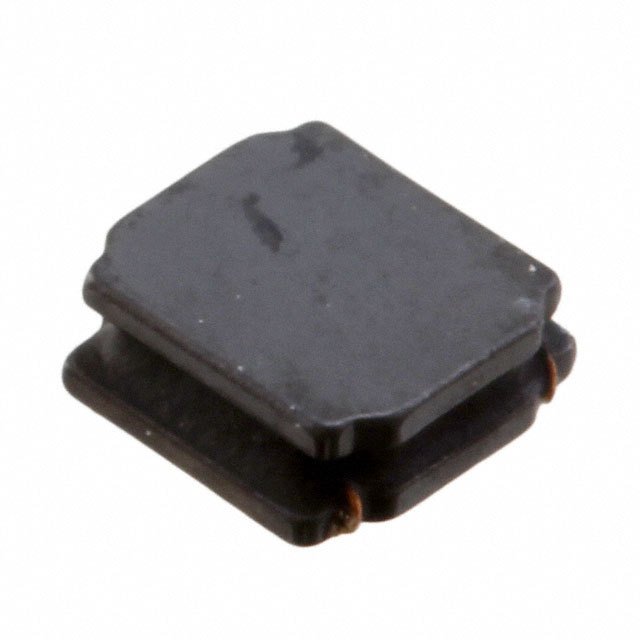

Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TYS3012
Part Status : Active
Type : -
Material - Core : -
Inductance : 68µH
Tolerance : ±20%
Current Rating : 330mA
Current - Saturation : 240mA
Shielding : Shielded
DC Resistance (DCR) : 1.67 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : 12MHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : 0504 (1211 Metric)
Size / Dimension : 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) : 0.047" (1.20mm)
0
20374 in stock
Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TYS3015
Part Status : Active
Type : -
Material - Core : -
Inductance : 10µH
Tolerance : ±20%
Current Rating : 770mA
Current - Saturation : 720mA
Shielding : Shielded
DC Resistance (DCR) : 250 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 41MHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) : 0.067" (1.70mm)
0
20786 in stock
Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TYS3015
Part Status : Active
Type : -
Material - Core : -
Inductance : 1µH
Tolerance : ±30%
Current Rating : 2.35A
Current - Saturation : 2.32A
Shielding : Shielded
DC Resistance (DCR) : 35 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 150MHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) : 0.067" (1.70mm)
0
4955 in stock

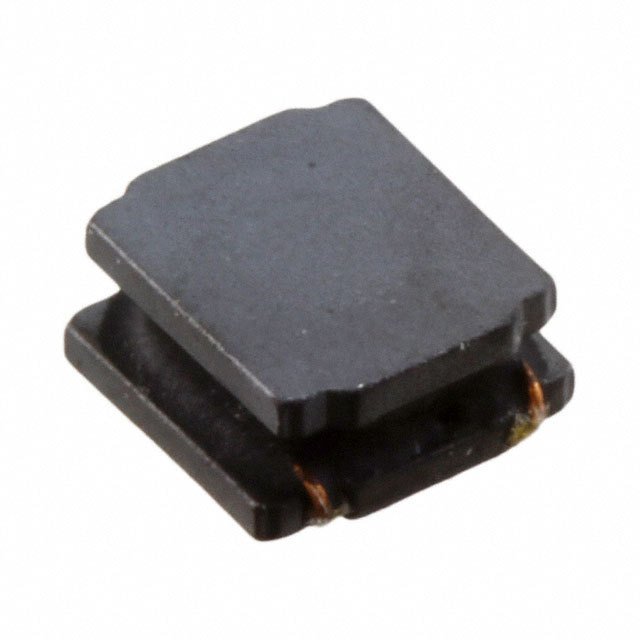

Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TYS3015
Part Status : Active
Type : -
Material - Core : -
Inductance : 47µH
Tolerance : ±20%
Current Rating : 350mA
Current - Saturation : 350mA
Shielding : Shielded
DC Resistance (DCR) : 1.25 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : 14MHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) : 0.067" (1.70mm)
0
56102 in stock
Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TYS3015
Part Status : Active
Type : -
Material - Core : -
Inductance : 6.8µH
Tolerance : ±20%
Current Rating : 850mA
Current - Saturation : 850mA
Shielding : Shielded
DC Resistance (DCR) : 200 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 39MHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) : 0.067" (1.70mm)
0
3125 in stock

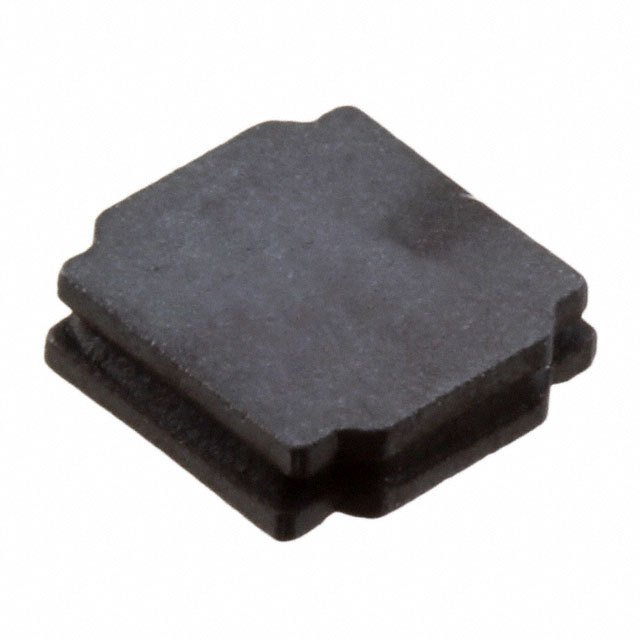

Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TYS4012
Part Status : Active
Type : -
Material - Core : -
Inductance : 100µH
Tolerance : ±20%
Current Rating : 250mA
Current - Saturation : 250mA
Shielding : Shielded
DC Resistance (DCR) : 2.21 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : 9.4MHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) : 0.047" (1.20mm)
0
8700 in stock

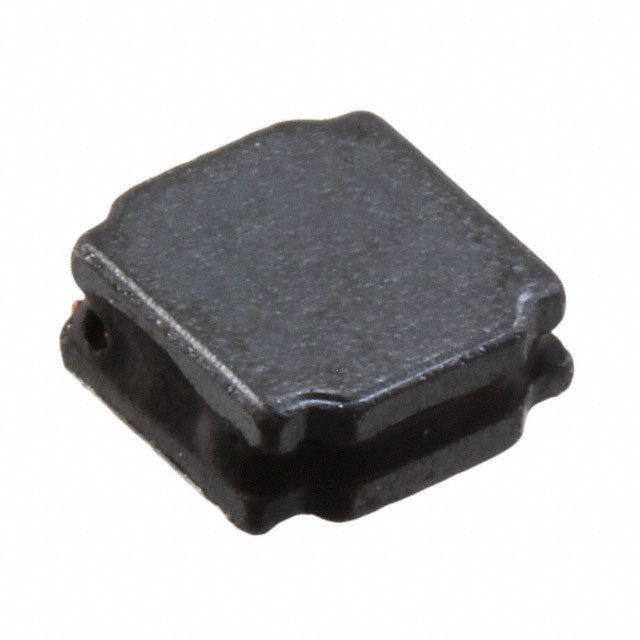

Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TYS4018
Part Status : Active
Type : -
Material - Core : -
Inductance : 10µH
Tolerance : ±20%
Current Rating : 840mA
Current - Saturation : 1.3A
Shielding : Shielded
DC Resistance (DCR) : 180 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 24MHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) : 0.079" (2.00mm)
0
14580 in stock
Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TYS4018
Part Status : Active
Type : -
Material - Core : -
Inductance : 100µH
Tolerance : ±20%
Current Rating : 250mA
Current - Saturation : 400mA
Shielding : Shielded
DC Resistance (DCR) : 1.75 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : 6.5MHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) : 0.079" (2.00mm)
0
2977 in stock
Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TYS4018
Part Status : Active
Type : -
Material - Core : -
Inductance : 1µH
Tolerance : ±30%
Current Rating : 2A
Current - Saturation : 4.8A
Shielding : Shielded
DC Resistance (DCR) : 25 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 80MHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) : 0.079" (2.00mm)
0
63043 in stock
Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TYS4018
Part Status : Active
Type : -
Material - Core : -
Inductance : 22µH
Tolerance : ±20%
Current Rating : 590mA
Current - Saturation : 800mA
Shielding : Shielded
DC Resistance (DCR) : 360 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 16MHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) : 0.079" (2.00mm)
0
10956 in stock
Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TYS4018
Part Status : Active
Type : -
Material - Core : -
Inductance : 220µH
Tolerance : ±20%
Current Rating : 170mA
Current - Saturation : 270mA
Shielding : Shielded
DC Resistance (DCR) : 4 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : 4MHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) : 0.079" (2.00mm)
0
8315 in stock
Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TYS4018
Part Status : Active
Type : -
Material - Core : -
Inductance : 47µH
Tolerance : ±20%
Current Rating : 420mA
Current - Saturation : 570mA
Shielding : Shielded
DC Resistance (DCR) : 650 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 10MHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) : 0.079" (2.00mm)
0
6068 in stock
