Welcome to Eruic

Keystone Electronics Corp.

- For more than sixty years, Keystone Electronics has been manufacturing precision electronic interconnect components and hardware, supplying quality products at competitive prices to industry, worldwide.

Our full-line Catalog M65 has products that are engineered specifically for use by OEM Designers and Engineers who create and develop state-of-the-art electronic products, instruments and systems.

While our catalog products meet most standard requirements, modifications as well as custom fabrications can be manufactured to meet your special needs. Design and engineering; precision tool and die capabilities; close tolerance Stamping, Machining, and Assembly; computer-based quality control and responsive customer service are all vital in-house resources which constitute our Custom Manufacturing Division's capabilities.

Keystone's Quality System is ISO 9001-certified by DNV Certification, Inc. under the RAB and RvA accreditations. Our quality assurance program is in accordance with these requirements and applies to all standard and custom interconnect components and hardware.

It is Keystone's quality policy to continuously improve its products to better satisfy the needs of its customers and to deliver quality products, every time and on time. Our Global Distribution Network is your assurance of quick response, service, and dependability, worldwide.

Part Number
Manufacturer
Description
Unit Price
In Stock

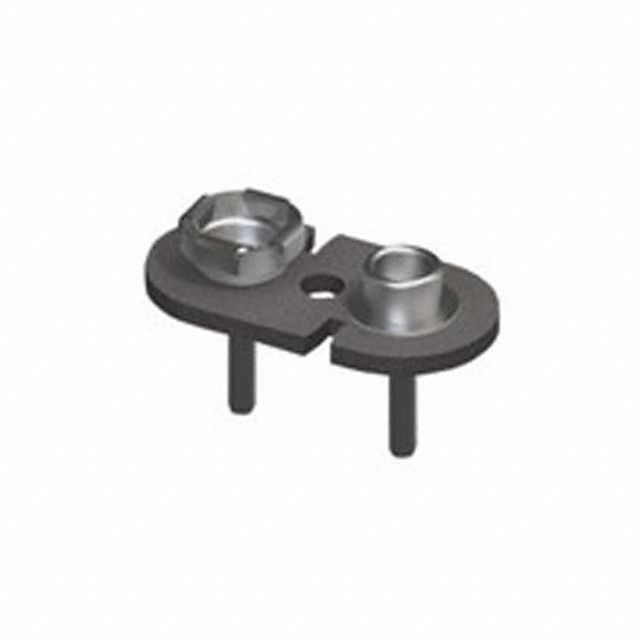

967  967

Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Series : -
Part Status : Active
Battery Type, Function : 9V, Snap Connector
Style : Connector, Snap
Battery Cell Size : 9V
Number of Cells : 1
Battery Series : -
Mounting Type : PCB, Through Hole
Termination Style : PC Pin
Height Above Board : -
Operating Temperature : -
0
3816 in stock

968  968

Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Series : -
Part Status : Active
Battery Type, Function : 9V, Snap Connector
Style : Connector, Snap
Battery Cell Size : 9V
Number of Cells : 1
Battery Series : -
Mounting Type : PCB, Through Hole
Termination Style : PC Pin
Height Above Board : -
Operating Temperature : -
0
8795 in stock

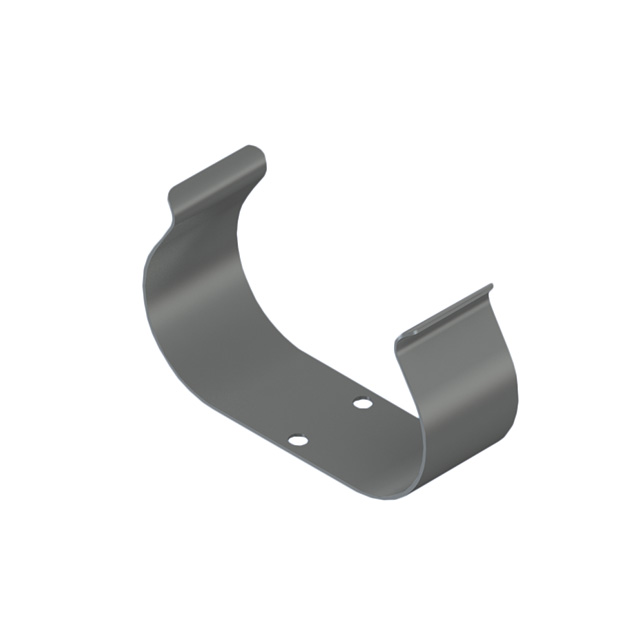

97  97

Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Series : -
Part Status : Active
Battery Type, Function : Cylindrical, Holder
Style : Holder Clip (No Contacts)
Battery Cell Size : C
Number of Cells : 2
Battery Series : -
Mounting Type : Chassis Mount
Termination Style : -
Height Above Board : -
Operating Temperature : -
0
989 in stock

970  970

Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Phono (RCA) Jack
Gender : Female
Signal Lines : Mono
Industry Recognized Mating Diameter : 3.20mm ID, 9.00mm OD (RCA)
Actual Diameter : 0.125" (3.18mm ID), 0.327" (8.31mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch
Mounting Type : Through Hole, Right Angle
Termination : Solder
Shielding : Unshielded
Features : Board Lock
Insulation Color : White
0
353 in stock

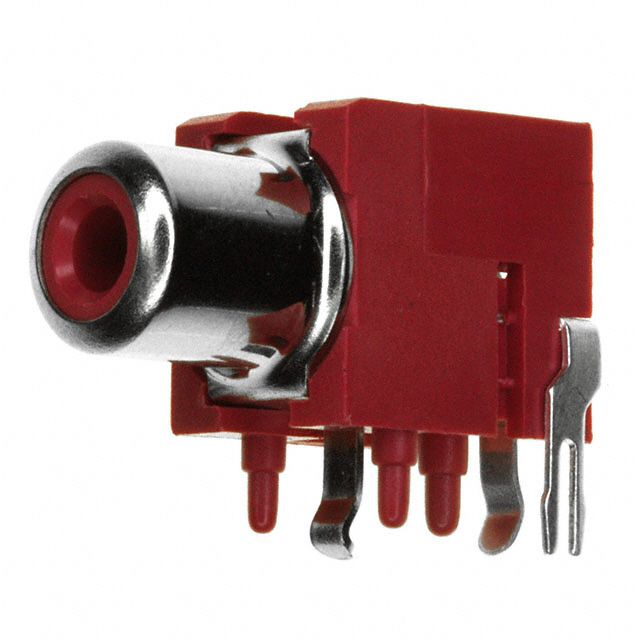

971  971

Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Phono (RCA) Jack
Gender : Female
Signal Lines : Mono
Industry Recognized Mating Diameter : 3.20mm ID, 9.00mm OD (RCA)
Actual Diameter : 0.125" (3.18mm ID), 0.327" (8.31mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch
Mounting Type : Through Hole, Right Angle
Termination : Solder
Shielding : Unshielded
Features : Board Lock
Insulation Color : Red
0
1381 in stock

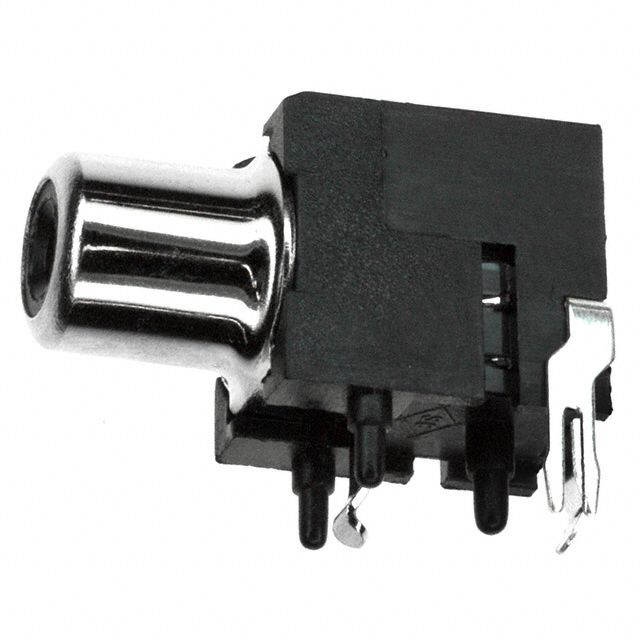

972  972

Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Phono (RCA) Jack
Gender : Female
Signal Lines : Mono
Industry Recognized Mating Diameter : 3.20mm ID, 9.00mm OD (RCA)
Actual Diameter : 0.125" (3.18mm ID), 0.327" (8.31mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch
Mounting Type : Through Hole, Right Angle
Termination : Solder
Shielding : Unshielded
Features : Board Lock
Insulation Color : Black
0
2736 in stock

973  973

Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Phono (RCA) Jack
Gender : Female
Signal Lines : Mono
Industry Recognized Mating Diameter : 3.20mm ID, 9.00mm OD (RCA)
Actual Diameter : 0.125" (3.18mm ID), 0.327" (8.31mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch
Mounting Type : Through Hole, Right Angle
Termination : Solder
Shielding : Unshielded
Features : Board Lock
Insulation Color : Yellow
0
2349 in stock

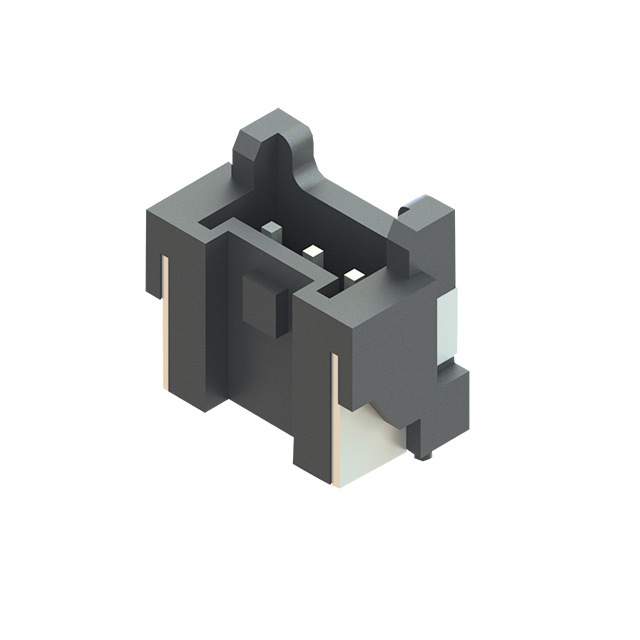

974 974

Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 3
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.280" (7.10mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : Board Guide
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 3A
Voltage Rating : 250V
0
1328 in stock

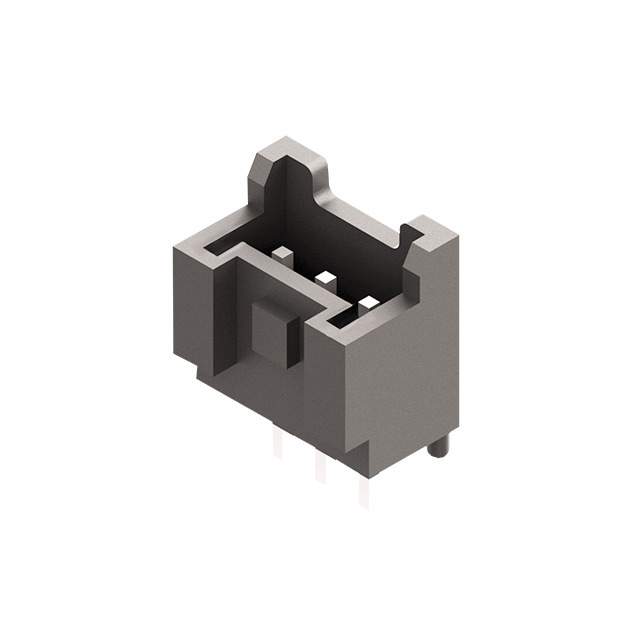

975 975

Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 3
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Press-Fit, Solder
Fastening Type : Latch Holder
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.303" (7.70mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : Board Guide
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 3A
Voltage Rating : 250V
0
1275 in stock

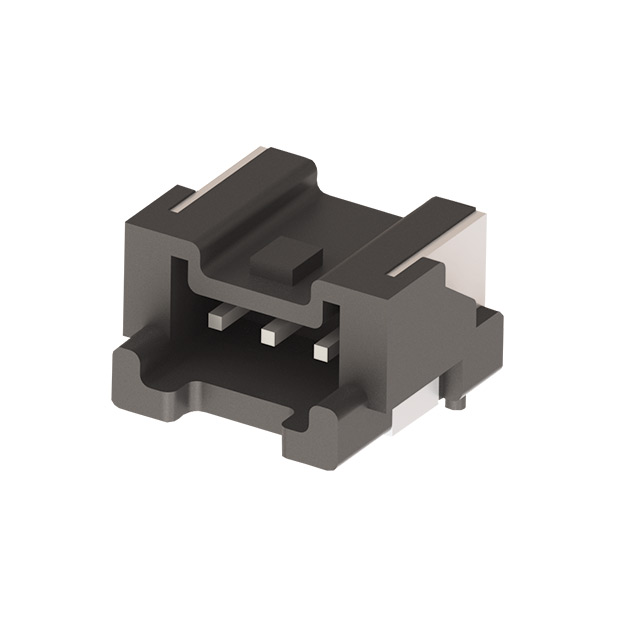

976 976

Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 3
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.224" (5.69mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : Board Guide
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 3A
Voltage Rating : 250V
0
1680 in stock

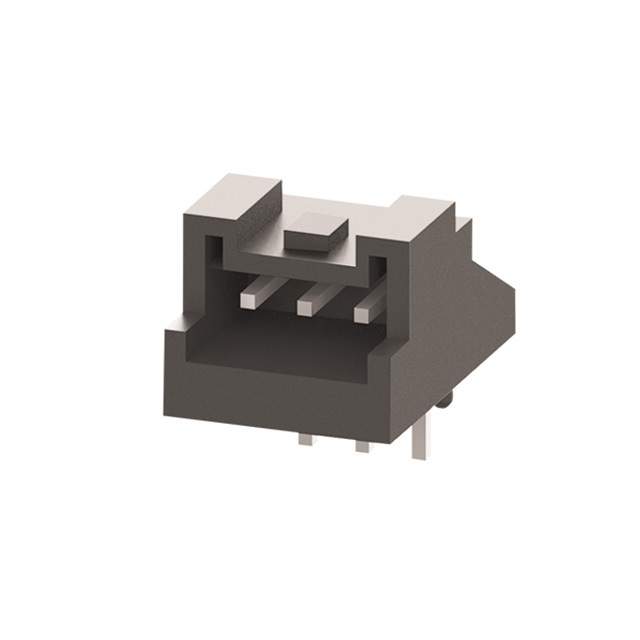

977 977

Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 3
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : -
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : Board Guide
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 3A
Voltage Rating : 250V
0
1110 in stock

98  98

Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Series : -
Part Status : Active
Battery Type, Function : Cylindrical, Holder
Style : Holder Clip (No Contacts)
Battery Cell Size : D
Number of Cells : 2
Battery Series : -
Mounting Type : Chassis Mount
Termination Style : -
Height Above Board : -
Operating Temperature : -
0
970 in stock
