JAE Electronics, Inc.
Part Number
Manufacturer
Description
Unit Price
In Stock

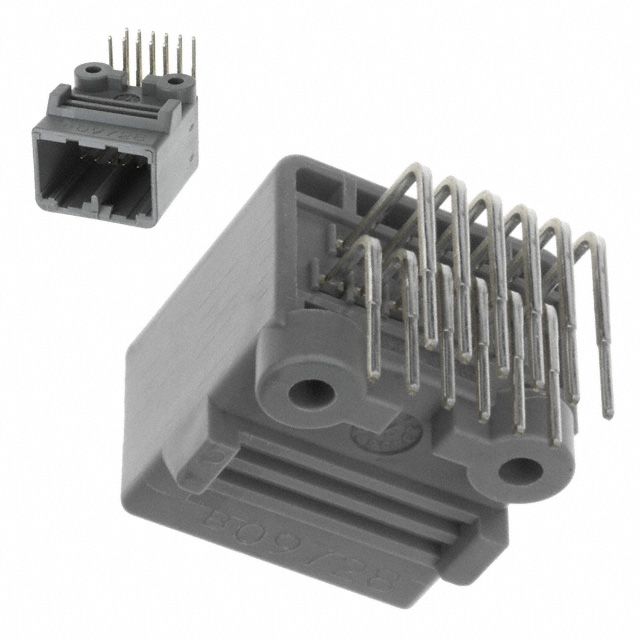

MX34012NF1
JAE Electronics, Inc.
Manufacturer : JAE Electronics
Packaging : Tube
Series : MX34
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.087" (2.20mm)
Number of Positions : 12
Number of Rows : 2
Row Spacing - Mating : 0.118" (3.00mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Locking Ramp
Contact Length - Mating : 0.303" (7.70mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : -
Insulation Height : 0.626" (15.90mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Syndiotactic Polystyrene (SPS), Glass Filled
Features : Mounting Flange
Operating Temperature : -40°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Gray
Current Rating : 3A
Voltage Rating : -
Packaging : Tube
Series : MX34
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.087" (2.20mm)
Number of Positions : 12
Number of Rows : 2
Row Spacing - Mating : 0.118" (3.00mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Locking Ramp
Contact Length - Mating : 0.303" (7.70mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : -
Insulation Height : 0.626" (15.90mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Syndiotactic Polystyrene (SPS), Glass Filled
Features : Mounting Flange
Operating Temperature : -40°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Gray
Current Rating : 3A
Voltage Rating : -
0
11328 in stock

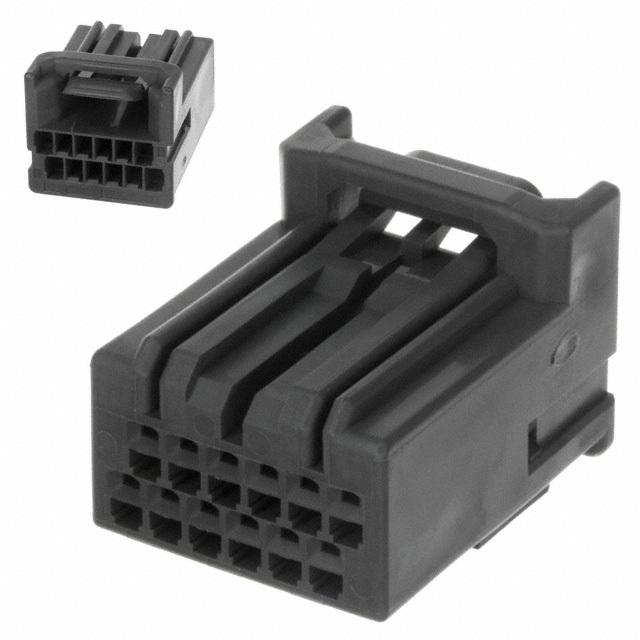

MX34012SF1
JAE Electronics, Inc.
Manufacturer : JAE Electronics
Packaging : Tray
Series : MX34
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Number of Positions : 12
Pitch : 0.087" (2.20mm)
Number of Rows : 2
Row Spacing : 0.118" (3.00mm)
Mounting Type : Free Hanging (In-Line)
Contact Termination : Crimp
Fastening Type : -
Color : Gray
Features : -
Packaging : Tray
Series : MX34
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Number of Positions : 12
Pitch : 0.087" (2.20mm)
Number of Rows : 2
Row Spacing : 0.118" (3.00mm)
Mounting Type : Free Hanging (In-Line)
Contact Termination : Crimp
Fastening Type : -
Color : Gray
Features : -
0
6900 in stock
MX34012UF1
JAE Electronics, Inc.
Manufacturer : JAE Electronics
Packaging : Tray
Series : MX34
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.087" (2.20mm)
Number of Positions : 12
Number of Rows : 2
Row Spacing - Mating : 0.118" (3.00mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Length - Mating : 0.303" (7.70mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : -
Insulation Height : 0.925" (23.50mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Syndiotactic Polystyrene (SPS), Glass Filled
Features : Mounting Flange
Operating Temperature : -40°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Gray
Current Rating : 3A
Voltage Rating : -
Packaging : Tray
Series : MX34
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.087" (2.20mm)
Number of Positions : 12
Number of Rows : 2
Row Spacing - Mating : 0.118" (3.00mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Length - Mating : 0.303" (7.70mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : -
Insulation Height : 0.925" (23.50mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Syndiotactic Polystyrene (SPS), Glass Filled
Features : Mounting Flange
Operating Temperature : -40°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Gray
Current Rating : 3A
Voltage Rating : -
0
100 in stock

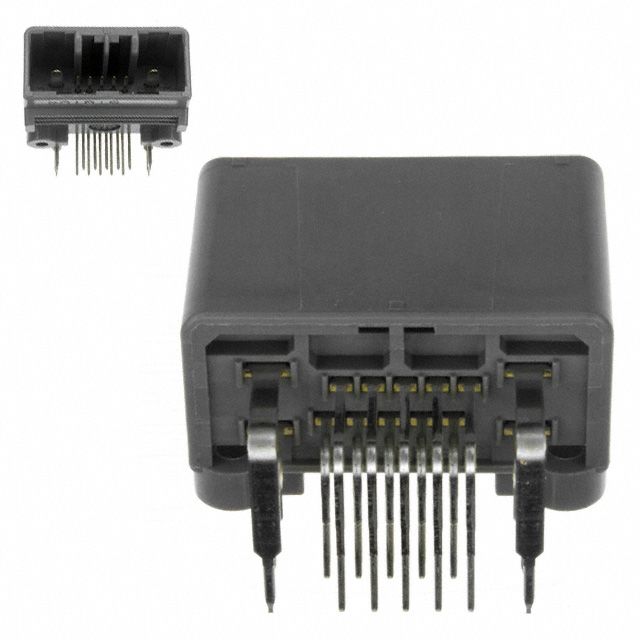

MX34014NFA
JAE Electronics, Inc.
Manufacturer : JAE Electronics
Packaging : Tray
Series : MX34
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.087" (2.20mm)
Number of Positions : 14
Number of Rows : 2
Row Spacing - Mating : 0.118" (3.00mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Locking Ramp
Contact Length - Mating : -
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : -
Insulation Height : 0.650" (16.50mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Syndiotactic Polystyrene (SPS), Glass Filled
Features : Mounting Flange
Operating Temperature : -40°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Gray
Current Rating : 3A
Voltage Rating : -
Packaging : Tray
Series : MX34
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.087" (2.20mm)
Number of Positions : 14
Number of Rows : 2
Row Spacing - Mating : 0.118" (3.00mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Locking Ramp
Contact Length - Mating : -
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : -
Insulation Height : 0.650" (16.50mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Syndiotactic Polystyrene (SPS), Glass Filled
Features : Mounting Flange
Operating Temperature : -40°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Gray
Current Rating : 3A
Voltage Rating : -
0
2628 in stock

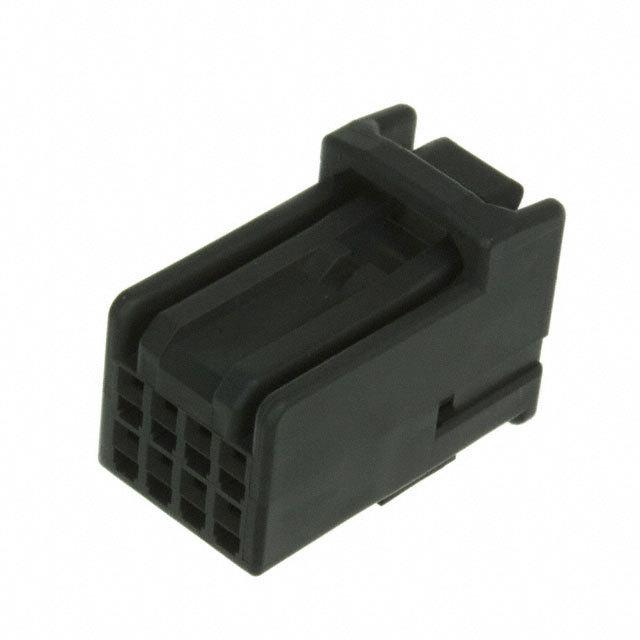

MX34014SFA
JAE Electronics, Inc.
Manufacturer : JAE Electronics
Packaging : Tray
Series : MX34
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Number of Positions : 14
Pitch : 0.087" (2.20mm)
Number of Rows : 2
Row Spacing : 0.118" (3.00mm)
Mounting Type : Free Hanging (In-Line)
Contact Termination : Crimp
Fastening Type : -
Color : Gray
Features : -
Packaging : Tray
Series : MX34
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Number of Positions : 14
Pitch : 0.087" (2.20mm)
Number of Rows : 2
Row Spacing : 0.118" (3.00mm)
Mounting Type : Free Hanging (In-Line)
Contact Termination : Crimp
Fastening Type : -
Color : Gray
Features : -
0
2624 in stock

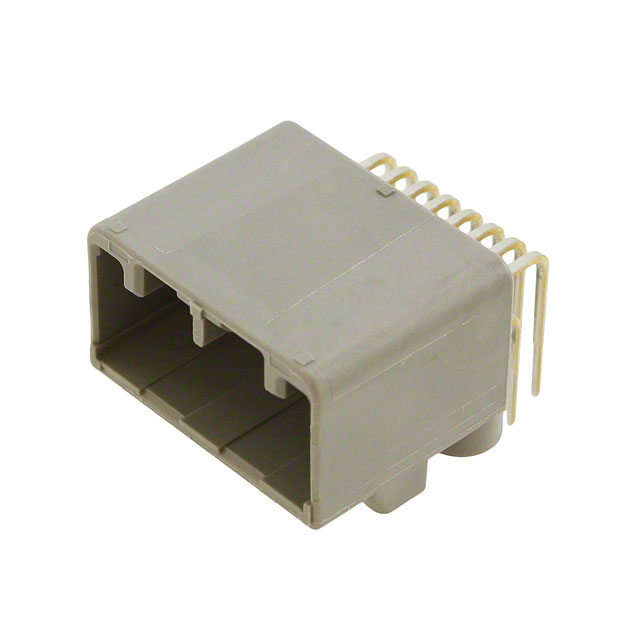

MX34016NF1
JAE Electronics, Inc.
Manufacturer : JAE Electronics
Packaging : Tube
Series : MX34
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.087" (2.20mm)
Number of Positions : 16
Number of Rows : 2
Row Spacing - Mating : 0.118" (3.00mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Locking Ramp
Contact Length - Mating : 0.303" (7.70mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : -
Insulation Height : 0.626" (15.90mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Syndiotactic Polystyrene (SPS), Glass Filled
Features : Mounting Flange
Operating Temperature : -40°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Gray
Current Rating : 3A
Voltage Rating : -
Packaging : Tube
Series : MX34
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.087" (2.20mm)
Number of Positions : 16
Number of Rows : 2
Row Spacing - Mating : 0.118" (3.00mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Locking Ramp
Contact Length - Mating : 0.303" (7.70mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : -
Insulation Height : 0.626" (15.90mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Syndiotactic Polystyrene (SPS), Glass Filled
Features : Mounting Flange
Operating Temperature : -40°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Gray
Current Rating : 3A
Voltage Rating : -
0
3297 in stock

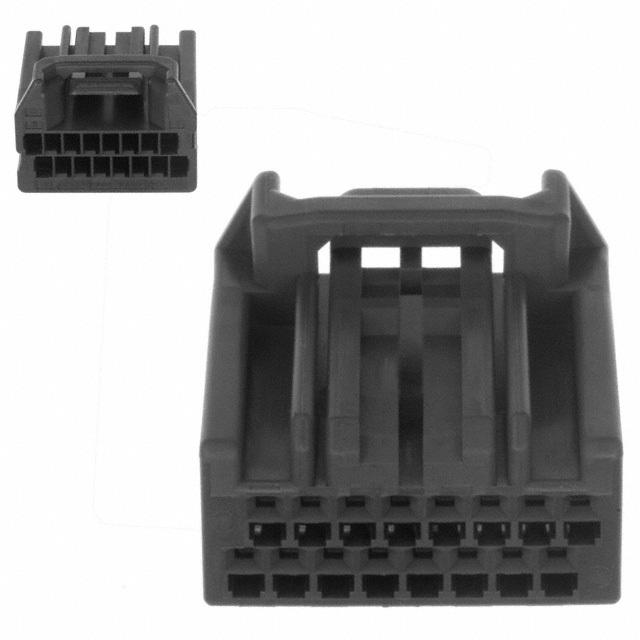

MX34016SF1
JAE Electronics, Inc.
Manufacturer : JAE Electronics
Packaging : Tray
Series : MX34
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Number of Positions : 16
Pitch : 0.087" (2.20mm)
Number of Rows : 2
Row Spacing : 0.118" (3.00mm)
Mounting Type : Free Hanging (In-Line)
Contact Termination : Crimp
Fastening Type : -
Color : Gray
Features : -
Packaging : Tray
Series : MX34
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Number of Positions : 16
Pitch : 0.087" (2.20mm)
Number of Rows : 2
Row Spacing : 0.118" (3.00mm)
Mounting Type : Free Hanging (In-Line)
Contact Termination : Crimp
Fastening Type : -
Color : Gray
Features : -
0
12671 in stock

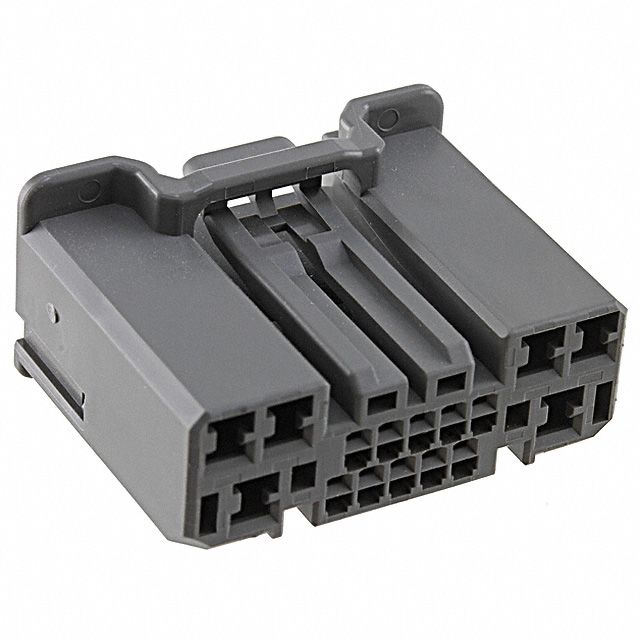

MX34016SFA
JAE Electronics, Inc.
Manufacturer : JAE Electronics
Packaging : Tray
Series : MX34
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Number of Positions : -
Pitch : -
Number of Rows : -
Row Spacing : -
Mounting Type : Free Hanging (In-Line)
Contact Termination : Crimp
Fastening Type : -
Color : Gray
Features : -
Packaging : Tray
Series : MX34
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Number of Positions : -
Pitch : -
Number of Rows : -
Row Spacing : -
Mounting Type : Free Hanging (In-Line)
Contact Termination : Crimp
Fastening Type : -
Color : Gray
Features : -
0
504 in stock

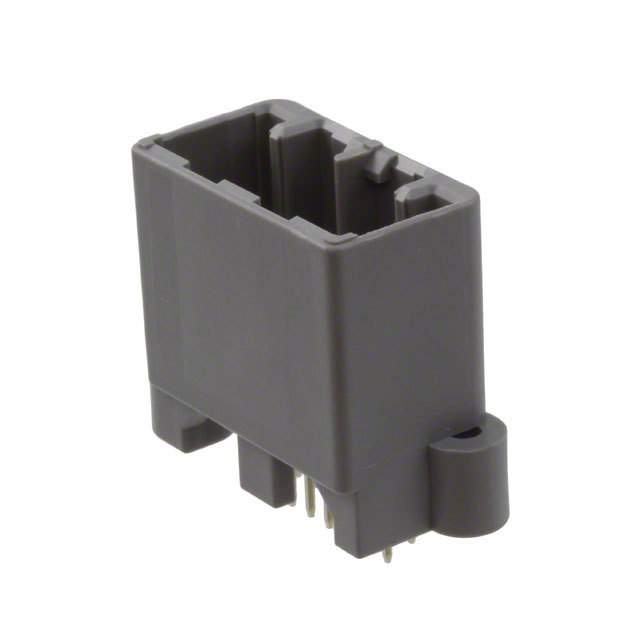

MX34016UF1
JAE Electronics, Inc.
Manufacturer : JAE Electronics
Packaging : Tube
Series : MX34
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.087" (2.20mm)
Number of Positions : 16
Number of Rows : 2
Row Spacing - Mating : 0.118" (3.00mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Length - Mating : 0.303" (7.70mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : -
Insulation Height : 0.925" (23.50mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Syndiotactic Polystyrene (SPS), Glass Filled
Features : Mounting Flange
Operating Temperature : -40°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Gray
Current Rating : 3A
Voltage Rating : -
Packaging : Tube
Series : MX34
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.087" (2.20mm)
Number of Positions : 16
Number of Rows : 2
Row Spacing - Mating : 0.118" (3.00mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Length - Mating : 0.303" (7.70mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : -
Insulation Height : 0.925" (23.50mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Syndiotactic Polystyrene (SPS), Glass Filled
Features : Mounting Flange
Operating Temperature : -40°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Gray
Current Rating : 3A
Voltage Rating : -
0
865 in stock

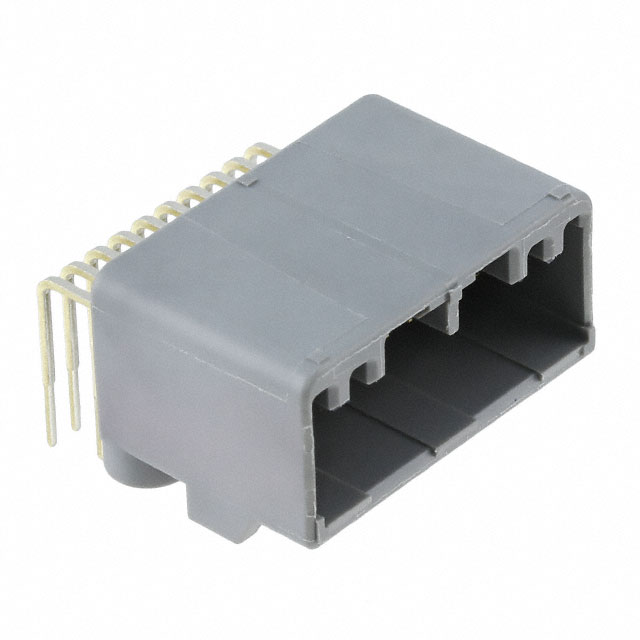

MX34020NF1
JAE Electronics, Inc.
Manufacturer : JAE Electronics
Packaging : Tube
Series : MX34
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.087" (2.20mm)
Number of Positions : 20
Number of Rows : 2
Row Spacing - Mating : 0.118" (3.00mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Locking Ramp
Contact Length - Mating : 0.303" (7.70mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : -
Insulation Height : 0.626" (15.90mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Syndiotactic Polystyrene (SPS), Glass Filled
Features : Mounting Flange
Operating Temperature : -40°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Gray
Current Rating : 3A
Voltage Rating : -
Packaging : Tube
Series : MX34
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.087" (2.20mm)
Number of Positions : 20
Number of Rows : 2
Row Spacing - Mating : 0.118" (3.00mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Locking Ramp
Contact Length - Mating : 0.303" (7.70mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : -
Insulation Height : 0.626" (15.90mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Syndiotactic Polystyrene (SPS), Glass Filled
Features : Mounting Flange
Operating Temperature : -40°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Gray
Current Rating : 3A
Voltage Rating : -
0
11307 in stock

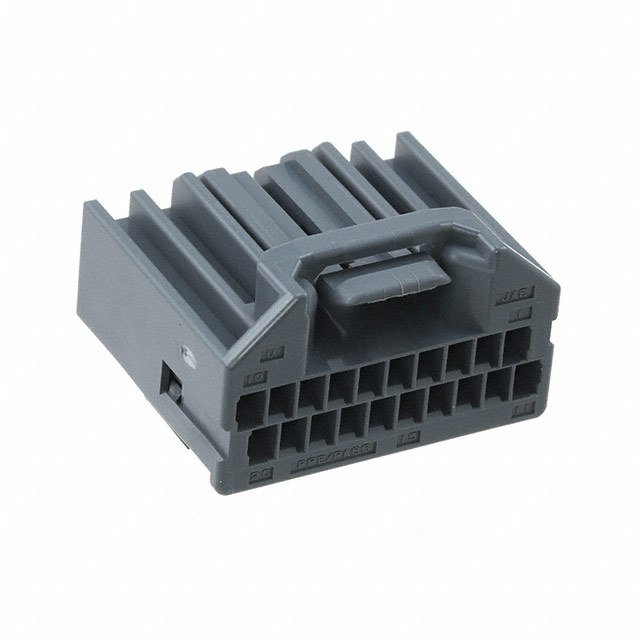

MX34020SF1
JAE Electronics, Inc.
Manufacturer : JAE Electronics
Packaging : Tray
Series : MX34
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Number of Positions : 20
Pitch : 0.087" (2.20mm)
Number of Rows : 2
Row Spacing : 0.118" (3.00mm)
Mounting Type : Free Hanging (In-Line)
Contact Termination : Crimp
Fastening Type : -
Color : Gray
Features : -
Packaging : Tray
Series : MX34
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Number of Positions : 20
Pitch : 0.087" (2.20mm)
Number of Rows : 2
Row Spacing : 0.118" (3.00mm)
Mounting Type : Free Hanging (In-Line)
Contact Termination : Crimp
Fastening Type : -
Color : Gray
Features : -
0
4738 in stock

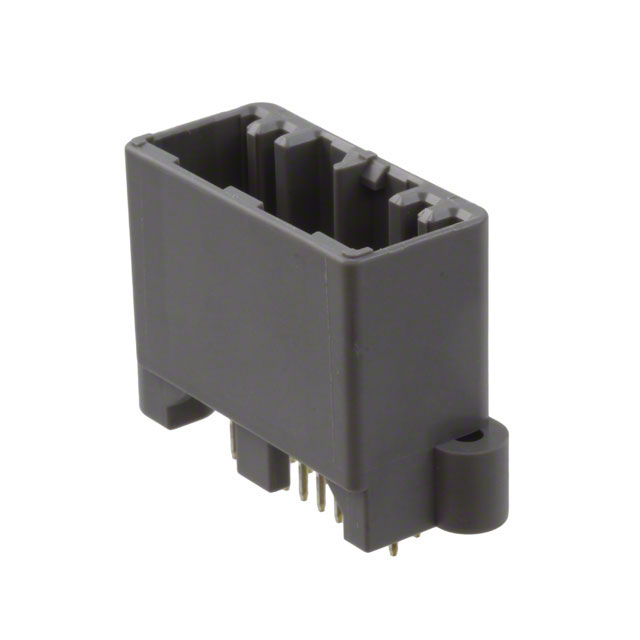

MX34020UF1
JAE Electronics, Inc.
Manufacturer : JAE Electronics
Packaging : Tube
Series : MX34
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.087" (2.20mm)
Number of Positions : 20
Number of Rows : 2
Row Spacing - Mating : 0.118" (3.00mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Length - Mating : 0.303" (7.70mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : -
Insulation Height : 0.925" (23.50mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Syndiotactic Polystyrene (SPS), Glass Filled
Features : Mounting Flange
Operating Temperature : -40°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Gray
Current Rating : 3A
Voltage Rating : -
Packaging : Tube
Series : MX34
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.087" (2.20mm)
Number of Positions : 20
Number of Rows : 2
Row Spacing - Mating : 0.118" (3.00mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Length - Mating : 0.303" (7.70mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : -
Insulation Height : 0.925" (23.50mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Syndiotactic Polystyrene (SPS), Glass Filled
Features : Mounting Flange
Operating Temperature : -40°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Gray
Current Rating : 3A
Voltage Rating : -
0
859 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
