Harwin
- Harwin is a manufacturer of high reliability, industry standard, and application-specific interconnect devices.
We command wide-ranging, global capabilities to satisfy customer needs on a local level. A network of distributors coupled with offices and manufacturing facilities in Europe, USA and Asia provides us a global reach and comprehensive understanding of the latest technologies. With more than 50 years history of successfully manufacturing electronic components Harwin has an active portfolio of over 20k highly reliable interconnects and PCB hardware items.
Part Number
Manufacturer
Description
Unit Price
In Stock

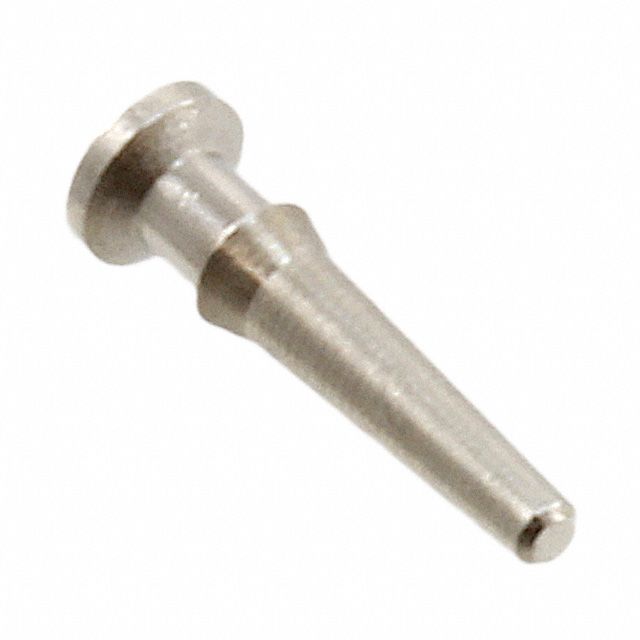

Harwin
Manufacturer : Harwin Inc.
Packaging : Bulk
Series : -
Part Status : Active
Terminal Type : Through Board
Hole Diameter : 0.072" ~ 0.076" (1.83mm ~ 1.93mm)
Insulation Diameter : -
Length - Overall : 0.375" (9.53mm)
Wire Gauge : -
Contact Material : Brass
Contact Finish : Tin
0
11402 in stock
Harwin
Manufacturer : Harwin Inc.
Series : -
Part Status : Active
Terminal Type : Double End, Pin
Number of Turrets : Single
Length - Above Board : 0.250" (6.35mm)
Length - Below Flange : 0.207" (5.26mm)
Length - Overall : 0.457" (11.61mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.094" (2.39mm)
Diameter - Turret Head : 0.050" (1.27mm)
Staking Side OD : 0.070" ~ 0.072" (1.78mm ~ 1.83mm)
Staking Side ID : -
Mounting Hole Diameter : 0.072" ~ 0.074" (1.83mm ~ 1.87mm)
Board Thickness : 0.063" (1.60mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
0
9134 in stock
Harwin
Manufacturer : Harwin Inc.
Series : -
Part Status : Obsolete
Accessory Type : O-Ring
Number of Positions : -
For Use With/Related Products : K3600 or K3700
Features : -
0
100 in stock
Harwin
Manufacturer : Harwin Inc.
Packaging : Bulk
Series : -
Part Status : Obsolete
Type : PC Test Point Jack
Mounting Type : Through Hole, Horizontal
Color : Black
Size / Dimension : 0.453" L x 0.156" W (11.51mm x 3.96mm)
Height : 0.203" (5.16mm)
Plating : Gold
Material - Insulation : Polyamide (PA66), Nylon 6/6
Material - Body : Phosphor Bronze
0
100 in stock
Harwin
Manufacturer : Harwin Inc.
Packaging : Bulk
Series : -
Part Status : Obsolete
Type : PC Test Point Jack
Mounting Type : Through Hole, Horizontal
Color : Red
Size / Dimension : 0.453" L x 0.156" W (11.51mm x 3.96mm)
Height : 0.203" (5.16mm)
Plating : Gold
Material - Insulation : Polyamide (PA66), Nylon 6/6
Material - Body : Phosphor Bronze
0
100 in stock
Harwin
Manufacturer : Harwin Inc.
Series : M20
Part Status : Active
Accessory Type : Polarizing Device (Key, Plug, Post)
Number of Positions : -
For Use With/Related Products : M20 Series
Features : -
0
11167 in stock
Harwin
Manufacturer : Harwin Inc.
Packaging : Bulk
Series : M20
Part Status : Obsolete
Number of Positions : 2
Pitch : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing : -
Length - Overall Pin : 0.437" (11.100mm)
Length - Post (Mating) : 0.118" (3.000mm)
Length - Stack Height : 0.201" (5.100mm)
Length - Tail : 0.118" (3.000mm)
Mounting Type : Through Hole
Termination : Solder
Contact Finish - Post (Mating) : Gold
Contact Finish Thickness - Post (Mating) : -
Color : Black
0
100 in stock
Harwin
Manufacturer : Harwin Inc.
Packaging : Bulk
Series : M20
Part Status : Obsolete
Number of Positions : 16
Pitch : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing : -
Length - Overall Pin : 1.614" (41.000mm)
Length - Post (Mating) : 0.118" (3.000mm)
Length - Stack Height : 1.378" (35.000mm)
Length - Tail : 0.118" (3.000mm)
Mounting Type : Through Hole
Termination : Solder
Contact Finish - Post (Mating) : Tin
Contact Finish Thickness - Post (Mating) : -
Color : Black
0
100 in stock
Harwin
Manufacturer : Harwin Inc.
Packaging : Bulk
Series : M20
Part Status : Obsolete
Number of Positions : 50
Pitch : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing : 0.100" (2.54mm)
Length - Overall Pin : 0.969" (24.600mm)
Length - Post (Mating) : 0.224" (5.700mm)
Length - Stack Height : 0.626" (15.900mm)
Length - Tail : 0.118" (3.000mm)
Mounting Type : Through Hole
Termination : Solder
Contact Finish - Post (Mating) : Gold
Contact Finish Thickness - Post (Mating) : -
Color : Black
0
100 in stock
Harwin
Manufacturer : Harwin Inc.
Packaging : Bulk
Series : M20
Part Status : Obsolete
Number of Positions : 2
Pitch : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing : -
Length - Overall Pin : 0.630" (16.000mm)
Length - Post (Mating) : 0.236" (6.000mm)
Length - Stack Height : 0.276" (7.000mm)
Length - Tail : 0.118" (3.000mm)
Mounting Type : Through Hole
Termination : Solder
Contact Finish - Post (Mating) : Tin
Contact Finish Thickness - Post (Mating) : -
Color : Black
0
100 in stock
Harwin
Manufacturer : Harwin Inc.
Packaging : Bulk
Series : M20
Part Status : Obsolete
Number of Positions : 12
Pitch : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing : 0.100" (2.54mm)
Length - Overall Pin : 1.457" (37.000mm)
Length - Post (Mating) : 0.276" (7.000mm)
Length - Stack Height : 1.063" (27.000mm)
Length - Tail : 0.118" (3.000mm)
Mounting Type : Through Hole
Termination : Solder
Contact Finish - Post (Mating) : Gold
Contact Finish Thickness - Post (Mating) : -
Color : Black
0
100 in stock
Harwin
Manufacturer : Harwin Inc.
Packaging : Bulk
Series : M20
Part Status : Obsolete
Number of Positions : 20
Pitch : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing : 0.100" (2.54mm)
Length - Overall Pin : 0.846" (21.500mm)
Length - Post (Mating) : 0.335" (8.500mm)
Length - Stack Height : 0.394" (10.000mm)
Length - Tail : 0.118" (3.000mm)
Mounting Type : Through Hole
Termination : Solder
Contact Finish - Post (Mating) : Tin
Contact Finish Thickness - Post (Mating) : -
Color : Black
0
100 in stock
