Harwin
- Harwin is a manufacturer of high reliability, industry standard, and application-specific interconnect devices.
We command wide-ranging, global capabilities to satisfy customer needs on a local level. A network of distributors coupled with offices and manufacturing facilities in Europe, USA and Asia provides us a global reach and comprehensive understanding of the latest technologies. With more than 50 years history of successfully manufacturing electronic components Harwin has an active portfolio of over 20k highly reliable interconnects and PCB hardware items.
Part Number
Manufacturer
Description
Unit Price
In Stock

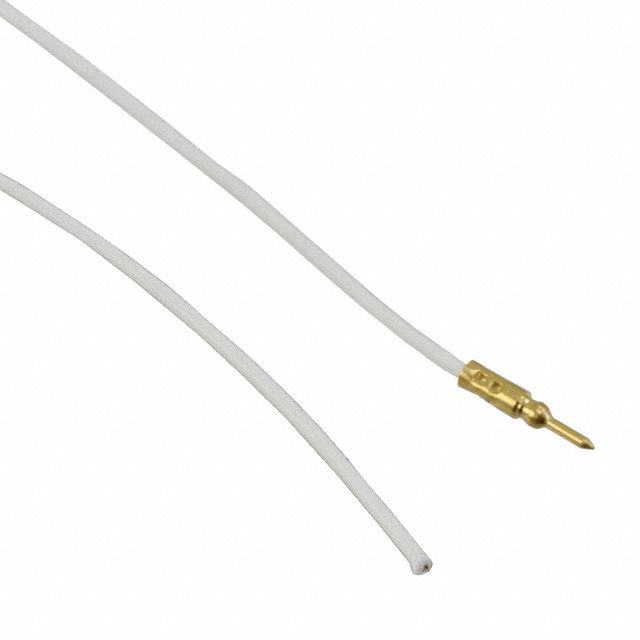

G125-MW40450L94
Harwin
Manufacturer : Harwin Inc.
Series : Gecko
Part Status : Active
Contact End : Pin to Cable (Round)
Length : 17.7" (450.0mm)
Wire Gauge : 32 AWG
Contact Finish : Gold
Color : White
Contact Finish Thickness : 8.00µin (0.203µm)
Series : Gecko
Part Status : Active
Contact End : Pin to Cable (Round)
Length : 17.7" (450.0mm)
Wire Gauge : 32 AWG
Contact Finish : Gold
Color : White
Contact Finish Thickness : 8.00µin (0.203µm)
0
100 in stock
H2039-01
Harwin
Manufacturer : Harwin Inc.
Series : -
Part Status : Active
Terminal Type : Single End, Fork, Hollow
Number of Turrets : Single
Length - Above Board : 0.500" (12.70mm)
Length - Below Flange : 0.156" ~ 0.161" (3.96mm ~ 4.09mm)
Length - Overall : 0.656" (16.66mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.219" (5.56mm)
Diameter - Turret Head : 0.151" ~ 0.156" (3.83mm ~ 3.96mm)
Staking Side OD : 0.122" ~ 0.125" (3.10mm ~ 3.18mm)
Staking Side ID : 0.086" ~ 0.089" (2.18mm ~ 2.26mm)
Mounting Hole Diameter : 0.126" ~ 0.129" (3.19mm ~ 3.28mm)
Board Thickness : 0.126" (3.20mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
Series : -
Part Status : Active
Terminal Type : Single End, Fork, Hollow
Number of Turrets : Single
Length - Above Board : 0.500" (12.70mm)
Length - Below Flange : 0.156" ~ 0.161" (3.96mm ~ 4.09mm)
Length - Overall : 0.656" (16.66mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.219" (5.56mm)
Diameter - Turret Head : 0.151" ~ 0.156" (3.83mm ~ 3.96mm)
Staking Side OD : 0.122" ~ 0.125" (3.10mm ~ 3.18mm)
Staking Side ID : 0.086" ~ 0.089" (2.18mm ~ 2.26mm)
Mounting Hole Diameter : 0.126" ~ 0.129" (3.19mm ~ 3.28mm)
Board Thickness : 0.126" (3.20mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
0
794 in stock
H2051-01
Harwin
Manufacturer : Harwin Inc.
Series : -
Part Status : Active
Terminal Type : Single End, Fork, Hollow
Number of Turrets : Single
Length - Above Board : 0.188" (4.78mm)
Length - Below Flange : 0.089" ~ 0.094" (2.26mm ~ 2.39mm)
Length - Overall : -
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.125" (3.18mm)
Diameter - Turret Head : -
Staking Side OD : 0.057" ~ 0.063" (1.45mm ~ 1.59mm)
Staking Side ID : 0.040" ~ 0.043" (1.02mm ~ 1.09mm)
Mounting Hole Diameter : 0.063" ~ 0.066" (1.60mm ~ 1.68mm)
Board Thickness : 0.063" (1.60mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
Series : -
Part Status : Active
Terminal Type : Single End, Fork, Hollow
Number of Turrets : Single
Length - Above Board : 0.188" (4.78mm)
Length - Below Flange : 0.089" ~ 0.094" (2.26mm ~ 2.39mm)
Length - Overall : -
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.125" (3.18mm)
Diameter - Turret Head : -
Staking Side OD : 0.057" ~ 0.063" (1.45mm ~ 1.59mm)
Staking Side ID : 0.040" ~ 0.043" (1.02mm ~ 1.09mm)
Mounting Hole Diameter : 0.063" ~ 0.066" (1.60mm ~ 1.68mm)
Board Thickness : 0.063" (1.60mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
0
1395 in stock
H2055-01
Harwin
Manufacturer : Harwin Inc.
Series : -
Part Status : Active
Terminal Type : Single End, Fork, Hollow
Number of Turrets : Single
Length - Above Board : 0.250" (6.35mm)
Length - Below Flange : 0.125" ~ 0.130" (3.18mm ~ 3.30mm)
Length - Overall : 0.375" (9.53mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.125" (3.18mm)
Diameter - Turret Head : -
Staking Side OD : 0.091" ~ 0.094" (2.31mm ~ 2.39mm)
Staking Side ID : 0.067" ~ 0.070" (1.70mm ~ 1.78mm)
Mounting Hole Diameter : 0.094" ~ 0.097" (2.39mm ~ 2.46mm)
Board Thickness : 0.094" (2.39mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
Series : -
Part Status : Active
Terminal Type : Single End, Fork, Hollow
Number of Turrets : Single
Length - Above Board : 0.250" (6.35mm)
Length - Below Flange : 0.125" ~ 0.130" (3.18mm ~ 3.30mm)
Length - Overall : 0.375" (9.53mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.125" (3.18mm)
Diameter - Turret Head : -
Staking Side OD : 0.091" ~ 0.094" (2.31mm ~ 2.39mm)
Staking Side ID : 0.067" ~ 0.070" (1.70mm ~ 1.78mm)
Mounting Hole Diameter : 0.094" ~ 0.097" (2.39mm ~ 2.46mm)
Board Thickness : 0.094" (2.39mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
0
1840 in stock
H2061-01
Harwin
Manufacturer : Harwin Inc.
Series : -
Part Status : Active
Terminal Type : Single End
Number of Turrets : Single
Length - Above Board : 0.125" (3.18mm)
Length - Below Flange : 0.094" ~ 0.099" (2.39mm ~ 2.51mm)
Length - Overall : 0.219" (5.56mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.156" ~ 0.161" (3.96mm ~ 4.09mm)
Diameter - Turret Head : 0.089" ~ 0.094" (2.26mm ~ 2.39mm)
Staking Side OD : 0.059" ~ 0.063" (1.50mm ~ 1.59mm)
Staking Side ID : -
Mounting Hole Diameter : 0.063" ~ 0.066" (1.60mm ~ 1.68mm)
Board Thickness : 0.063" (1.60mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
Series : -
Part Status : Active
Terminal Type : Single End
Number of Turrets : Single
Length - Above Board : 0.125" (3.18mm)
Length - Below Flange : 0.094" ~ 0.099" (2.39mm ~ 2.51mm)
Length - Overall : 0.219" (5.56mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.156" ~ 0.161" (3.96mm ~ 4.09mm)
Diameter - Turret Head : 0.089" ~ 0.094" (2.26mm ~ 2.39mm)
Staking Side OD : 0.059" ~ 0.063" (1.50mm ~ 1.59mm)
Staking Side ID : -
Mounting Hole Diameter : 0.063" ~ 0.066" (1.60mm ~ 1.68mm)
Board Thickness : 0.063" (1.60mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
0
2423 in stock
H2071Z01
Harwin
Manufacturer : Harwin Inc.
Series : -
Part Status : Active
Terminal Type : Single End, Fork
Number of Turrets : Triple
Length - Above Board : 0.359" (9.12mm)
Length - Below Flange : 0.125" (3.18mm)
Length - Overall : 0.484" (12.29mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.187" (4.75mm)
Diameter - Turret Head : 0.125" (3.18mm)
Staking Side OD : 0.100" ~ 0.105" (2.54mm ~ 2.67mm)
Staking Side ID : 0.067" ~ 0.070" (1.70mm ~ 1.78mm)
Mounting Hole Diameter : 0.105" ~ 0.109" (2.67mm ~ 2.77mm)
Board Thickness : 0.094" (2.39mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
Series : -
Part Status : Active
Terminal Type : Single End, Fork
Number of Turrets : Triple
Length - Above Board : 0.359" (9.12mm)
Length - Below Flange : 0.125" (3.18mm)
Length - Overall : 0.484" (12.29mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.187" (4.75mm)
Diameter - Turret Head : 0.125" (3.18mm)
Staking Side OD : 0.100" ~ 0.105" (2.54mm ~ 2.67mm)
Staking Side ID : 0.067" ~ 0.070" (1.70mm ~ 1.78mm)
Mounting Hole Diameter : 0.105" ~ 0.109" (2.67mm ~ 2.77mm)
Board Thickness : 0.094" (2.39mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
0
5101 in stock
H2071ZS1
Harwin
Manufacturer : Harwin Inc.
Series : -
Part Status : Active
Terminal Type : Single End, Fork
Number of Turrets : Triple
Length - Above Board : 0.359" (9.12mm)
Length - Below Flange : 0.094" (2.39mm)
Length - Overall : 0.453" (11.51mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.187" (4.75mm)
Diameter - Turret Head : 0.125" (3.18mm)
Staking Side OD : 0.100" ~ 0.105" (2.54mm ~ 2.67mm)
Staking Side ID : 0.067" ~ 0.070" (1.70mm ~ 1.78mm)
Mounting Hole Diameter : 0.105" ~ 0.109" (2.67mm ~ 2.77mm)
Board Thickness : 0.063" (1.60mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
Series : -
Part Status : Active
Terminal Type : Single End, Fork
Number of Turrets : Triple
Length - Above Board : 0.359" (9.12mm)
Length - Below Flange : 0.094" (2.39mm)
Length - Overall : 0.453" (11.51mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.187" (4.75mm)
Diameter - Turret Head : 0.125" (3.18mm)
Staking Side OD : 0.100" ~ 0.105" (2.54mm ~ 2.67mm)
Staking Side ID : 0.067" ~ 0.070" (1.70mm ~ 1.78mm)
Mounting Hole Diameter : 0.105" ~ 0.109" (2.67mm ~ 2.77mm)
Board Thickness : 0.063" (1.60mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
0
2560 in stock
H2072-01
Harwin
Manufacturer : Harwin Inc.
Series : -
Part Status : Active
Terminal Type : Single End, Fork
Number of Turrets : Triple
Length - Above Board : 0.250" (6.35mm)
Length - Below Flange : 0.094" ~ 0.099" (2.39mm ~ 2.51mm)
Length - Overall : 0.344" (8.74mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.156" (3.96mm)
Diameter - Turret Head : 0.128" (3.25mm)
Staking Side OD : 0.080" ~ 0.085" (2.03mm ~ 2.16mm)
Staking Side ID : 0.055" ~ 0.060" (1.40mm ~ 1.53mm)
Mounting Hole Diameter : 0.085" ~ 0.089" (2.17mm ~ 2.26mm)
Board Thickness : 0.063" (1.60mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
Series : -
Part Status : Active
Terminal Type : Single End, Fork
Number of Turrets : Triple
Length - Above Board : 0.250" (6.35mm)
Length - Below Flange : 0.094" ~ 0.099" (2.39mm ~ 2.51mm)
Length - Overall : 0.344" (8.74mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.156" (3.96mm)
Diameter - Turret Head : 0.128" (3.25mm)
Staking Side OD : 0.080" ~ 0.085" (2.03mm ~ 2.16mm)
Staking Side ID : 0.055" ~ 0.060" (1.40mm ~ 1.53mm)
Mounting Hole Diameter : 0.085" ~ 0.089" (2.17mm ~ 2.26mm)
Board Thickness : 0.063" (1.60mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
0
1783 in stock
H2072Z01
Harwin
Manufacturer : Harwin Inc.
Series : -
Part Status : Active
Terminal Type : Single End, Fork
Number of Turrets : Triple
Length - Above Board : 0.257" (6.52mm)
Length - Below Flange : 0.094" (2.39mm)
Length - Overall : 0.351" (8.91mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.156" (3.96mm)
Diameter - Turret Head : 0.100" (2.54mm)
Staking Side OD : 0.074" ~ 0.079" (1.87mm ~ 2.01mm)
Staking Side ID : 0.046" ~ 0.049" (1.17mm ~ 1.24mm)
Mounting Hole Diameter : 0.079" ~ 0.083" (2.01mm ~ 2.11mm)
Board Thickness : 0.063" (1.60mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
Series : -
Part Status : Active
Terminal Type : Single End, Fork
Number of Turrets : Triple
Length - Above Board : 0.257" (6.52mm)
Length - Below Flange : 0.094" (2.39mm)
Length - Overall : 0.351" (8.91mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.156" (3.96mm)
Diameter - Turret Head : 0.100" (2.54mm)
Staking Side OD : 0.074" ~ 0.079" (1.87mm ~ 2.01mm)
Staking Side ID : 0.046" ~ 0.049" (1.17mm ~ 1.24mm)
Mounting Hole Diameter : 0.079" ~ 0.083" (2.01mm ~ 2.11mm)
Board Thickness : 0.063" (1.60mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
0
4440 in stock
H2072ZL1
Harwin
Manufacturer : Harwin Inc.
Series : -
Part Status : Active
Terminal Type : Single End, Fork
Number of Turrets : Triple
Length - Above Board : 0.257" (6.52mm)
Length - Below Flange : 0.125" (3.18mm)
Length - Overall : 0.382" (9.70mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.156" (3.96mm)
Diameter - Turret Head : 0.100" (2.54mm)
Staking Side OD : 0.074" ~ 0.079" (1.87mm ~ 2.01mm)
Staking Side ID : 0.046" ~ 0.048" (1.17mm ~ 1.22mm)
Mounting Hole Diameter : 0.079" ~ 0.083" (2.01mm ~ 2.11mm)
Board Thickness : 0.094" (2.39mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
Series : -
Part Status : Active
Terminal Type : Single End, Fork
Number of Turrets : Triple
Length - Above Board : 0.257" (6.52mm)
Length - Below Flange : 0.125" (3.18mm)
Length - Overall : 0.382" (9.70mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.156" (3.96mm)
Diameter - Turret Head : 0.100" (2.54mm)
Staking Side OD : 0.074" ~ 0.079" (1.87mm ~ 2.01mm)
Staking Side ID : 0.046" ~ 0.048" (1.17mm ~ 1.22mm)
Mounting Hole Diameter : 0.079" ~ 0.083" (2.01mm ~ 2.11mm)
Board Thickness : 0.094" (2.39mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
0
2892 in stock
H2073Z01
Harwin
Manufacturer : Harwin Inc.
Series : -
Part Status : Active
Terminal Type : Single End, Fork
Number of Turrets : Triple
Length - Above Board : 0.359" (9.12mm)
Length - Below Flange : 0.156" (3.96mm)
Length - Overall : 0.515" (13.08mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.187" (4.75mm)
Diameter - Turret Head : 0.125" (3.18mm)
Staking Side OD : 0.100" ~ 0.105" (2.54mm ~ 2.67mm)
Staking Side ID : 0.067" ~ 0.070" (1.70mm ~ 1.78mm)
Mounting Hole Diameter : 0.105" ~ 0.109" (2.67mm ~ 2.77mm)
Board Thickness : 0.126" (3.20mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
Series : -
Part Status : Active
Terminal Type : Single End, Fork
Number of Turrets : Triple
Length - Above Board : 0.359" (9.12mm)
Length - Below Flange : 0.156" (3.96mm)
Length - Overall : 0.515" (13.08mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.187" (4.75mm)
Diameter - Turret Head : 0.125" (3.18mm)
Staking Side OD : 0.100" ~ 0.105" (2.54mm ~ 2.67mm)
Staking Side ID : 0.067" ~ 0.070" (1.70mm ~ 1.78mm)
Mounting Hole Diameter : 0.105" ~ 0.109" (2.67mm ~ 2.77mm)
Board Thickness : 0.126" (3.20mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
0
819 in stock
H2081-01
Harwin
Manufacturer : Harwin Inc.
Packaging : Bulk
Series : -
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : -
Pin Size - Below Flange : -
Length - Above Flange : -
Length - Below Flange : -
Length - Overall : 0.375" (9.53mm)
Flange Diameter : -
Mounting Hole Diameter : 0.061" ~ 0.063" (1.55mm ~ 1.60mm)
Mounting Type : Through Hole
Termination : Staking Flare
Insulation : Non-Insulated
Board Thickness : 0.126" (3.20mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Packaging : Bulk
Series : -
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : -
Pin Size - Below Flange : -
Length - Above Flange : -
Length - Below Flange : -
Length - Overall : 0.375" (9.53mm)
Flange Diameter : -
Mounting Hole Diameter : 0.061" ~ 0.063" (1.55mm ~ 1.60mm)
Mounting Type : Through Hole
Termination : Staking Flare
Insulation : Non-Insulated
Board Thickness : 0.126" (3.20mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
0
4998 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
