Harwin
- Harwin is a manufacturer of high reliability, industry standard, and application-specific interconnect devices.
We command wide-ranging, global capabilities to satisfy customer needs on a local level. A network of distributors coupled with offices and manufacturing facilities in Europe, USA and Asia provides us a global reach and comprehensive understanding of the latest technologies. With more than 50 years history of successfully manufacturing electronic components Harwin has an active portfolio of over 20k highly reliable interconnects and PCB hardware items.
Part Number
Manufacturer
Description
Unit Price
In Stock

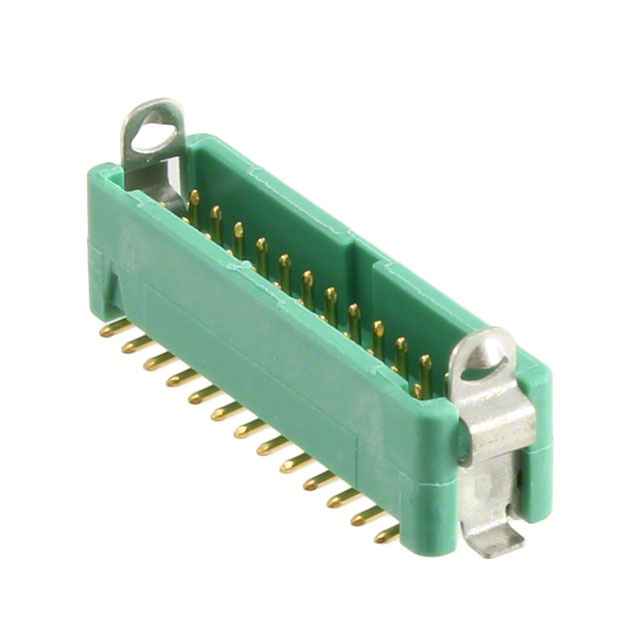

G125-MS12605L3P
Harwin
Manufacturer : Harwin Inc.
Packaging : Strip
Series : Gecko
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.049" (1.25mm)
Number of Positions : 26
Number of Rows : 2
Row Spacing - Mating : 0.049" (1.25mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Latch Lock
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.193" (4.90mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features : Pick and Place, Solder Retention
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Green
Current Rating : 2A per Contact
Voltage Rating : -
Packaging : Strip
Series : Gecko
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.049" (1.25mm)
Number of Positions : 26
Number of Rows : 2
Row Spacing - Mating : 0.049" (1.25mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Latch Lock
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.193" (4.90mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features : Pick and Place, Solder Retention
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Green
Current Rating : 2A per Contact
Voltage Rating : -
0
435 in stock

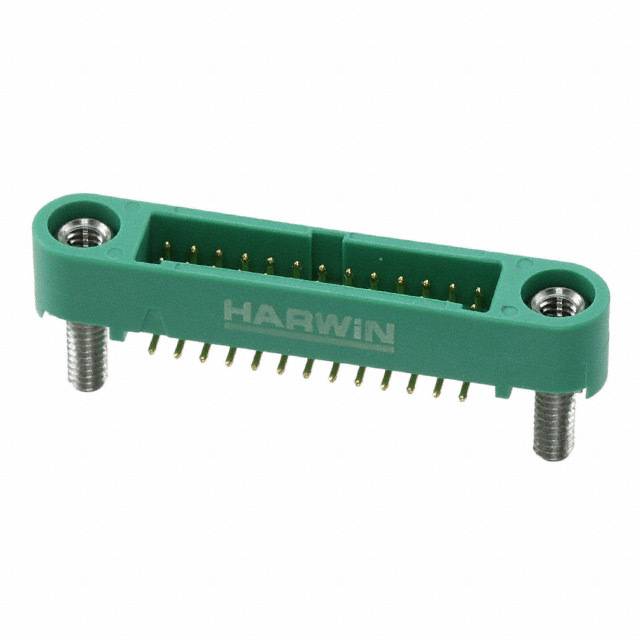

G125-MS12605M2P
Harwin
Manufacturer : Harwin Inc.
Packaging : Bulk
Series : Gecko SL
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.049" (1.25mm)
Number of Positions : 26
Number of Rows : 2
Row Spacing - Mating : 0.049" (1.25mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.193" (4.90mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features : Mating Flange, Mounting Flange, Pick and Place
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Green
Current Rating : 2A per Contact
Voltage Rating : 450V
Packaging : Bulk
Series : Gecko SL
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.049" (1.25mm)
Number of Positions : 26
Number of Rows : 2
Row Spacing - Mating : 0.049" (1.25mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.193" (4.90mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features : Mating Flange, Mounting Flange, Pick and Place
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Green
Current Rating : 2A per Contact
Voltage Rating : 450V
0
43 in stock

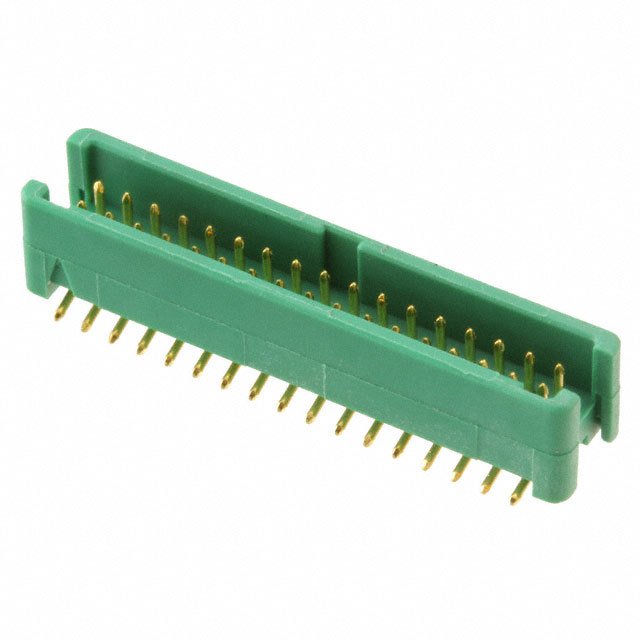

G125-MS13405L0P
Harwin
Manufacturer : Harwin Inc.
Packaging : Bulk
Alternate Packaging
Series : Gecko
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.049" (1.25mm)
Number of Positions : 34
Number of Rows : 2
Row Spacing - Mating : 0.049" (1.25mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.193" (4.90mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features : Pick and Place, Solder Retention
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Green
Current Rating : 2A per Contact
Voltage Rating : -
Packaging : Bulk
Alternate Packaging
Series : Gecko
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.049" (1.25mm)
Number of Positions : 34
Number of Rows : 2
Row Spacing - Mating : 0.049" (1.25mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.193" (4.90mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features : Pick and Place, Solder Retention
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Green
Current Rating : 2A per Contact
Voltage Rating : -
0
37 in stock

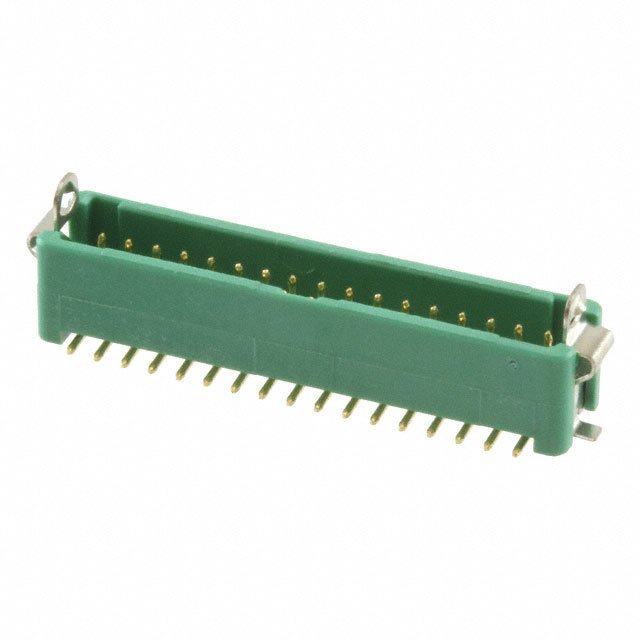

G125-MS13405L3P
Harwin
Manufacturer : Harwin Inc.
Packaging : Strip
Alternate Packaging
Series : Gecko
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.049" (1.25mm)
Number of Positions : 34
Number of Rows : 2
Row Spacing - Mating : 0.049" (1.25mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Latch Lock
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.193" (4.90mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features : Pick and Place, Solder Retention
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Green
Current Rating : 2A per Contact
Voltage Rating : -
Packaging : Strip
Alternate Packaging
Series : Gecko
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.049" (1.25mm)
Number of Positions : 34
Number of Rows : 2
Row Spacing - Mating : 0.049" (1.25mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Latch Lock
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.193" (4.90mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features : Pick and Place, Solder Retention
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Green
Current Rating : 2A per Contact
Voltage Rating : -
0
153 in stock

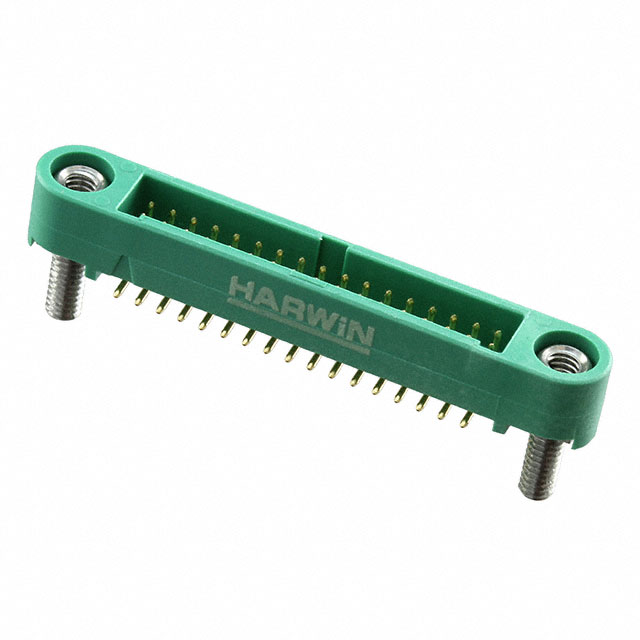

G125-MS13405M2P
Harwin
Manufacturer : Harwin Inc.
Packaging : Bulk
Series : Gecko SL
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.049" (1.25mm)
Number of Positions : 34
Number of Rows : 2
Row Spacing - Mating : 0.049" (1.25mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.193" (4.90mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features : Mating Flange, Mounting Flange, Pick and Place
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Green
Current Rating : 2A per Contact
Voltage Rating : 450V
Packaging : Bulk
Series : Gecko SL
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.049" (1.25mm)
Number of Positions : 34
Number of Rows : 2
Row Spacing - Mating : 0.049" (1.25mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.193" (4.90mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features : Mating Flange, Mounting Flange, Pick and Place
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Green
Current Rating : 2A per Contact
Voltage Rating : 450V
0
8 in stock

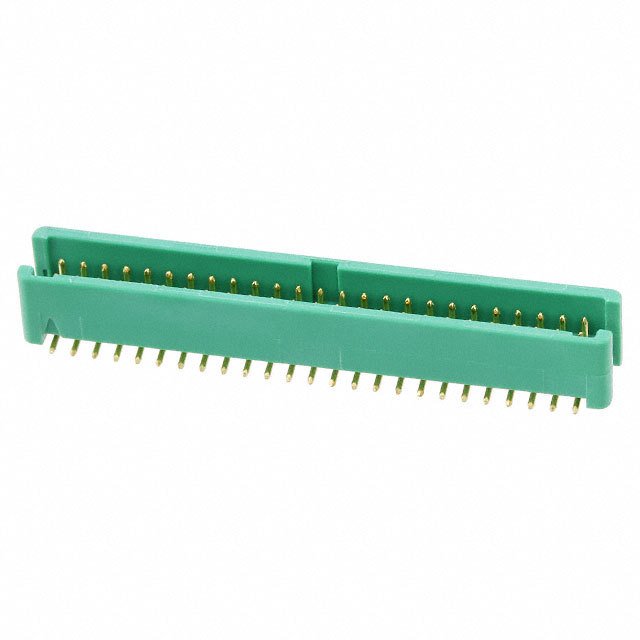

G125-MS15005L0P
Harwin
Manufacturer : Harwin Inc.
Packaging : Bulk
Alternate Packaging
Series : Gecko
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.049" (1.25mm)
Number of Positions : 50
Number of Rows : 2
Row Spacing - Mating : 0.049" (1.25mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.193" (4.90mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features : Pick and Place, Solder Retention
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Green
Current Rating : 2A per Contact
Voltage Rating : -
Packaging : Bulk
Alternate Packaging
Series : Gecko
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.049" (1.25mm)
Number of Positions : 50
Number of Rows : 2
Row Spacing - Mating : 0.049" (1.25mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.193" (4.90mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features : Pick and Place, Solder Retention
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Green
Current Rating : 2A per Contact
Voltage Rating : -
0
717 in stock
G125-MS15005L3P
Harwin
Manufacturer : Harwin Inc.
Packaging : Bulk
Alternate Packaging
Series : Gecko
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.049" (1.25mm)
Number of Positions : 50
Number of Rows : 2
Row Spacing - Mating : 0.049" (1.25mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Latch Lock
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.193" (4.90mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features : Pick and Place, Solder Retention
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Green
Current Rating : 2A per Contact
Voltage Rating : -
Packaging : Bulk
Alternate Packaging
Series : Gecko
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.049" (1.25mm)
Number of Positions : 50
Number of Rows : 2
Row Spacing - Mating : 0.049" (1.25mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Latch Lock
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.193" (4.90mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features : Pick and Place, Solder Retention
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Green
Current Rating : 2A per Contact
Voltage Rating : -
0
59 in stock

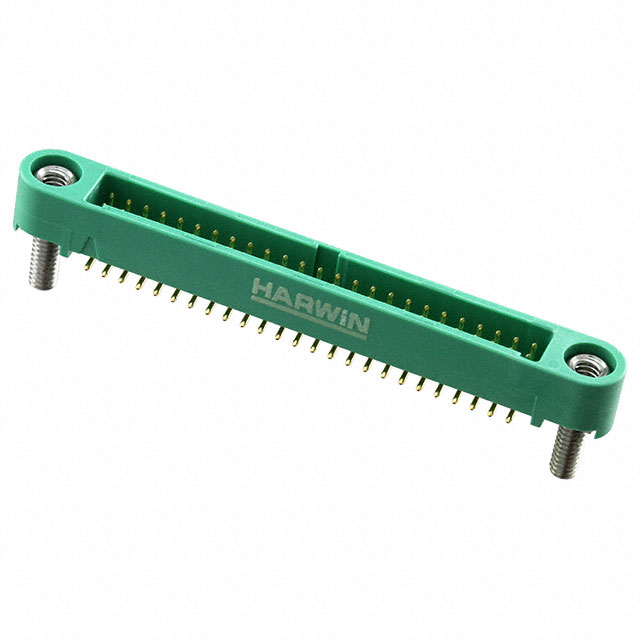

G125-MS15005M2P
Harwin
Manufacturer : Harwin Inc.
Packaging : Bulk
Series : Gecko SL
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.049" (1.25mm)
Number of Positions : 50
Number of Rows : 2
Row Spacing - Mating : 0.049" (1.25mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.193" (4.90mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features : Mating Flange, Mounting Flange, Pick and Place
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Green
Current Rating : 2A per Contact
Voltage Rating : 450V
Packaging : Bulk
Series : Gecko SL
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.049" (1.25mm)
Number of Positions : 50
Number of Rows : 2
Row Spacing - Mating : 0.049" (1.25mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.193" (4.90mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features : Mating Flange, Mounting Flange, Pick and Place
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Green
Current Rating : 2A per Contact
Voltage Rating : 450V
0
63 in stock

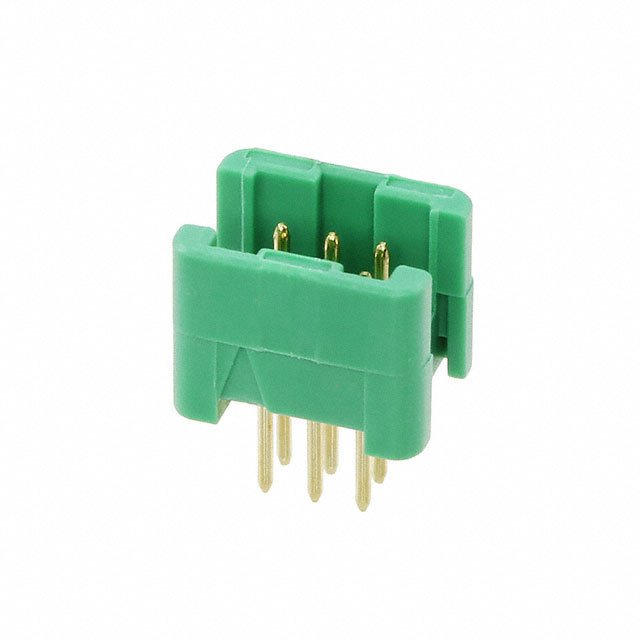

G125-MV10605L0P
Harwin
Manufacturer : Harwin Inc.
Packaging : Strip
Alternate Packaging
Series : Gecko
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.049" (1.25mm)
Number of Positions : 6
Number of Rows : 2
Row Spacing - Mating : 0.049" (1.25mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.193" (4.90mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features : Board Lock, Pick and Place
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Green
Current Rating : 2A per Contact
Voltage Rating : -
Packaging : Strip
Alternate Packaging
Series : Gecko
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.049" (1.25mm)
Number of Positions : 6
Number of Rows : 2
Row Spacing - Mating : 0.049" (1.25mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.193" (4.90mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features : Board Lock, Pick and Place
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Green
Current Rating : 2A per Contact
Voltage Rating : -
0
168 in stock

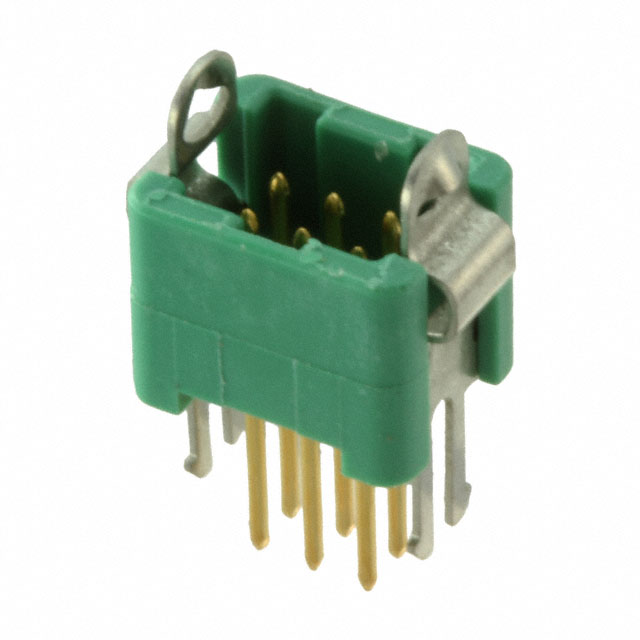

G125-MV10605L1P
Harwin
Manufacturer : Harwin Inc.
Packaging : Strip
Alternate Packaging
Series : Gecko
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.049" (1.25mm)
Number of Positions : 6
Number of Rows : 2
Row Spacing - Mating : 0.049" (1.25mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Lock
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.193" (4.90mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features : Board Lock, Pick and Place
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Green
Current Rating : 2A per Contact
Voltage Rating : -
Packaging : Strip
Alternate Packaging
Series : Gecko
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.049" (1.25mm)
Number of Positions : 6
Number of Rows : 2
Row Spacing - Mating : 0.049" (1.25mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Lock
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.193" (4.90mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features : Board Lock, Pick and Place
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Green
Current Rating : 2A per Contact
Voltage Rating : -
0
1693 in stock
G125-MV10605M2P
Harwin
Manufacturer : Harwin Inc.
Packaging : Bulk
Series : Gecko SL
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.049" (1.25mm)
Number of Positions : 6
Number of Rows : 2
Row Spacing - Mating : 0.049" (1.25mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.193" (4.90mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features : Mating Flange, Mounting Flange, Pick and Place
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Green
Current Rating : 2A
Voltage Rating : -
Packaging : Bulk
Series : Gecko SL
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.049" (1.25mm)
Number of Positions : 6
Number of Rows : 2
Row Spacing - Mating : 0.049" (1.25mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.193" (4.90mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features : Mating Flange, Mounting Flange, Pick and Place
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Green
Current Rating : 2A
Voltage Rating : -
0
100 in stock

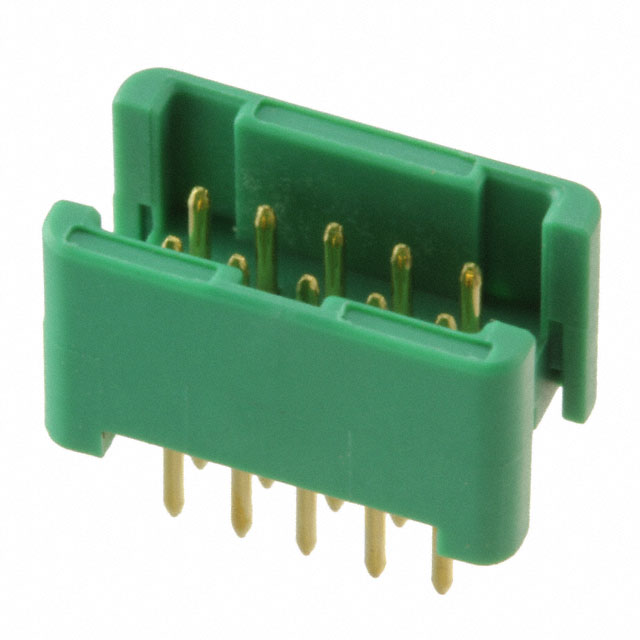

G125-MV11005L0P
Harwin
Manufacturer : Harwin Inc.
Packaging : Bulk
Alternate Packaging
Series : Gecko
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.049" (1.25mm)
Number of Positions : 10
Number of Rows : 2
Row Spacing - Mating : 0.049" (1.25mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.193" (4.90mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features : Board Lock, Pick and Place
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Green
Current Rating : 2A per Contact
Voltage Rating : -
Packaging : Bulk
Alternate Packaging
Series : Gecko
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.049" (1.25mm)
Number of Positions : 10
Number of Rows : 2
Row Spacing - Mating : 0.049" (1.25mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.193" (4.90mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features : Board Lock, Pick and Place
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Green
Current Rating : 2A per Contact
Voltage Rating : -
0
1 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
