Harwin

- Harwin is a manufacturer of high reliability, industry standard, and application-specific interconnect devices.

We command wide-ranging, global capabilities to satisfy customer needs on a local level. A network of distributors coupled with offices and manufacturing facilities in Europe, USA and Asia provides us a global reach and comprehensive understanding of the latest technologies. With more than 50 years history of successfully manufacturing electronic components Harwin has an active portfolio of over 20k highly reliable interconnects and PCB hardware items.


Part Number

Manufacturer

Description

Unit Price

In Stock

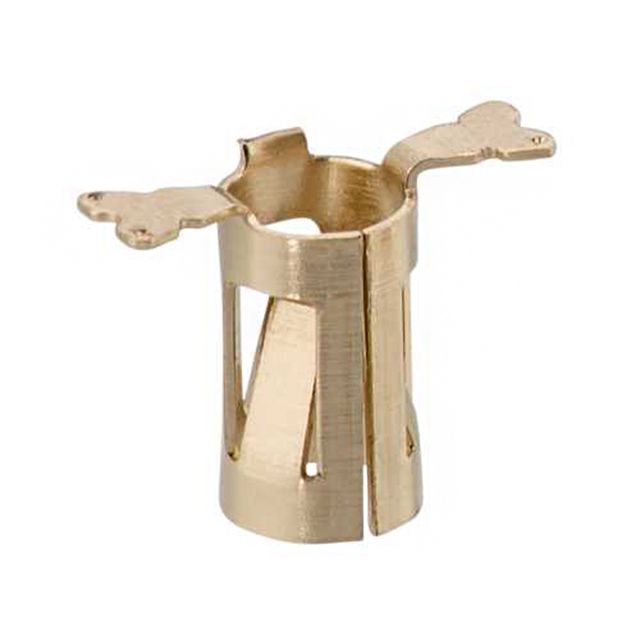

S9141-45R

Harwin

Manufacturer : Harwin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SYCAMORE
Part Status : Active
Tail Type : No Tail
Termination : Surface Mount - Bottom Entry
Length - Overall : 0.160" (4.06mm)
Accepts Pin Diameter : 0.031" ~ 0.051" (0.80mm ~ 1.30mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.079" (2.00mm)
Mounting Hole Diameter : 0.102" (2.59mm)
Flange Diameter : -
Tail Diameter : -
Socket Depth : 0.101" (2.56mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 3.90µin (0.099µm)

7151 in stock

T1559-46

Harwin

Manufacturer : Harwin Inc.
Series : -
Part Status : Obsolete
Accessory Type : Track Pins
For Use With/Related Products : Z1002-00

100 in stock

T1563-46

Harwin

Manufacturer : Harwin Inc.
Series : -
Part Status : Obsolete
Accessory Type : Track Pins
For Use With/Related Products : Z1002-00

100 in stock

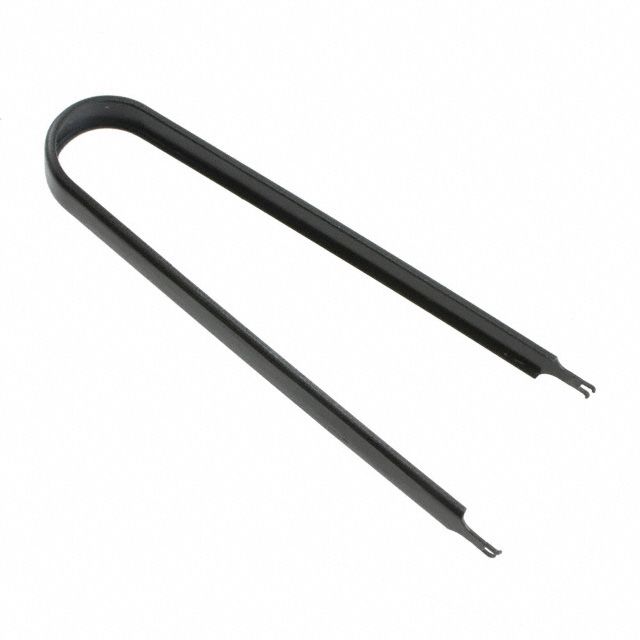

T5746

Harwin

Manufacturer : Harwin Inc.
Series : Datamate L-Tek
Part Status : Obsolete
Tool Type : Extraction Tool
For Use With/Related Products : Datamate L-Tek

25 in stock

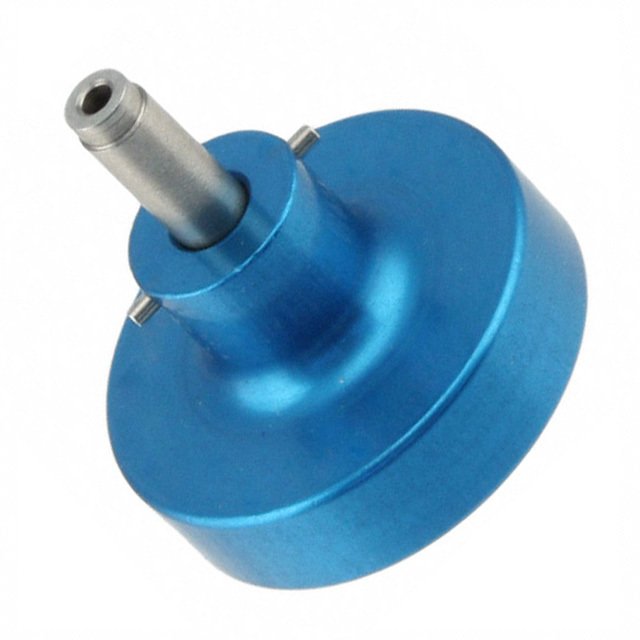

T5747

Harwin

Manufacturer : Harwin Inc.
Series : Datamate
Part Status : Active
Tool Type : Positioner
For Use With/Related Products : Rectangular Contacts, 22-28 AWG
Specifications : -
Compatible Tools : M22520/2-01
Cable Group : -

37 in stock

TD2195

Harwin

Manufacturer : Harwin Inc.
Series : *
Part Status : Obsolete
Tool Type : -
For Use With/Related Products : -

100 in stock

TD2294

Harwin

Manufacturer : Harwin Inc.
Series : *
Part Status : Obsolete
Tool Type : -
For Use With/Related Products : -

100 in stock

TD2295

Harwin

Manufacturer : Harwin Inc.
Series : *
Part Status : Obsolete
Tool Type : -
For Use With/Related Products : -

100 in stock

W2222-00

Harwin

Manufacturer : Harwin Inc.
Series : -
Part Status : Last Time Buy
Terminal Type : Double End, Pin
Number of Turrets : Single
Length - Above Board : 0.256" (6.50mm)
Length - Below Flange : 0.303" (7.70mm)
Length - Overall : 0.560" (14.22mm)
Mounting Type : Through Hole
Termination : Press-Fit
Flange Diameter : 0.187" (4.75mm)
Diameter - Turret Head : -
Staking Side OD : -
Staking Side ID : -
Mounting Hole Diameter : 0.156" (3.96mm)
Board Thickness : 0.028" ~ 0.063" (0.72mm ~ 1.60mm)
Contact Material : Brass
Contact Finish : Silver
Contact Finish Thickness : 137.8µin (3.50µm)
Insulation : Insulated

3162 in stock

W2331-00

Harwin

Manufacturer : Harwin Inc.
Series : -
Part Status : Last Time Buy
Terminal Type : Single End
Number of Turrets : Double
Length - Above Board : 0.744" ~ 0.764" (18.90mm ~ 19.40mm)
Length - Below Flange : -
Length - Overall : 0.744" ~ 0.764" (18.90mm ~ 19.41mm)
Mounting Type : Panel Mount
Termination : Threaded
Flange Diameter : -
Diameter - Turret Head : 0.136" ~ 0.140" (3.45mm ~ 3.56mm)
Staking Side OD : -
Staking Side ID : -
Mounting Hole Diameter : -
Board Thickness : -
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : 300.0µin (7.62µm)
Insulation : Insulated

866 in stock

W2332-00

Harwin

Manufacturer : Harwin Inc.
Series : -
Part Status : Last Time Buy
Terminal Type : Single End
Number of Turrets : Double
Length - Above Board : 0.744" ~ 0.764" (18.90mm ~ 19.40mm)
Length - Below Flange : 0.244" ~ 0.252" (6.20mm ~ 6.40mm)
Length - Overall : 0.988" ~ 1.015" (25.10mm ~ 25.78mm)
Mounting Type : Panel Mount
Termination : Threaded
Flange Diameter : -
Diameter - Turret Head : 0.136" ~ 0.140" (3.45mm ~ 3.56mm)
Staking Side OD : -
Staking Side ID : -
Mounting Hole Diameter : -
Board Thickness : -
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : 300.0µin (7.62µm)
Insulation : Insulated

865 in stock

W2334-00

Harwin

Manufacturer : Harwin Inc.
Series : -
Part Status : Obsolete
Convert From (Adapter End) : Male Threaded Turret, M3
Convert To (Adapter End) : Female Threaded Terminal, M3
Insulation : Insulated
Features : -
Contact Material : Brass
Contact Finish : Nickel
Color : Black

100 in stock
