Cosel Co Ltd
- Cosel Co Ltd is a major worldwide manufacturer of off the shelf switch mode power supplies and EMI Filters since 1969. Using state of the art designs and cutting edge technology Cosel offers smaller high efficiency products in AC/DC and DC/DC for Medical and ITE applications. AC/DC products range from 3W to 10KW in board level, open frame, DIN Rail, Modular and enclosed versions.
DC/DC products are offered from 1.5W to 700W in board level and DIN Rail mount configurations. Most DC/DC converter are in industry standard form factors. EMI Filters are offer from 3A to 600A including types specific for Photovoltaic applications. Many of the EMI Filters are offered with a DIN Rail mount as well. Cosel is committed to extreme high quality with the lowest field failure rate in the industry. Cosel provides direct field support and strong engineer support to customers.
Part Number
Manufacturer
Description
Unit Price
In Stock

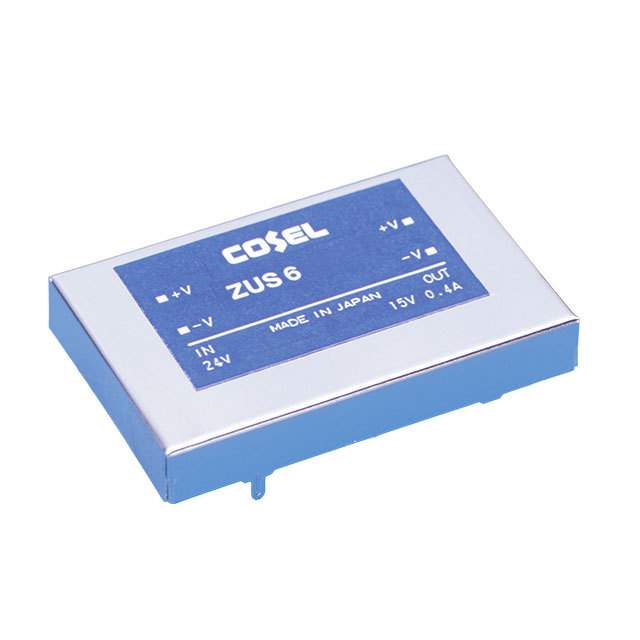

Cosel
Manufacturer : Cosel USA, Inc.
Packaging : -
Series : ZUS
Part Status : Active
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 36V
Voltage - Input (Max) : 72V
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 500mA
Power (Watts) : 6W
Voltage - Isolation : 500V
Applications : ITE (Commercial)
Features : -
Operating Temperature : -20°C ~ 71°C (With Derating)
Efficiency : 78%
Mounting Type : Through Hole
Package / Case : 4-DIP Module
Size / Dimension : 1.75" L x 1.10" W x 0.28" H (44.5mm x 28.0mm x 7.0mm)
Supplier Device Package : -
Control Features : -
0
100 in stock
Cosel
Manufacturer : Cosel USA, Inc.
Packaging : -
Series : ZUS
Part Status : Active
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 36V
Voltage - Input (Max) : 72V
Voltage - Output 1 : 15V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 400mA
Power (Watts) : -
Voltage - Isolation : 500V
Applications : ITE (Commercial)
Features : OCP
Operating Temperature : -20°C ~ 71°C (With Derating)
Efficiency : 78%
Mounting Type : Through Hole
Package / Case : 4-DIP Module
Size / Dimension : 1.75" L x 1.10" W x 0.28" H (44.5mm x 28.0mm x 7.0mm)
Supplier Device Package : -
Control Features : -
0
5 in stock
Cosel
Manufacturer : Cosel USA, Inc.
Packaging : -
Series : ZUS
Part Status : Active
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 36V
Voltage - Input (Max) : 72V
Voltage - Output 1 : 3.3V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 1.2A
Power (Watts) : 4W
Voltage - Isolation : 500V
Applications : ITE (Commercial)
Features : -
Operating Temperature : -20°C ~ 71°C (With Derating)
Efficiency : 73%
Mounting Type : Through Hole
Package / Case : 4-DIP Module
Size / Dimension : 1.75" L x 1.10" W x 0.28" H (44.5mm x 28.0mm x 7.0mm)
Supplier Device Package : -
Control Features : -
0
2 in stock

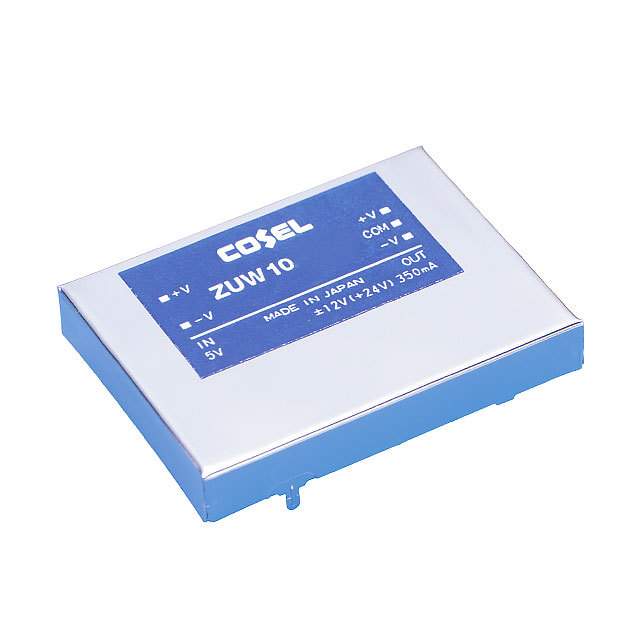

Cosel
Manufacturer : Cosel USA, Inc.
Packaging : -
Series : ZUW
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 4.5V
Voltage - Input (Max) : 9V
Voltage - Output 1 : 12V
Voltage - Output 2 : -12V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 350mA, 350mA
Power (Watts) : -
Voltage - Isolation : 500V
Applications : ITE (Commercial)
Features : OCP
Operating Temperature : -20°C ~ 71°C (With Derating)
Efficiency : 75%
Mounting Type : Through Hole
Package / Case : 5-DIP Module
Size / Dimension : 1.77" L x 1.38" W x 0.28" H (45.0mm x 35.0mm x 7.0mm)
Supplier Device Package : -
Control Features : -
0
4 in stock
Cosel
Manufacturer : Cosel USA, Inc.
Packaging : -
Series : ZUW
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 4.5V
Voltage - Input (Max) : 9V
Voltage - Output 1 : 15V
Voltage - Output 2 : -15V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 300mA, 300mA
Power (Watts) : -
Voltage - Isolation : 500V
Applications : ITE (Commercial)
Features : OCP
Operating Temperature : -20°C ~ 71°C (With Derating)
Efficiency : 75%
Mounting Type : Through Hole
Package / Case : 5-DIP Module
Size / Dimension : 1.77" L x 1.38" W x 0.28" H (45.0mm x 35.0mm x 7.0mm)
Supplier Device Package : -
Control Features : -
0
5 in stock
Cosel
Manufacturer : Cosel USA, Inc.
Packaging : -
Series : ZUW
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 18V
Voltage - Output 1 : 12V
Voltage - Output 2 : -12V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 450mA, 450mA
Power (Watts) : -
Voltage - Isolation : 500V
Applications : ITE (Commercial)
Features : OCP
Operating Temperature : -20°C ~ 71°C (With Derating)
Efficiency : 81%
Mounting Type : Through Hole
Package / Case : 5-DIP Module
Size / Dimension : 1.77" L x 1.38" W x 0.28" H (45.0mm x 35.0mm x 7.0mm)
Supplier Device Package : -
Control Features : -
0
19 in stock
Cosel
Manufacturer : Cosel USA, Inc.
Packaging : -
Series : ZUW
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 18V
Voltage - Output 1 : 15V
Voltage - Output 2 : -15V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 350mA, 350mA
Power (Watts) : -
Voltage - Isolation : 500V
Applications : ITE (Commercial)
Features : OCP
Operating Temperature : -20°C ~ 71°C (With Derating)
Efficiency : 81%
Mounting Type : Through Hole
Package / Case : 5-DIP Module
Size / Dimension : 1.77" L x 1.38" W x 0.28" H (45.0mm x 35.0mm x 7.0mm)
Supplier Device Package : -
Control Features : -
0
5 in stock
Cosel
Manufacturer : Cosel USA, Inc.
Packaging : -
Series : ZUW
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 18V
Voltage - Input (Max) : 36V
Voltage - Output 1 : 12V
Voltage - Output 2 : -12V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 450mA, 450mA
Power (Watts) : -
Voltage - Isolation : 500V
Applications : ITE (Commercial)
Features : OCP
Operating Temperature : -20°C ~ 71°C (With Derating)
Efficiency : 81%
Mounting Type : Through Hole
Package / Case : 5-DIP Module
Size / Dimension : 1.77" L x 1.38" W x 0.28" H (45.0mm x 35.0mm x 7.0mm)
Supplier Device Package : -
Control Features : -
0
29 in stock
Cosel
Manufacturer : Cosel USA, Inc.
Packaging : -
Series : ZUW
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 18V
Voltage - Input (Max) : 36V
Voltage - Output 1 : 15V
Voltage - Output 2 : -15V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 350mA, 350mA
Power (Watts) : -
Voltage - Isolation : 500V
Applications : ITE (Commercial)
Features : OCP
Operating Temperature : -20°C ~ 71°C (With Derating)
Efficiency : 81%
Mounting Type : Through Hole
Package / Case : 5-DIP Module
Size / Dimension : 1.77" L x 1.38" W x 0.28" H (45.0mm x 35.0mm x 7.0mm)
Supplier Device Package : -
Control Features : -
0
55 in stock
Cosel
Manufacturer : Cosel USA, Inc.
Packaging : -
Series : ZUW
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 36V
Voltage - Input (Max) : 75V
Voltage - Output 1 : 12V
Voltage - Output 2 : -12V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 450mA, 450mA
Power (Watts) : -
Voltage - Isolation : 500V
Applications : ITE (Commercial)
Features : OCP
Operating Temperature : -20°C ~ 71°C (With Derating)
Efficiency : 81%
Mounting Type : Through Hole
Package / Case : 5-DIP Module
Size / Dimension : 1.77" L x 1.38" W x 0.28" H (45.0mm x 35.0mm x 7.0mm)
Supplier Device Package : -
Control Features : -
0
5 in stock
Cosel
Manufacturer : Cosel USA, Inc.
Packaging : -
Series : ZUW
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 36V
Voltage - Input (Max) : 72V
Voltage - Output 1 : 12V
Voltage - Output 2 : -12V
Voltage - Output 3 : 24V
Voltage - Output 4 : -
Current - Output (Max) : 450mA, 450mA
Power (Watts) : 11W
Voltage - Isolation : 500V
Applications : ITE (Commercial)
Features : -
Operating Temperature : -20°C ~ 71°C (With Derating)
Efficiency : 81%
Mounting Type : Through Hole
Package / Case : 5-DIP Module
Size / Dimension : 1.77" L x 1.38" W x 0.28" H (45.0mm x 35.0mm x 7.0mm)
Supplier Device Package : -
Control Features : -
0
100 in stock
Cosel
Manufacturer : Cosel USA, Inc.
Packaging : -
Series : ZUW
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 36V
Voltage - Input (Max) : 72V
Voltage - Output 1 : 15V
Voltage - Output 2 : -15V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 350mA, 350mA
Power (Watts) : -
Voltage - Isolation : 500V
Applications : ITE (Commercial)
Features : OCP
Operating Temperature : -20°C ~ 71°C (With Derating)
Efficiency : 81%
Mounting Type : Through Hole
Package / Case : 5-DIP Module
Size / Dimension : 1.77" L x 1.38" W x 0.28" H (45.0mm x 35.0mm x 7.0mm)
Supplier Device Package : -
Control Features : -
0
5 in stock
