Citizen Electronics Co., Ltd.

- Born out of the Citizen Watch Company and its need to develop state-of-the-art micro-miniature electronic components, Citizen has grown beyond to become a technology leader in key components for today's most advanced products. Their packaging technology brings more flexibility in downsizing your design and application. They are helping leading-edge makers of PDAs, digital cameras, automotive products, measurement instruments, lighting apparatus and others to better interface between human and machine. Citizen's surface mountable LED products, switches and sensors are raising the bar for performance and design creativity.

Part Number
Manufacturer
Description
Unit Price
In Stock

CLU038-1206C4-353H5K2 CLU038-1206C4-353H5K2

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU038
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2309 lm (Typ)
Current - Test : 540mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 124 lm/W
Current - Max : 1.38A
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 14.50mm Diameter
Lens Type : Flat
0
37 in stock

CLU038-1206C4-353M2K1 CLU038-1206C4-353M2K1

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU038
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2798 lm (Typ)
Current - Test : 540mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 150 lm/W
Current - Max : 1.38A
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 14.50mm Diameter
Lens Type : Flat
0
48 in stock

CLU038-1206C4-403H5K2 CLU038-1206C4-403H5K2

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU038
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2333 lm (Typ)
Current - Test : 540mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 125 lm/W
Current - Max : 1.38A
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 14.50mm Diameter
Lens Type : Flat
0
80 in stock

CLU038-1206C4-403H7K4 CLU038-1206C4-403H7K4

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU038
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2128 lm (Typ)
Current - Test : 540mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 114 lm/W
Current - Max : 1.38A
CRI (Color Rendering Index) : 97
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 14.50mm Diameter
Lens Type : Flat
0
20 in stock

CLU038-1206C4-403M2K1 CLU038-1206C4-403M2K1

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU038
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2827 lm (Typ)
Current - Test : 540mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 151 lm/W
Current - Max : 1.38A
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 14.50mm Diameter
Lens Type : Flat
0
48 in stock

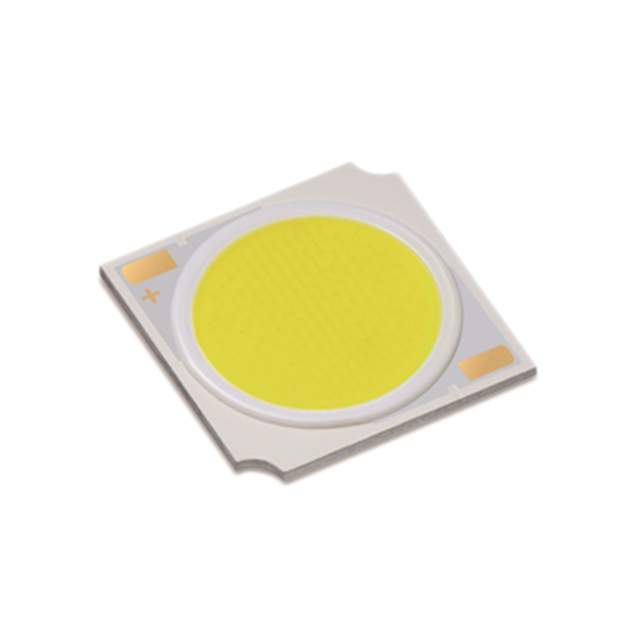

CLU038-1206C4-40AL7K3 CLU038-1206C4-40AL7K3

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU038
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2992 lm (Typ)
Current - Test : 540mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 160 lm/W
Current - Max : 1.38A
CRI (Color Rendering Index) : 70
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 14.50mm Diameter
Lens Type : Flat
0
42 in stock

CLU038-1206C4-50AL7K3 CLU038-1206C4-50AL7K3

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU038
Part Status : Active
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3038 lm (Typ)
Current - Test : 540mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 163 lm/W
Current - Max : 1.38A
CRI (Color Rendering Index) : 70
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 14.50mm Diameter
Lens Type : Flat
0
25 in stock

CLU038-1208C4-273H5K2 CLU038-1208C4-273H5K2

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU038
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2835 lm (Typ)
Current - Test : 720mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 114 lm/W
Current - Max : 1.84A
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 14.50mm Diameter
Lens Type : Flat
0
57 in stock

CLU038-1208C4-273H7K4 CLU038-1208C4-273H7K4

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU038
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2586 lm (Typ)
Current - Test : 720mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 104 lm/W
Current - Max : 1.84A
CRI (Color Rendering Index) : 97
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 14.50mm Diameter
Lens Type : Flat
0
37 in stock

CLU038-1208C4-273M2K1 CLU038-1208C4-273M2K1

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU038
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3431 lm (Typ)
Current - Test : 720mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 138 lm/W
Current - Max : 1.84A
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 14.50mm Diameter
Lens Type : Flat
0
46 in stock

CLU038-1208C4-303H5K2 CLU038-1208C4-303H5K2

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU038
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2962 lm (Typ)
Current - Test : 720mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 119 lm/W
Current - Max : 1.84A
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 14.50mm Diameter
Lens Type : Flat
0
27 in stock

CLU038-1208C4-303H7K4 CLU038-1208C4-303H7K4

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU038
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2702 lm (Typ)
Current - Test : 720mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 108 lm/W
Current - Max : 1.84A
CRI (Color Rendering Index) : 97
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 14.50mm Diameter
Lens Type : Flat
0
46 in stock
