- Since 1974, Central Semiconductor has manufactured innovative discrete semiconductors used in electronic products worldwide. Devices currently include standard and custom small signal transistors, bipolar power transistors, MOSFETs, diodes, rectifiers, protection devices, current limiting diodes, bridge rectifiers, thyristors, and silicon carbide devices. Central’s devices are available in industry standard surface mount and through-hole packages, bare die, TLMs (Tiny Leadless Modules™), and MDMs (Multi Discrete Modules™). Central has earned a reputation as a manufacturer of the highest quality products consistently delivered on-time, and a provider of exceptional value-added services.
Part Number
Manufacturer
Description
Unit Price
In Stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 3A
Voltage - Forward (Vf) (Max) @ If : 1.4V @ 3A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 100ns
Current - Reverse Leakage @ Vr : 5µA @ 600V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : SMC
Operating Temperature - Junction : -65°C ~ 175°C
0
2228 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1000V
Current - Average Rectified (Io) : 3A
Voltage - Forward (Vf) (Max) @ If : 1.7V @ 3A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 100ns
Current - Reverse Leakage @ Vr : 5µA @ 1000V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : SMC
Operating Temperature - Junction : -65°C ~ 175°C
0
3508 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1000V
Current - Average Rectified (Io) : 3A
Voltage - Forward (Vf) (Max) @ If : 2V @ 3A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 100ns
Current - Reverse Leakage @ Vr : 5µA @ 1000V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : SMC
Operating Temperature - Junction : -65°C ~ 175°C
0
2128 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 5A
Voltage - Forward (Vf) (Max) @ If : 1.7V @ 5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 22ns
Current - Reverse Leakage @ Vr : 1µA @ 600V
Capacitance @ Vr, F : 17pF @ 4V, 1MHz
Mounting Type : Surface Mount

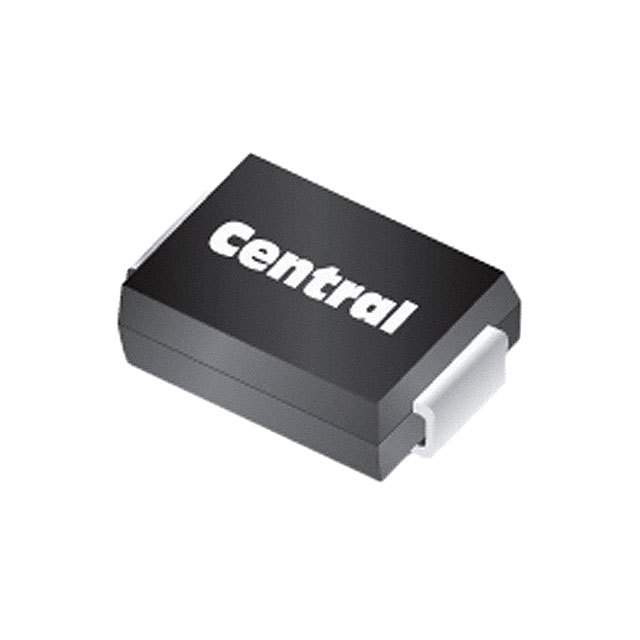

Package / Case : DO-214AB, SMC
Supplier Device Package : SMC
Operating Temperature - Junction : -65°C ~ 175°C
0
4221 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) : 5A
Voltage - Forward (Vf) (Max) @ If : 1.7V @ 5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 22ns
Current - Reverse Leakage @ Vr : 1µA @ 600V
Capacitance @ Vr, F : 17pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : SMC
Operating Temperature - Junction : -65°C ~ 175°C
0
24000 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 160mA, 140mA
Rds On (Max) @ Id, Vgs : 3 Ohm @ 100mA, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.46nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 9pF @ 15V
Power - Max : 125mW
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount

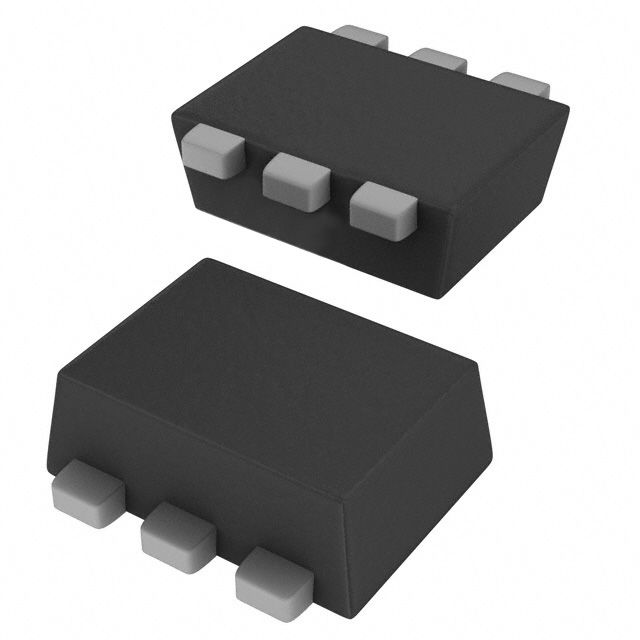

Package / Case : SOT-963
Supplier Device Package : SOT-963
0
6893 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Configuration : 2 Independent
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) (per Diode) : 200mA
Voltage - Forward (Vf) (Max) @ If : 1V @ 40mA
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 5ns
Current - Reverse Leakage @ Vr : 200nA @ 30V
Operating Temperature - Junction : -65°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : SOT-963
Supplier Device Package : SOT-963
0
6165 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Configuration : 1 Pair Series Connection
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 300V
Current - Average Rectified (Io) (per Diode) : 225mA
Voltage - Forward (Vf) (Max) @ If : 1V @ 100mA
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : 100nA @ 240V
Operating Temperature - Junction : -65°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : SC-70, SOT-323
Supplier Device Package : SOT-323
0
11204 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Configuration : 1 Pair Series Connection
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 300V
Current - Average Rectified (Io) (per Diode) : 225mA (DC)
Voltage - Forward (Vf) (Max) @ If : 1.25V @ 20A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : 100nA @ 280V
Operating Temperature - Junction : -65°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : SC-70, SOT-323
Supplier Device Package : SOT-323
0
1745 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Anode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 75V
Current - Average Rectified (Io) (per Diode) : 200mA
Voltage - Forward (Vf) (Max) @ If : 1.2V @ 100mA
Speed : Small Signal =
4ns
100nA @ 50V
-65°C ~ 150°C
Surface Mount
SC-70, SOT-323
SOT-323
Reverse Recovery Time (trr) : 4ns
Current - Reverse Leakage @ Vr : 100nA @ 50V
Operating Temperature - Junction : -65°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : SC-70, SOT-323
Supplier Device Package : SOT-323
0
3000 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 75V
Current - Average Rectified (Io) (per Diode) : 200mA
Voltage - Forward (Vf) (Max) @ If : 1.2V @ 100mA
Speed : Small Signal =
4ns
100nA @ 50V
-65°C ~ 150°C
Surface Mount
SC-70, SOT-323
SOT-323
Reverse Recovery Time (trr) : 4ns
Current - Reverse Leakage @ Vr : 100nA @ 50V
Operating Temperature - Junction : -65°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : SC-70, SOT-323
Supplier Device Package : SOT-323
0
999 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 75V
Current - Average Rectified (Io) : 250mA (DC)
Voltage - Forward (Vf) (Max) @ If : 1V @ 100mA
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 4ns
Current - Reverse Leakage @ Vr : 25nA @ 20V
Capacitance @ Vr, F : 4pF @ 0V, 1MHz
Mounting Type : Surface Mount

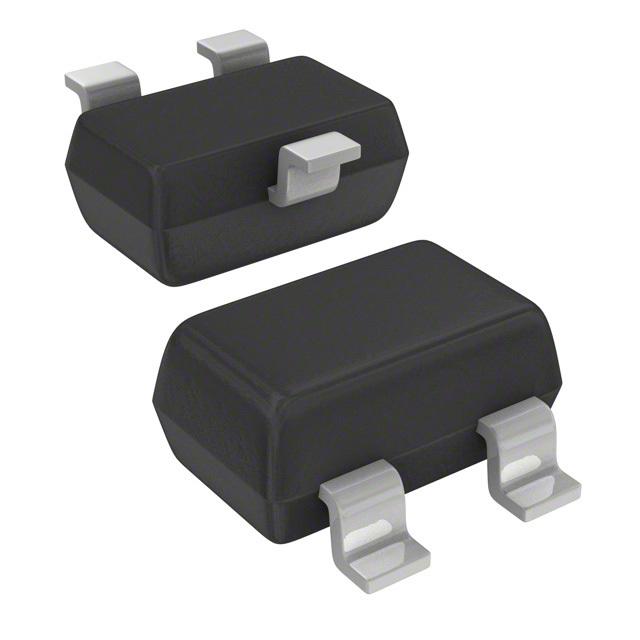

Package / Case : SC-70, SOT-323
Supplier Device Package : SOT-323
Operating Temperature - Junction : -65°C ~ 150°C
0
7002 in stock
