Central Semiconductor
- Since 1974, Central Semiconductor has manufactured innovative discrete semiconductors used in electronic products worldwide. Devices currently include standard and custom small signal transistors, bipolar power transistors, MOSFETs, diodes, rectifiers, protection devices, current limiting diodes, bridge rectifiers, thyristors, and silicon carbide devices. Central’s devices are available in industry standard surface mount and through-hole packages, bare die, TLMs (Tiny Leadless Modules™), and MDMs (Multi Discrete Modules™). Central has earned a reputation as a manufacturer of the highest quality products consistently delivered on-time, and a provider of exceptional value-added services.
Part Number
Manufacturer
Description
Unit Price
In Stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 180V
Current - Average Rectified (Io) : 200mA
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 200mA
Speed : Small Signal =
-
10nA @ 180V
4pF @ 0V, 1MHz
Surface Mount
SC-79, SOD-523
SOD-523
-65°C ~ 150°C
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 10nA @ 180V
Capacitance @ Vr, F : 4pF @ 0V, 1MHz
Mounting Type : Surface Mount
Package / Case : SC-79, SOD-523
Supplier Device Package : SOD-523
Operating Temperature - Junction : -65°C ~ 150°C
0
6333 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 75V
Current - Average Rectified (Io) : 250mA
Voltage - Forward (Vf) (Max) @ If : 1V @ 100mA
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 4ns
Current - Reverse Leakage @ Vr : 25nA @ 20V
Capacitance @ Vr, F : 4pF @ 0V, 1MHz
Mounting Type : Surface Mount
Package / Case : SC-79, SOD-523
Supplier Device Package : SOD-523
Operating Temperature - Junction : -65°C ~ 150°C
0
22509 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 75V
Current - Average Rectified (Io) : 250mA
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 100mA
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : 3µs
Current - Reverse Leakage @ Vr : 500pA @ 75V
Capacitance @ Vr, F : 2pF @ 0V, 1MHz
Mounting Type : Surface Mount
Package / Case : SC-79, SOD-523
Supplier Device Package : SOD-523
Operating Temperature - Junction : -65°C ~ 150°C
0
57372 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 70V
Current - Average Rectified (Io) : 15mA
Voltage - Forward (Vf) (Max) @ If : 410mV @ 1mA
Speed : Small Signal =
5ns
200nA @ 50V
2pF @ 0V, 1MHz
Surface Mount
SC-79, SOD-523
SOD-523
-65°C ~ 150°C
Reverse Recovery Time (trr) : 5ns
Current - Reverse Leakage @ Vr : 200nA @ 50V
Capacitance @ Vr, F : 2pF @ 0V, 1MHz
Mounting Type : Surface Mount
Package / Case : SC-79, SOD-523
Supplier Device Package : SOD-523
Operating Temperature - Junction : -65°C ~ 150°C
0
4357 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) : 200mA
Voltage - Forward (Vf) (Max) @ If : 500mV @ 200mA
Speed : Small Signal =
5ns
50µA @ 20V
-
Surface Mount
SC-79, SOD-523
SOD-523
-65°C ~ 150°C
Reverse Recovery Time (trr) : 5ns
Current - Reverse Leakage @ Vr : 50µA @ 20V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : SC-79, SOD-523
Supplier Device Package : SOD-523
Operating Temperature - Junction : -65°C ~ 150°C
0
5643 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 30V
Current - Average Rectified (Io) : 100mA
Voltage - Forward (Vf) (Max) @ If : 1V @ 100mA
Speed : Small Signal =
5ns
500nA @ 25V
7pF @ 1V, 1MHz
Surface Mount
SC-79, SOD-523
SOD-523
-65°C ~ 150°C
Reverse Recovery Time (trr) : 5ns
Current - Reverse Leakage @ Vr : 500nA @ 25V
Capacitance @ Vr, F : 7pF @ 1V, 1MHz
Mounting Type : Surface Mount
Package / Case : SC-79, SOD-523
Supplier Device Package : SOD-523
Operating Temperature - Junction : -65°C ~ 150°C
0
30636 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 30V
Current - Average Rectified (Io) : 100mA
Voltage - Forward (Vf) (Max) @ If : 1V @ 100mA
Speed : Small Signal =
5ns
500nA @ 25V
7pF @ 1V, 1MHz
Surface Mount
SC-79, SOD-523
SOD-523
-65°C ~ 150°C
Reverse Recovery Time (trr) : 5ns
Current - Reverse Leakage @ Vr : 500nA @ 25V
Capacitance @ Vr, F : 7pF @ 1V, 1MHz
Mounting Type : Surface Mount
Package / Case : SC-79, SOD-523
Supplier Device Package : SOD-523
Operating Temperature - Junction : -65°C ~ 150°C
0
9689 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) : 200mA
Voltage - Forward (Vf) (Max) @ If : 1V @ 200mA
Speed : Small Signal =
5ns
500nA @ 25V
7pF @ 1V, 1MHz
Surface Mount
SC-79, SOD-523
SOD-523
-65°C ~ 150°C
Reverse Recovery Time (trr) : 5ns
Current - Reverse Leakage @ Vr : 500nA @ 25V
Capacitance @ Vr, F : 7pF @ 1V, 1MHz
Mounting Type : Surface Mount
Package / Case : SC-79, SOD-523
Supplier Device Package : SOD-523
Operating Temperature - Junction : -65°C ~ 150°C
0
24652 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 4V (Max)
Voltage - Breakdown (Min) : 5.7V
Voltage - Clamping (Max) @ Ipp : 12V
Current - Peak Pulse (10/1000µs) : 5.5A (8/20µs)
Power - Peak Pulse : 66W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-79, SOD-523
Supplier Device Package : SOD-523
0
7340 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Zener (Nom) (Vz) : 10V
Tolerance : ±5%
Power - Max : 250mW
Impedance (Max) (Zzt) : 200 Ohms
Current - Reverse Leakage @ Vr : 1µA @ 8V
Voltage - Forward (Vf) (Max) @ If : 900mV @ 10mA
Operating Temperature : -65°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : SC-79, SOD-523
Supplier Device Package : SOD-523
0
8101 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active

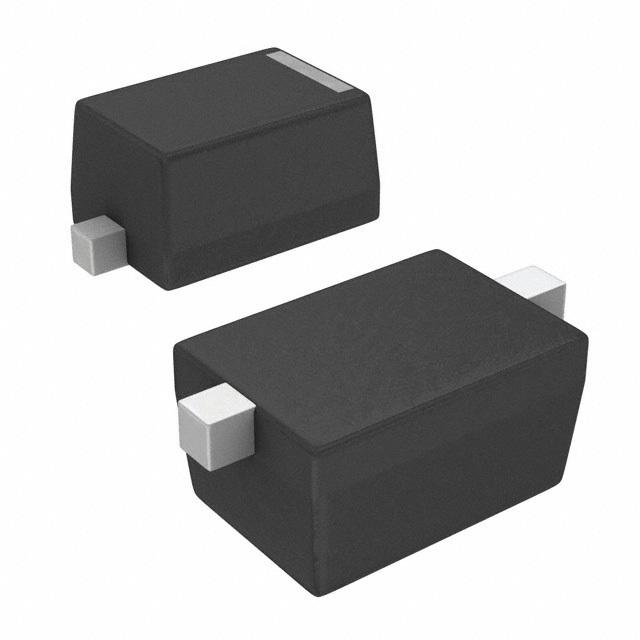

Voltage - Zener (Nom) (Vz) : 10V
Tolerance : ±5%
Power - Max : 300mW
Impedance (Max) (Zzt) : 20 Ohms
Current - Reverse Leakage @ Vr : 200nA @ 7V
Voltage - Forward (Vf) (Max) @ If : 900mV @ 10mA
Operating Temperature : -65°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : SC-79, SOD-523
Supplier Device Package : SOD-523
0
2860 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Zener (Nom) (Vz) : 11V
Tolerance : ±5%
Power - Max : 300mW
Impedance (Max) (Zzt) : 20 Ohms
Current - Reverse Leakage @ Vr : 100nA @ 8V
Voltage - Forward (Vf) (Max) @ If : 900mV @ 10mA
Operating Temperature : -65°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : SC-79, SOD-523
Supplier Device Package : SOD-523
0
5900 in stock
