Central Semiconductor
- Since 1974, Central Semiconductor has manufactured innovative discrete semiconductors used in electronic products worldwide. Devices currently include standard and custom small signal transistors, bipolar power transistors, MOSFETs, diodes, rectifiers, protection devices, current limiting diodes, bridge rectifiers, thyristors, and silicon carbide devices. Central’s devices are available in industry standard surface mount and through-hole packages, bare die, TLMs (Tiny Leadless Modules™), and MDMs (Multi Discrete Modules™). Central has earned a reputation as a manufacturer of the highest quality products consistently delivered on-time, and a provider of exceptional value-added services.
Part Number
Manufacturer
Description
Unit Price
In Stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) : 4A
Voltage - Forward (Vf) (Max) @ If : 1.25V @ 12A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 35ns
Current - Reverse Leakage @ Vr : 20µA @ 200V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount

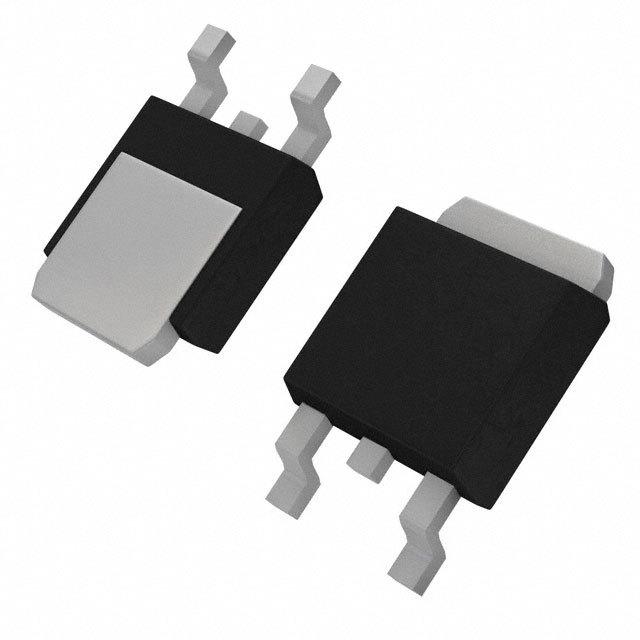

Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
Operating Temperature - Junction : -65°C ~ 150°C
0
2442 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) (per Diode) : 6A
Voltage - Forward (Vf) (Max) @ If : 850mV @ 5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 35ns
Current - Reverse Leakage @ Vr : 20µA @ 200V
Operating Temperature - Junction : -65°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
0
2068 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 800V
Current - Average Rectified (Io) (per Diode) : 16A
Voltage - Forward (Vf) (Max) @ If : 1.5V @ 8A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : 10µA @ 800V
Operating Temperature - Junction : -65°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
0
749 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) : 8A
Voltage - Forward (Vf) (Max) @ If : 975mV @ 8A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 25ns
Current - Reverse Leakage @ Vr : 5µA @ 200V
Capacitance @ Vr, F : 80pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Operating Temperature - Junction : -65°C ~ 150°C
0
1168 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 11A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 20 mOhm @ 11A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 6.3nC @ 5V
Vgs (Max) : 20V
Input Capacitance (Ciss) (Max) @ Vds : 860pF @ 15V
FET Feature : -
Power Dissipation (Max) : 2.5W (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount

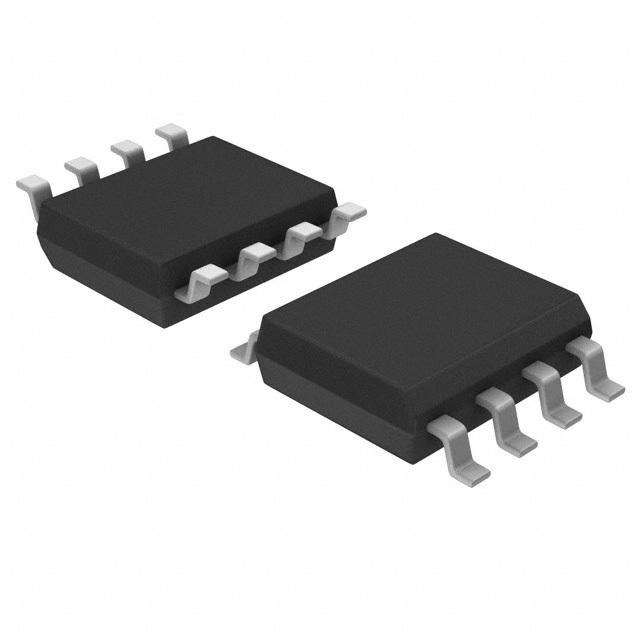

Supplier Device Package : 8-SOIC
Package / Case : 8-SOIC (0.154", 3.90mm Width)
0
2490 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 11A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 20 mOhm @ 11A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 80nC @ 10V
Vgs (Max) : 20V
Input Capacitance (Ciss) (Max) @ Vds : 3100pF @ 8V
FET Feature : -
Power Dissipation (Max) : 2.5W (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOIC
Package / Case : 8-SOIC (0.154", 3.90mm Width)
0
2495 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 5.8A
Rds On (Max) @ Id, Vgs : 30 mOhm @ 2.9A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 6.3nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds : 560pF @ 10V
Power - Max : 2W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
2490 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 2A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 300 mOhm @ 2A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 6nC @ 5V
Vgs (Max) : 20V
Input Capacitance (Ciss) (Max) @ Vds : 550pF @ 25V
FET Feature : -
Power Dissipation (Max) : 1.2W (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount

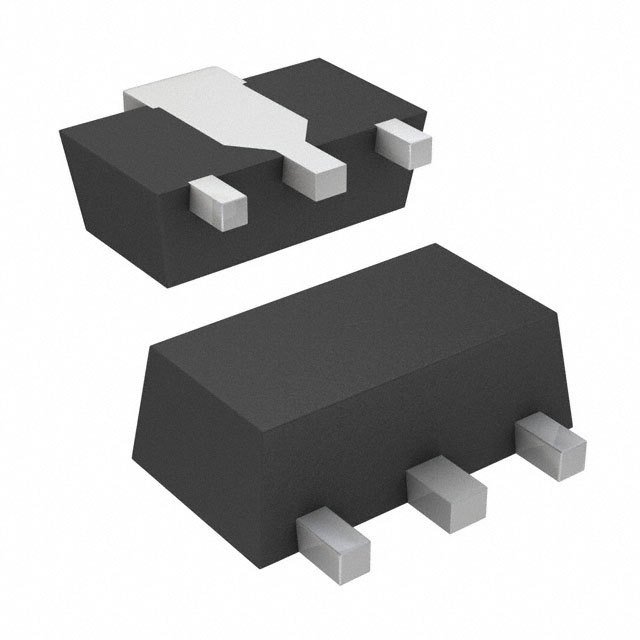

Supplier Device Package : SOT-89
Package / Case : TO-243AA
0
2515 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 6.9A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 2.5V, 10V
Rds On (Max) @ Id, Vgs : 30 mOhm @ 7A, 10V
Vgs(th) (Max) @ Id : 1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 11nC @ 10V
Vgs (Max) : 12V
Input Capacitance (Ciss) (Max) @ Vds : 580pF @ 15V
FET Feature : -
Power Dissipation (Max) : 1.2W (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-89
Package / Case : TO-243AA
0
616 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 6A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 31 mOhm @ 6A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 12nC @ 10V
Vgs (Max) : 20V
Input Capacitance (Ciss) (Max) @ Vds : 730pF @ 20V
FET Feature : -
Power Dissipation (Max) : 1.2W (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-89
Package / Case : TO-243AA
0
2187 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 6A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 65 mOhm @ 6A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 6.5nC @ 4.5V
Vgs (Max) : 25V
Input Capacitance (Ciss) (Max) @ Vds : 750pF @ 25V
FET Feature : -
Power Dissipation (Max) : 1.2W (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-89
Package / Case : TO-243AA
0
2798 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 5.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 41 mOhm @ 5.3A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 8.8nC @ 5V
Vgs (Max) : 20V
Input Capacitance (Ciss) (Max) @ Vds : 920pF @ 30V
FET Feature : -
Power Dissipation (Max) : 1.2W (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-89
Package / Case : TO-243AA
0
259 in stock
