API Delevan
- API Delevan designs, manufactures, and markets an extensive line of quality inductors, chokes, and coils to satisfy various electrical filtering requirements. The Group concentrates on producing high performance inductive devices to meet stringent government and customer specifications relating to high product quality and reliability.
Part Number
Manufacturer
Description
Unit Price
In Stock

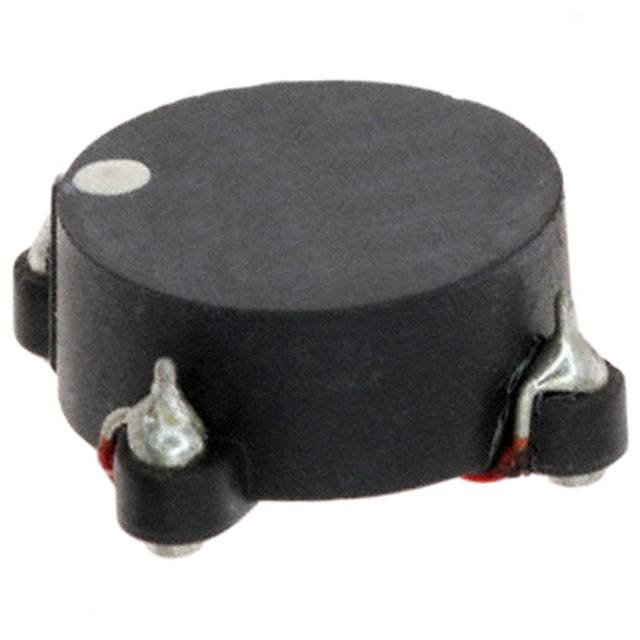

CM6560R-335
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : CM6560R
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3.3mH @ 10kHz
Current Rating (Max) : 1.2A
DC Resistance (DCR) (Max) : 160 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.630" L x 0.630" W (16.00mm x 16.00mm)
Height (Max) : 0.320" (8.13mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Bulk
Series : CM6560R
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3.3mH @ 10kHz
Current Rating (Max) : 1.2A
DC Resistance (DCR) (Max) : 160 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.630" L x 0.630" W (16.00mm x 16.00mm)
Height (Max) : 0.320" (8.13mm)
Package / Case : Horizontal, 4 PC Pad
0
75 in stock
CM6560R-754
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : CM6560R
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 750µH @ 10kHz
Current Rating (Max) : 3A
DC Resistance (DCR) (Max) : 34 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.630" L x 0.630" W (16.00mm x 16.00mm)
Height (Max) : 0.320" (8.13mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Bulk
Series : CM6560R
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 750µH @ 10kHz
Current Rating (Max) : 3A
DC Resistance (DCR) (Max) : 34 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.630" L x 0.630" W (16.00mm x 16.00mm)
Height (Max) : 0.320" (8.13mm)
Package / Case : Horizontal, 4 PC Pad
0
91 in stock

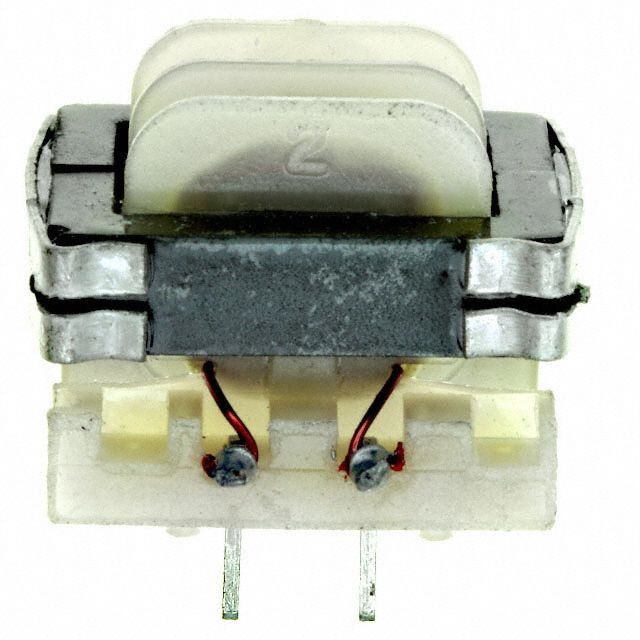

CM9900-104
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : CM9900
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 100µH @ 1kHz
Current Rating (Max) : 2.8A
DC Resistance (DCR) (Max) : 25 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.839" L x 0.740" W (21.30mm x 18.80mm)
Height (Max) : 0.669" (17.00mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Bulk
Series : CM9900
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 100µH @ 1kHz
Current Rating (Max) : 2.8A
DC Resistance (DCR) (Max) : 25 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.839" L x 0.740" W (21.30mm x 18.80mm)
Height (Max) : 0.669" (17.00mm)
Package / Case : Vertical, 4 PC Pin
0
413 in stock

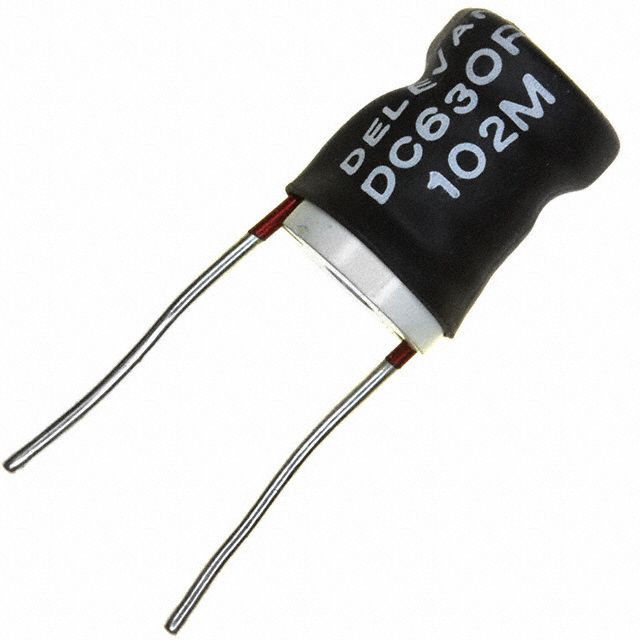

DC630R-102M
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : DC630R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 1µH
Tolerance : ±20%
Current Rating : 14A
Current - Saturation : 68A
Shielding : Unshielded
DC Resistance (DCR) : 3 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 0.830" (21.08mm)
Packaging : Bulk
Series : DC630R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 1µH
Tolerance : ±20%
Current Rating : 14A
Current - Saturation : 68A
Shielding : Unshielded
DC Resistance (DCR) : 3 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 0.830" (21.08mm)
0
46 in stock

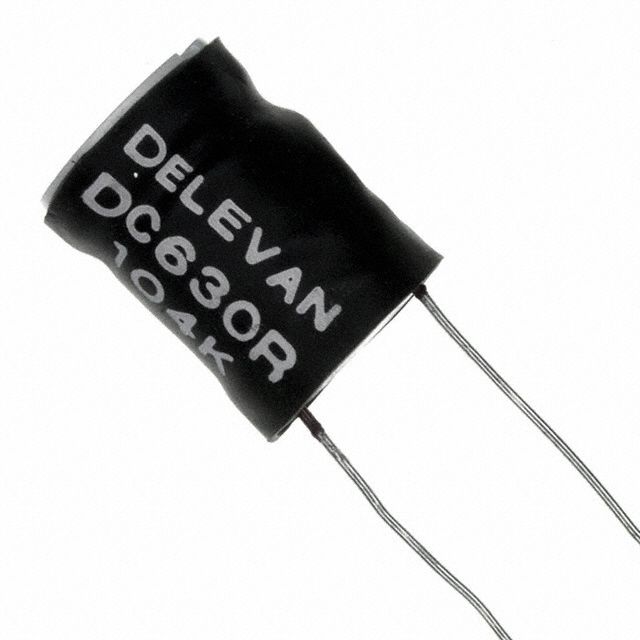

DC630R-104K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : DC630R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 100µH
Tolerance : ±10%
Current Rating : 3.21A
Current - Saturation : 6.8A
Shielding : Unshielded
DC Resistance (DCR) : 95 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 0.830" (21.08mm)
Packaging : Bulk
Series : DC630R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 100µH
Tolerance : ±10%
Current Rating : 3.21A
Current - Saturation : 6.8A
Shielding : Unshielded
DC Resistance (DCR) : 95 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 0.830" (21.08mm)
0
1307 in stock

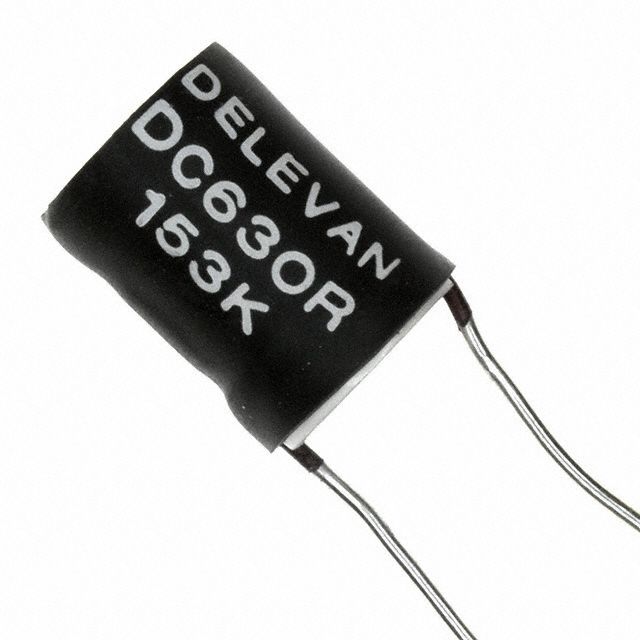

DC630R-153K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : DC630R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 15µH
Tolerance : ±10%
Current Rating : 8.09A
Current - Saturation : 17.5A
Shielding : Unshielded
DC Resistance (DCR) : 15 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 0.830" (21.08mm)
Packaging : Bulk
Series : DC630R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 15µH
Tolerance : ±10%
Current Rating : 8.09A
Current - Saturation : 17.5A
Shielding : Unshielded
DC Resistance (DCR) : 15 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 0.830" (21.08mm)
0
428 in stock

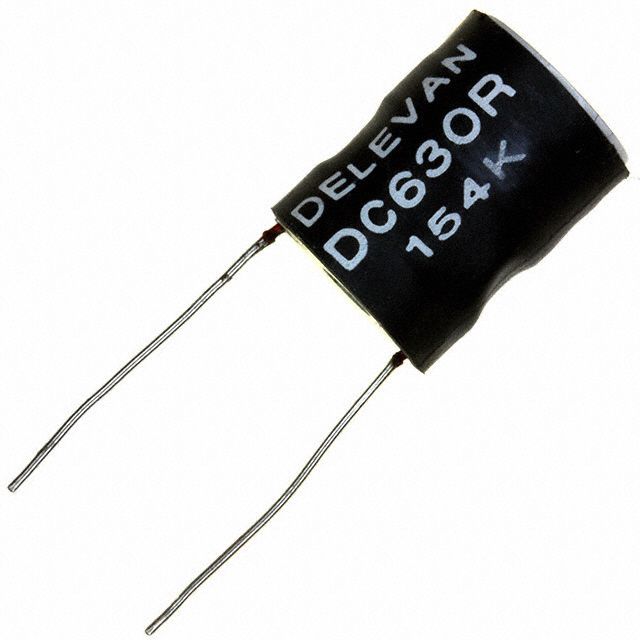

DC630R-154K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : DC630R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 150µH
Tolerance : ±10%
Current Rating : 2.97A
Current - Saturation : 5.6A
Shielding : Unshielded
DC Resistance (DCR) : 111 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 0.830" (21.08mm)
Packaging : Bulk
Series : DC630R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 150µH
Tolerance : ±10%
Current Rating : 2.97A
Current - Saturation : 5.6A
Shielding : Unshielded
DC Resistance (DCR) : 111 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 0.830" (21.08mm)
0
364 in stock

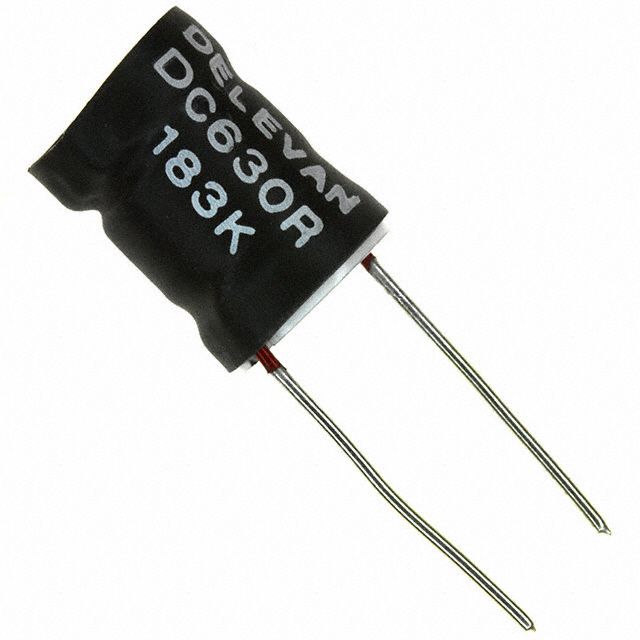

DC630R-183K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : DC630R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 18µH
Tolerance : ±10%
Current Rating : 7A
Current - Saturation : 16A
Shielding : Unshielded
DC Resistance (DCR) : 20 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 0.830" (21.08mm)
Packaging : Bulk
Series : DC630R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 18µH
Tolerance : ±10%
Current Rating : 7A
Current - Saturation : 16A
Shielding : Unshielded
DC Resistance (DCR) : 20 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 0.830" (21.08mm)
0
668 in stock

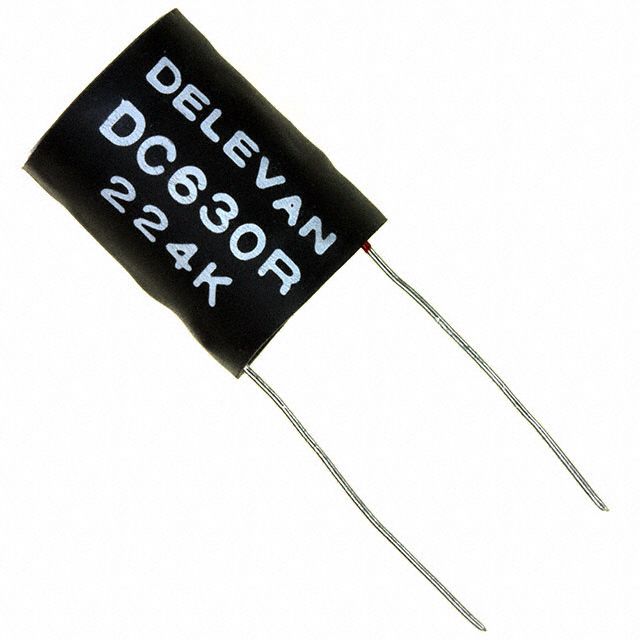

DC630R-224K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : DC630R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 220µH
Tolerance : ±10%
Current Rating : 2.42A
Current - Saturation : 4.6A
Shielding : Unshielded
DC Resistance (DCR) : 168 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 0.830" (21.08mm)
Packaging : Bulk
Series : DC630R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 220µH
Tolerance : ±10%
Current Rating : 2.42A
Current - Saturation : 4.6A
Shielding : Unshielded
DC Resistance (DCR) : 168 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 0.830" (21.08mm)
0
418 in stock

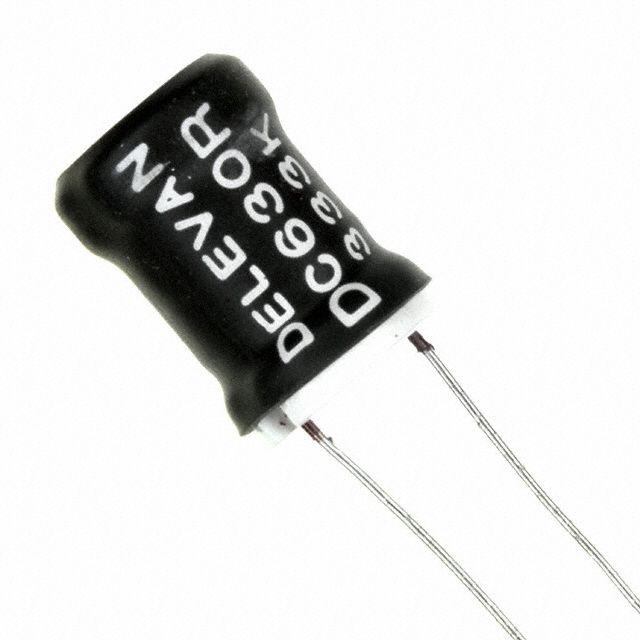

DC630R-333K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : DC630R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 33µH
Tolerance : ±10%
Current Rating : 4.95A
Current - Saturation : 11.9A
Shielding : Unshielded
DC Resistance (DCR) : 40 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 0.830" (21.08mm)
Packaging : Bulk
Series : DC630R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 33µH
Tolerance : ±10%
Current Rating : 4.95A
Current - Saturation : 11.9A
Shielding : Unshielded
DC Resistance (DCR) : 40 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 0.830" (21.08mm)
0
124 in stock

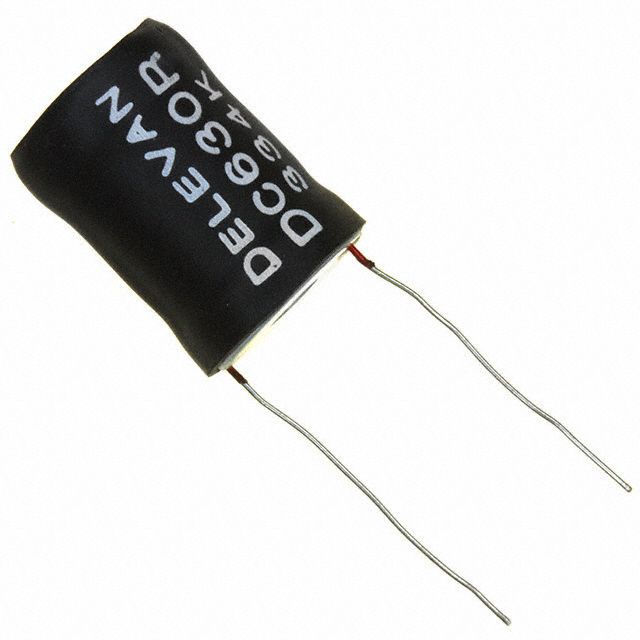

DC630R-334K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : DC630R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 330µH
Tolerance : ±10%
Current Rating : 1.72A
Current - Saturation : 3.8A
Shielding : Unshielded
DC Resistance (DCR) : 315 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 0.830" (21.08mm)
Packaging : Bulk
Series : DC630R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 330µH
Tolerance : ±10%
Current Rating : 1.72A
Current - Saturation : 3.8A
Shielding : Unshielded
DC Resistance (DCR) : 315 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 0.830" (21.08mm)
0
284 in stock

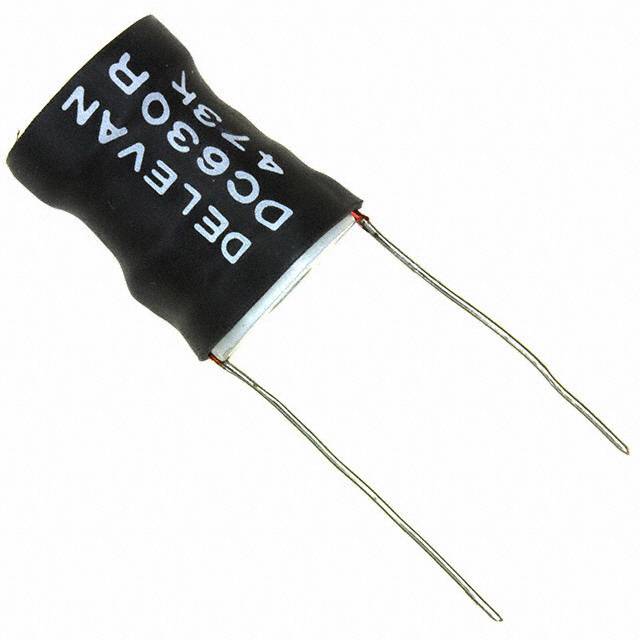

DC630R-473K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : DC630R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 47µH
Tolerance : ±10%
Current Rating : 3.98A
Current - Saturation : 10A
Shielding : Unshielded
DC Resistance (DCR) : 62 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 0.830" (21.08mm)
Packaging : Bulk
Series : DC630R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 47µH
Tolerance : ±10%
Current Rating : 3.98A
Current - Saturation : 10A
Shielding : Unshielded
DC Resistance (DCR) : 62 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 0.830" (21.08mm)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
