API Delevan
- API Delevan designs, manufactures, and markets an extensive line of quality inductors, chokes, and coils to satisfy various electrical filtering requirements. The Group concentrates on producing high performance inductive devices to meet stringent government and customer specifications relating to high product quality and reliability.
Part Number
Manufacturer
Description
Unit Price
In Stock
1641-102K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75088
Part Status : Active
Type : -
Material - Core : Iron
Inductance : 1µH
Tolerance : ±10%
Current Rating : 1.09A
Current - Saturation : 1.09A
Shielding : Shielded
DC Resistance (DCR) : 70 mOhm Max
Q @ Freq : 44 @ 25MHz
Frequency - Self Resonant : 140MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.162" Dia x 0.410" L (4.11mm x 10.41mm)
Height - Seated (Max) : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75088
Part Status : Active
Type : -
Material - Core : Iron
Inductance : 1µH
Tolerance : ±10%
Current Rating : 1.09A
Current - Saturation : 1.09A
Shielding : Shielded
DC Resistance (DCR) : 70 mOhm Max
Q @ Freq : 44 @ 25MHz
Frequency - Self Resonant : 140MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.162" Dia x 0.410" L (4.11mm x 10.41mm)
Height - Seated (Max) : -
0
1074 in stock
1641-104K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75089
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 100µH
Tolerance : ±10%
Current Rating : 164mA
Current - Saturation : 120mA
Shielding : Shielded
DC Resistance (DCR) : 3.12 Ohm Max
Q @ Freq : 50 @ 2.5MHz
Frequency - Self Resonant : 10MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.162" Dia x 0.410" L (4.11mm x 10.41mm)
Height - Seated (Max) : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75089
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 100µH
Tolerance : ±10%
Current Rating : 164mA
Current - Saturation : 120mA
Shielding : Shielded
DC Resistance (DCR) : 3.12 Ohm Max
Q @ Freq : 50 @ 2.5MHz
Frequency - Self Resonant : 10MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.162" Dia x 0.410" L (4.11mm x 10.41mm)
Height - Seated (Max) : -
0
52 in stock
1641-105K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75089
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1mH
Tolerance : ±10%
Current Rating : 70mA
Current - Saturation : 40mA
Shielding : Shielded
DC Resistance (DCR) : 17.5 Ohm Max
Q @ Freq : 60 @ 790kHz
Frequency - Self Resonant : 3.8MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.162" Dia x 0.410" L (4.11mm x 10.41mm)
Height - Seated (Max) : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75089
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1mH
Tolerance : ±10%
Current Rating : 70mA
Current - Saturation : 40mA
Shielding : Shielded
DC Resistance (DCR) : 17.5 Ohm Max
Q @ Freq : 60 @ 790kHz
Frequency - Self Resonant : 3.8MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.162" Dia x 0.410" L (4.11mm x 10.41mm)
Height - Seated (Max) : -
0
1617 in stock
1641-152K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75088
Part Status : Active
Type : -
Material - Core : Iron
Inductance : 1.5µH
Tolerance : ±10%
Current Rating : 835mA
Current - Saturation : 835mA
Shielding : Shielded
DC Resistance (DCR) : 120 mOhm Max
Q @ Freq : 44 @ 7.9MHz
Frequency - Self Resonant : 115MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.162" Dia x 0.410" L (4.11mm x 10.41mm)
Height - Seated (Max) : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75088
Part Status : Active
Type : -
Material - Core : Iron
Inductance : 1.5µH
Tolerance : ±10%
Current Rating : 835mA
Current - Saturation : 835mA
Shielding : Shielded
DC Resistance (DCR) : 120 mOhm Max
Q @ Freq : 44 @ 7.9MHz
Frequency - Self Resonant : 115MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.162" Dia x 0.410" L (4.11mm x 10.41mm)
Height - Seated (Max) : -
0
1731 in stock
1641-153K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75089
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 15µH
Tolerance : ±10%
Current Rating : 325mA
Current - Saturation : 250mA
Shielding : Shielded
DC Resistance (DCR) : 800 mOhm Max
Q @ Freq : 45 @ 2.5MHz
Frequency - Self Resonant : 49MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.162" Dia x 0.410" L (4.11mm x 10.41mm)
Height - Seated (Max) : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75089
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 15µH
Tolerance : ±10%
Current Rating : 325mA
Current - Saturation : 250mA
Shielding : Shielded
DC Resistance (DCR) : 800 mOhm Max
Q @ Freq : 45 @ 2.5MHz
Frequency - Self Resonant : 49MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.162" Dia x 0.410" L (4.11mm x 10.41mm)
Height - Seated (Max) : -
0
798 in stock
1641-222K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75088
Part Status : Active
Type : -
Material - Core : Iron
Inductance : 2.2µH
Tolerance : ±10%
Current Rating : 665mA
Current - Saturation : 665mA
Shielding : Shielded
DC Resistance (DCR) : 190 mOhm Max
Q @ Freq : 44 @ 7.9MHz
Frequency - Self Resonant : 100MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.162" Dia x 0.410" L (4.11mm x 10.41mm)
Height - Seated (Max) : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75088
Part Status : Active
Type : -
Material - Core : Iron
Inductance : 2.2µH
Tolerance : ±10%
Current Rating : 665mA
Current - Saturation : 665mA
Shielding : Shielded
DC Resistance (DCR) : 190 mOhm Max
Q @ Freq : 44 @ 7.9MHz
Frequency - Self Resonant : 100MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.162" Dia x 0.410" L (4.11mm x 10.41mm)
Height - Seated (Max) : -
0
1686 in stock
1641-223K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75089
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±10%
Current Rating : 295mA
Current - Saturation : 220mA
Shielding : Shielded
DC Resistance (DCR) : 960 mOhm Max
Q @ Freq : 45 @ 2.5MHz
Frequency - Self Resonant : 41MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.162" Dia x 0.410" L (4.11mm x 10.41mm)
Height - Seated (Max) : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75089
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±10%
Current Rating : 295mA
Current - Saturation : 220mA
Shielding : Shielded
DC Resistance (DCR) : 960 mOhm Max
Q @ Freq : 45 @ 2.5MHz
Frequency - Self Resonant : 41MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.162" Dia x 0.410" L (4.11mm x 10.41mm)
Height - Seated (Max) : -
0
971 in stock
1641-224K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75089
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 220µH
Tolerance : ±10%
Current Rating : 130mA
Current - Saturation : 80mA
Shielding : Shielded
DC Resistance (DCR) : 5 Ohm Max
Q @ Freq : 55 @ 790kHz
Frequency - Self Resonant : 7.5MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.162" Dia x 0.410" L (4.11mm x 10.41mm)
Height - Seated (Max) : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75089
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 220µH
Tolerance : ±10%
Current Rating : 130mA
Current - Saturation : 80mA
Shielding : Shielded
DC Resistance (DCR) : 5 Ohm Max
Q @ Freq : 55 @ 790kHz
Frequency - Self Resonant : 7.5MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.162" Dia x 0.410" L (4.11mm x 10.41mm)
Height - Seated (Max) : -
0
1622 in stock
1641-272K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75088
Part Status : Active
Type : -
Material - Core : Iron
Inductance : 2.7µH
Tolerance : ±10%
Current Rating : 545mA
Current - Saturation : 545mA
Shielding : Shielded
DC Resistance (DCR) : 280 mOhm Max
Q @ Freq : 44 @ 7.9MHz
Frequency - Self Resonant : 92MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.162" Dia x 0.410" L (4.11mm x 10.41mm)
Height - Seated (Max) : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75088
Part Status : Active
Type : -
Material - Core : Iron
Inductance : 2.7µH
Tolerance : ±10%
Current Rating : 545mA
Current - Saturation : 545mA
Shielding : Shielded
DC Resistance (DCR) : 280 mOhm Max
Q @ Freq : 44 @ 7.9MHz
Frequency - Self Resonant : 92MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.162" Dia x 0.410" L (4.11mm x 10.41mm)
Height - Seated (Max) : -
0
400 in stock
1641-333K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75089
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 33µH
Tolerance : ±10%
Current Rating : 248mA
Current - Saturation : 190mA
Shielding : Shielded
DC Resistance (DCR) : 1.37 Ohm Max
Q @ Freq : 45 @ 2.5MHz
Frequency - Self Resonant : 34MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.162" Dia x 0.410" L (4.11mm x 10.41mm)
Height - Seated (Max) : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75089
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 33µH
Tolerance : ±10%
Current Rating : 248mA
Current - Saturation : 190mA
Shielding : Shielded
DC Resistance (DCR) : 1.37 Ohm Max
Q @ Freq : 45 @ 2.5MHz
Frequency - Self Resonant : 34MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.162" Dia x 0.410" L (4.11mm x 10.41mm)
Height - Seated (Max) : -
0
1834 in stock

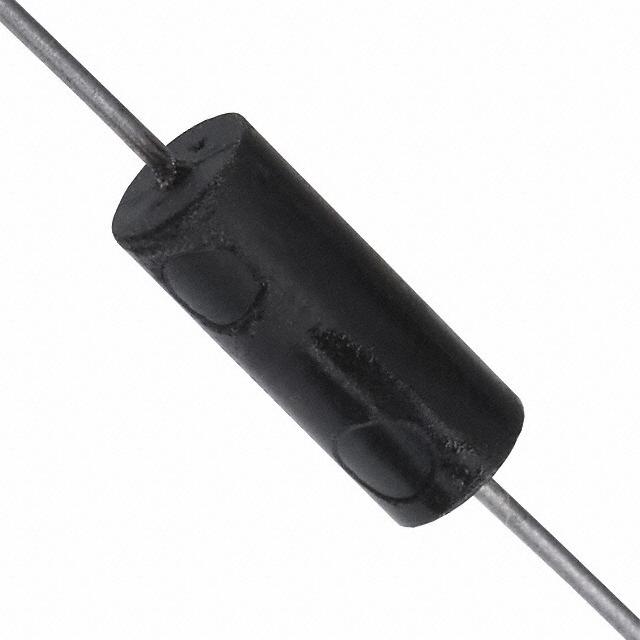

1641-473K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75089
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 47µH
Tolerance : ±10%
Current Rating : 200mA
Current - Saturation : 175mA
Shielding : Shielded
DC Resistance (DCR) : 2.11 Ohm Max
Q @ Freq : 50 @ 2.5MHz
Frequency - Self Resonant : 27MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.162" Dia x 0.410" L (4.11mm x 10.41mm)
Height - Seated (Max) : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75089
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 47µH
Tolerance : ±10%
Current Rating : 200mA
Current - Saturation : 175mA
Shielding : Shielded
DC Resistance (DCR) : 2.11 Ohm Max
Q @ Freq : 50 @ 2.5MHz
Frequency - Self Resonant : 27MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.162" Dia x 0.410" L (4.11mm x 10.41mm)
Height - Seated (Max) : -
0
1438 in stock
1641-563K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75089
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 56µH
Tolerance : ±10%
Current Rating : 194mA
Current - Saturation : 160mA
Shielding : Shielded
DC Resistance (DCR) : 2.23 Ohm Max
Q @ Freq : 50 @ 2.5MHz
Frequency - Self Resonant : 25MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.162" Dia x 0.410" L (4.11mm x 10.41mm)
Height - Seated (Max) : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75089
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 56µH
Tolerance : ±10%
Current Rating : 194mA
Current - Saturation : 160mA
Shielding : Shielded
DC Resistance (DCR) : 2.23 Ohm Max
Q @ Freq : 50 @ 2.5MHz
Frequency - Self Resonant : 25MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.162" Dia x 0.410" L (4.11mm x 10.41mm)
Height - Seated (Max) : -
0
1132 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
