Apex Microtechnology

- Apex Microtechnology develops and manufactures precision power analog monolithic, hybrid and open frame components for a wide range of industrial, test and measurement, medical, aerospace and defense applications. These devices are typically used to generate motion control, such as driving piezo electrical devices, and brush and brushless DC motors. With more than 300 catalog “off-the-shelf” products, Apex Microtechnology is a recognized leader for consistently developing products that lead the industry in terms of performance, quality, and reliability. Founded in 1980, Apex Microtechnology was acquired in 2007 by Cirrus Logic, a premier supplier of mixed-signal processing components for audio and energy markets. Following a five-year tenure as a division of the Austin, Texas, based developer of complex chip designs, Apex Microtechnology has returned to a stand-alone, privately-held corporation with its sale to a private investor group. The company is headquartered in Tucson, Ariz., USA.

Part Number
Manufacturer
Description
Unit Price
In Stock

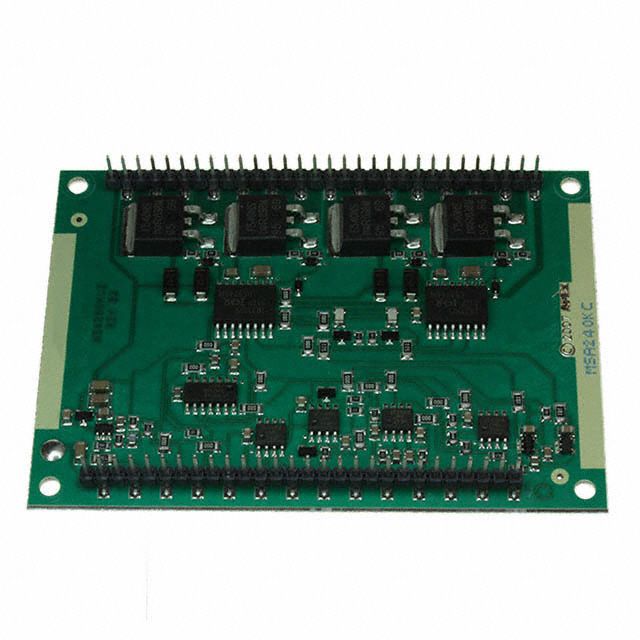

MSA240KC MSA240KC

Apex Microtechnology
Manufacturer : Apex Microtechnology
Series : Apex Precision Power®
Part Status : Active
Type : Board
Motor Type : Brushed DC
Control / Drive Type : Brushed
Number of Motors : 1
Voltage - Load : 3 ~ 100 V
Current - Output : 20A
Wattage - Load : 250W
Voltage - Supply : 14 ~ 16VDC
Interface : -
Mounting Type : Chassis Mount
Operating Temperature : -40°C ~ 85°C
Features : -
For Use With/Related Products : -
0
100 in stock

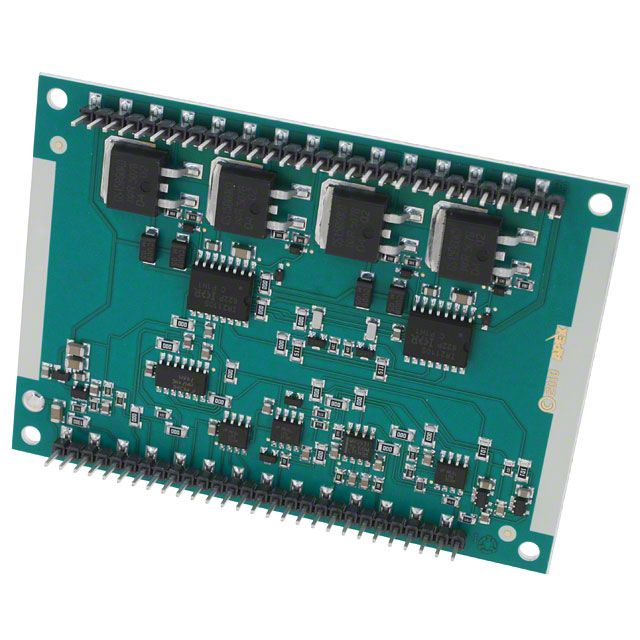

MSA260KC MSA260KC

Apex Microtechnology
Manufacturer : Apex Microtechnology
Series : Apex Precision Power®
Part Status : Active
Type : Board
Motor Type : Brushed DC
Control / Drive Type : Brushed
Number of Motors : 1
Voltage - Load : 5 ~ 450 V
Current - Output : 20A
Wattage - Load : 250W
Voltage - Supply : 14 ~ 16VDC
Interface : -
Mounting Type : Chassis Mount
Operating Temperature : -40°C ~ 85°C
Features : -
For Use With/Related Products : -
0
13 in stock

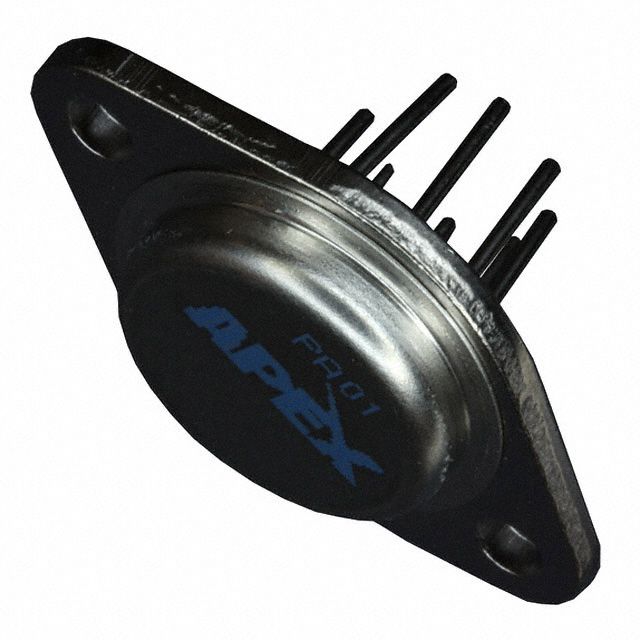

PA01 PA01

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 2.6 V/µs
Gain Bandwidth Product : 1MHz
-3db Bandwidth : -
Current - Input Bias : 15nA
Voltage - Input Offset : 5mV
Current - Supply : 20mA
Current - Output / Channel : 5A
Voltage - Supply, Single/Dual (±) : 20 V ~ 56 V, ±10 V ~ 28 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : TO-3-8
Supplier Device Package : TO-3-8
0
198 in stock

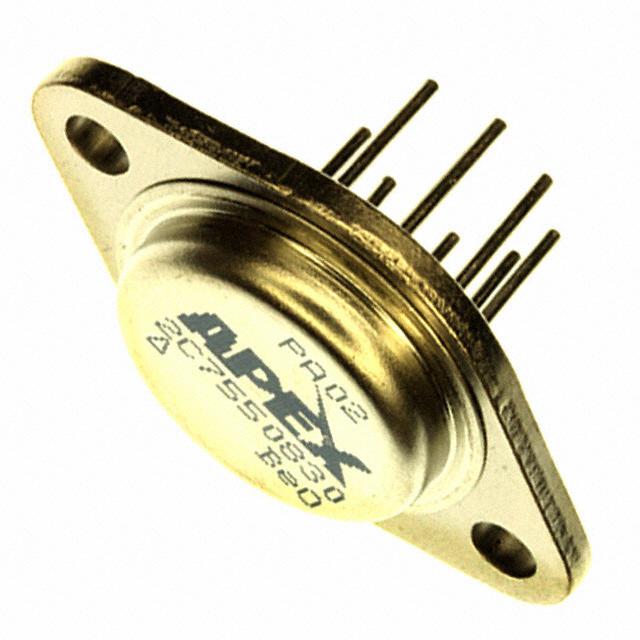

PA02 PA02

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Bulk
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 20 V/µs
Gain Bandwidth Product : 4.5MHz
-3db Bandwidth : -
Current - Input Bias : 50pA
Voltage - Input Offset : 5mV
Current - Supply : 27mA
Current - Output / Channel : 5A
Voltage - Supply, Single/Dual (±) : 14 V ~ 38 V, ±7 V ~ 19 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : TO-3-8
Supplier Device Package : TO-3-8
0
465 in stock

PA02A PA02A

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 20 V/µs
Gain Bandwidth Product : 4.5MHz
-3db Bandwidth : -
Current - Input Bias : 25pA
Voltage - Input Offset : 1mV
Current - Supply : 27mA
Current - Output / Channel : 5A
Voltage - Supply, Single/Dual (±) : 14 V ~ 38 V, ±7 V ~ 19 V
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Package / Case : TO-3-8
Supplier Device Package : TO-3-8
0
663 in stock

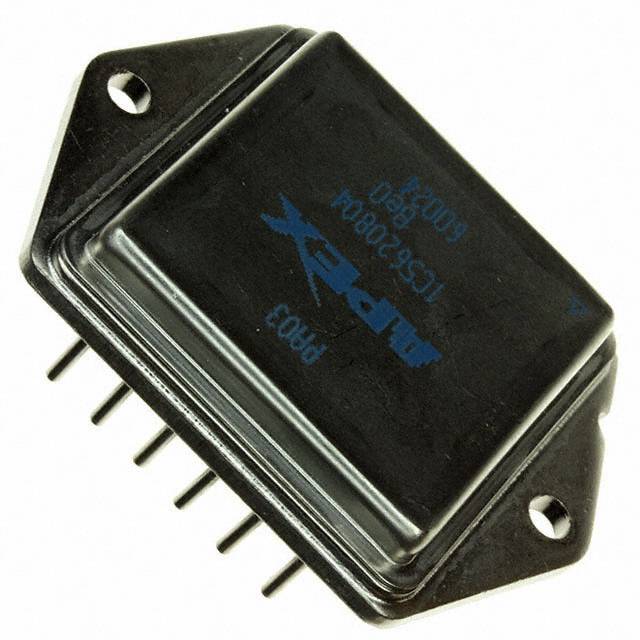

PA03 PA03

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Bulk
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 8 V/µs
Gain Bandwidth Product : 1MHz
-3db Bandwidth : -
Current - Input Bias : 5pA
Voltage - Input Offset : 500µV
Current - Supply : 125mA
Current - Output / Channel : 30A
Voltage - Supply, Single/Dual (±) : 30 V ~ 150 V, ±15 V ~ 75 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 12-DIP Module
Supplier Device Package : 12-DIP
0
10 in stock

PA04 PA04

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Bulk
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 50 V/µs
Gain Bandwidth Product : 2MHz
-3db Bandwidth : -
Current - Input Bias : 10pA
Voltage - Input Offset : 5mV
Current - Supply : 70mA
Current - Output / Channel : 20A
Voltage - Supply, Single/Dual (±) : 30 V ~ 200 V, ±15 V ~ 100 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 12-DIP Module
Supplier Device Package : 12-DIP
0
483 in stock

PA04A PA04A

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 50 V/µs
Gain Bandwidth Product : 2MHz
-3db Bandwidth : -
Current - Input Bias : 5pA
Voltage - Input Offset : 2mV
Current - Supply : 70mA
Current - Output / Channel : 20A
Voltage - Supply, Single/Dual (±) : 30 V ~ 200 V, ±15 V ~ 100 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 12-DIP Module
Supplier Device Package : 12-DIP
0
45 in stock

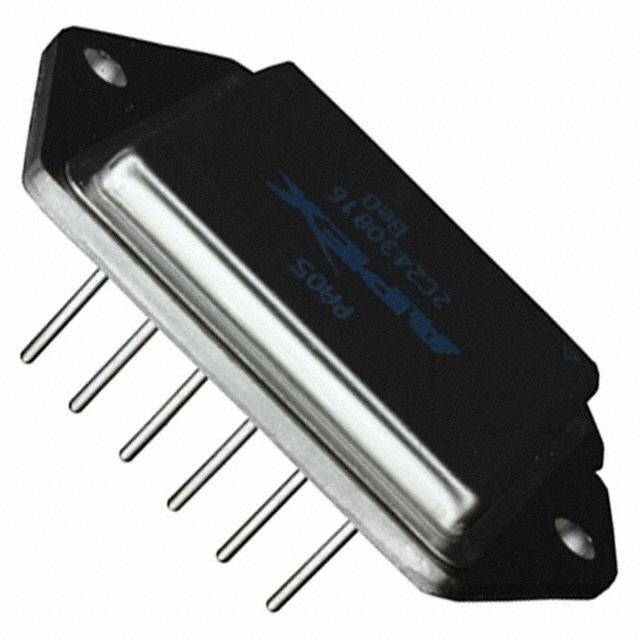

PA05 PA05

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Bulk
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 100 V/µs
Gain Bandwidth Product : 3MHz
-3db Bandwidth : -
Current - Input Bias : 10pA
Voltage - Input Offset : 5mV
Current - Supply : 90mA
Current - Output / Channel : 30A
Voltage - Supply, Single/Dual (±) : 30 V ~ 100 V, ±15 V ~ 50 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 12-DIP Module
Supplier Device Package : 12-DIP
0
156 in stock

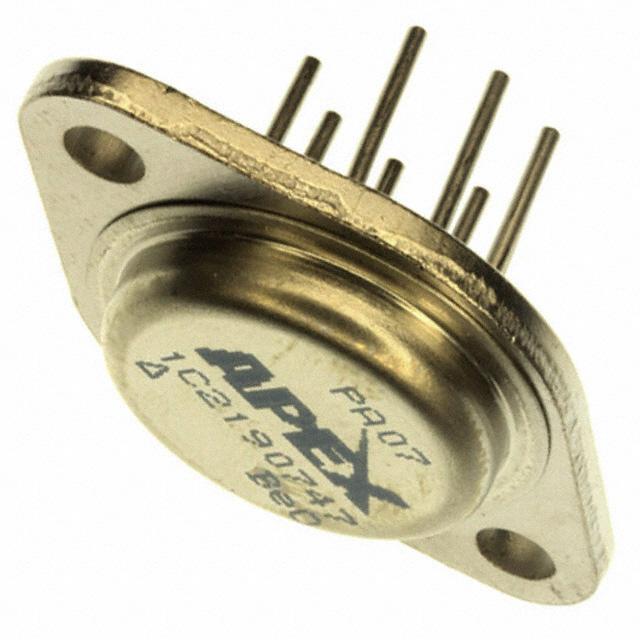

PA07 PA07

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tray
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 5 V/µs
Gain Bandwidth Product : 1.3MHz
-3db Bandwidth : -
Current - Input Bias : 5pA
Voltage - Input Offset : 500µV
Current - Supply : 18mA
Current - Output / Channel : 5A
Voltage - Supply, Single/Dual (±) : 24 V ~ 100 V, ±12 V ~ 50 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : TO-3-8
Supplier Device Package : TO-3-8
0
300 in stock

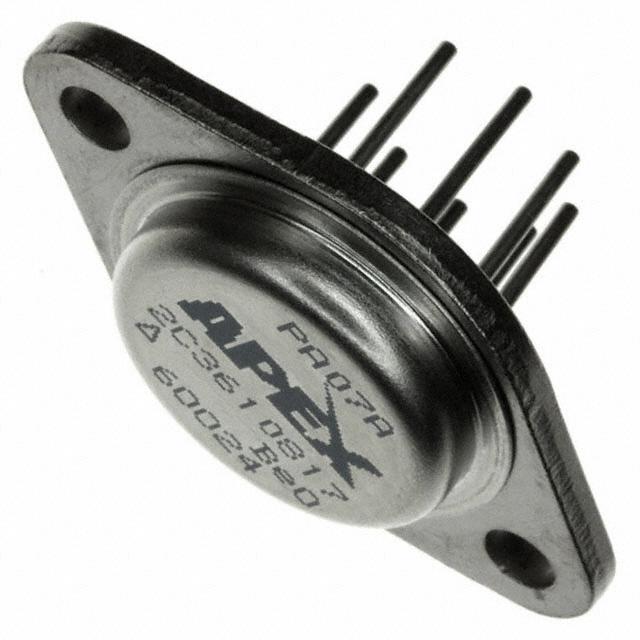

PA07A PA07A

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tray
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 5 V/µs
Gain Bandwidth Product : 1.3MHz
-3db Bandwidth : -
Current - Input Bias : 3pA
Voltage - Input Offset : 250µV
Current - Supply : 18mA
Current - Output / Channel : 5A
Voltage - Supply, Single/Dual (±) : 24 V ~ 100 V, ±12 V ~ 50 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : TO-3-8
Supplier Device Package : TO-3-8
0
144 in stock

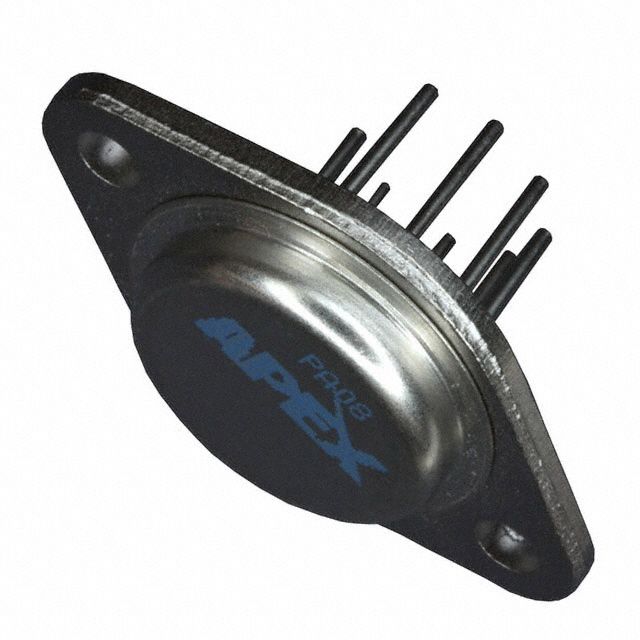

PA08 PA08

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 30 V/µs
Gain Bandwidth Product : 5MHz
-3db Bandwidth : -
Current - Input Bias : 5pA
Voltage - Input Offset : 500µV
Current - Supply : 6mA
Current - Output / Channel : 150mA
Voltage - Supply, Single/Dual (±) : 30 V ~ 300 V, ±15 V ~ 150 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : TO-3-8
Supplier Device Package : TO-3-8
0
43 in stock
