- Audio Products
- Alarms, Buzzers, and Sirens
Part Number
Manufacturer
Description
Unit Price
In Stock
ZA028SDDL1
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : 10 Sec On-Delay
Sound Pressure Level (SPL) : 65dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : 10 Sec On-Delay
Sound Pressure Level (SPL) : 65dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
0
100 in stock
ZA028SDDP2
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Double Pulse, Fast
Duration : 2 PPS
Sound Pressure Level (SPL) : 65dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Double Pulse, Fast
Duration : 2 PPS
Sound Pressure Level (SPL) : 65dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
0
100 in stock
ZA028SDDP3
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Double Pulse, Slow
Duration : 0.5 PPS
Sound Pressure Level (SPL) : 65dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Double Pulse, Slow
Duration : 0.5 PPS
Sound Pressure Level (SPL) : 65dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
0
100 in stock
ZA028SDDT7
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Warble, Fast
Duration : 7 WPS
Sound Pressure Level (SPL) : 65dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Warble, Fast
Duration : 7 WPS
Sound Pressure Level (SPL) : 65dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
0
100 in stock
ZA028SDDT8
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Warble, Slow
Duration : 1.5 WPS
Sound Pressure Level (SPL) : 65dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Warble, Slow
Duration : 1.5 WPS
Sound Pressure Level (SPL) : 65dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
0
100 in stock
ZA028SDFP1
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Pulse, Fast
Duration : 10 PPS
Sound Pressure Level (SPL) : 65dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Pulse, Fast
Duration : 10 PPS
Sound Pressure Level (SPL) : 65dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
0
100 in stock

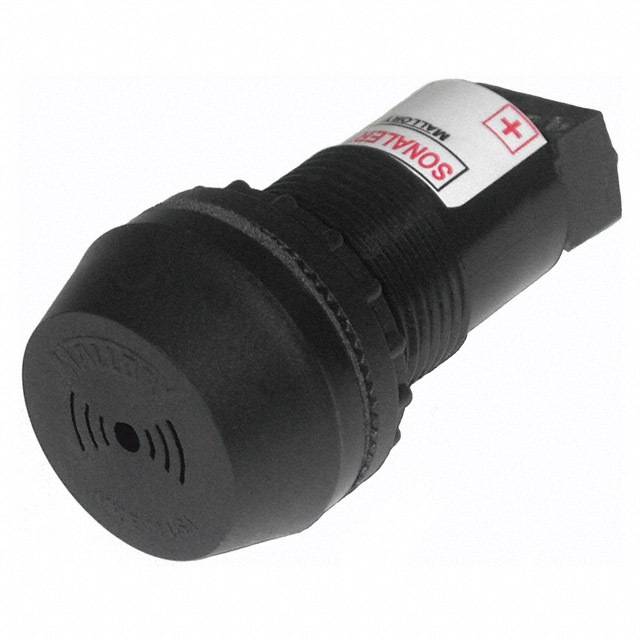

ZA028SDMP1
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Pulse, Medium
Duration : 5 PPS
Sound Pressure Level (SPL) : 65dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Pulse, Medium
Duration : 5 PPS
Sound Pressure Level (SPL) : 65dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
0
100 in stock
ZA028SDMT1
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.85kHz
Technology : Piezo
Operating Mode : Pin Selectable
Duration : Variable
Sound Pressure Level (SPL) : 65dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.85kHz
Technology : Piezo
Operating Mode : Pin Selectable
Duration : Variable
Sound Pressure Level (SPL) : 65dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
0
100 in stock
ZA028SDMT2
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.35kHz
Technology : Piezo
Operating Mode : Pin Selectable
Duration : Variable
Sound Pressure Level (SPL) : 65dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.35kHz
Technology : Piezo
Operating Mode : Pin Selectable
Duration : Variable
Sound Pressure Level (SPL) : 65dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
0
100 in stock
ZA028SDMT3
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.35kHz
Technology : Piezo
Operating Mode : Pin Selectable
Duration : Variable
Sound Pressure Level (SPL) : 65dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.35kHz
Technology : Piezo
Operating Mode : Pin Selectable
Duration : Variable
Sound Pressure Level (SPL) : 65dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
0
100 in stock
ZA028SDMT4
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.375kHz
Technology : Piezo
Operating Mode : Pin Selectable
Duration : Variable
Sound Pressure Level (SPL) : 65dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.375kHz
Technology : Piezo
Operating Mode : Pin Selectable
Duration : Variable
Sound Pressure Level (SPL) : 65dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
0
100 in stock
ZA028SDMT5
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.375kHz
Technology : Piezo
Operating Mode : Pin Selectable
Duration : Variable
Sound Pressure Level (SPL) : 65dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.375kHz
Technology : Piezo
Operating Mode : Pin Selectable
Duration : Variable
Sound Pressure Level (SPL) : 65dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
