- Audio Products
- Alarms, Buzzers, and Sirens
Part Number
Manufacturer
Description
Unit Price
In Stock

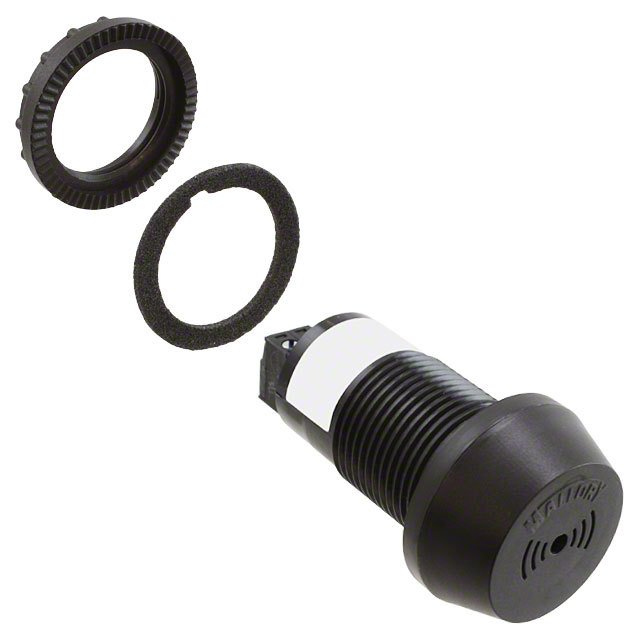

ZA028LDFP1
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Pulse, Fast
Duration : 10 PPS
Sound Pressure Level (SPL) : 85dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Pulse, Fast
Duration : 10 PPS
Sound Pressure Level (SPL) : 85dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
0
73 in stock
ZA028LDMP1
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Pulse, Medium
Duration : 5 PPS
Sound Pressure Level (SPL) : 85dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Pulse, Medium
Duration : 5 PPS
Sound Pressure Level (SPL) : 85dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
0
3 in stock
ZA028LDMT1
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.85kHz
Technology : Piezo
Operating Mode : Pin Selectable
Duration : Variable
Sound Pressure Level (SPL) : 85dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.85kHz
Technology : Piezo
Operating Mode : Pin Selectable
Duration : Variable
Sound Pressure Level (SPL) : 85dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
0
100 in stock
ZA028LDMT2
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.35kHz
Technology : Piezo
Operating Mode : Pin Selectable
Duration : Variable
Sound Pressure Level (SPL) : 85dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.35kHz
Technology : Piezo
Operating Mode : Pin Selectable
Duration : Variable
Sound Pressure Level (SPL) : 85dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
0
100 in stock
ZA028LDMT3
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.35kHz
Technology : Piezo
Operating Mode : Pin Selectable
Duration : Variable
Sound Pressure Level (SPL) : 85dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.35kHz
Technology : Piezo
Operating Mode : Pin Selectable
Duration : Variable
Sound Pressure Level (SPL) : 85dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
0
100 in stock
ZA028LDMT4
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.375kHz
Technology : Piezo
Operating Mode : Pin Selectable
Duration : Variable
Sound Pressure Level (SPL) : 85dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.375kHz
Technology : Piezo
Operating Mode : Pin Selectable
Duration : Variable
Sound Pressure Level (SPL) : 85dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
0
100 in stock
ZA028LDMT5
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.375kHz
Technology : Piezo
Operating Mode : Pin Selectable
Duration : Variable
Sound Pressure Level (SPL) : 85dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.375kHz
Technology : Piezo
Operating Mode : Pin Selectable
Duration : Variable
Sound Pressure Level (SPL) : 85dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
0
100 in stock
ZA028LDMT6
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.1kHz
Technology : Piezo
Operating Mode : Pin Selectable
Duration : Variable
Sound Pressure Level (SPL) : 85dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.1kHz
Technology : Piezo
Operating Mode : Pin Selectable
Duration : Variable
Sound Pressure Level (SPL) : 85dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
0
100 in stock
ZA028LDMT7
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.1kHz
Technology : Piezo
Operating Mode : Pin Selectable
Duration : Variable
Sound Pressure Level (SPL) : 85dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.1kHz
Technology : Piezo
Operating Mode : Pin Selectable
Duration : Variable
Sound Pressure Level (SPL) : 85dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
0
100 in stock
ZA028LDMT8
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.375kHz
Technology : Piezo
Operating Mode : Pin Selectable
Duration : Variable
Sound Pressure Level (SPL) : 85dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.375kHz
Technology : Piezo
Operating Mode : Pin Selectable
Duration : Variable
Sound Pressure Level (SPL) : 85dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
0
100 in stock
ZA028LDPS1
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Pulse, Short
Duration : 1 PPS
Sound Pressure Level (SPL) : 85dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Pulse, Short
Duration : 1 PPS
Sound Pressure Level (SPL) : 85dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
0
100 in stock
ZA028LDSP1
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Pulse, Slow
Duration : 1 PPS
Sound Pressure Level (SPL) : 85dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 16 ~ 28V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Pulse, Slow
Duration : 1 PPS
Sound Pressure Level (SPL) : 85dB @ 16V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
