- Audio Products
- Alarms, Buzzers, and Sirens
Part Number
Manufacturer
Description
Unit Price
In Stock
STA22702W
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : -
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 12 ~ 24V
Frequency : 1.25kHz
Technology : Piezo
Operating Mode : Pulse, Slow
Duration : -
Sound Pressure Level (SPL) : 107dB @ 12V, 122cm
Current - Supply : 1A
Port Location : User Defined
Operating Temperature : -40°C ~ 85°C
Approvals : CE, cUL, SAE, UL
Ratings : -
Ingress Protection : -
Mounting Type : Bracket Mount
Termination : Screw Terminals
Size / Dimension : 3.268" L x 2.008" W (83.00mm x 51.00mm)
Height - Seated (Max) : 3.268" (83.00mm)
Packaging : Bulk
Series : -
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 12 ~ 24V
Frequency : 1.25kHz
Technology : Piezo
Operating Mode : Pulse, Slow
Duration : -
Sound Pressure Level (SPL) : 107dB @ 12V, 122cm
Current - Supply : 1A
Port Location : User Defined
Operating Temperature : -40°C ~ 85°C
Approvals : CE, cUL, SAE, UL
Ratings : -
Ingress Protection : -
Mounting Type : Bracket Mount
Termination : Screw Terminals
Size / Dimension : 3.268" L x 2.008" W (83.00mm x 51.00mm)
Height - Seated (Max) : 3.268" (83.00mm)
0
100 in stock
STA32264A
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : -
Series : STA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 12 ~ 48V
Frequency : -
Technology : Piezo
Operating Mode : Pulse, Slow
Duration : -
Sound Pressure Level (SPL) : -
Current - Supply : 600mA
Port Location : User Defined
Operating Temperature : -40°C ~ 85°C
Approvals : CE, UR
Ratings : -
Ingress Protection : -
Mounting Type : Bracket Mount
Termination : Screw Terminals
Size / Dimension : -
Height - Seated (Max) : 2.795" (71.00mm)
Packaging : -
Series : STA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 12 ~ 48V
Frequency : -
Technology : Piezo
Operating Mode : Pulse, Slow
Duration : -
Sound Pressure Level (SPL) : -
Current - Supply : 600mA
Port Location : User Defined
Operating Temperature : -40°C ~ 85°C
Approvals : CE, UR
Ratings : -
Ingress Protection : -
Mounting Type : Bracket Mount
Termination : Screw Terminals
Size / Dimension : -
Height - Seated (Max) : 2.795" (71.00mm)
0
100 in stock

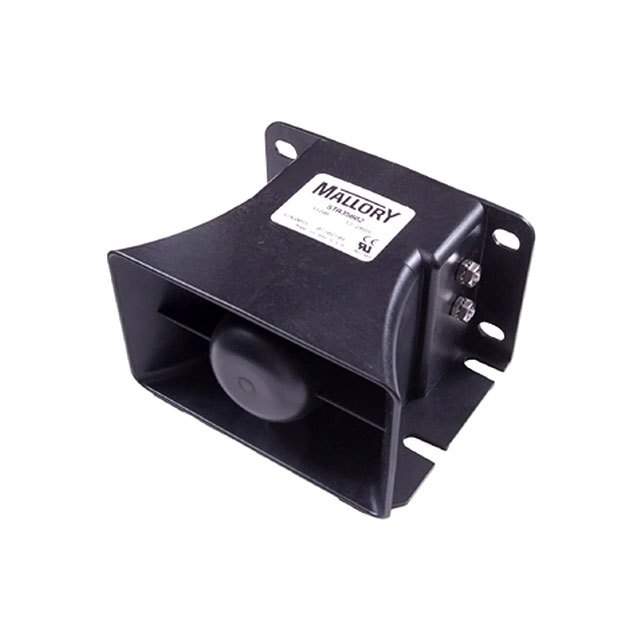

STA35802
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : -
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 12 ~ 24V
Frequency : 1.25kHz
Technology : Piezo
Operating Mode : Pulse, Slow
Duration : -
Sound Pressure Level (SPL) : 112dB @ 12V, 122cm
Current - Supply : 1A
Port Location : User Defined
Operating Temperature : -40°C ~ 85°C
Approvals : CE, cUL, SAE, UL
Ratings : -
Ingress Protection : -
Mounting Type : Bracket Mount
Termination : Screw Terminals
Size / Dimension : 5.000" L x 3.937" W (127.00mm x 100.00mm)
Height - Seated (Max) : 3.110" (79.00mm)
Packaging : Bulk
Series : -
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 12 ~ 24V
Frequency : 1.25kHz
Technology : Piezo
Operating Mode : Pulse, Slow
Duration : -
Sound Pressure Level (SPL) : 112dB @ 12V, 122cm
Current - Supply : 1A
Port Location : User Defined
Operating Temperature : -40°C ~ 85°C
Approvals : CE, cUL, SAE, UL
Ratings : -
Ingress Protection : -
Mounting Type : Bracket Mount
Termination : Screw Terminals
Size / Dimension : 5.000" L x 3.937" W (127.00mm x 100.00mm)
Height - Seated (Max) : 3.110" (79.00mm)
0
16 in stock
STA40802
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : -
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 12 ~ 24V
Frequency : 1.25kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 112dB @ 12V, 122cm
Current - Supply : 1A
Port Location : Side
Operating Temperature : -40°C ~ 85°C
Approvals : CE, SAE, UL
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Screw Terminals
Size / Dimension : 7.244" L x 3.937" W (184.00mm x 100.00mm)
Height - Seated (Max) : 3.268" (83.00mm)
Packaging : Bulk
Series : -
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 12 ~ 24V
Frequency : 1.25kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 112dB @ 12V, 122cm
Current - Supply : 1A
Port Location : Side
Operating Temperature : -40°C ~ 85°C
Approvals : CE, SAE, UL
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Screw Terminals
Size / Dimension : 7.244" L x 3.937" W (184.00mm x 100.00mm)
Height - Seated (Max) : 3.268" (83.00mm)
0
100 in stock

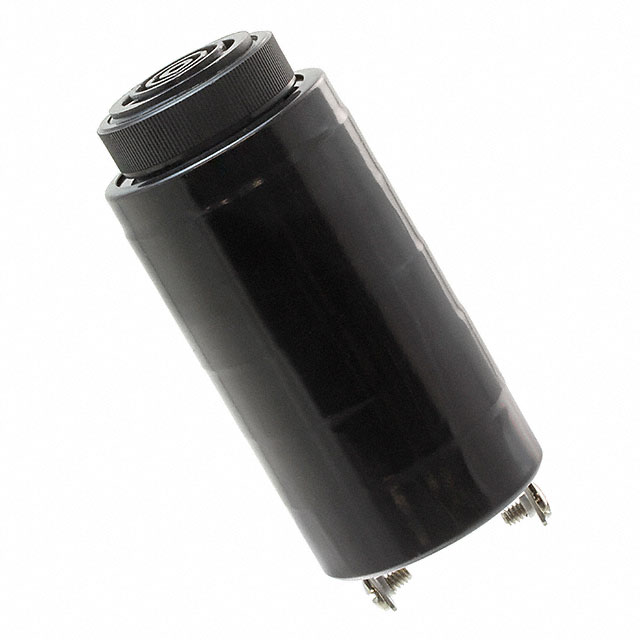

VSB110-1
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : VSB
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : AC
Voltage - Rated : 110V
Voltage Range : 30 ~ 120V
Frequency : 800Hz, 1.2kHz
Technology : Piezo
Operating Mode : Cuckoo
Duration : Repeating every 1.5 Sec
Sound Pressure Level (SPL) : 80dB @ 110V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -40°C ~ 85°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
Size / Dimension : 1.687" Dia (42.85mm)
Height - Seated (Max) : 3.642" (92.50mm)
Packaging : Bulk
Series : VSB
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : AC
Voltage - Rated : 110V
Voltage Range : 30 ~ 120V
Frequency : 800Hz, 1.2kHz
Technology : Piezo
Operating Mode : Cuckoo
Duration : Repeating every 1.5 Sec
Sound Pressure Level (SPL) : 80dB @ 110V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -40°C ~ 85°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
Size / Dimension : 1.687" Dia (42.85mm)
Height - Seated (Max) : 3.642" (92.50mm)
0
100 in stock
VSB110-2
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : VSB
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : AC
Voltage - Rated : 110V
Voltage Range : 30 ~ 120V
Frequency : 2kHz
Technology : Piezo
Operating Mode : Chirp
Duration : Repeating every 1 Sec
Sound Pressure Level (SPL) : 80dB @ 110V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -40°C ~ 85°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
Size / Dimension : 1.687" Dia (42.85mm)
Height - Seated (Max) : 3.642" (92.50mm)
Packaging : Bulk
Series : VSB
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : AC
Voltage - Rated : 110V
Voltage Range : 30 ~ 120V
Frequency : 2kHz
Technology : Piezo
Operating Mode : Chirp
Duration : Repeating every 1 Sec
Sound Pressure Level (SPL) : 80dB @ 110V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -40°C ~ 85°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
Size / Dimension : 1.687" Dia (42.85mm)
Height - Seated (Max) : 3.642" (92.50mm)
0
8 in stock
VW-05MR-RL
PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Bulk
Series : VW
Part Status : Obsolete
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 24V
Voltage Range : 9 ~ 28V
Frequency : -
Technology : Piezo
Operating Mode : Siren, Visual Indicator
Duration : -
Sound Pressure Level (SPL) : -
Current - Supply : 6mA
Port Location : Top
Operating Temperature : -10°C ~ 55°C
Approvals : -
Ratings : -
Ingress Protection : IP42
Mounting Type : Base Mount
Termination : -
Size / Dimension : 4.016" Dia (102.00mm)
Height - Seated (Max) : 2.291" (58.20mm)
Packaging : Bulk
Series : VW
Part Status : Obsolete
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 24V
Voltage Range : 9 ~ 28V
Frequency : -
Technology : Piezo
Operating Mode : Siren, Visual Indicator
Duration : -
Sound Pressure Level (SPL) : -
Current - Supply : 6mA
Port Location : Top
Operating Temperature : -10°C ~ 55°C
Approvals : -
Ratings : -
Ingress Protection : IP42
Mounting Type : Base Mount
Termination : -
Size / Dimension : 4.016" Dia (102.00mm)
Height - Seated (Max) : 2.291" (58.20mm)
0
100 in stock
VW-35SBR-RL
PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Bulk
Series : VW
Part Status : Obsolete
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 24V
Voltage Range : 9 ~ 28V
Frequency : -
Technology : Piezo
Operating Mode : Siren, Visual Indicator
Duration : -
Sound Pressure Level (SPL) : -
Current - Supply : 6mA
Port Location : Top
Operating Temperature : -10°C ~ 55°C
Approvals : -
Ratings : -
Ingress Protection : IP54 - Dust Protected, Water Resistant
Mounting Type : Base Mount
Termination : -
Size / Dimension : 3.661" Dia (93.00mm)
Height - Seated (Max) : 2.146" (54.50mm)
Packaging : Bulk
Series : VW
Part Status : Obsolete
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 24V
Voltage Range : 9 ~ 28V
Frequency : -
Technology : Piezo
Operating Mode : Siren, Visual Indicator
Duration : -
Sound Pressure Level (SPL) : -
Current - Supply : 6mA
Port Location : Top
Operating Temperature : -10°C ~ 55°C
Approvals : -
Ratings : -
Ingress Protection : IP54 - Dust Protected, Water Resistant
Mounting Type : Base Mount
Termination : -
Size / Dimension : 3.661" Dia (93.00mm)
Height - Seated (Max) : 2.146" (54.50mm)
0
100 in stock

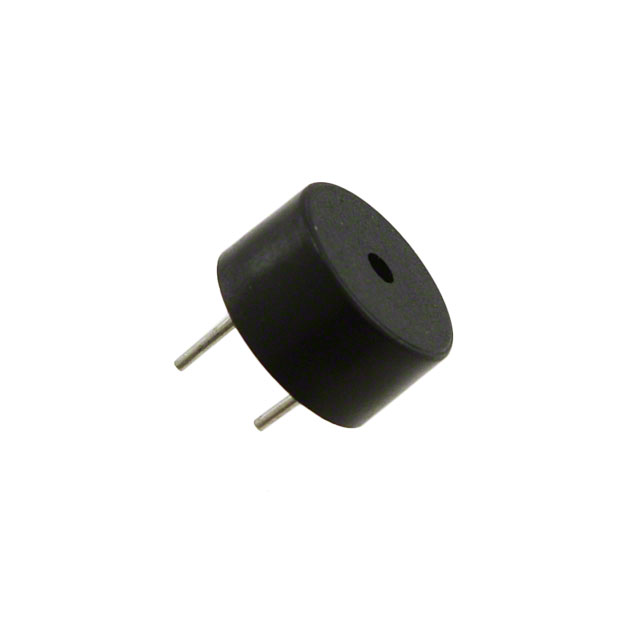

WST-0905S
Soberton, Inc.
Manufacturer : Soberton Inc.
Packaging : Tray
Series : WST
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : Zero-Peak Signal
Voltage - Rated : 5V
Voltage Range : 4 ~ 6V
Frequency : 2.73kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 83dB @ 5V, 10cm
Current - Supply : 35mA
Port Location : Top
Operating Temperature : -20°C ~ 60°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.378" Dia (9.60mm)
Height - Seated (Max) : 0.209" (5.30mm)
Packaging : Tray
Series : WST
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : Zero-Peak Signal
Voltage - Rated : 5V
Voltage Range : 4 ~ 6V
Frequency : 2.73kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 83dB @ 5V, 10cm
Current - Supply : 35mA
Port Location : Top
Operating Temperature : -20°C ~ 60°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.378" Dia (9.60mm)
Height - Seated (Max) : 0.209" (5.30mm)
0
351 in stock

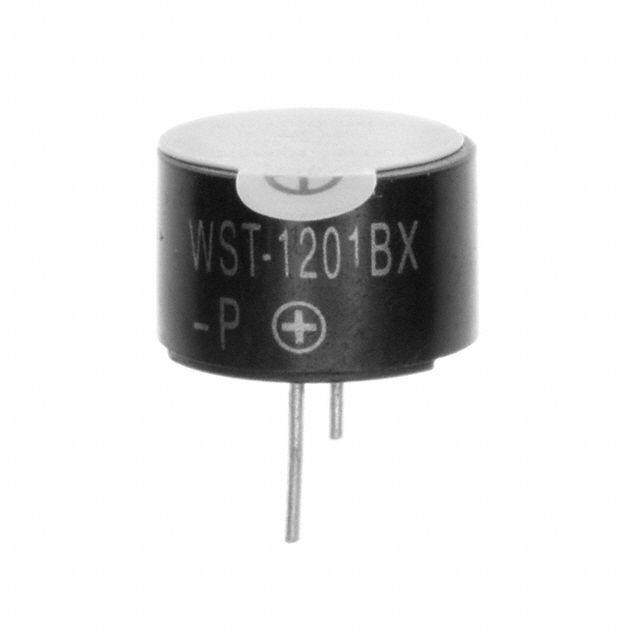

WST-1201BX
Soberton, Inc.
Manufacturer : Soberton Inc.
Packaging : Bulk
Series : WST
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : Zero-Peak Signal
Voltage - Rated : 1.5V
Voltage Range : 1.4 ~ 2V
Frequency : 3.1kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 75dB @ 1.5V, 10cm
Current - Supply : 25mA
Port Location : Top
Operating Temperature : -20°C ~ 60°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.472" Dia (12.00mm)
Height - Seated (Max) : 0.303" (7.70mm)
Packaging : Bulk
Series : WST
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : Zero-Peak Signal
Voltage - Rated : 1.5V
Voltage Range : 1.4 ~ 2V
Frequency : 3.1kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 75dB @ 1.5V, 10cm
Current - Supply : 25mA
Port Location : Top
Operating Temperature : -20°C ~ 60°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.472" Dia (12.00mm)
Height - Seated (Max) : 0.303" (7.70mm)
0
42 in stock

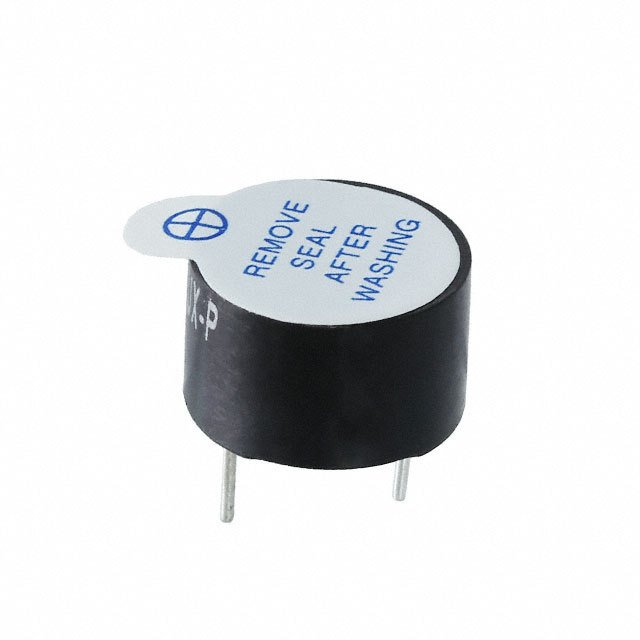

WST-1201UX
Soberton, Inc.
Manufacturer : Soberton Inc.
Packaging : Tray
Series : WST
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 1.5V
Voltage Range : 1.4 ~ 2V
Frequency : 2.3kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 75dB @ 1.5V, 10cm
Current - Supply : 25mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.472" Dia (12.00mm)
Height - Seated (Max) : 0.303" (7.70mm)
Packaging : Tray
Series : WST
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 1.5V
Voltage Range : 1.4 ~ 2V
Frequency : 2.3kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 75dB @ 1.5V, 10cm
Current - Supply : 25mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.472" Dia (12.00mm)
Height - Seated (Max) : 0.303" (7.70mm)
0
100 in stock

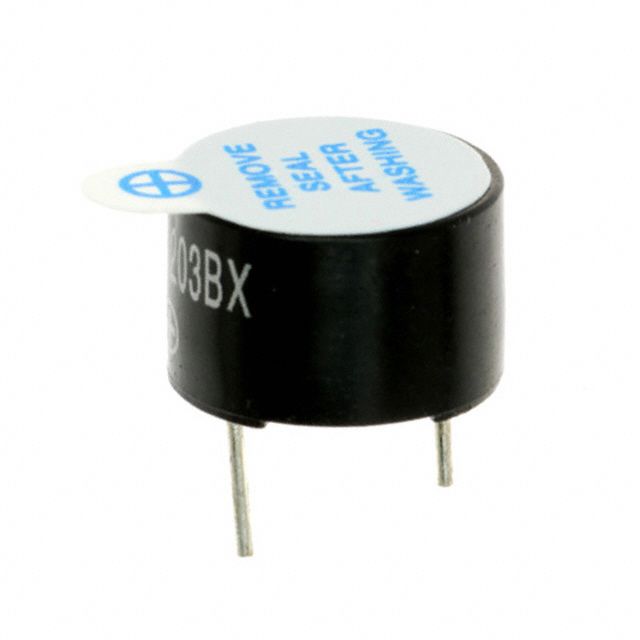

WST-1203BX
Soberton, Inc.
Manufacturer : Soberton Inc.
Packaging : Bulk
Series : WST
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : Zero-Peak Signal
Voltage - Rated : 3V
Voltage Range : 2 ~ 4V
Frequency : 3.1kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 82dB @ 3V, 10cm
Current - Supply : 30mA
Port Location : Top
Operating Temperature : -20°C ~ 60°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.472" Dia (12.00mm)
Height - Seated (Max) : 0.303" (7.70mm)
Packaging : Bulk
Series : WST
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : Zero-Peak Signal
Voltage - Rated : 3V
Voltage Range : 2 ~ 4V
Frequency : 3.1kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 82dB @ 3V, 10cm
Current - Supply : 30mA
Port Location : Top
Operating Temperature : -20°C ~ 60°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.472" Dia (12.00mm)
Height - Seated (Max) : 0.303" (7.70mm)
0
13619 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
