Alarms, Buzzers, and Sirens Products, Stocks, Distributors, Manufactor, Shopping, Company,Electronic Components Online store


Part Number

Manufacturer

Description

Unit Price

In Stock

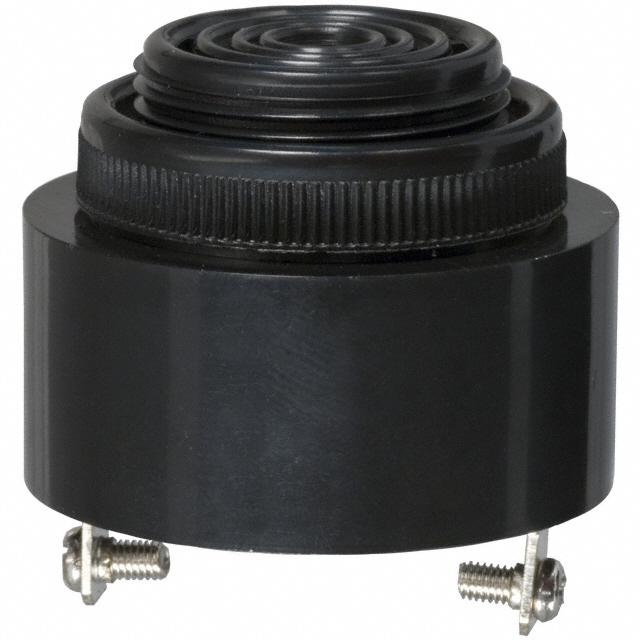

AI-4328-P-C120D-R

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Tray
Series : AI
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : AC, DC
Voltage - Rated : 110V
Voltage Range : 30 ~ 120V
Frequency : 2.8kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 98dB @ 110V, 10cm
Current - Supply : 17mA
Port Location : Top
Operating Temperature : -20°C ~ 60°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Screw Terminal, Quick Connect Tab - 0.256" (6.50mm)
Size / Dimension : 1.693" Dia (43.00mm)
Height - Seated (Max) : 1.319" (33.50mm)

1729 in stock

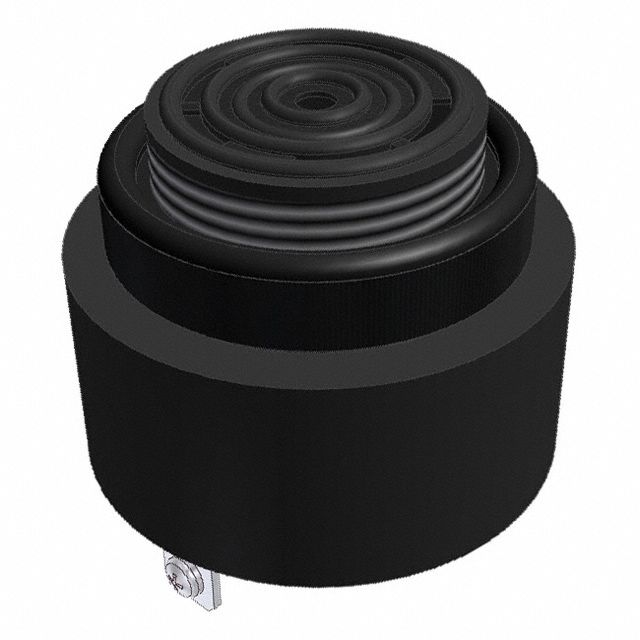

AI-4328-P-C120-R

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Bulk
Series : AI
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : AC, DC
Voltage - Rated : 110V
Voltage Range : 30 ~ 120V
Frequency : 2.8kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 98dB @ 110V, 10cm
Current - Supply : 17mA
Port Location : Top
Operating Temperature : -30°C ~ 85°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Screw Terminal, Quick Connect Tab - 0.256" (6.50mm)
Size / Dimension : 1.673" Dia (42.50mm)
Height - Seated (Max) : 1.319" (33.50mm)

225 in stock

AI-4328-P-C28-2-R

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Bulk
Series : AI
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : 4 ~ 28V
Frequency : 2.8kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 97dB @ 12V, 10cm
Current - Supply : 8mA
Port Location : Top
Operating Temperature : -20°C ~ 60°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Screw Terminal, Quick Connect Tab - 0.256" (6.50mm)
Size / Dimension : 1.693" Dia (43.00mm)
Height - Seated (Max) : 1.319" (33.50mm)

1829 in stock

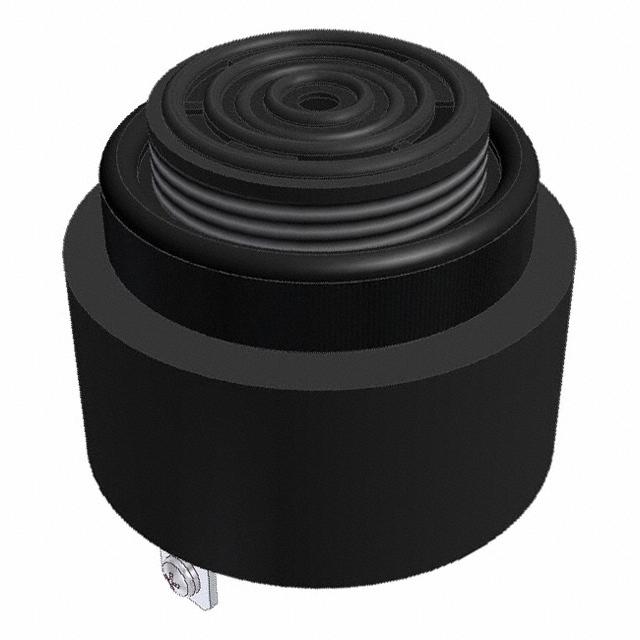

AI-4328-P-C28-R

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Bulk
Series : AI
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : AC, DC
Voltage - Rated : 12V
Voltage Range : 4 ~ 28V
Frequency : 2.8kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 91dB @ 12V, 10cm
Current - Supply : 7mA
Port Location : Top
Operating Temperature : -30°C ~ 85°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Screw Terminal, Quick Connect Tab - 0.256" (6.50mm)
Size / Dimension : 1.673" Dia (42.50mm)
Height - Seated (Max) : 1.319" (33.50mm)

130 in stock

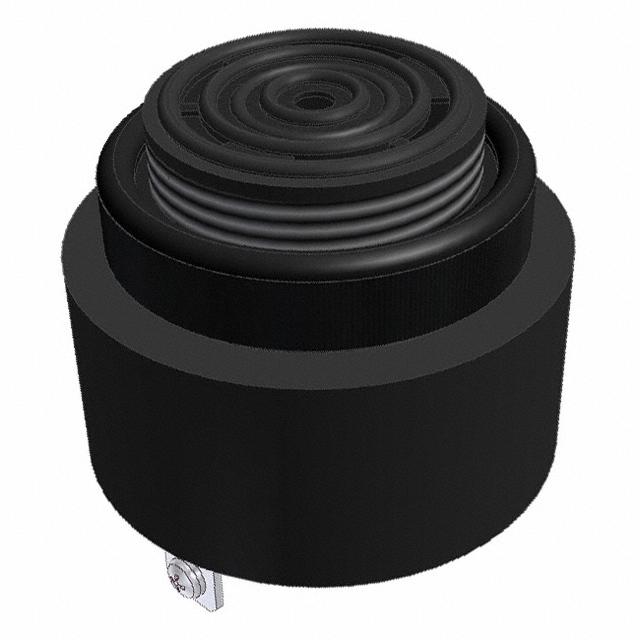

AI-4328-P-FP250-R

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Bulk
Series : AI
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : AC, DC
Voltage - Rated : 220V
Voltage Range : 60 ~ 250V
Frequency : 2.8kHz
Technology : Piezo
Operating Mode : Pulse, Fast
Duration : 3 PPS
Sound Pressure Level (SPL) : 91dB @ 220V, 10cm
Current - Supply : 16mA
Port Location : Top
Operating Temperature : -30°C ~ 85°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Screw Terminal, Quick Connect Tab - 0.256" (6.50mm)
Size / Dimension : 1.673" Dia (42.50mm)
Height - Seated (Max) : 1.319" (33.50mm)

66 in stock

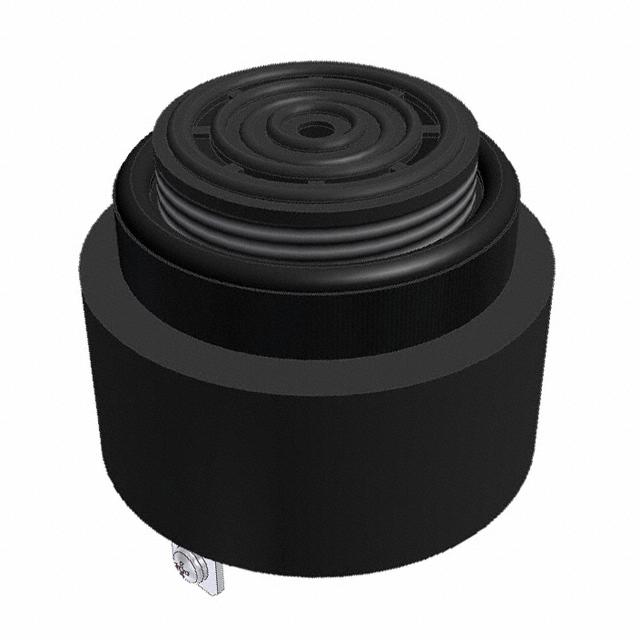

AI-4329-P-FP28-R

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Tray
Series : AI
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : 6 ~ 28V
Frequency : 2.9kHz
Technology : Piezo
Operating Mode : Pulse, Fast
Duration : 3.2 PPS
Sound Pressure Level (SPL) : 88dB @ 12V, 10cm
Current - Supply : 6mA
Port Location : Top
Operating Temperature : -20°C ~ 60°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Screw Terminal, Quick Connect Tab - 0.256" (6.50mm)
Size / Dimension : 1.693" Dia (43.00mm)
Height - Seated (Max) : 1.319" (33.50mm)

177 in stock

AI-4329-P-SP28-R

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Tray
Series : AI
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : 4 ~ 28V
Frequency : 2.9kHz
Technology : Piezo
Operating Mode : Pulse, Slow
Duration : 1.2 PPS
Sound Pressure Level (SPL) : 88dB @ 12V, 10cm
Current - Supply : 6mA
Port Location : Top
Operating Temperature : -20°C ~ 60°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Screw Terminal, Quick Connect Tab - 0.256" (6.50mm)
Size / Dimension : 1.693" Dia (43.00mm)
Height - Seated (Max) : 1.319" (33.50mm)

396 in stock

AI-433

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Bulk
Series : AI
Part Status : Obsolete
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : -
Frequency : -
Technology : Piezo
Operating Mode : -
Duration : -
Sound Pressure Level (SPL) : -
Current - Supply : -
Port Location : -
Operating Temperature : -
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount, Flange
Termination : Wire Leads
Size / Dimension : 1.646" Dia (41.80mm)
Height - Seated (Max) : 0.630" (16.00mm)

100 in stock

AI-435

PUI Audio, Inc.

100 in stock

AI-4429-P-C12-2-R

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Bulk
Series : AI
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : 1 ~ 16V
Frequency : 2.9kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 105dB @ 12V, 10cm
Current - Supply : 30mA
Port Location : Top
Operating Temperature : -25°C ~ 75°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Screw Terminal, Quick Connect Tab - 0.256" (6.50mm)
Size / Dimension : 1.693" Dia (43.00mm)
Height - Seated (Max) : 1.331" (33.80mm)

531 in stock

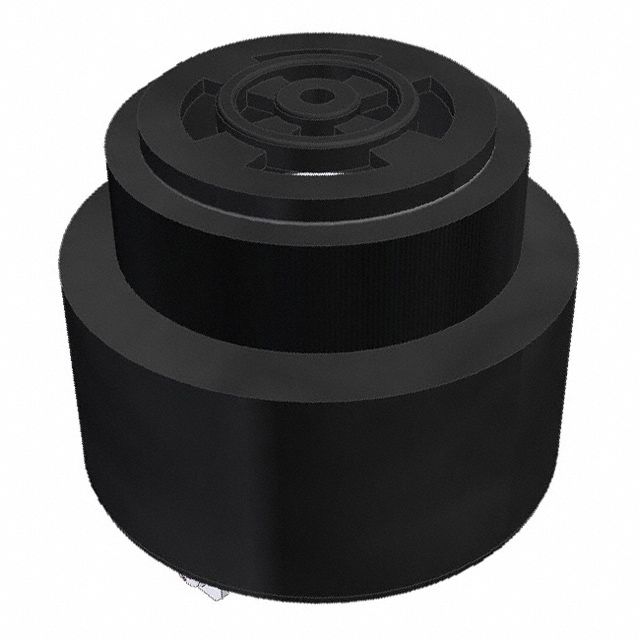

AI-4429-P-C12-R

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Bulk
Series : AI
Part Status : Discontinued at
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : 1 ~ 16V
Frequency : 2.9kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 105dB @ 12V, 10cm
Current - Supply : 30mA
Port Location : Top
Operating Temperature : -25°C ~ 75°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Screw Terminal, Quick Connect Tab - 0.256" (6.50mm)
Size / Dimension : 1.713" Dia (43.50mm)
Height - Seated (Max) : 1.339" (34.00mm)

100 in stock

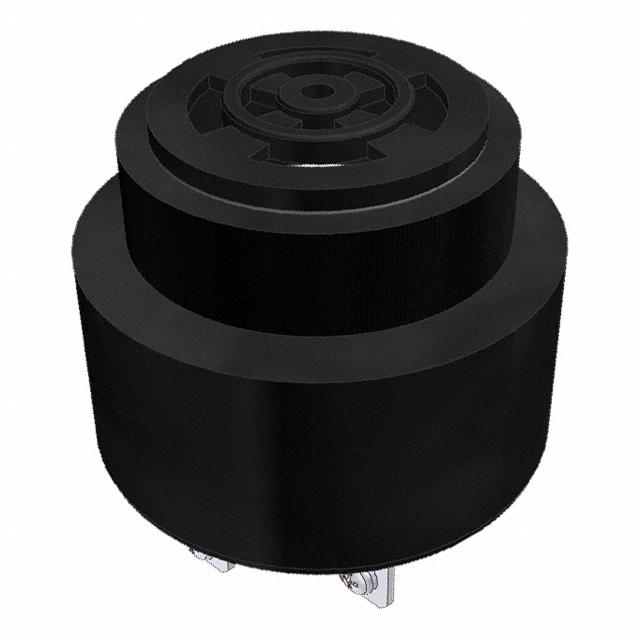

AI-4429-P-CP12-2-R

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Bulk
Series : AI
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : 4 ~ 16V
Frequency : 2.9kHz
Technology : Piezo
Operating Mode : Pin Selectable
Duration : 1.5 PPS
Sound Pressure Level (SPL) : 105dB @ 12V, 10cm
Current - Supply : 25mA
Port Location : Top
Operating Temperature : -20°C ~ 60°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Screw Terminal, Quick Connect Tab - 0.256" (6.50mm)
Size / Dimension : 1.693" Dia (43.00mm)
Height - Seated (Max) : 1.331" (33.80mm)

216 in stock
